Question on Punch Amp Module

[roknkj]

So i am working on a Punch 75HD with one bad channel. I narrowed it down to one the punch amp modules. One of the SOT23 SMD is:


Is this a 3.3v zener diode SOT-23?

On page 2 its the module with 17 pins.
View attachment rockford - HD-ModuleSchematics.pdf



[roknkj]

That would be this SOT23 see attached



[Perry Babin]

If it's a 3.3v Zener. it's likely an MMBZ5226.


To upload photos click the following:

Go Advanced
Manage Attachments
Browse
Upload

Repeat as necessary

Preview post to see how the post will look.

Click Submit Reply to send it to the forum.



[roknkj]

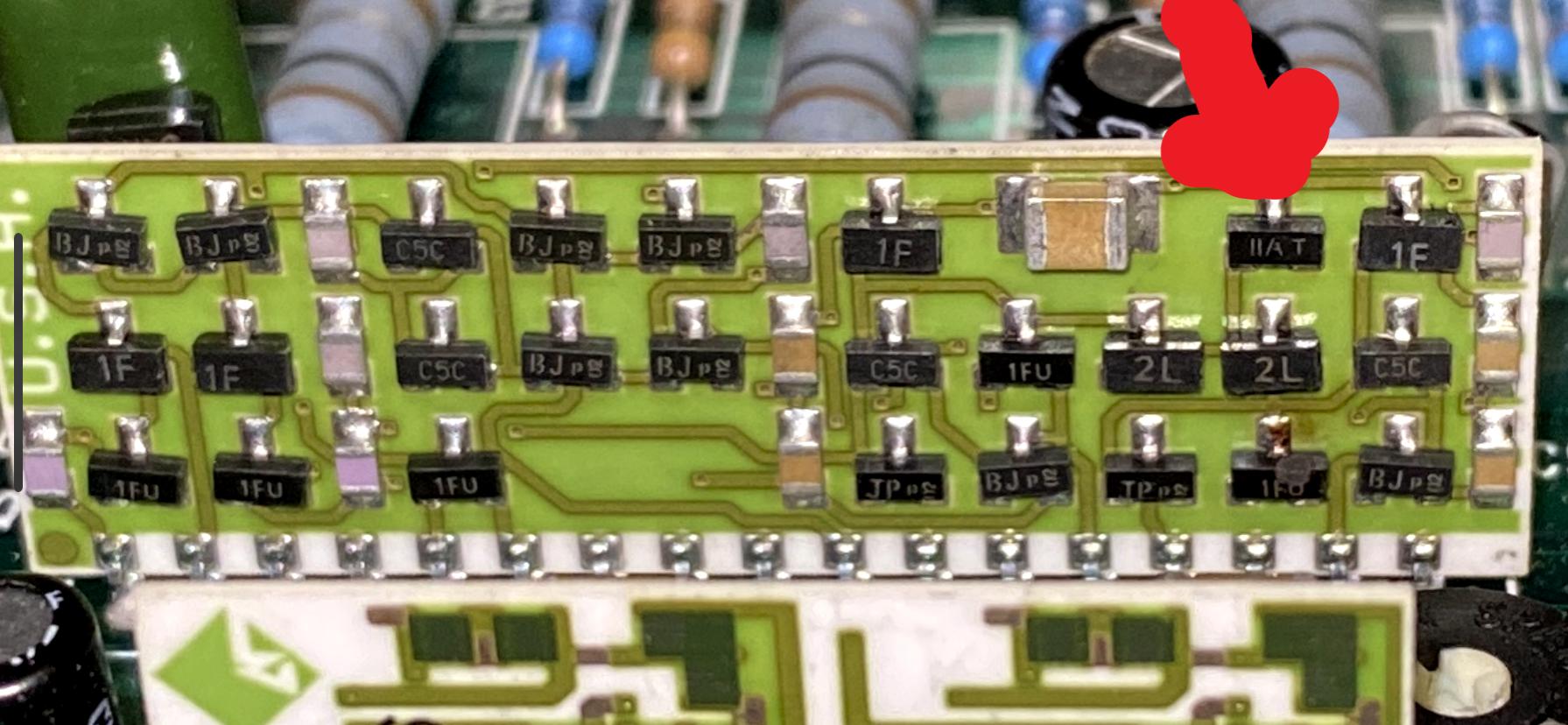

here is the attached picture.



[Perry Babin]

https://datasheet.octopart.com/MMBZ5226BLT1G-ON-Semiconductor-datasheet-10741849.pdf



[roknkj]

Thank you
