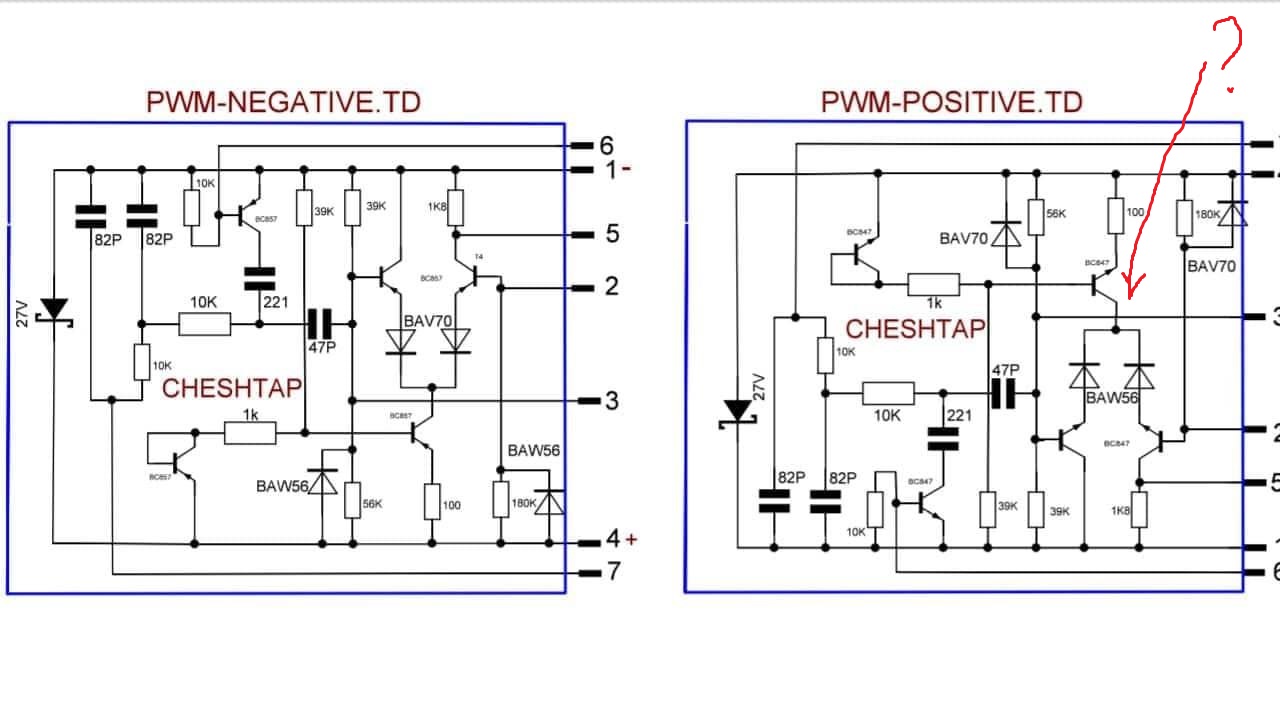

PWMPATD/PWMNATD schematic neeeded !

[Hex28]

Need some help with PWMPATD and PWMNATD driver boards , thank you!



[sweetperfume]

Ok



[Hex28]

Any help is greatly appreciated! 🙂



[andrewlebon]

PWM TD CLASS

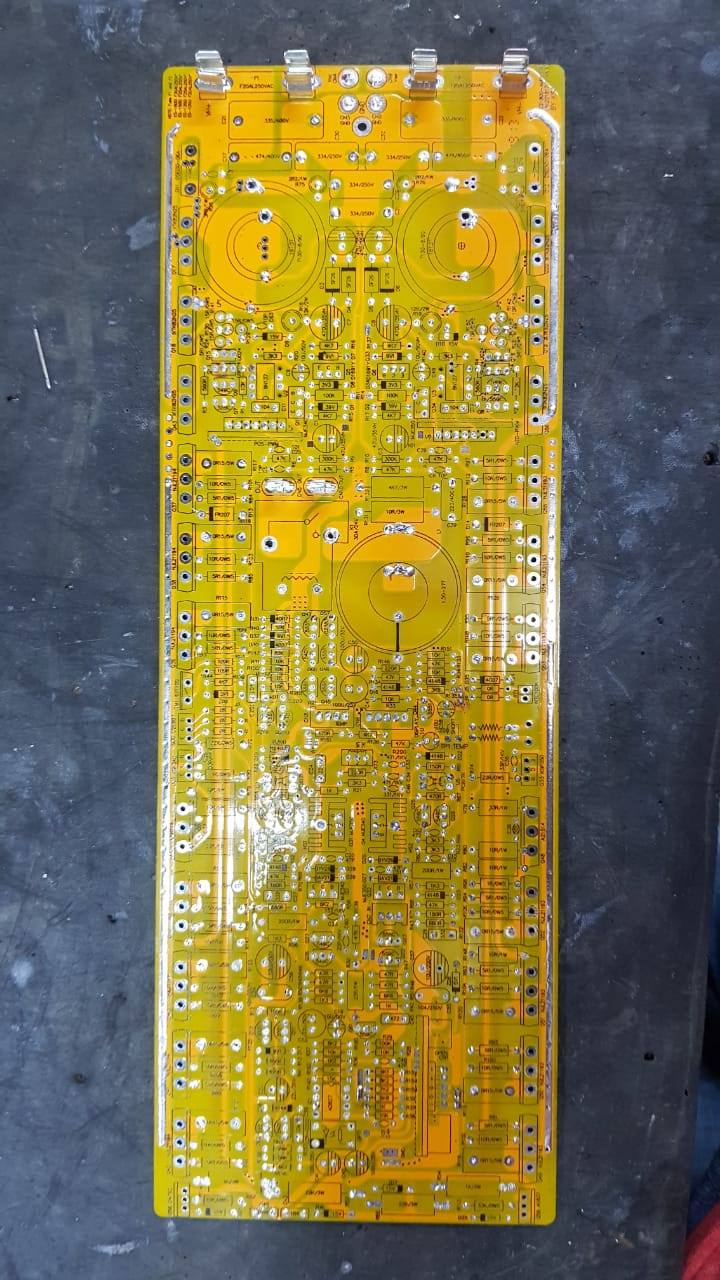

I am also making TD class stripped orignal pcb to clone pcb😉😉😉



[andrewlebon]

PWM TD CLASS

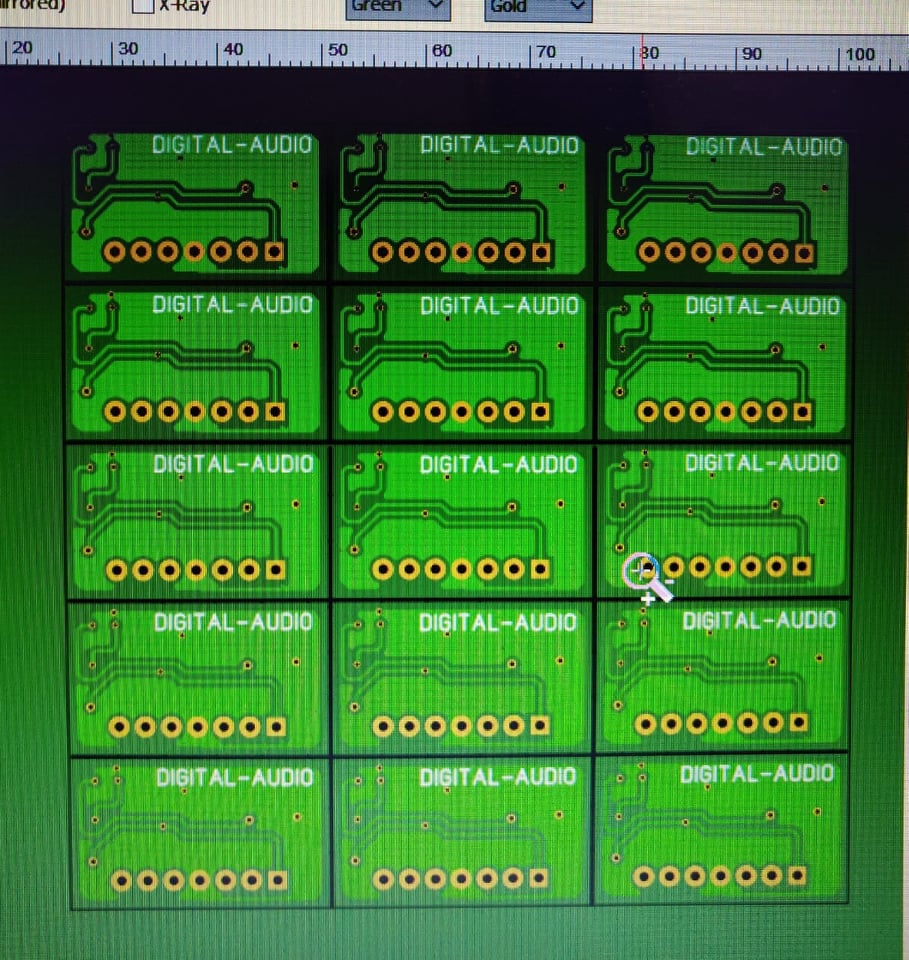

PCB design ready to go to jlcboth side pwm on 10 by 10 cm pcb



[Hex28]

Thank you 🙂



[Gitsa]

I am also making TD class stripped orignal pcb to clone pcb😉😉😉

BAV56 не правильный знак



[TSUnlimited]

Thank you!!!



[nickushorul]

PWM TD CLASS

I am also making TD class stripped orignal pcb to clone pcb😉😉😉

Hello,

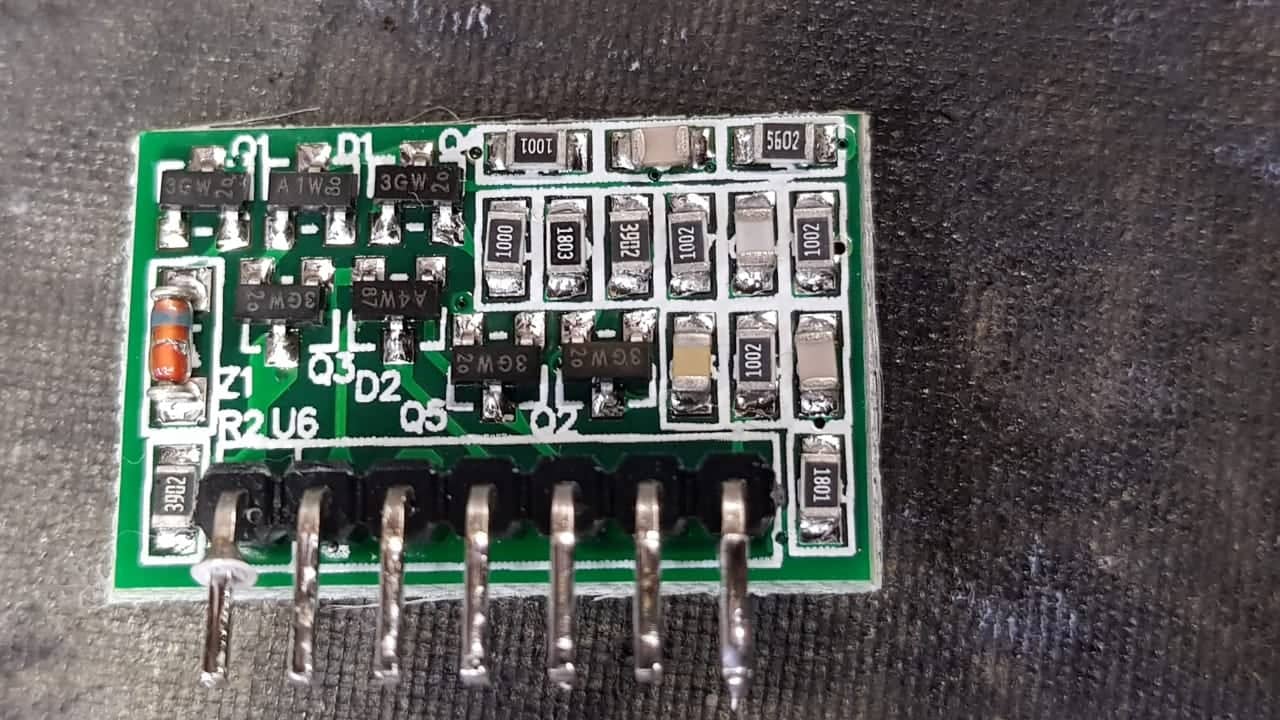

Sir i have an Martin Audio MA6.8Q and one channel is clipping at very low volume, i saw a board called PWMPATD-f01 seems to been hot because the glue over it is grey. cand you tell me if your schematic is good for my amp ?
Thank You!
