Does anyone has a schematic for this amplifier? I’ve some burnt smd resistor and a missing TO92 transistor in the onboard audio drive circiut area.

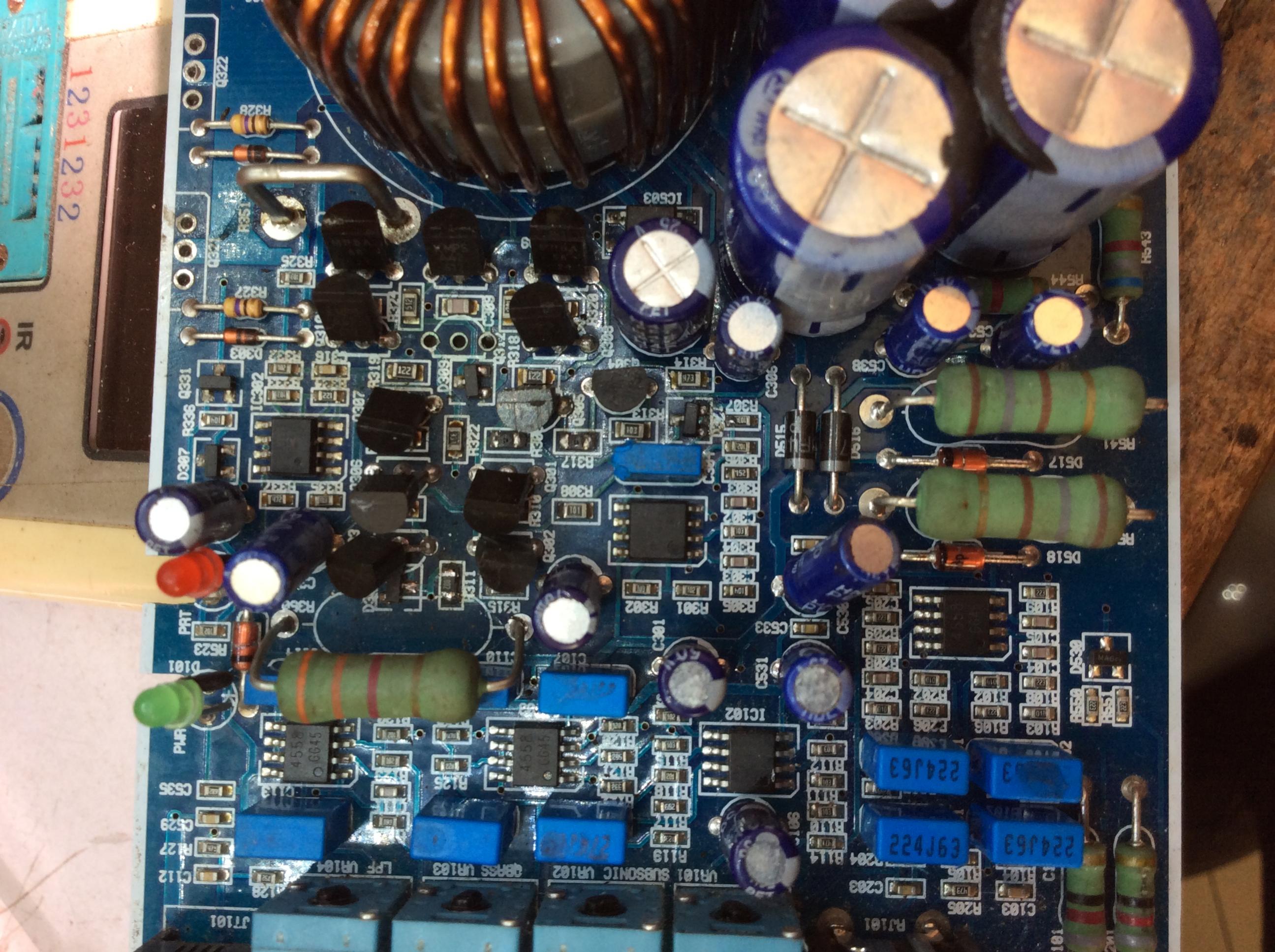

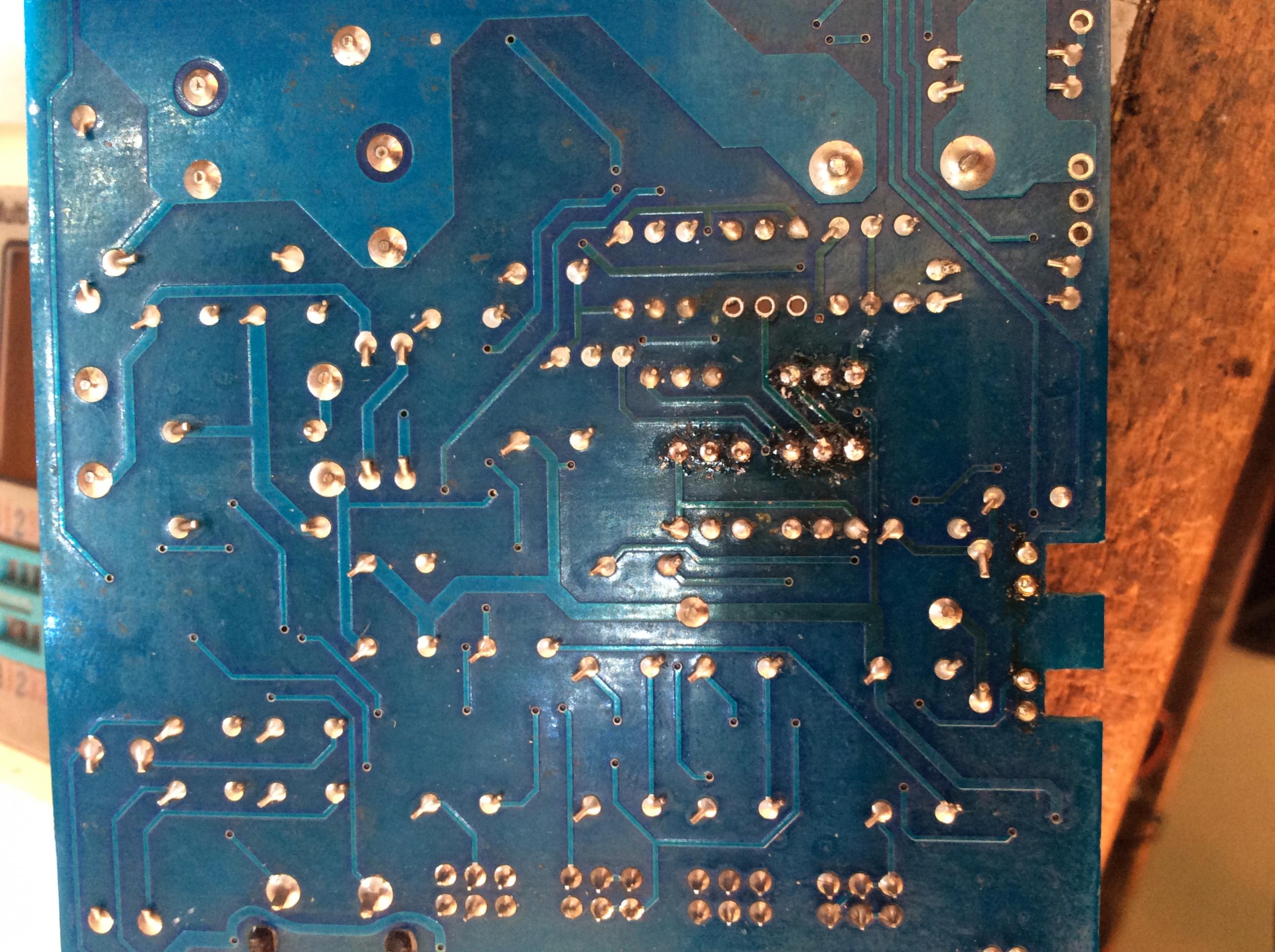

Post a good quality photo of the component side of the entire main board and the component side of any driver boards if no one can help.
what are the output FETs?
from your description seems similar to the class 2.
see this link, there's a schematic, component names may not be the same, you'll have to do some tracing.
Generic Asian Clone driver board RE and Clone
from your description seems similar to the class 2.
see this link, there's a schematic, component names may not be the same, you'll have to do some tracing.
Generic Asian Clone driver board RE and Clone
If you have the tutorial, these are the 'type 2' amps but that doesn't mean anything outside of the tutorial.
The following amp is similar:
http://www.bcae1.com/temp/classDtype2wdriverboardindexa998.pdf
