Please help! Looking for schematics for: K-AMP Integrated Power Amplifier DIY Kit
I have a pair kits for the:

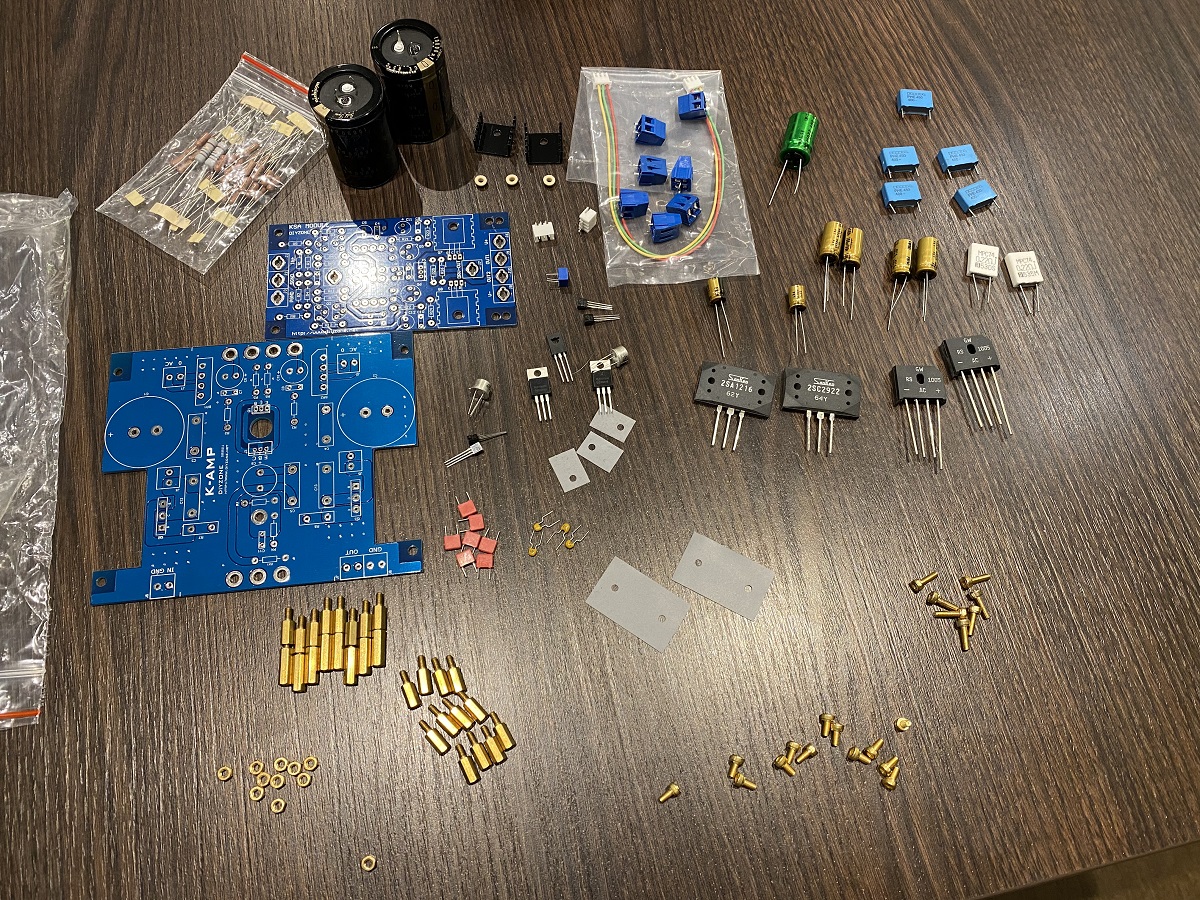

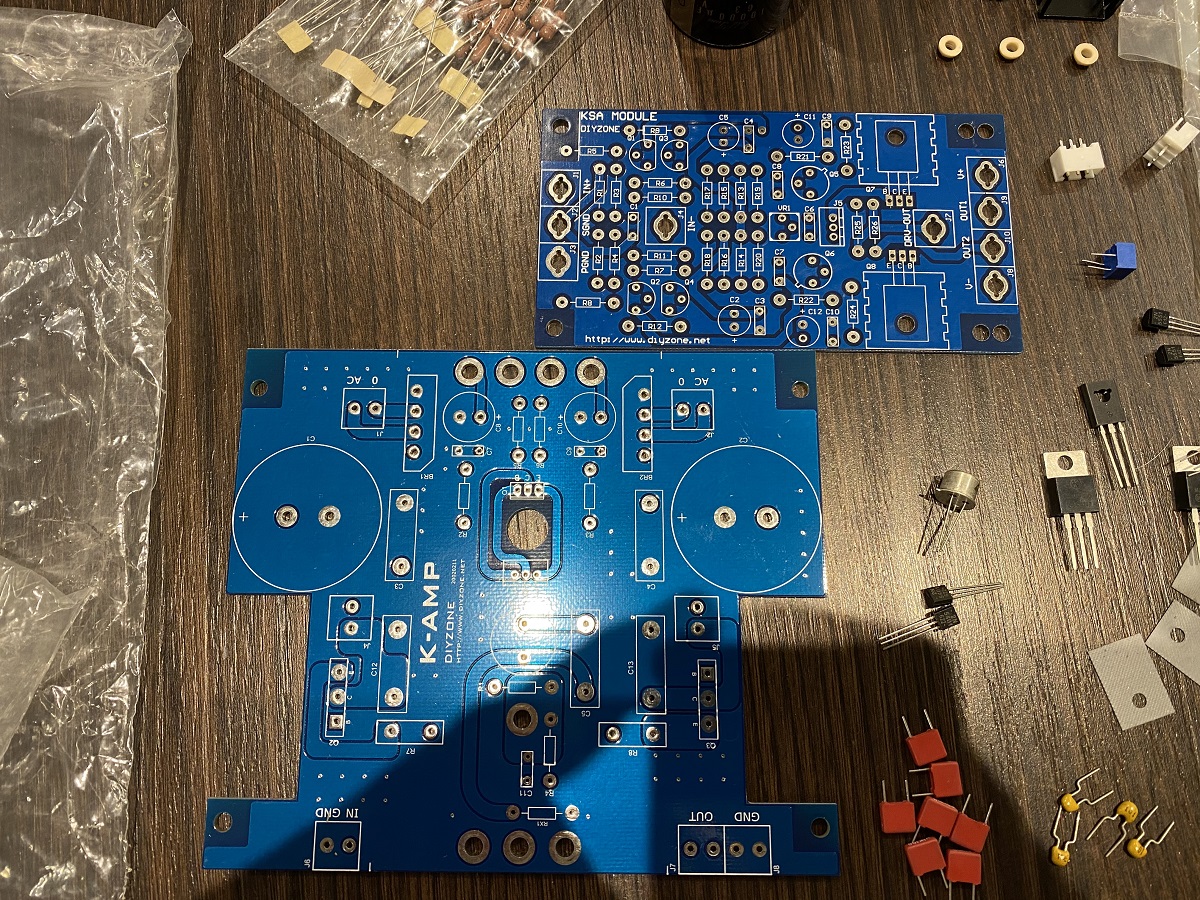

K-AMP Integrated Power Amplifier DIY Kit
ref Krell KSA 100 (Single Channel)
Unfortunately I bought these stuffs many years ago and I lost the schematics and parts list what I need to build them up...
Please help me if you have it...
Many thanks in advance!
I have a pair kits for the:
K-AMP Integrated Power Amplifier DIY Kit
ref Krell KSA 100 (Single Channel)
Unfortunately I bought these stuffs many years ago and I lost the schematics and parts list what I need to build them up...
Please help me if you have it...
Many thanks in advance!
Last edited:
Contact Us
E-mail
General enquiry info@analogmetric.com
Sales enquiry sales@analogmetric.com
Technical support tech@analogmetric.com
Analog Metric is special
Remember this is a major holiday (Golden Week, New Year, Family reunion) in most of the orient.
General enquiry info@analogmetric.com
Sales enquiry sales@analogmetric.com
Technical support tech@analogmetric.com
Analog Metric is special
Remember this is a major holiday (Golden Week, New Year, Family reunion) in most of the orient.
Thanks, but I'm afraid that your linked amp is totally different what I have... So it won't helps me...
Attachments
Just put the transistor pair in a search
After that check for similar circuits that use the same pre amp.
Can't be a very different circuit.
And you can work backward from an already made circuit.
After that check for similar circuits that use the same pre amp.
Can't be a very different circuit.
And you can work backward from an already made circuit.
I didn't find any helpful information 🙁
2x 2N5401
2x 2N5551

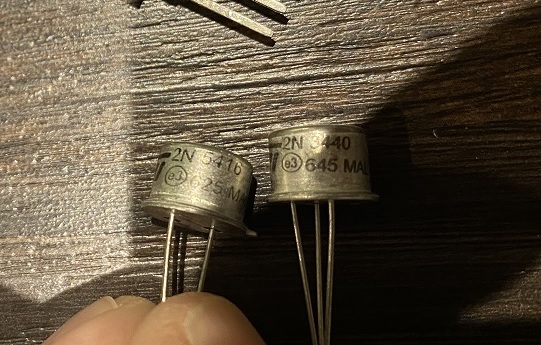

1x 2N5416
1x 2N3440
1x MJE15030G
1x MJE15031G

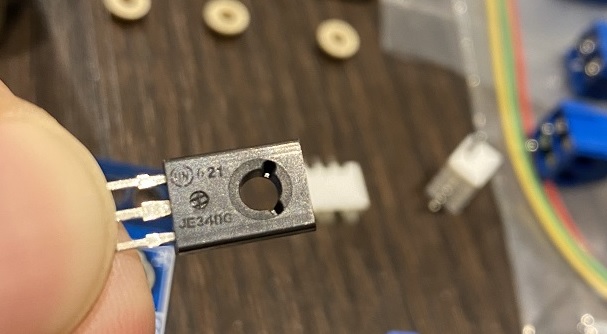

1x MJE340G
Attachments
Search for these:
1. Amp with 2SA1216, 2SC2922
2. mje15030, 31 audio amp circuit
3. https://www.google.com/url?sa=t&rct...030-1-a.html&usg=AOvVaw36v4g08wIiPGSxdf2RtmqK
4. https://www.google.com/url?sa=t&rct...tim/faq.html&usg=AOvVaw3M2pxUfn9mEntdcr6ok0PE
It is a pretty common circuit.
Many videos too.
1. Amp with 2SA1216, 2SC2922
2. mje15030, 31 audio amp circuit
3. https://www.google.com/url?sa=t&rct...030-1-a.html&usg=AOvVaw36v4g08wIiPGSxdf2RtmqK
4. https://www.google.com/url?sa=t&rct...tim/faq.html&usg=AOvVaw3M2pxUfn9mEntdcr6ok0PE
It is a pretty common circuit.
Many videos too.
Last edited:
Many thanks for your helping efforts, but I'm looking for the 100% same schematics for build my kit.
This kit doesn't contains any diodes at all. (no zener diodes too)
I need to know all parts exact positions and values on the PCB, max and recommended supply voltages too.
So if someone has the same, please share that with me.
This kit doesn't contains any diodes at all. (no zener diodes too)
I need to know all parts exact positions and values on the PCB, max and recommended supply voltages too.
So if someone has the same, please share that with me.
irf640/9640 in amplifiers -Only BJT🙂
Good quality set. Large PCB power supply. Small PCB power amplifier (1 channel). Reverse engineering is needed. Make a table of connections (element number and its connections). After conversion, get the schematic. According to the diagram, you can establish the correspondence of the denominations of the parts.
The vendor trades Rasberry and Arduino.

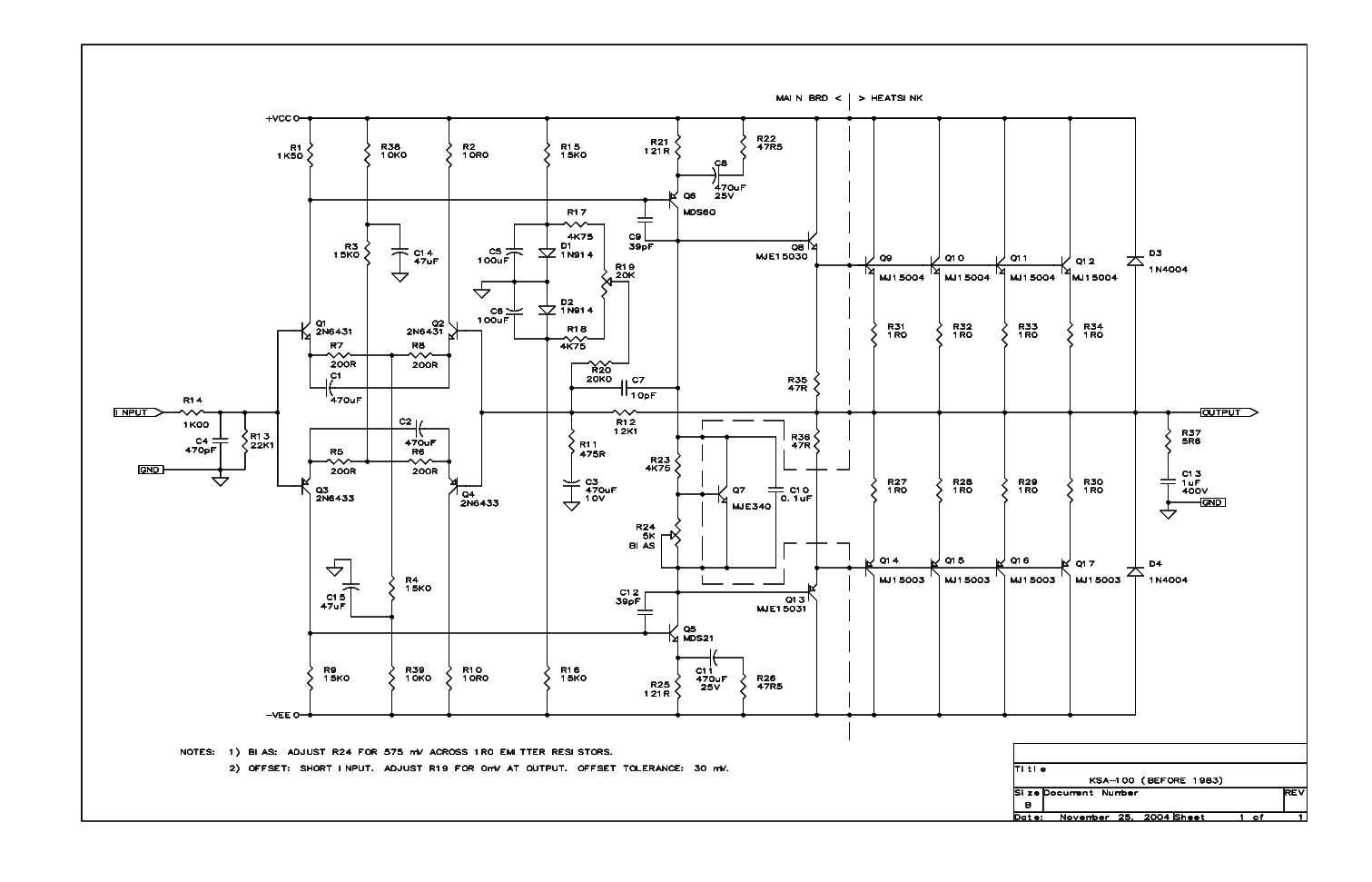

#1 1. Design use Krell KSA100 classic power amplifier circuit as blueprint
2. Maximum output power can reach 70W for 8 ohm output loading
3. SANKEN high power (200W) transistor 2SC2922/2SA1216, double emitters with low output resistance (70m ohm), high linearity and bandwidth (50MHz)
4. Built-in voltage regulating circuitry, come with Nichicon high class KG series 10000uF/63V for power filtering capacitor
5. User can easily modify this DIY kit either series or parallel technique to deliver even higher output power
Power transformer is optional and it can be bought from our store (Toroid Transformer 270W for Tube Amplifier)
Good quality set. Large PCB power supply. Small PCB power amplifier (1 channel). Reverse engineering is needed. Make a table of connections (element number and its connections). After conversion, get the schematic. According to the diagram, you can establish the correspondence of the denominations of the parts.
The vendor trades Rasberry and Arduino.
#1 1. Design use Krell KSA100 classic power amplifier circuit as blueprint
2. Maximum output power can reach 70W for 8 ohm output loading
3. SANKEN high power (200W) transistor 2SC2922/2SA1216, double emitters with low output resistance (70m ohm), high linearity and bandwidth (50MHz)
4. Built-in voltage regulating circuitry, come with Nichicon high class KG series 10000uF/63V for power filtering capacitor
5. User can easily modify this DIY kit either series or parallel technique to deliver even higher output power
Power transformer is optional and it can be bought from our store (Toroid Transformer 270W for Tube Amplifier)
Last edited:
Sorry - maybe this is my fault - but I really don't see how can it helps for me?
Your linked schematics is an capacitor input coupled and "FET-end" based amp...
My KIT is an DC coupled input, full transistor based amp.
Your linked schematics is an capacitor input coupled and "FET-end" based amp...
My KIT is an DC coupled input, full transistor based amp.
Last edited:
