I have seen peter daniel's implementations, and before I start my next gainclone, I would like to see what others have done as far as making their amps super neat and tidy on the inside. I will only be using the input resistor, the feedback resistor and the PS caps, so I have less mess to worry about.
Thanks!!
Paul Hilgeman
Thanks!!
Paul Hilgeman
no pics yet...
No digital camera.
Anyway, I'm still waiting for my transformer to arrive.
Until then, I won't start thinking about the box, because I don't even know the exact dimentions of the transformer...
Anyway, the two cannels are playing for 3 days now, on my bench, with a stabilized +/- 12V PSU (that's what I have for now), connected to some car audio speakers.
I can't comment yet about sound quality, but it promises, even with those speakers.
Let them "burn-in", and just wait for the transformer.
I did the two channels in two small pieces of perfurated board.
I don't like point-to-point, but that's me.
No digital camera.
Anyway, I'm still waiting for my transformer to arrive.
Until then, I won't start thinking about the box, because I don't even know the exact dimentions of the transformer...
Anyway, the two cannels are playing for 3 days now, on my bench, with a stabilized +/- 12V PSU (that's what I have for now), connected to some car audio speakers.
I can't comment yet about sound quality, but it promises, even with those speakers.
Let them "burn-in", and just wait for the transformer.
I did the two channels in two small pieces of perfurated board.
I don't like point-to-point, but that's me.

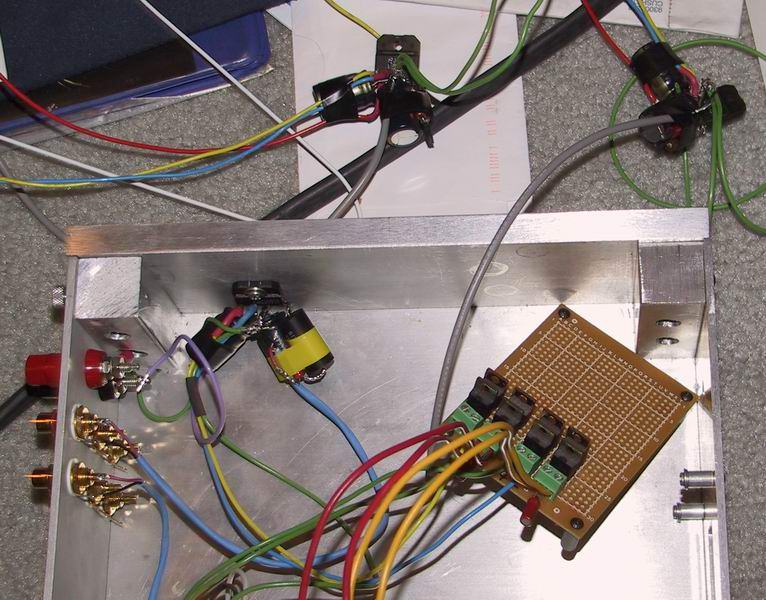

I have made a few changes since this pic but it is essentially the same. I am now using four discrete bridge rectifiers and added damping to the transformers. The chips and basic components are built on to protoboard using just the component leads. I really like this P2P layout and have used it several more times since.
Attachments

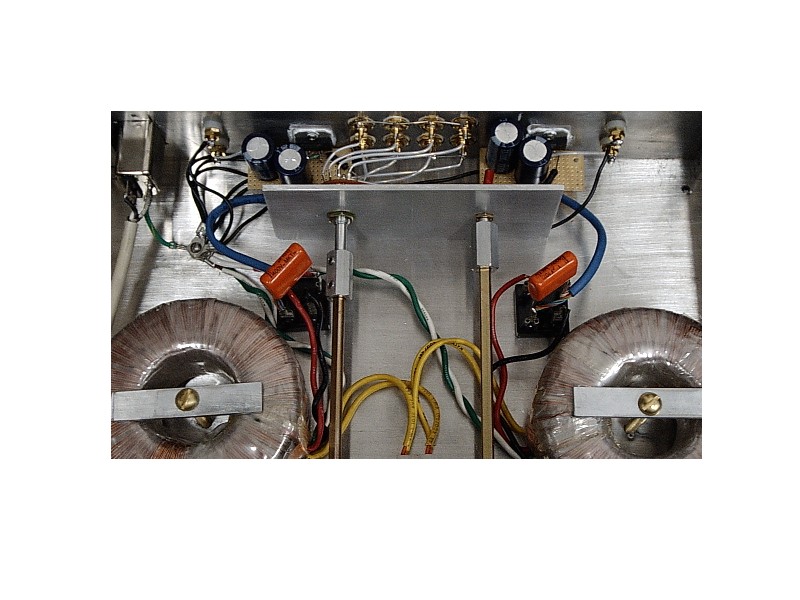

Here's mine
You can take a look at the rest of my setup by following this link

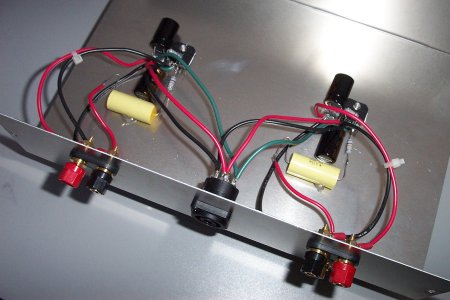

(Other pics such as my BOZ etc...)
http://www.diyaudio.com/forums/showthread.php?s=&threadid=13570
Regards
You can take a look at the rest of my setup by following this link
(Other pics such as my BOZ etc...)
http://www.diyaudio.com/forums/showthread.php?s=&threadid=13570
Regards
Attachments

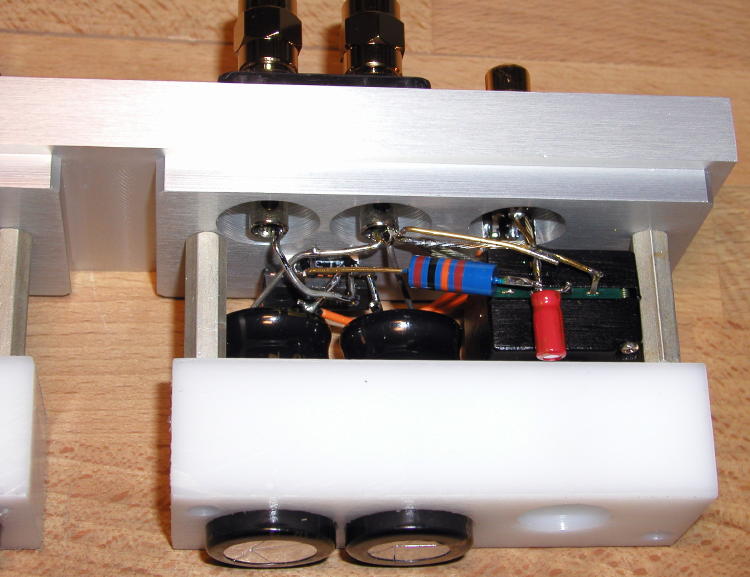

Here are my latest gainclones. I haven't yet finished the chassis wiring, as I am going to put the DipChip APOX IR1 inside it with with a volume control board.
I will get the wiring routed nicely once I get everything to go in the chassis finished.
I get no hum, and it sounds decent, but needs time to break in.
--
Brian
I will get the wiring routed nicely once I get everything to go in the chassis finished.
I get no hum, and it sounds decent, but needs time to break in.
--
Brian
Attachments
BrianGT said:
If you loose all those cables, it may sound better😉 I didn't notice that breaking in makes so much difference with those amps. It either sounds good from the beginning or not. Are those Panasonic FC caps? For my budget oriented projects, I'm gonna try them too, together with Nichicons KZ.
Peter: I ordered the Panasonic FC caps, don't really look like his .. (although his might be the FC caps too ..)
they're about 1cm in diameter, and rather long .. maybe 4-5cm in length ..
they do sound good though .
i'll post pics of my finished gc's here when i get the trafo/digicam .. although they won't even nearly compare w/ the stuff in here 🙁
they're about 1cm in diameter, and rather long .. maybe 4-5cm in length ..
they do sound good though .
i'll post pics of my finished gc's here when i get the trafo/digicam .. although they won't even nearly compare w/ the stuff in here 🙁
Just wondering where people have gotten the volume control extenders so that u don't have to have wire going all the way to the front of the case? Did you buy them or make them yourself?
I'm using 1/4 brass rod from metal supplier and a piece of (1/4" inside diameter) plastic water pipe from Home Depot.
U need a PCB to make it neat IMO.
So I make mind a double sided with ground plane. With 0805 chip resistor across the IC leads.
http://us.f1.yahoofs.com/users/583c3a71/bc/Audio/3886pcb2.jpg?bcQLQw.AMLs0ch7S[/IMG]
Some more pics in the link.
http://photos.yahoo.com/bc/henry15jan/lst?.dir=/Audio
So I make mind a double sided with ground plane. With 0805 chip resistor across the IC leads.
http://us.f1.yahoofs.com/users/583c3a71/bc/Audio/3886pcb2.jpg?bcQLQw.AMLs0ch7S[/IMG]
Some more pics in the link.
http://photos.yahoo.com/bc/henry15jan/lst?.dir=/Audio
I make mine from aluminium rod and the 'inards' of a terminal block as can be seen in the picture HERE
I don't want to 'blow my own trumpet' but many questions of this type are answered on the Decibel Dungeon site. 😉
You may find This section particularly interesting.
nice and clean .. i like it 🙂
what sort of transformer are you using?
also (forgive my newbiness), what is the function of the ferrite coil between the earth and chassis ground?
what sort of transformer are you using?
also (forgive my newbiness), what is the function of the ferrite coil between the earth and chassis ground?
Peter Daniel,
Did you buy a milling machine? If Im not mistaken I can see end mill marks on one of your cuts.
-Dave
Did you buy a milling machine? If Im not mistaken I can see end mill marks on one of your cuts.
-Dave
