PC Boards for v9?

[LizardBrain]

Is anybody developing/have them?



[Peter Daniel]

I got a pair, with only slight mods it's good for Zv9 😉



[LizardBrain]

I have a pair of v4. What mods?



[Peter Daniel]

You need to compare both schematics to see it. When I'm done with mine, I will post pics.



[LizardBrain]

I would appreciate seeing a picture when you are done. I am new to amp building and any help is much appreciated. Thanks.



[Peter Daniel]

Somebody also posted the p2p schematic in the other thread, which may be useful in modifying the V4 board: http://www.diyaudio.com/forums/showthread.php?postid=858371#post858371



[veteran]

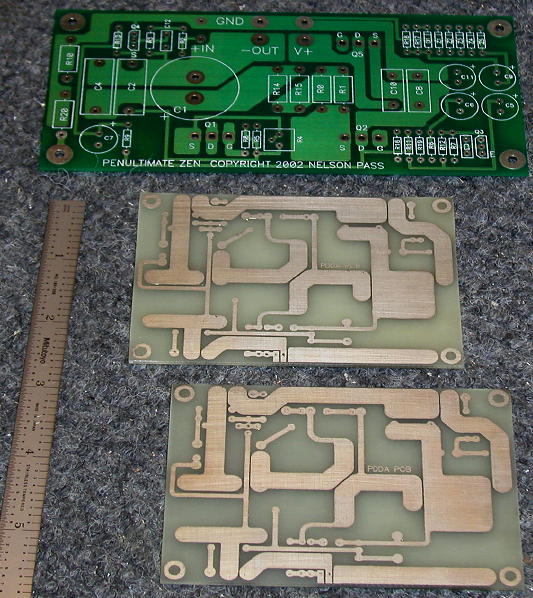

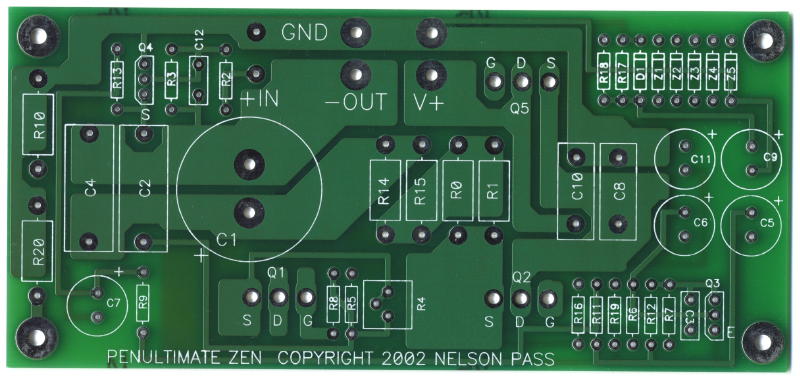

This is printed board for Zv9 that we designed with Peter Daniel. There is all You need do make this DIY way 😉

An externally hosted image should be here but it was not working when we last tested it.

schematic diagram
PCB view
bottom
bottom - mirrored

Great thanks to Mr Pass for sharing this project!



[Zen Mod]

from some reason links are corrupted for me;when I go directly to ftp location,I downloaded all files OK



[b-square]

from some reason links are corrupted for me;when I go directly to ftp location,I downloaded all files OK

likely a browser problem. all the links work fine for me.


bb



[Zen Mod]

likely a browser problem. all the links work fine for me.


bb

nope
maybe temporary ISP redirection problems
I tried both -with browser own downloader (Firefox) and with Flashget...didn't work
but-its fine to know that I'm alone in this trouble



[jh6you]

You are not alone.



[Zen Mod]

You are not alone.

hehe-when You is with me ......



[veteran]

It should be OK now.

schematic diagram
PCB view
bottom
bottom - mirrored



[jh6you]

Thanks, we are together now . . . 😀



[Peter Daniel]

And I just finished making first two boards.



[XELB]

And I just finished making first two boards.

Peter, why don't you leve the rest of the copper for the ground or, the rest in the top layer for V+ and the Bottom with ground....
This way you will shield the signals and make a small capacitor with the top and bottom layer 😉



[Peter Daniel]

I don't like boards with too much copper 😉

If you look at the schematic, you will notice that there is only a single power connection point and ground plane is only as big as neccessary. Besides, the idea was to come up with a single layer board.



[XELB]

OK 😉

When do you think you will have the boards ready for shipment 😎 😀
Will you make PSU boards ?



[Peter Daniel]

Yes, there will be PS board. It will probably take 2 - 3 weeks before boards become available.
