Orion xtr475 Rectifier placement.

[rhempz01]

I just got in a orion xtr475. The power supply and rectifiers were removed. So I need to know how the rectifiers go into the curcuit. Which one goes where on each side.



[Perry Babin]

The positive rectifiers connect to the positive terminal of the rail caps.



[rhempz01]

I dont know which ones are positive and negative.



[twilliar]

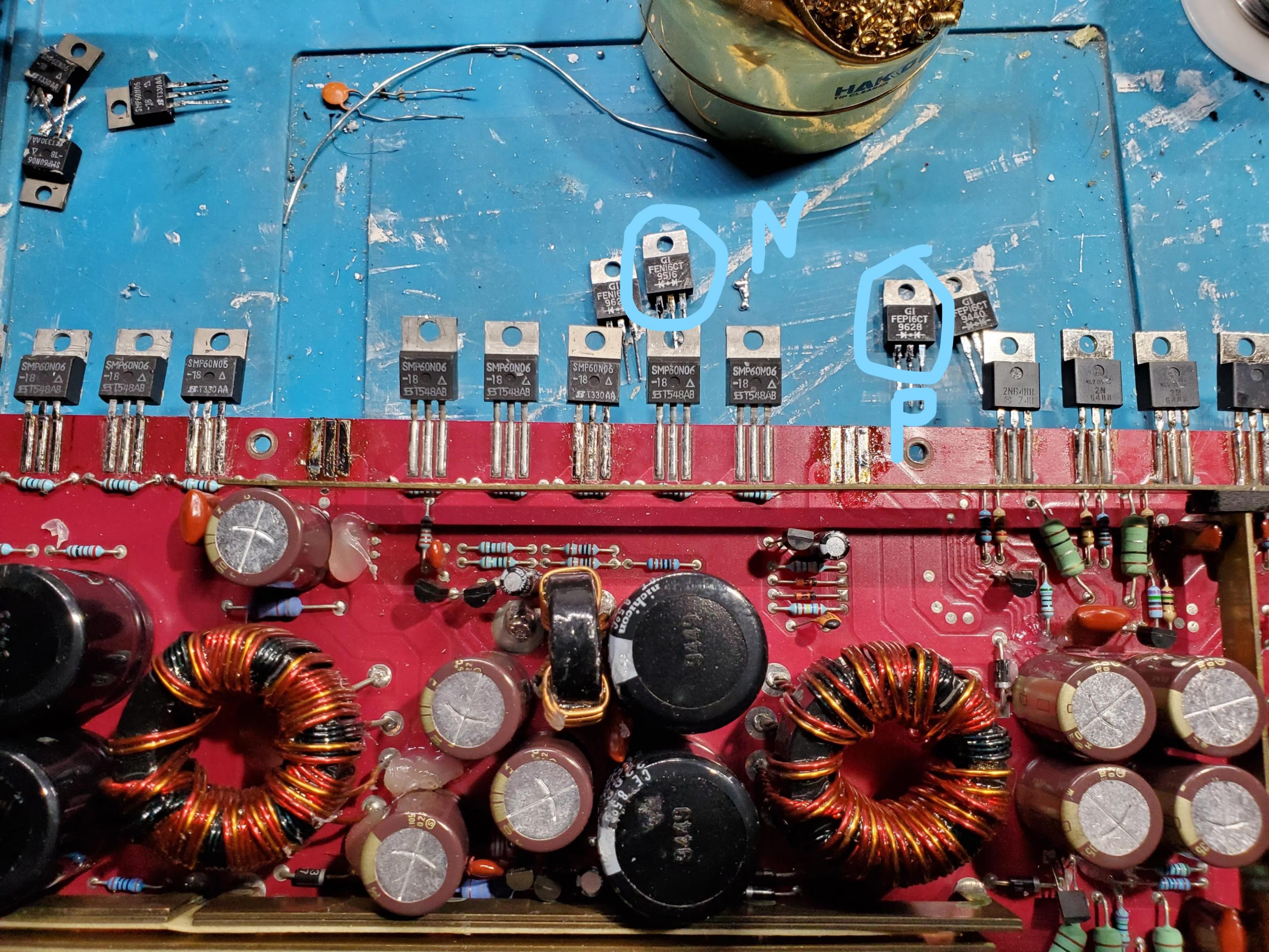

Here you go Rob
Note the direction of the diodes in relation to polarity.
The center legs will go to the corresponding polarity of the capacitors. Follow the traces.



[rhempz01]

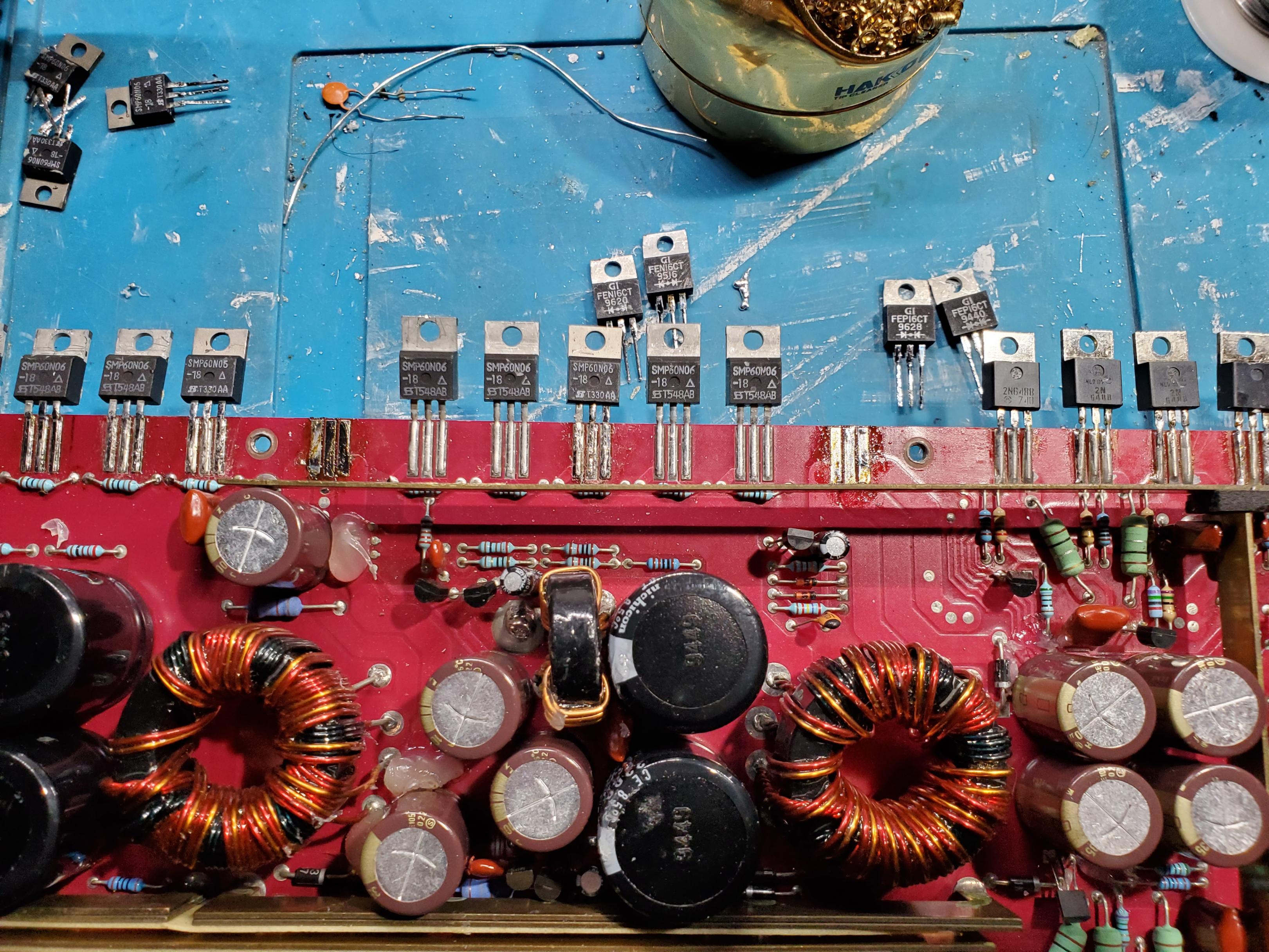

Anyone have a picture of this area, there are some broken off legs in some vias that I'm not sure what was there.



[rhempz01]

1
