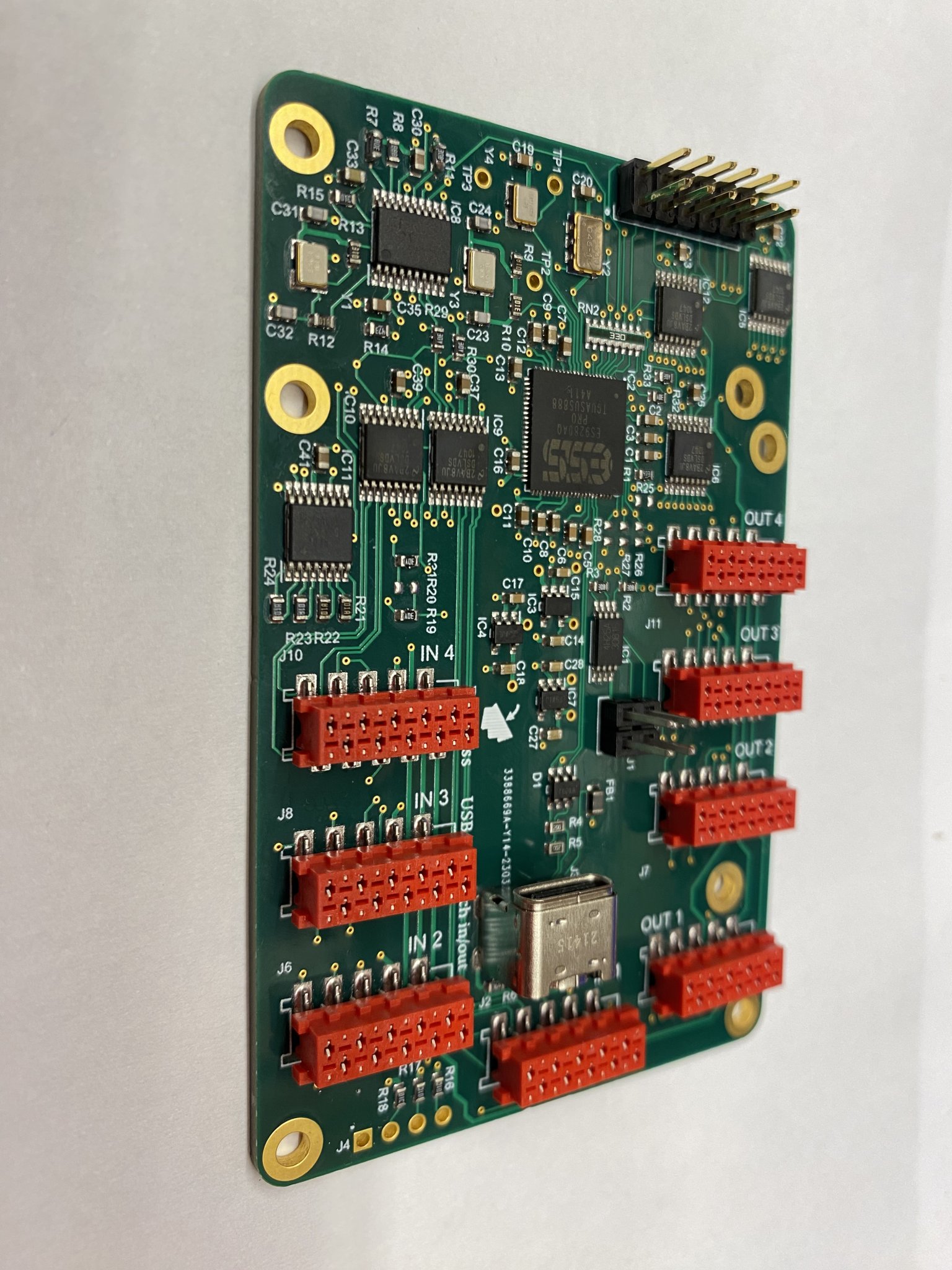

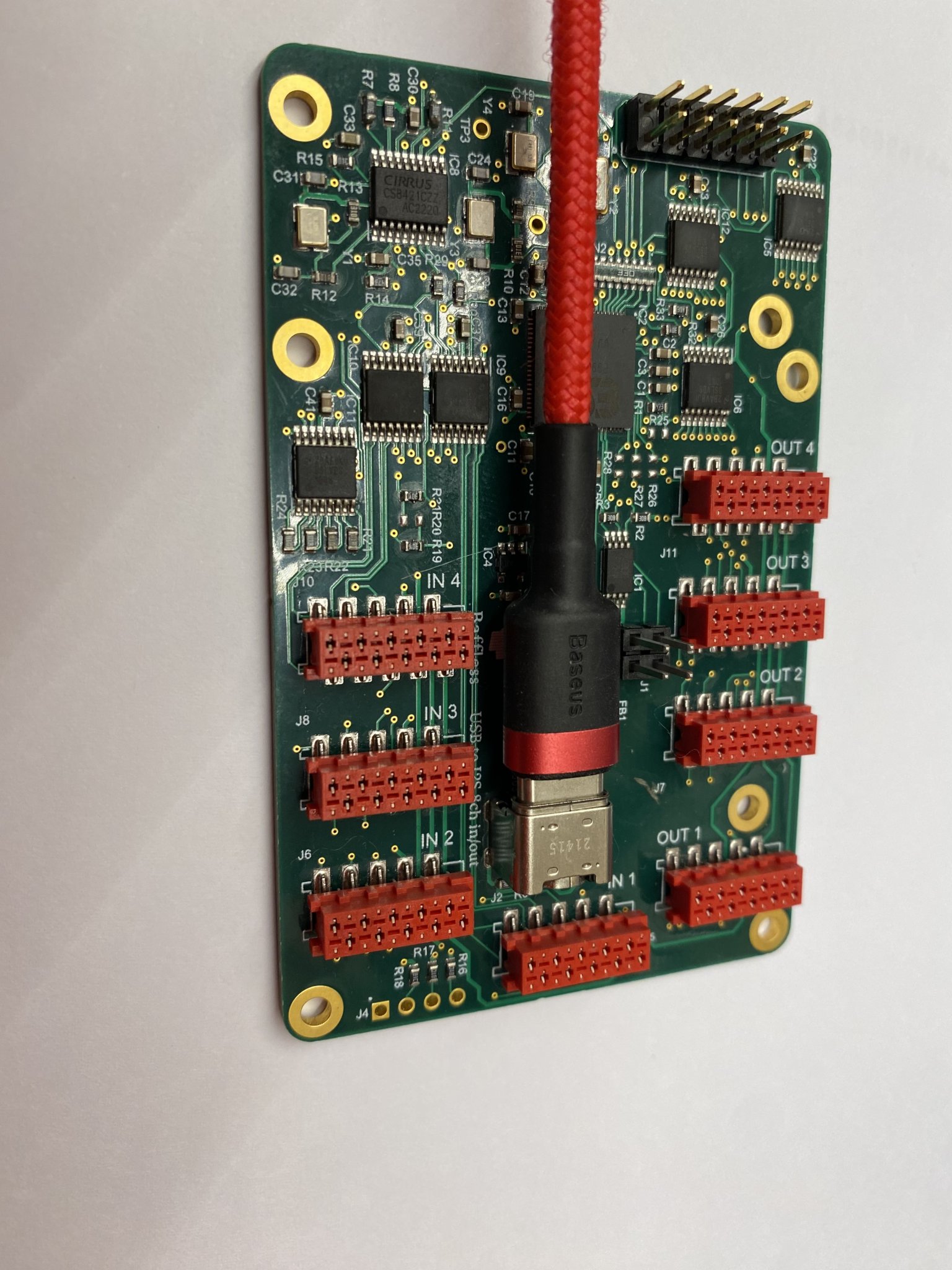

Hi. Wanted to share my newest USB to I2S 8ch board. As always ready to buy boards doesn't fit my projects perfectly, so had to make my own version. It is 8ch out/8ch in USB to I2S. All outputs and inputs are with lvds drivers for longer lines communication. Up to 192khz. First input channel has hardware ASRC if needed. I developed it for use with linux for embedded purposes for interfacing sabre DAC's Mounting holes fit khadas vim3 board or RPI. Based on sabre chip.
Not very universal as it has only I2S no SPDIF or other nonsenses 🙄 In case someone needs just like this I could sell in EU.
Not very universal as it has only I2S no SPDIF or other nonsenses 🙄 In case someone needs just like this I could sell in EU.
Hello, how you will sell this bro?. I'd been interested to buy one, 'cause i'm trying to implement a complete digital procesing based on linux micro-pcs or sbcs, also in the traspotation of audio over ethernet like DANTE. I had the intention on to develop something like you (I don't have any knowledge about but...) , here is my investigation repository in Notion: https://www.notion.so/faustinoc/Audio-2753ea0aee7d45e3ad34b82e9927cc98?pvs=4
https://faustinoc.notion.site/INTERFAZ-DE-AUDIO-222d0146b91646129519c52e28a206ea?pvs=4
it's in Spanish, all notes. In resume is only a set of links about the theme
How did you get the ESS chip? I looked for this in octopart's web, but it seems not be available. But,I'm thinking could be an option to remanufacture some DAC from AliExpress to get the chip ES9280
Not sure how good linux can handle two boards with identical names VID and PID. Also would need to add coaxial connector for common clock signal to prevent drifft. Did’t try that so can’t say exactly. Theoretically yes, practicaly don’t know
XMOS would be the easier way maybe. You have to buy directly as manufacturer, kind a problematic. and if you will take the chip from aliexpress you will stuck because of firmware.
Dou you exactly need lvds output? Thats why you interested in my board?
Hi Baffless,
-Does it work under Windows?
-Could multiple boards work under WindowsOS?
-Could you pointme, or supply, some small ADC and DAC's with it, (16bit 44.1kHz is enough)?
Regards,
TSchrama
-Does it work under Windows?
-Could multiple boards work under WindowsOS?
-Could you pointme, or supply, some small ADC and DAC's with it, (16bit 44.1kHz is enough)?
Regards,
TSchrama
Hi Tschrama,
It works only with linux.No Mac no windows. Call it a feature or a bug as you want.Don’t ask why 🙂 it was for my projects so not very versatile. I am not aware of any comercial adc or dac which uses lvds interface. It is probably only for someone who does its one DAC with lvds and don’t want to bother by doing its own usb i2s converter. Not very usefull probably outside my own gear..
It works only with linux.No Mac no windows. Call it a feature or a bug as you want.Don’t ask why 🙂 it was for my projects so not very versatile. I am not aware of any comercial adc or dac which uses lvds interface. It is probably only for someone who does its one DAC with lvds and don’t want to bother by doing its own usb i2s converter. Not very usefull probably outside my own gear..

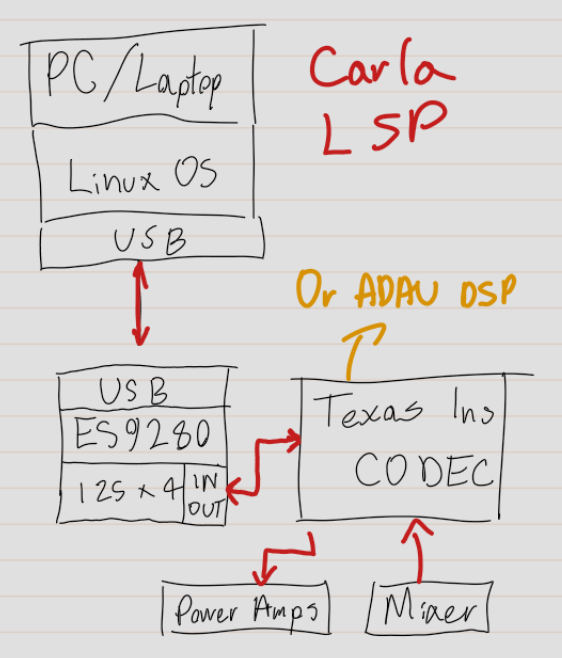

mmm no, essentially i wish the usb to i2s bridge with multichanel capabilities, the thing is that I liked the ES9280 option (I've seen xmos 6OUT/4IN i2s https://dub.sh/7lpdSxO before). I really want to power a diy sound processing system based on linux dsp libraries like CARLA (falktx) with LSP plugins.
That was my error at a previous attempt, I made this other example with AliExpress parts (https://github.com/har-in-air/STM32F411_USB_AUDIO_DAC), it worked fine with high sound quality in single board stereo but when I tried to connect 3 kits of these modules at a same laptop (all in a same USB hub too), but Linux only recognized one at a time (2 of 6 theoretical channels), I couldn't try it with other computer that has 3 independent USB ports since then
What is the reason? There are some DACs based on ESS9820 and they seem to be UAC2 compliant. Or is not the case?
In linux USB devices should be identified not only by their VID/PID, but also by their USB port. An appropriate udev rule would assign unique alsa names to each USB soundcard, based on the port.
As of the identification - perhaps does your USB hub not have enough of fullspeed->highspeed transaction translators? https://www.infineon.com/dgdl/Infin...N.pdf?fileId=8ac78c8c7cdc391c017d0d4c6b726c40
Yes it is UAC2 compliant. It is kind of sw bug in my firmware, but i like it🙂
Ok thanks for info.
If anyone good at programming XMOS could help i would go with XMOS hardware . It is more expensive, but SDK lets to tweak things so it is universal. There is no SDK for sabre chip.
We could contribute to this project from FreeDSP :https://github.com/freeDSP/freeDSP-AURORA
I think their documentation is some insufficient or confusing, but the general project is awesome to be OSH
Other links:
https://freedsp.github.io/ (web with all their projects)
https://auverdion.de/ (shop of the finished board and modules)
PD:
Could I know your board's total cost?
I think their documentation is some insufficient or confusing, but the general project is awesome to be OSH
Other links:
https://freedsp.github.io/ (web with all their projects)
https://auverdion.de/ (shop of the finished board and modules)
PD:
Could I know your board's total cost?
Just looked at the BOM and schematics. So there are several variants possible. The most naked without LVDS drivers i could make something around 110eur.
The most expensive 8ch out 8ch in lvds +2ch input with ASCR converter to interface to any other i2s source could sell for 180eur. And over versions something in between. Fastening holes are adapted to raspberry 4 board and khadas vim3 board.Board is i2s master.
