My X-Power amp design

[blu_line]

Hello all,

I have to give a lot of credit to a friend of mine who used the basics of this circuit to make a pre-amp.
I made it into a power amp !

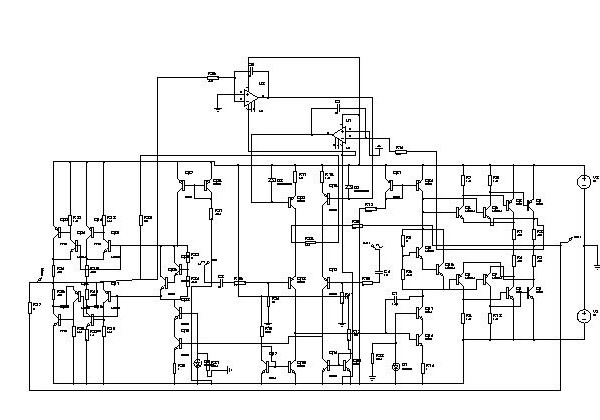

The circuit is based upon a diff-pair in where both legs are used to connect to the VAS stage. The VAS steers a CFP pairs in the output.
The voltage offset is nilled by the 2 opamps at the top of the circuit.

Please, your comments !


grtz

Simon


Sorry, did not know how to rotate it !



[blu_line]

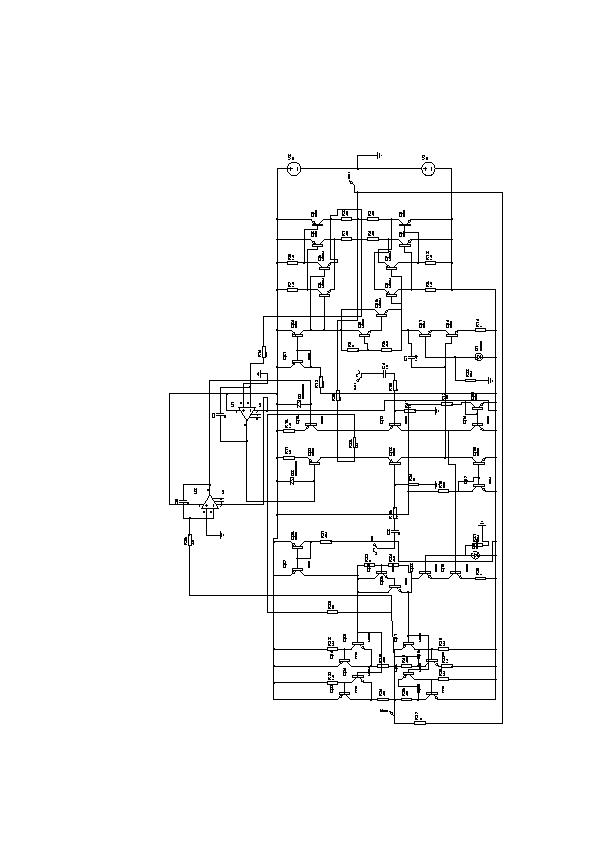

now rotated image

i have rotated the image !

better now ???



[Tazzy]

Could you post a link to a bigger version?



[thanh]

you use IMAGING to convert your pic from JPG to BMP,and then you use Paint to rotate
