Mitsumi AM/FM tuner module in Pioneer Rcvr

[Kenmac77]

Hope this is the right place.....
I’ve scrapped a Pioneer VSX 917V receiver. It was beyond economical repair.

The AM/FM tuner module intreagues me and I want to fire it up. I have built PLL tuners before.

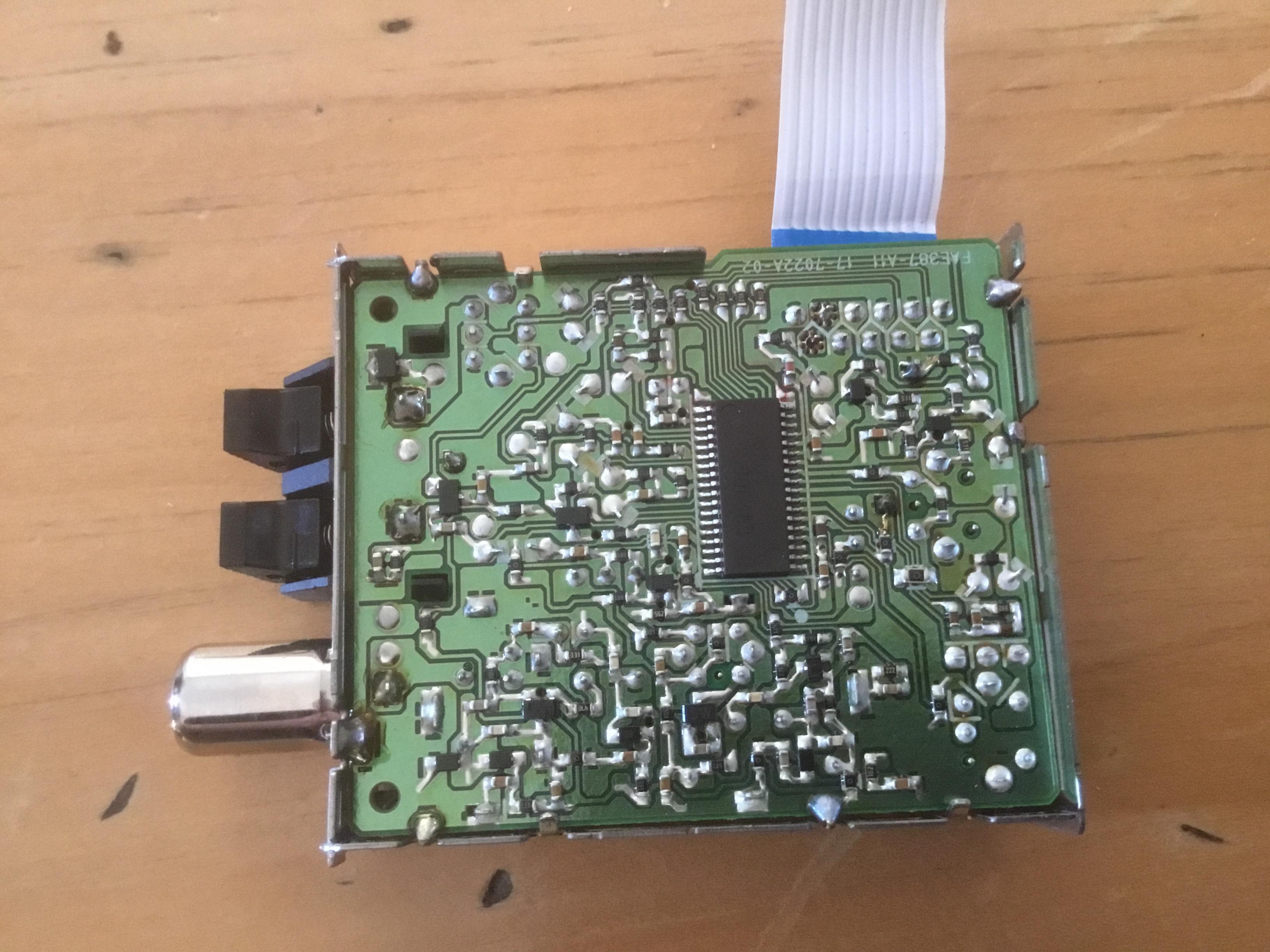

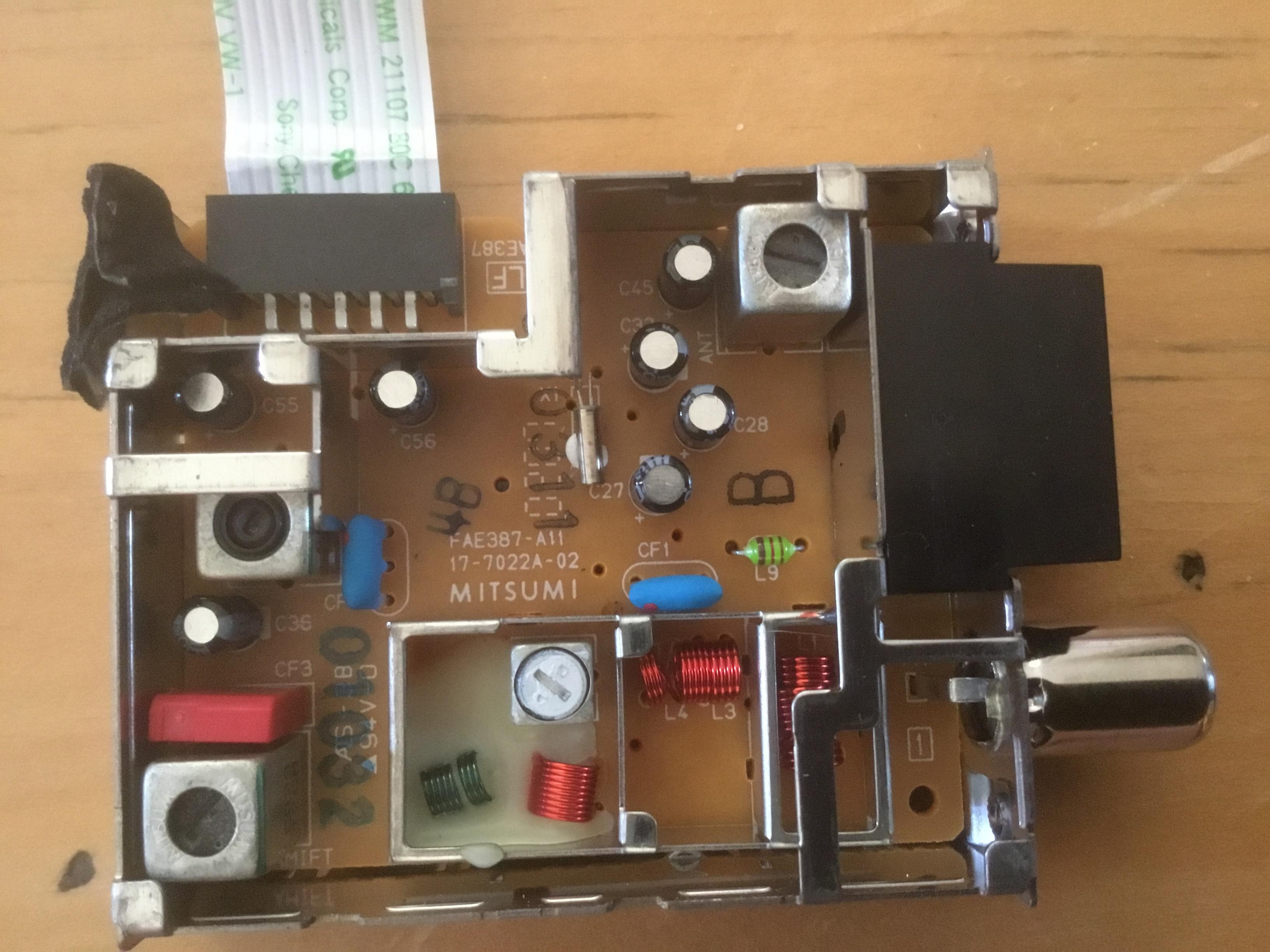

The module is a Mitsumi FAE387-A11. See photos. It seems to be the whole deal except for the display. Not sure how Pioneer derives the front panel display.

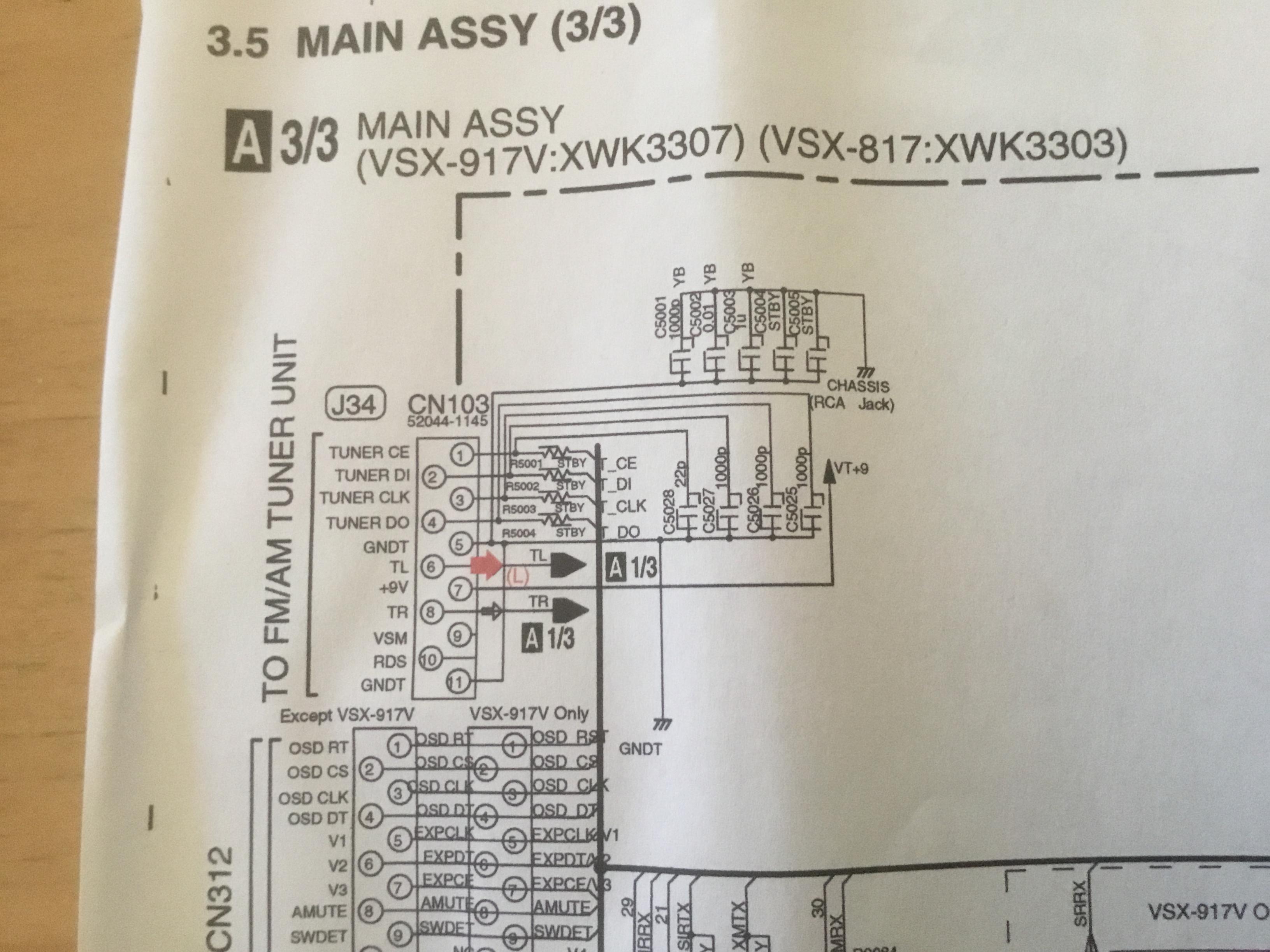

The pioneer schematic reveals VCC and audio outputs L & R. I’d kill for a schematic but don’t believe I’ll ever find this. A block diagram and perhaps pin names less cryptic than Pioneer lists would be wonderful. I won’t use the AM.

Does anybody know where I might find any data on such a module?

Thanks in advance

Ken



[JonSnell Electronic]

This is a module made by Mitsumi. I am not aware of any data for the module. Pioneer used to supply a replacement and there was no schematic available.



[Kenmac77]

Thanks John
I have the Pioneer schematic but not for the module. I found data for similar looking modules by Mitsumi. (More pins on the connector). Thanks for your post.



[dhaen]

Can you read the chip number? There may be application circuits available.



[Kenmac77]

Ahhhh....a thinker

The chip is marked LV23003V (next line) 6PK0 I see no manufacturer,s logo.

I am replying before I searched for this number. Hopefully it is not a house proprietary number. If I can find it, it won’t reveal the whole module but it will be a giant step forward. Thanks



[PRR]

LV23000M pdf, LV23000M description, LV23000M datasheets, LV23000M view ::: ALLDATASHEET :::

There seems to be 000, 001, and 002 variations; I assume the 003 is yet another in the same family. I only found useful info on the 000 version.



[Kenmac77]

Thank you.....
That seems to be it..........much appreciated...



[jazbo8]

Thread moved to Analog Source forum.
