Look for the schematic of the old radio power-supply Schaub Lorenz NG 1000

[ChPuls]

Hello,

I am looking for the schematic of the old radio power supply Schaub Lorenz NG 1000. It is for the Schaub Lorenz Touring T60.
Can somebody help?

Regards
Christian



[Rolf Zetterberg]

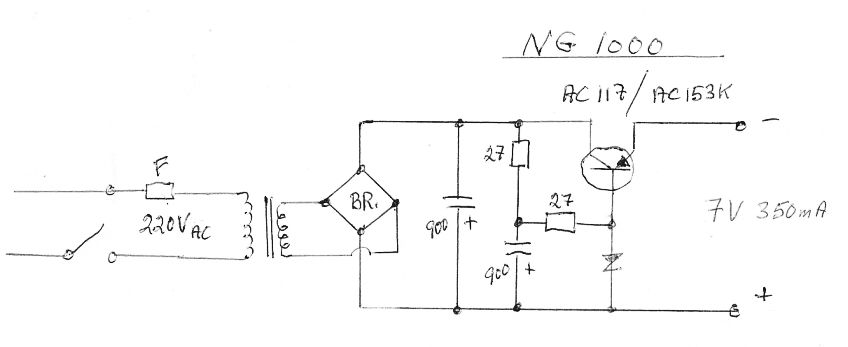

It's actually the same as for Nordmende TN178,but with different values.
The unmarked zener diode is probably a 7.5Vz.
