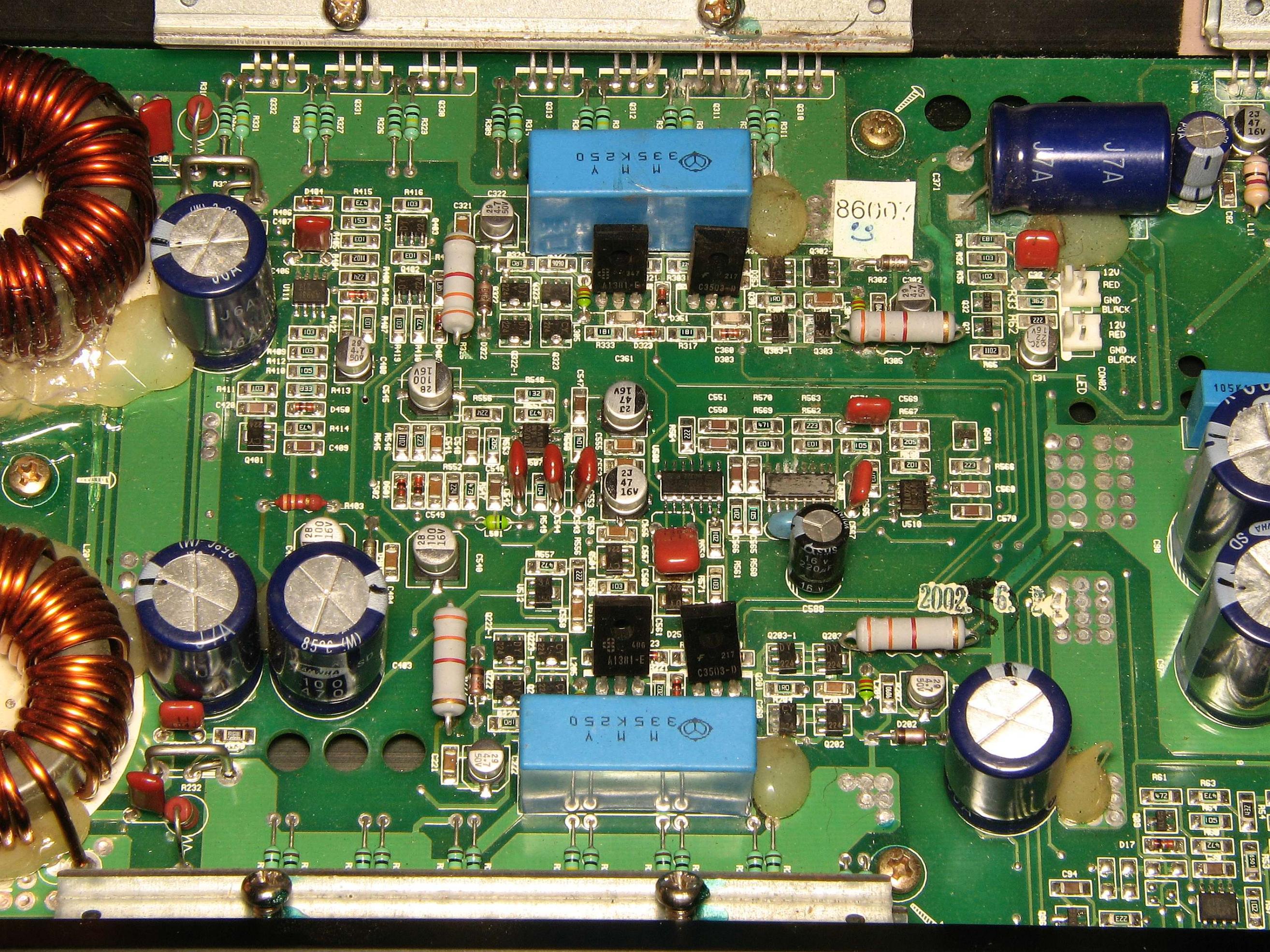

there is such an amplifier to revive. . some elements are missing on the board. please tell me what should be.
1. q06,07,08,09. q12,13,14,15 - power supply. ( I have a circuit this amplifier. but the diagram shows other numbers) -
diag. this Q71,72,73,74. Q81,82,83,84 - IRF3205.
2. q118,119,120. q140,141,142 -
diag. Q230,231,232. Q330,331,332 - IRF640
3. ic-U14 soldered - LM361M
diag U508 - B52
thank you.
there is such an amplifier to revive. . some elements are missing on the board. please tell me what should be.
1. q06,07,08,09. q12,13,14,15 - power supply. ( I have a circuit this amplifier. but the diagram shows other numbers) -
diag. this Q71,72,73,74. Q81,82,83,84 - IRF3205.
2. q118,119,120. q140,141,142 -
diag. Q230,231,232. Q330,331,332 - IRF640
3. ic-U14 soldered - LM361M
diag U508 - B52
thank you.
Attachments
OK. is the difference between red and green boards only in the position of the elements? are the elements themselves the same for them?
The circuits are similar but the circuit board designations are different. If you had no clue as to the circuit being used, the green diagram would be helpful but don't expect a perfect match.
PapaZBill will help with specifics. He has the best access to Kicker documentation.
