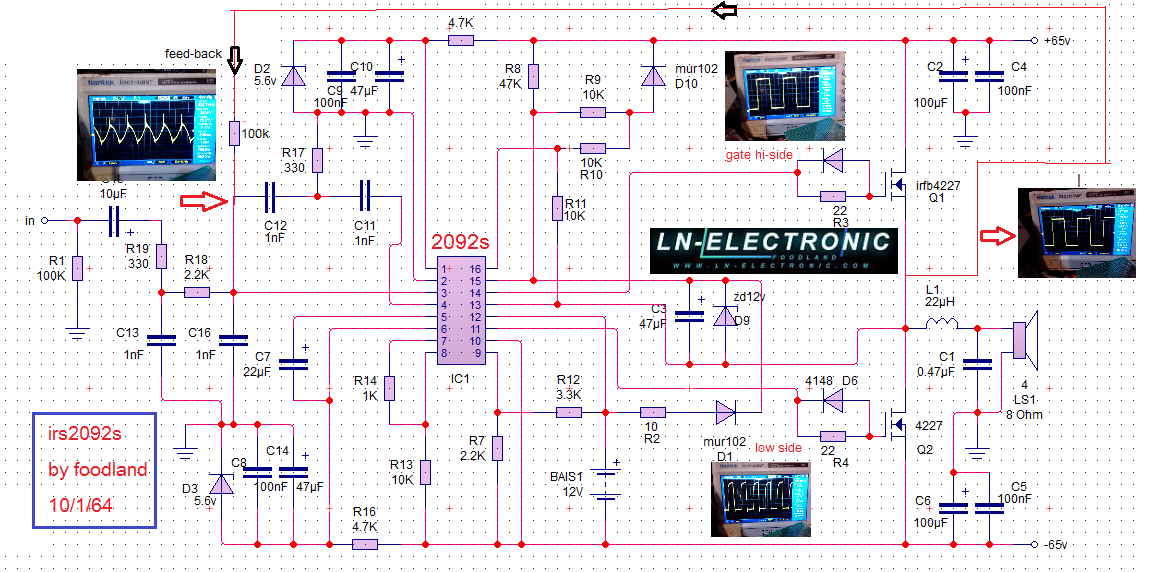

irs2092s circuit

[surachit]

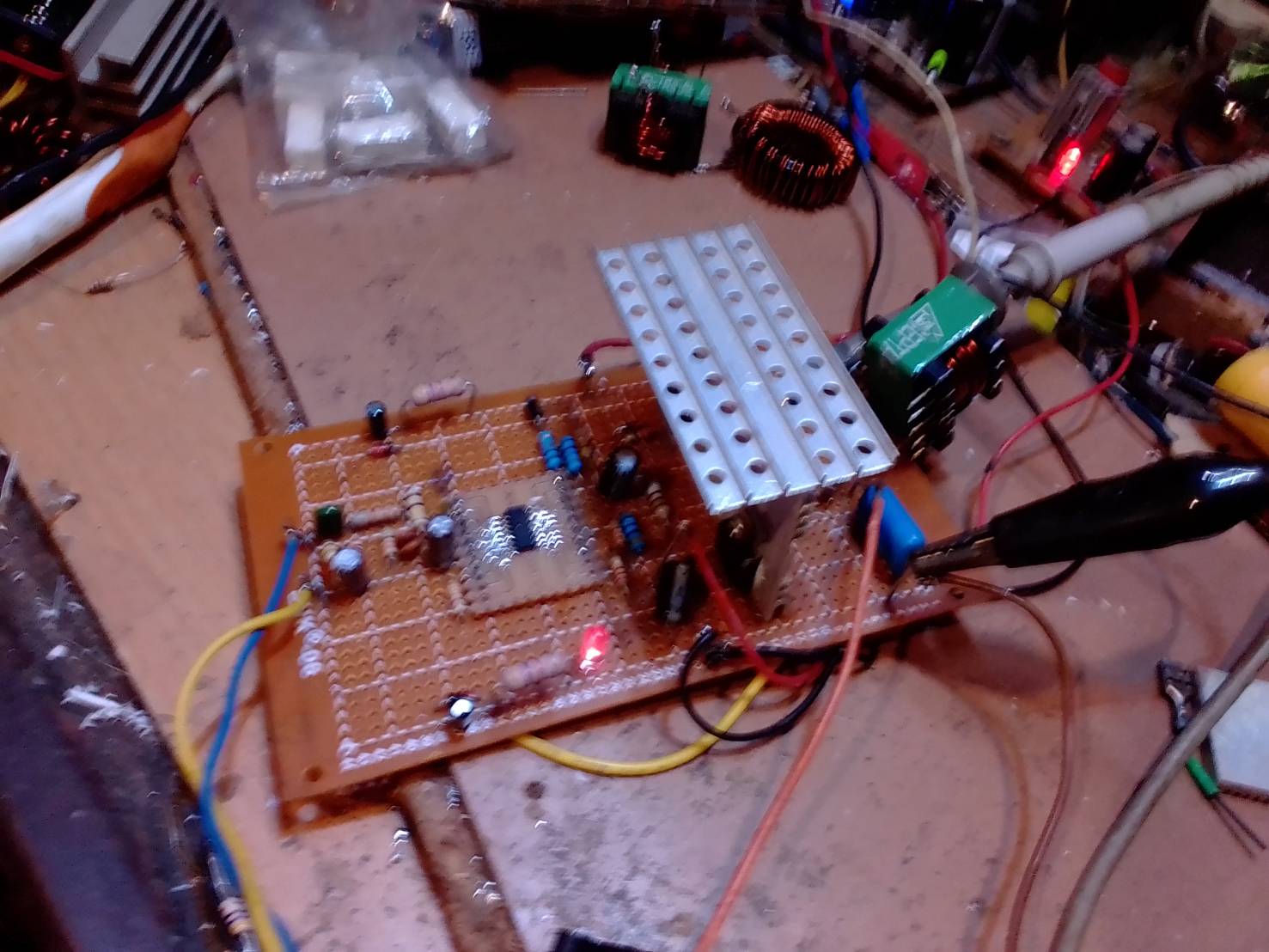

irs2092s hand made
vdo irs2092s test power1 - YouTube



[nigelwright7557]

I found with Irfb4227's I needed gate drivers.
The amp played ok until I turned it up then it would start resetting.
Deadtime and OC were at max setting so they should have been OK.

Well done getting it working on stripboard, I struggled using a tightly laid out pcb !



[surachit]

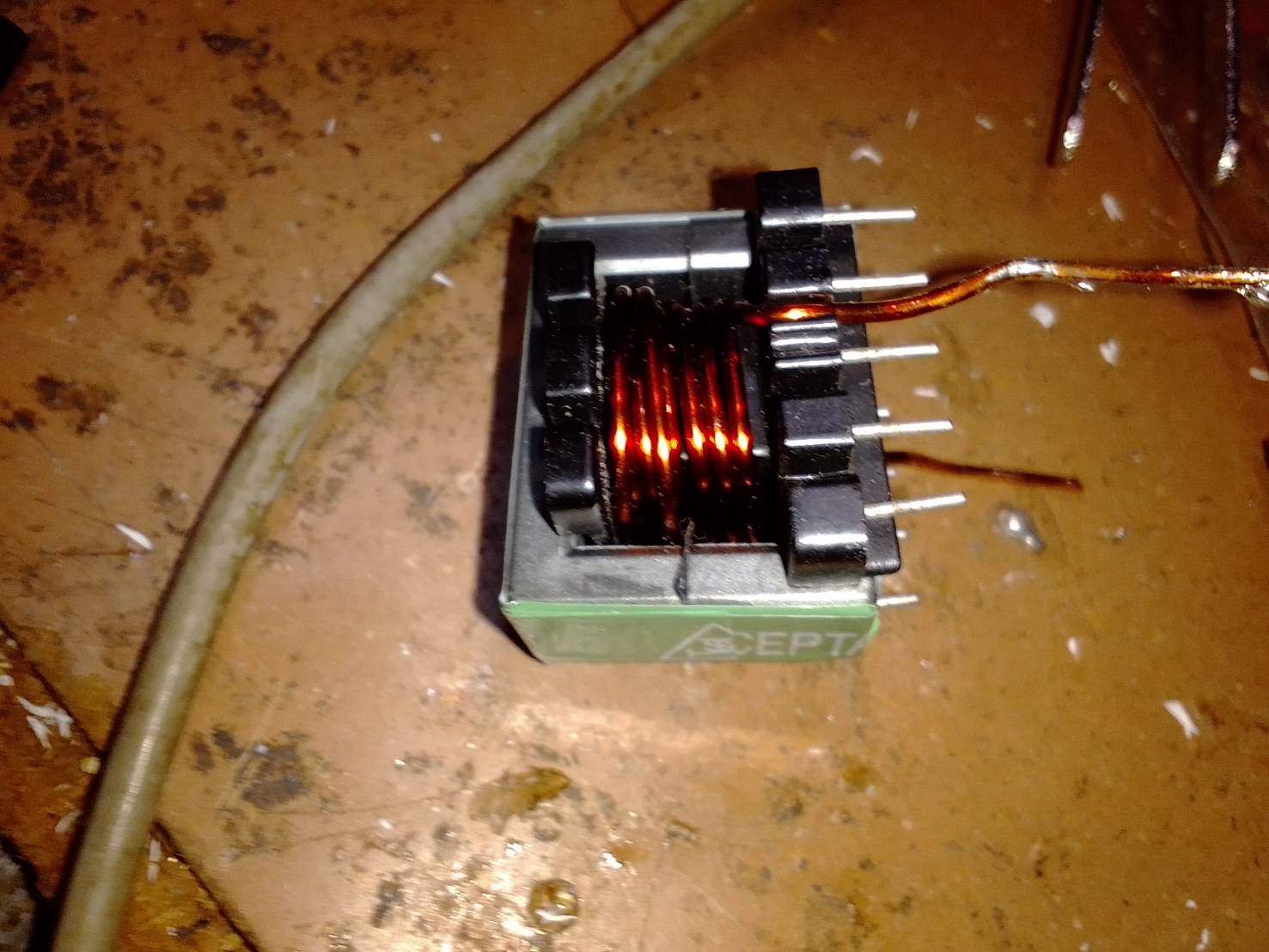

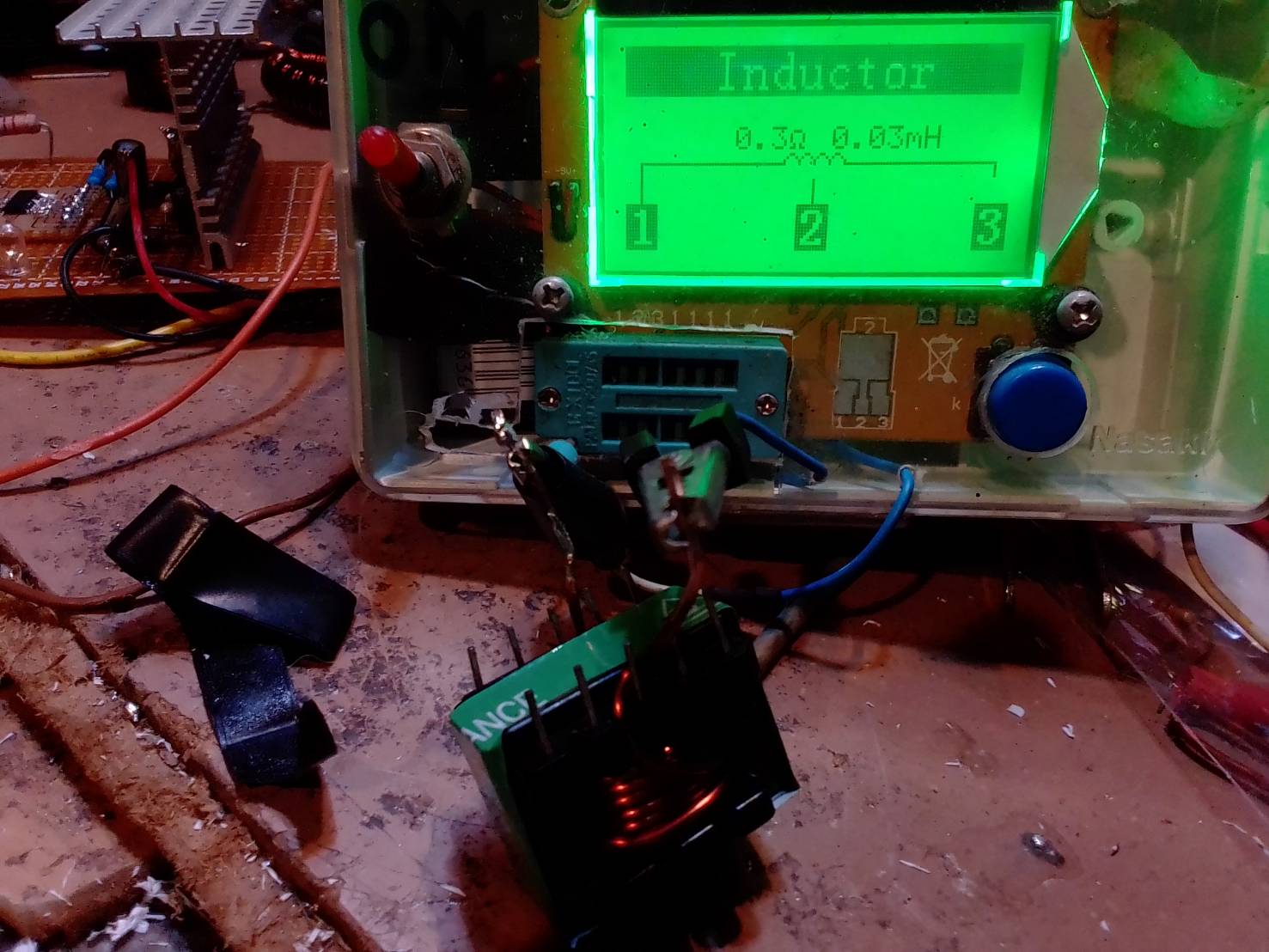

ee-28 for core class d for test 9 turn+airgap about 30uh

vdo irs2092s class d core ee28 - YouTube



[surachit]

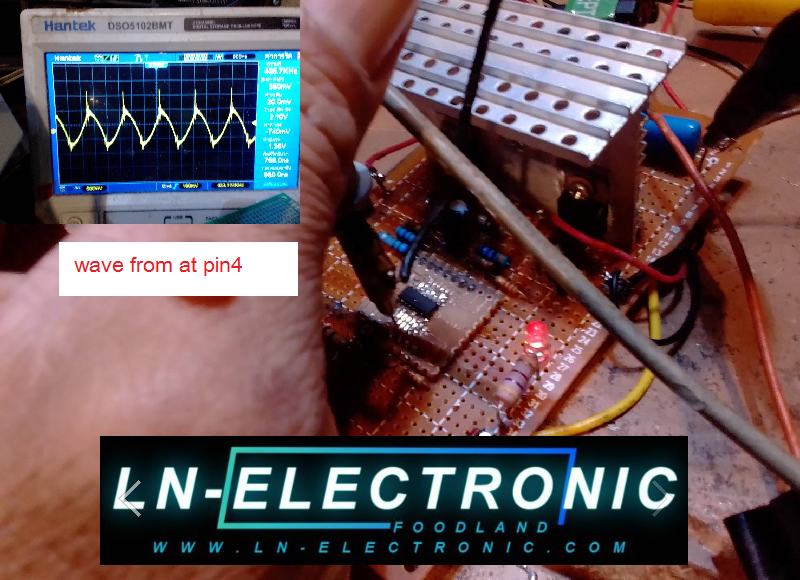

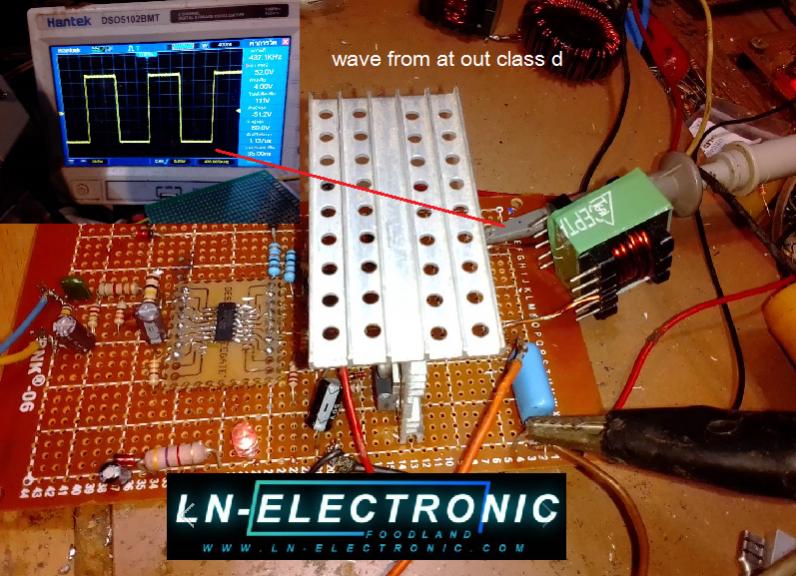

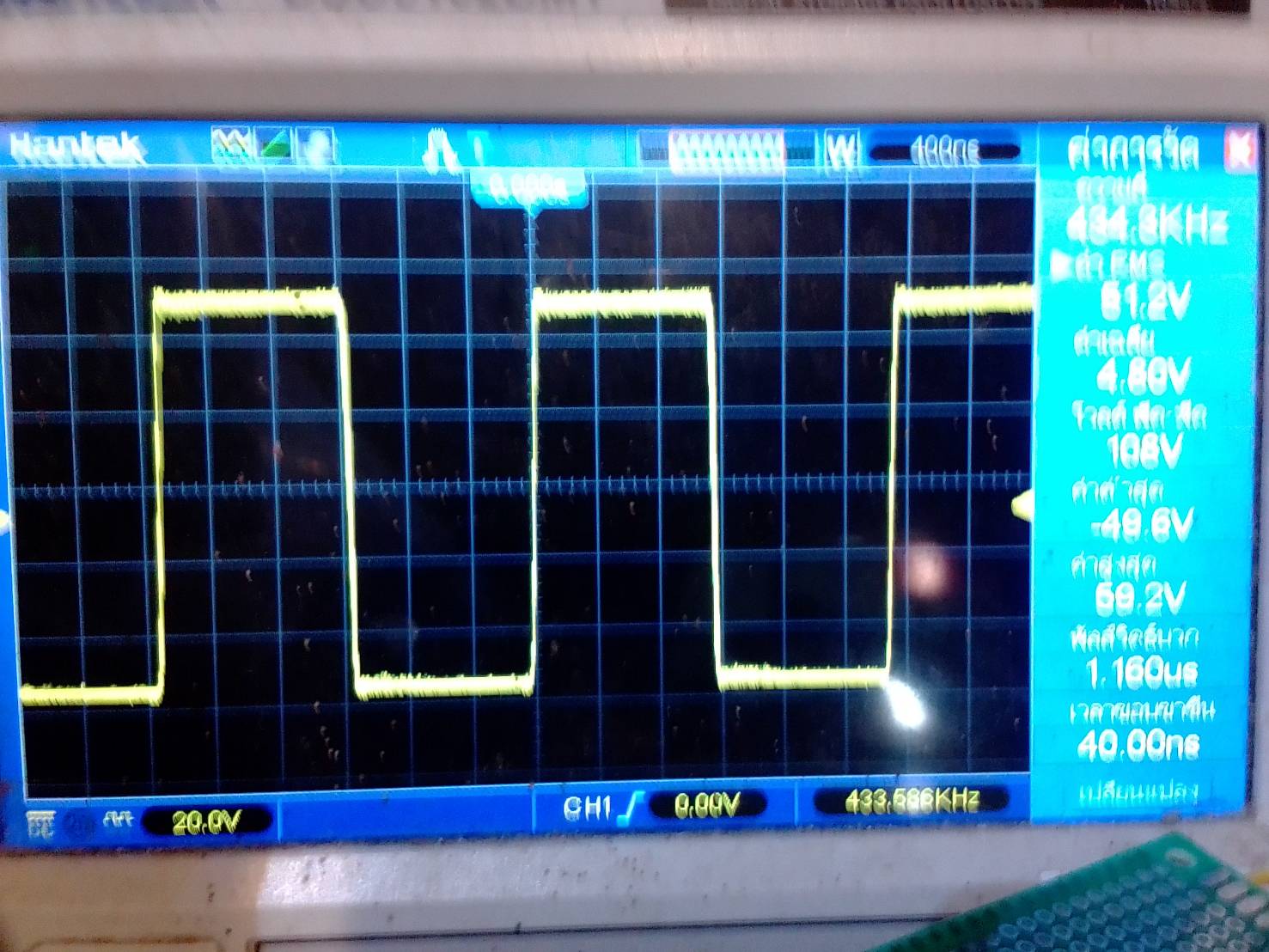

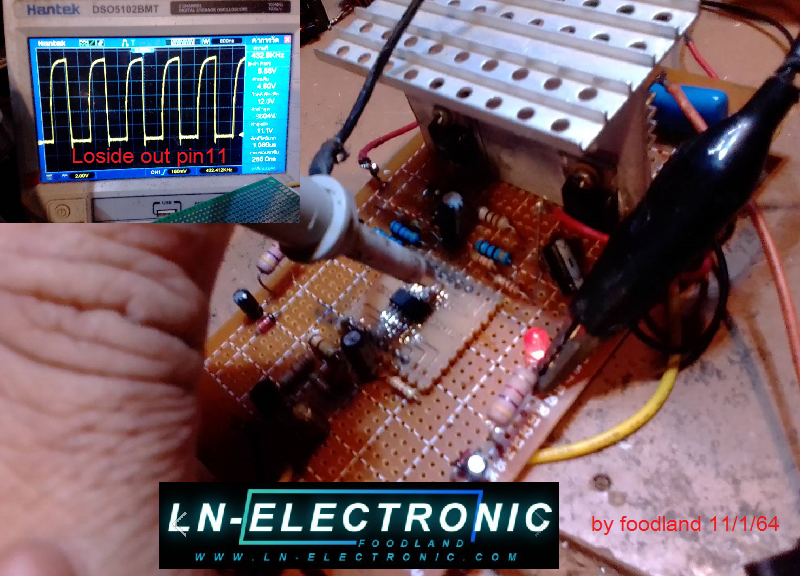

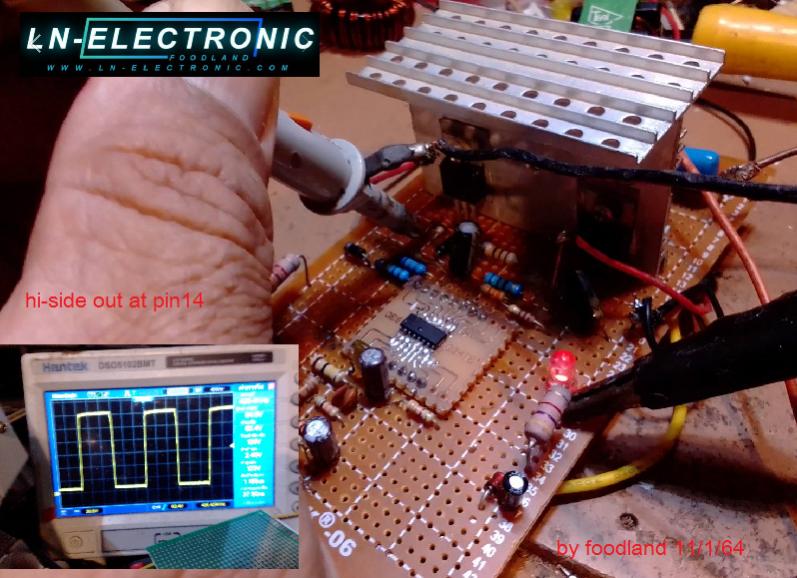

wave form for class d irs2092s



[nigelwright7557]

I used T106-2 for core.

Does it play to max volume without resetting ?
That's the best test.
