Does anyone have a circuit diagram for the Hercules II board ?
I believe it is very similar to the Valhalla but with 2 xtals instead of one but it would still be good to see it.
I am specifically interested in how R32, which is at least 3 watts on the Valhalla is only about a quarter watt on the Hercules II.
Thanks
I believe it is very similar to the Valhalla but with 2 xtals instead of one but it would still be good to see it.
I am specifically interested in how R32, which is at least 3 watts on the Valhalla is only about a quarter watt on the Hercules II.
Thanks
I am also looking for a schematic.
Are there two crystal oscillators in use like realized in Lingo or is a sine wave oscillator in use like in Linn's AXIS motor control ?
Are there two crystal oscillators in use like realized in Lingo or is a sine wave oscillator in use like in Linn's AXIS motor control ?
Attachments
-

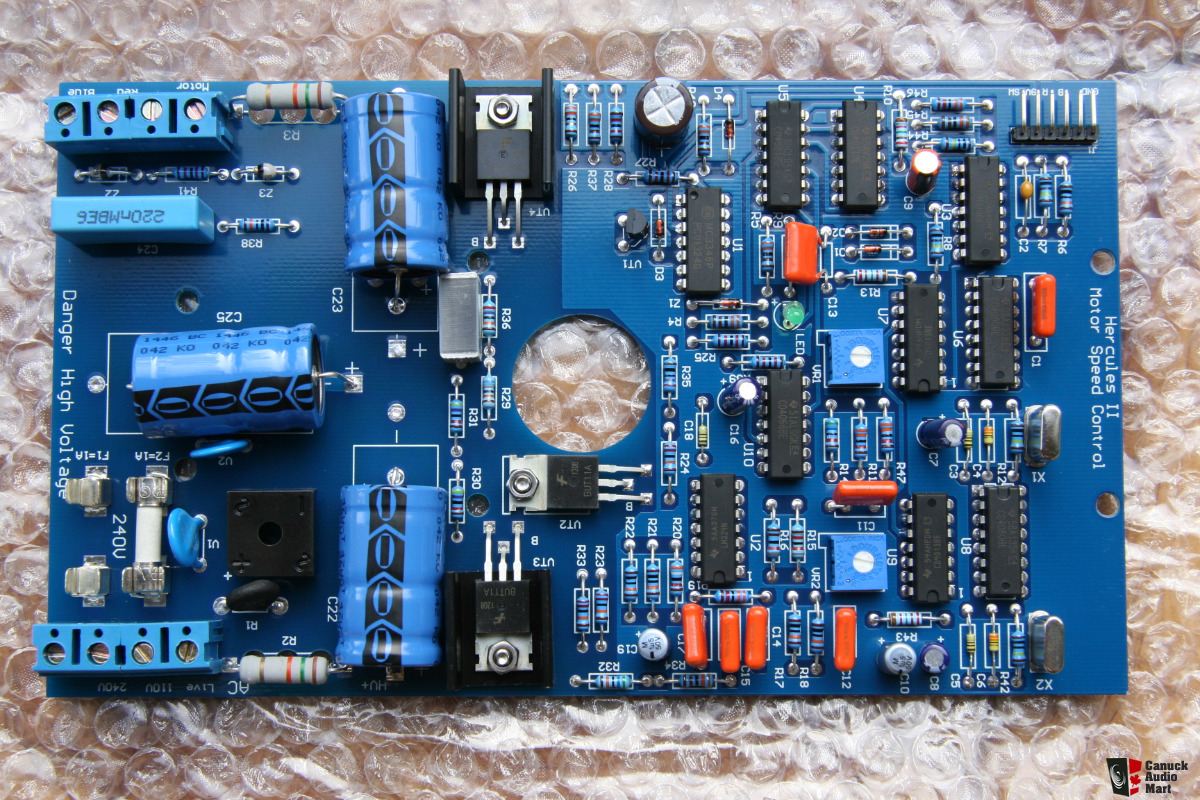

1314488-2e61f157-hercules-power-supply-with-switch-for-linn-lp12-sondek-with-free-fitting-or-fre.jpg -

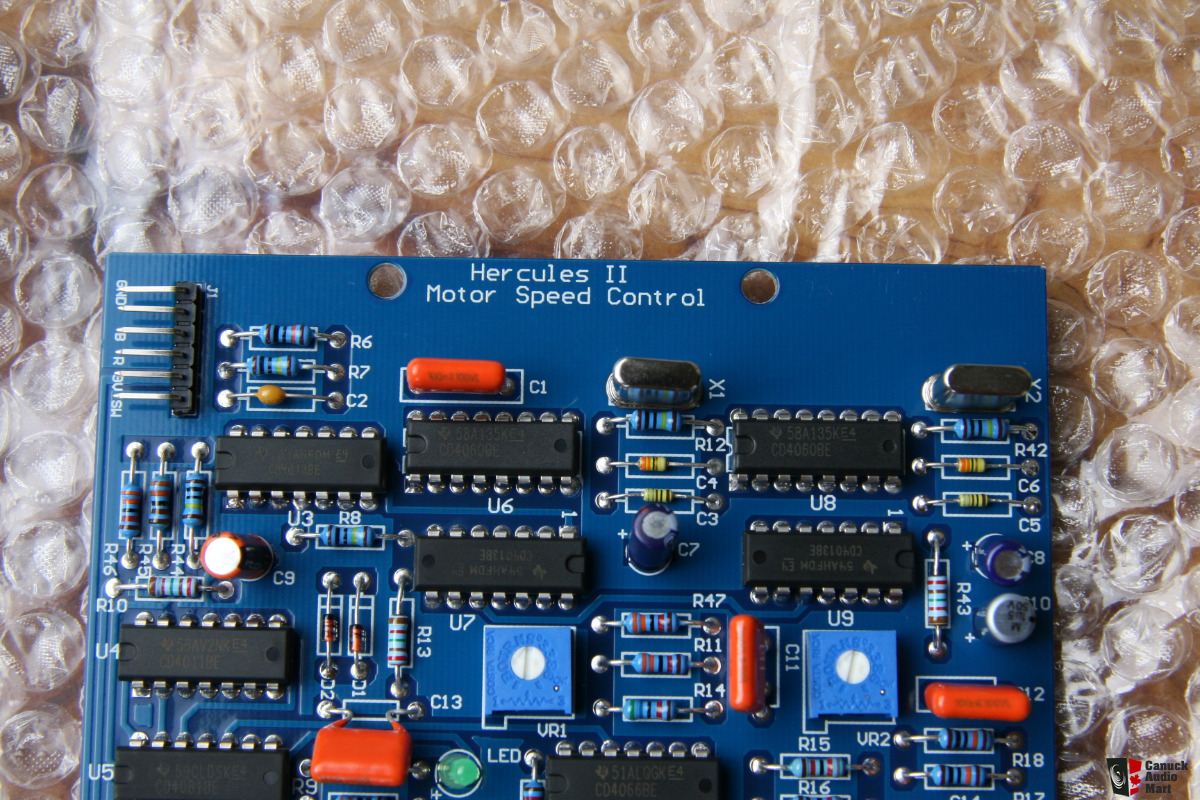

1314489-8a71be77-hercules-power-supply-with-switch-for-linn-lp12-sondek-with-free-fitting-or-fre.jpg -

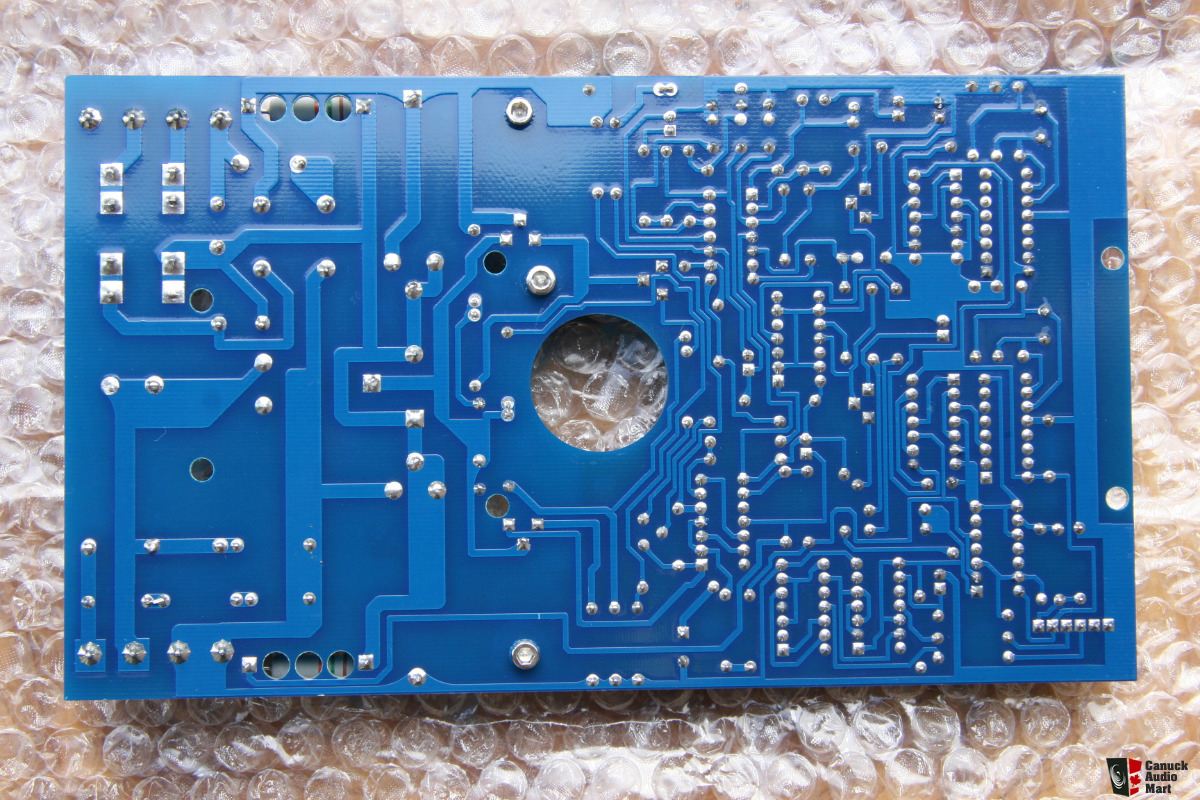

1314490-d71917a8-hercules-power-supply-with-switch-for-linn-lp12-sondek-with-free-fitting-or-fre.jpg -

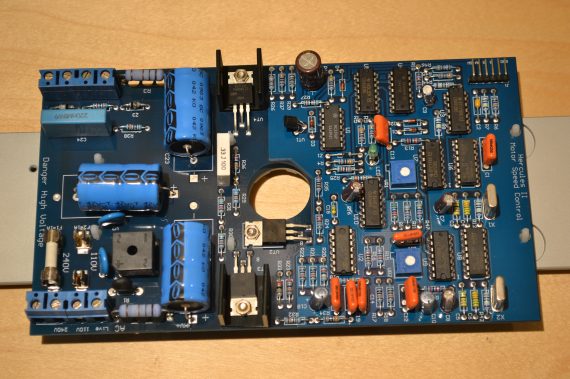

-linn_lp12___cirkus__hercules_ii_3345__signet_xk50_arm__linn_akidt_cartridge-5_155.jpg -
