GU 50 monoblock

Status
Not open for further replies.
Jump to Latest
G

gedd

Member
Joined 2006
#1

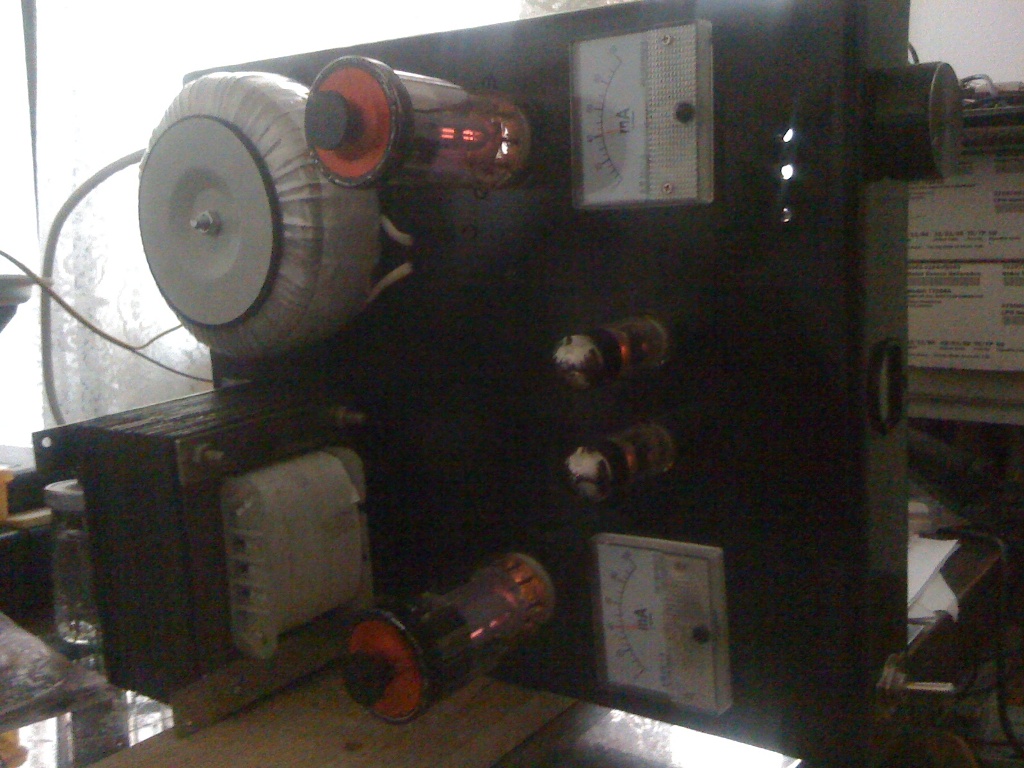

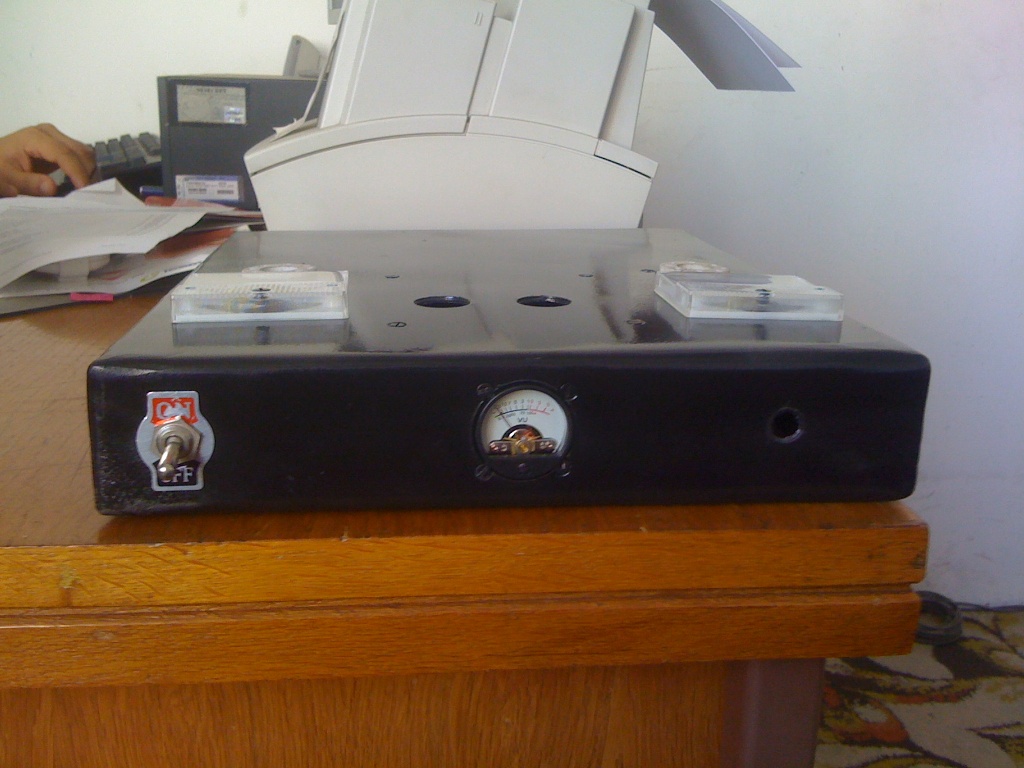

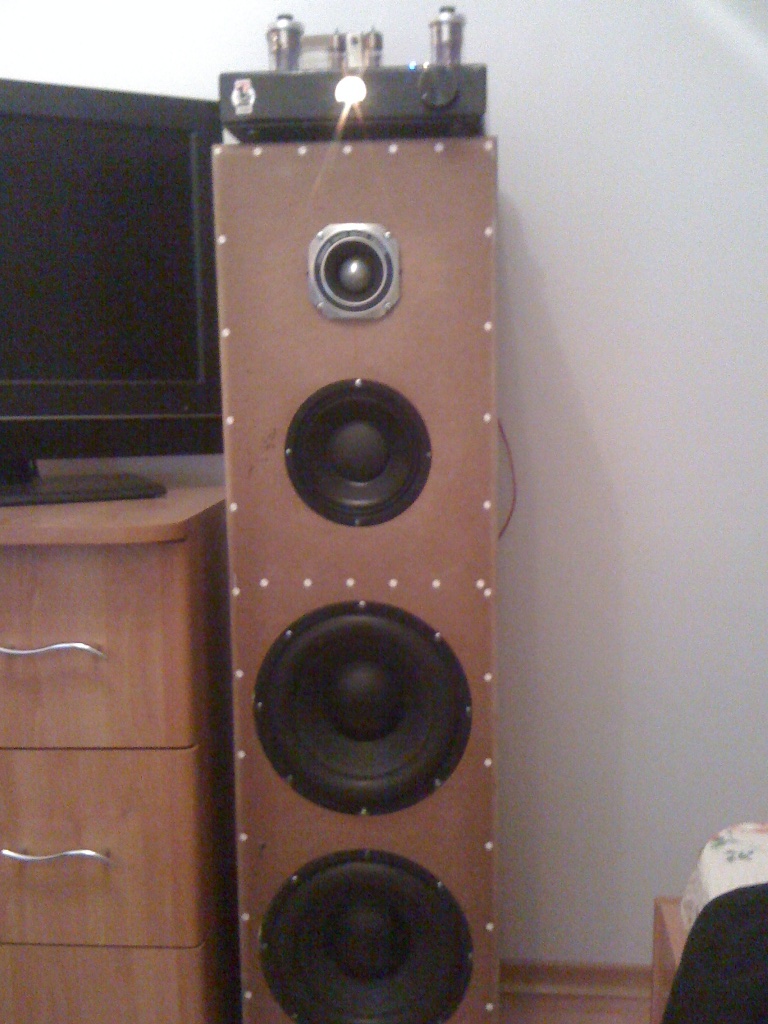

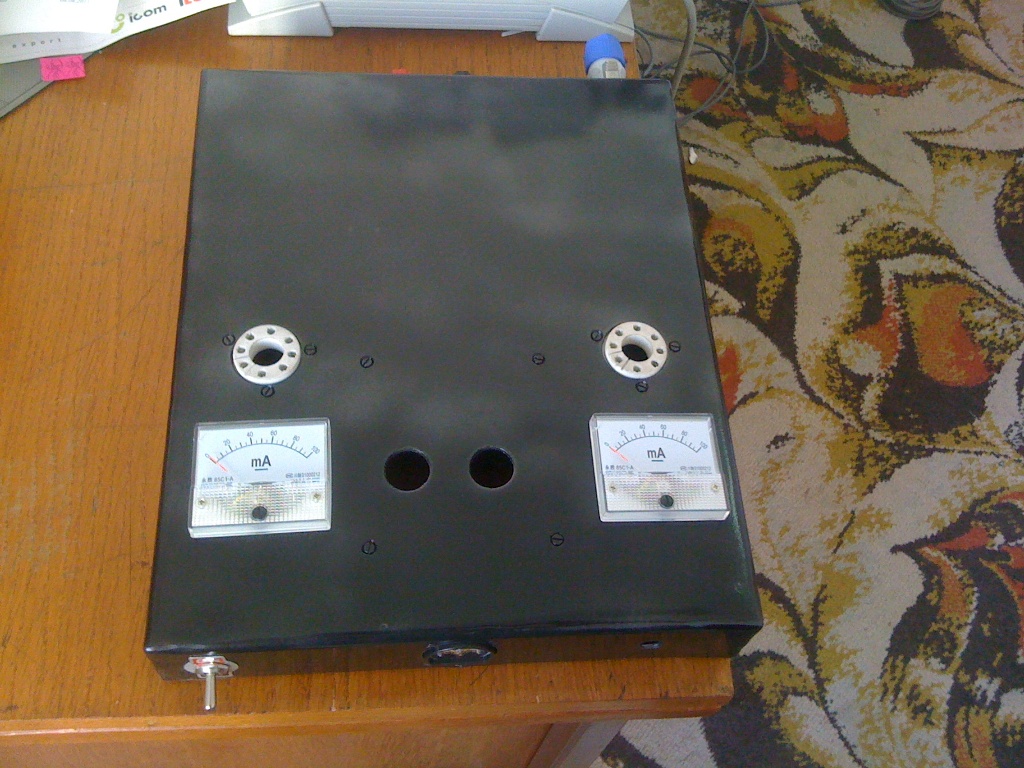

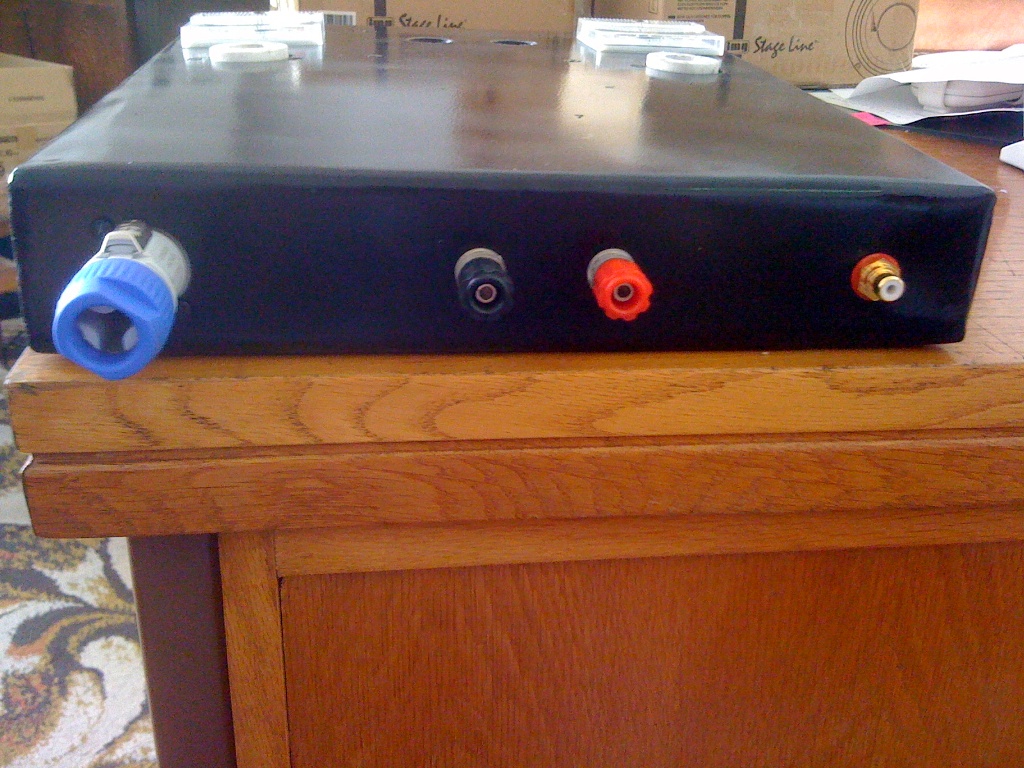

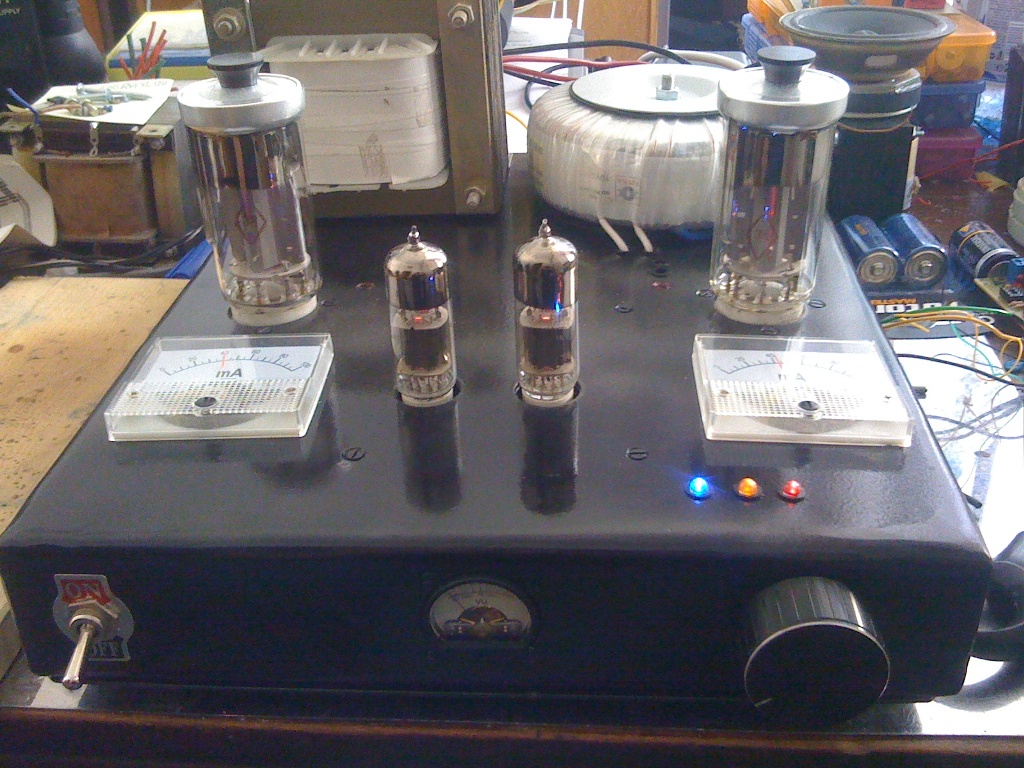

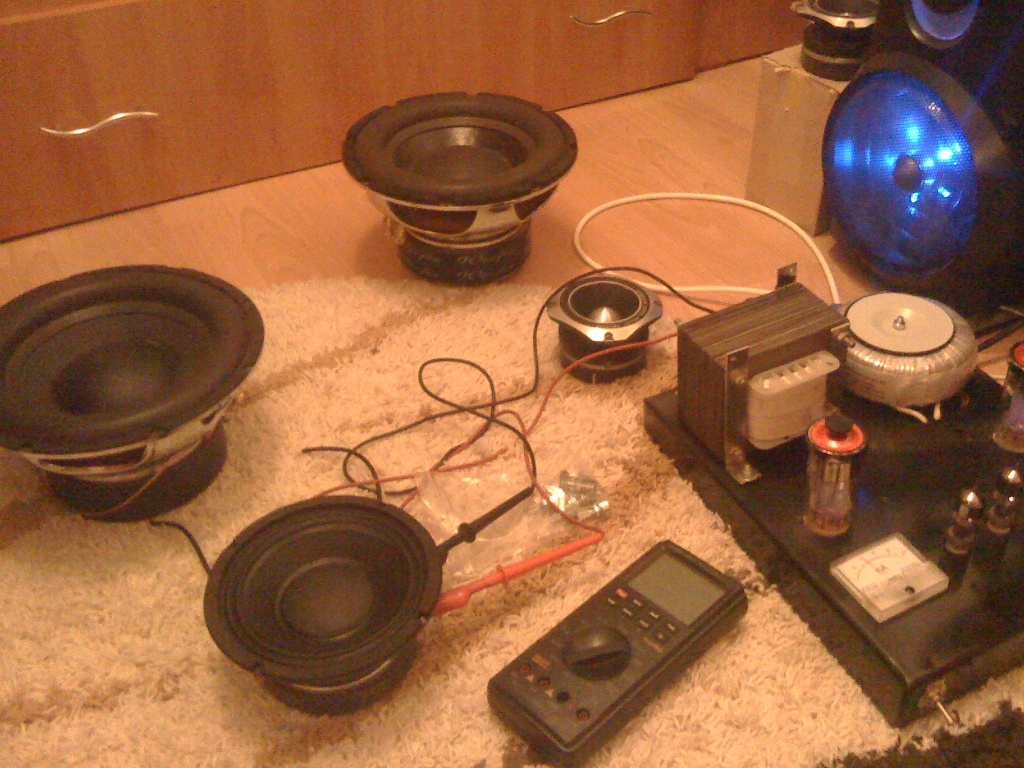

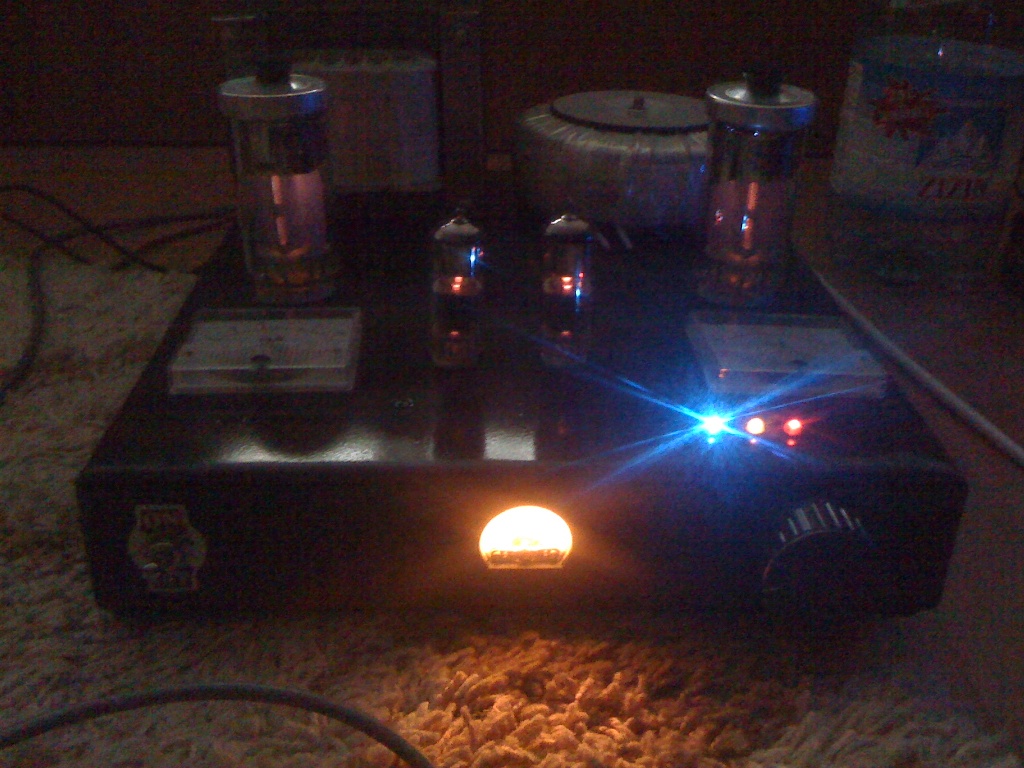

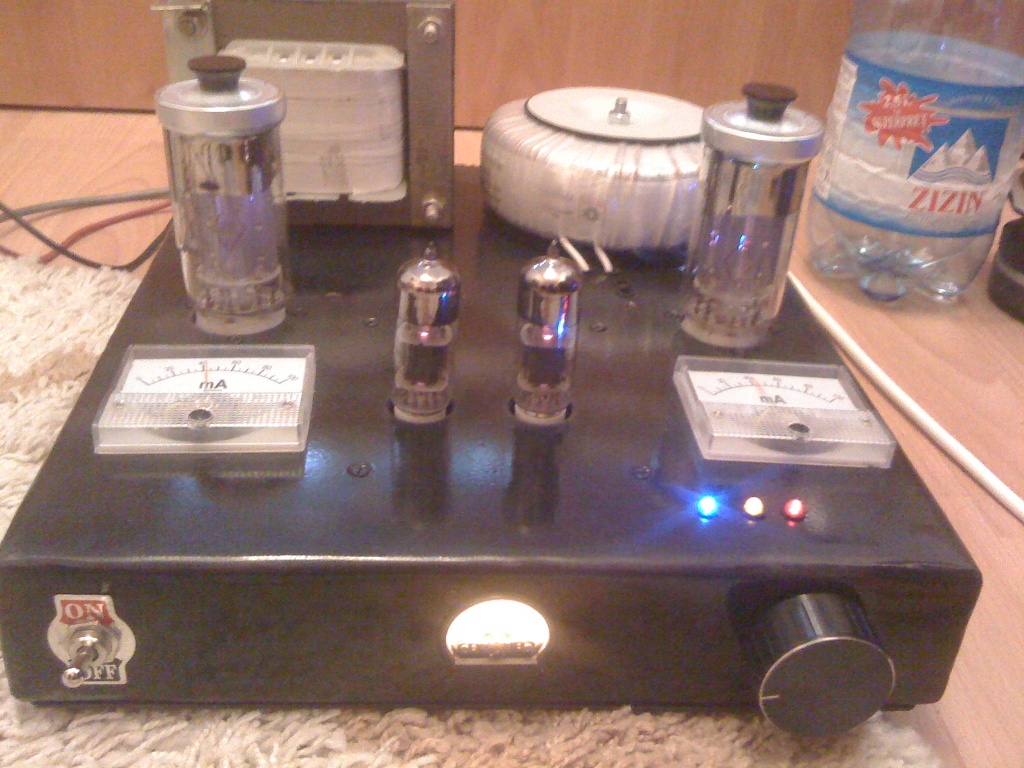

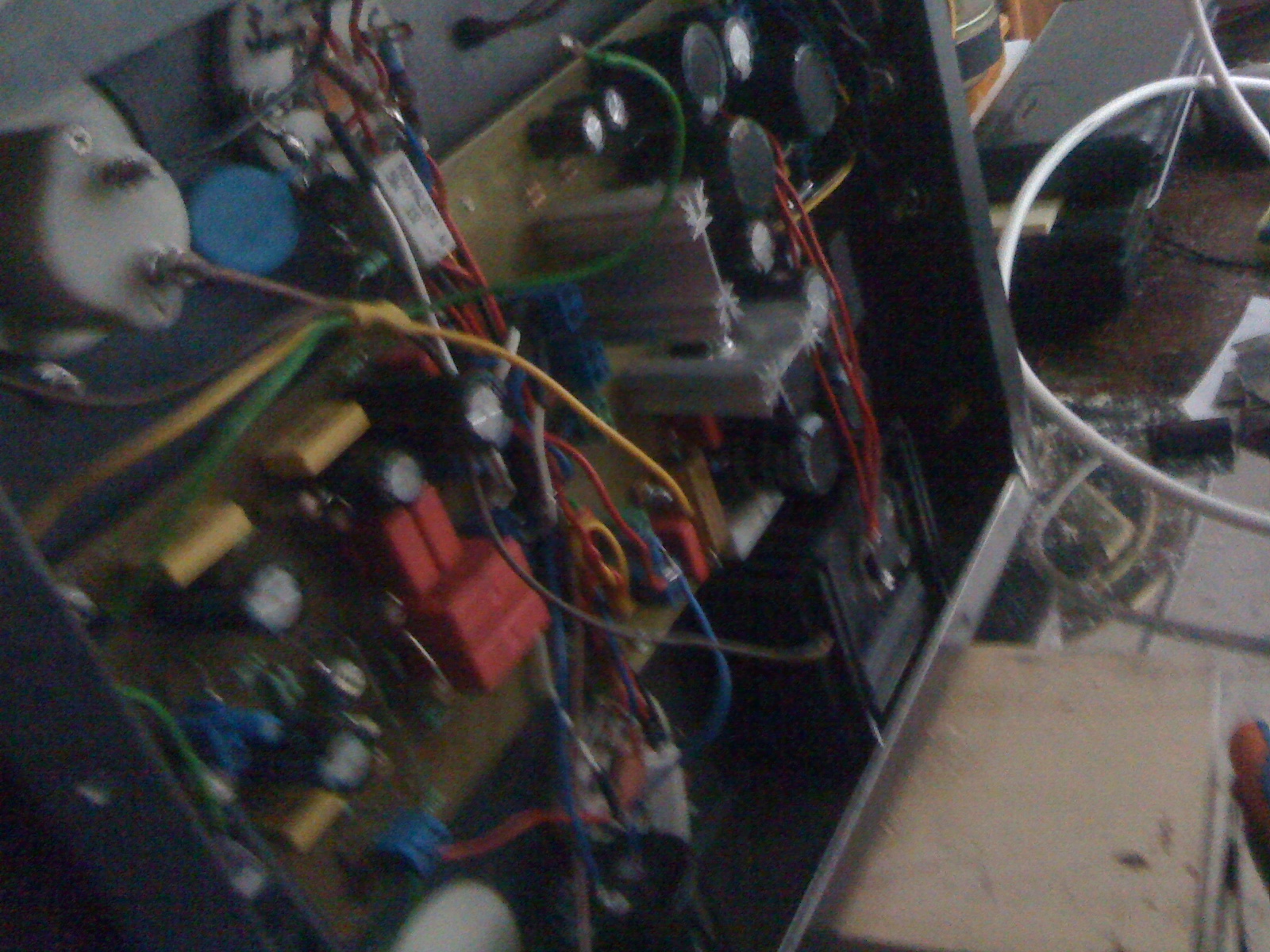

hello dear "audio"friends...I managed to do this...since this is my first post on this forum....I can hardly wait your opinions...remarks etc


Attachments

  • Picture 001.jpg
    Picture 001.jpg
    317.2 KB · Views: 622
  • Picture 002.jpg
    Picture 002.jpg
    215.3 KB · Views: 572
  • Picture 003.jpg
    Picture 003.jpg
    344.5 KB · Views: 556
  • Picture 021.jpg
    Picture 021.jpg
    269 KB · Views: 513
  • Picture 028.jpg
    Picture 028.jpg
    342.7 KB · Views: 508
  • Picture 033.jpg
    Picture 033.jpg
    295.7 KB · Views: 290
  • Picture 032.jpg
    Picture 032.jpg
    286.1 KB · Views: 232
  • Picture 024.jpg
    Picture 024.jpg
    337.6 KB · Views: 208
  • Picture 027.jpg
    Picture 027.jpg
    258.3 KB · Views: 193
  • Picture 023.jpg
    Picture 023.jpg
    714.1 KB · Views: 222
#2

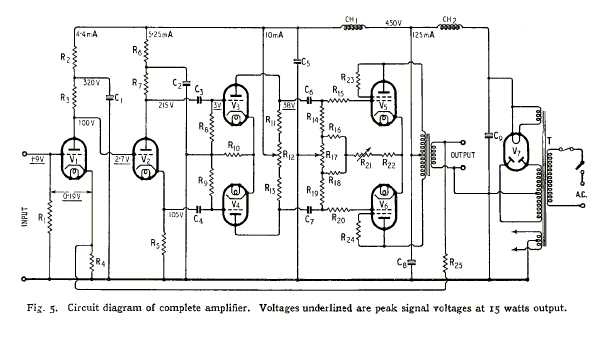

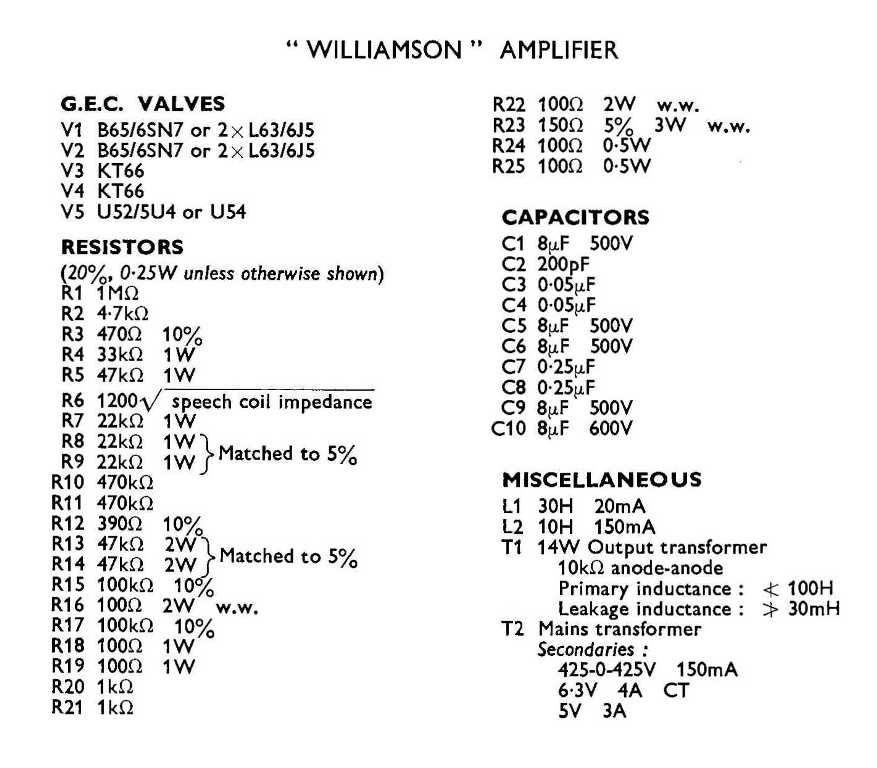

me again...schematics of the williamson "amplifier"

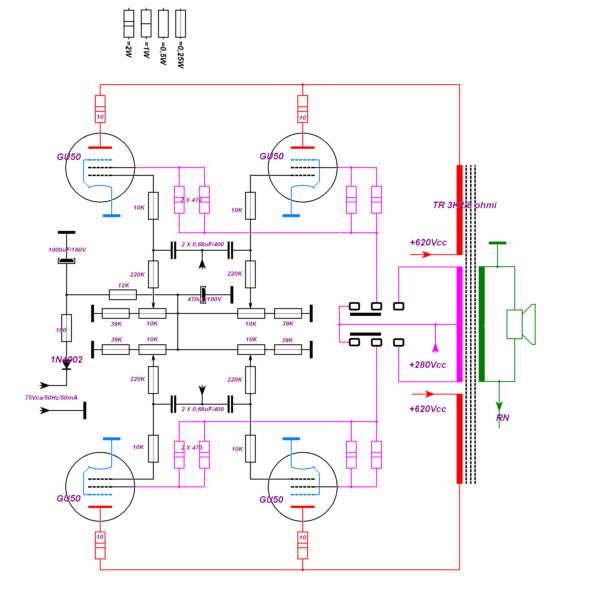

I put here the original schematic that I used...with the following modifications: V1,2 V3,4=6N6P(russian) Ua=400V R2=18k/1w,R6=12k/1w,I also added a trim pot(20K) on the anode of V3,4 for simetry of the signal...now the most important part..I used one pair of GU50/channel,so the OT(output trafo) becames Raa=6k4 5000 windings of CuEm=0,25 and secondary 189 windings of 0,6CuEm you can see in the attachment...I used 28Cm2 instead of 24Cm2


Attachments

#7
Data viitoare sa specifici in titlu ca amplificatorul este PP , ca sa nu mai piarda vremea cu subiectul tau......( into Romanian )
Next time you specify in the title as the amplifier is PP not to spend time with your subject ......

#8
hpavictor said:
Data viitoare sa specifici in titlu ca amplificatorul este PP , ca sa nu mai piarda vremea cu subiectul tau......( into Romanian )
Next time you specify in the title as the amplifier is PP not to spend time with your subject ......
Click to expand...

😕😕😕😕😕 so..is there a problem? I don't think so...my subject was just like in the title....I wasn't refering to PP or SE...whoever is curious...is free to look...so...do you have a problem with that? I don't see something concret on this forum...so...until that...mind of your own buisness...vanity pisses me off....romanian vanity..I don't get rid of this...not even here... "Originally Posted by TheGimp
Nise, and good documentation.

How does it sound?" He understands....see?

Last edited:
#9
I downloaded everything. All I saw was a 1955 Mullard schematic, a schematic from your final stage, without driver, and 4 PCB layouts. Now I do not know what Gimp saw, but am I supposed to trace the PCB's to see how is your circuit wired???
