Garnet Deputy II

[turk 182]

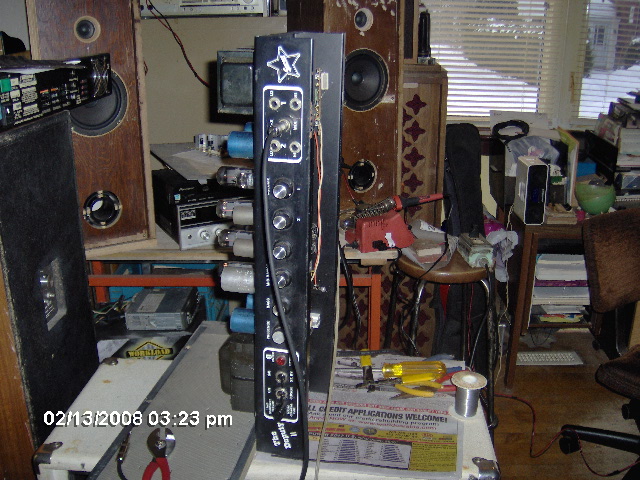

anyone by chance have a schematic for a Garnet Deputy II (G260b)?

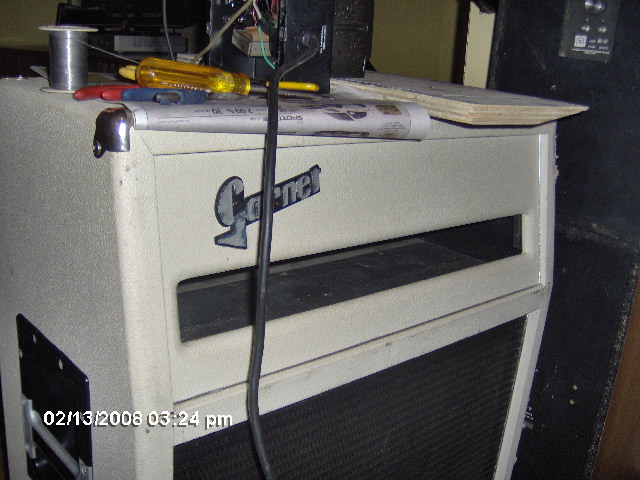

this one's a rare bird and blonde(tolex) to boot?



[turk 182]

anyone?



[gingertube]

Does it have a phase spiltting tansformer?
If so this should be close:
http://www.thetubestore.com/lib/thetubestore/schematics/Garnet/Garnet-L260D-BTO.pdf
Ian



[turk 182]

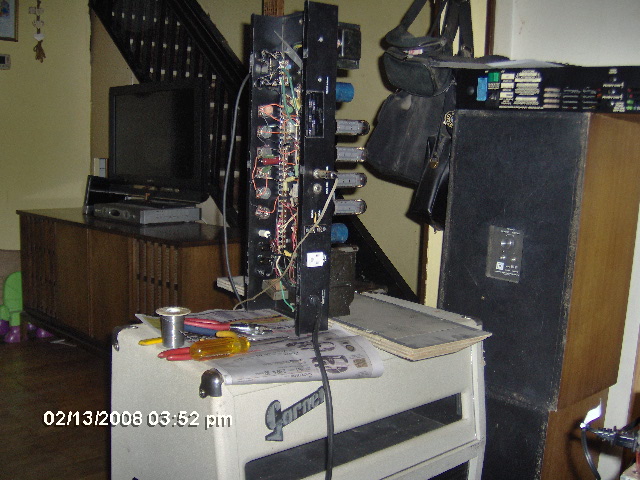

this one use's two output transformers paralleled for the output(?) and the PI is a tube.
i got it functional but it would be nice to know if everything is as designed (non modded).
