First layout with spud

Status
Not open for further replies.
Jump to Latest
S

singh santa

Member
Joined 2009
#1

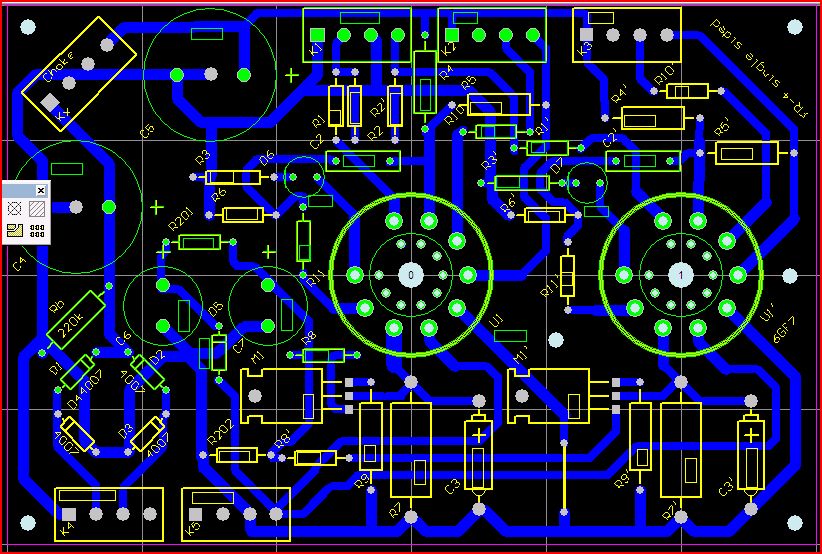

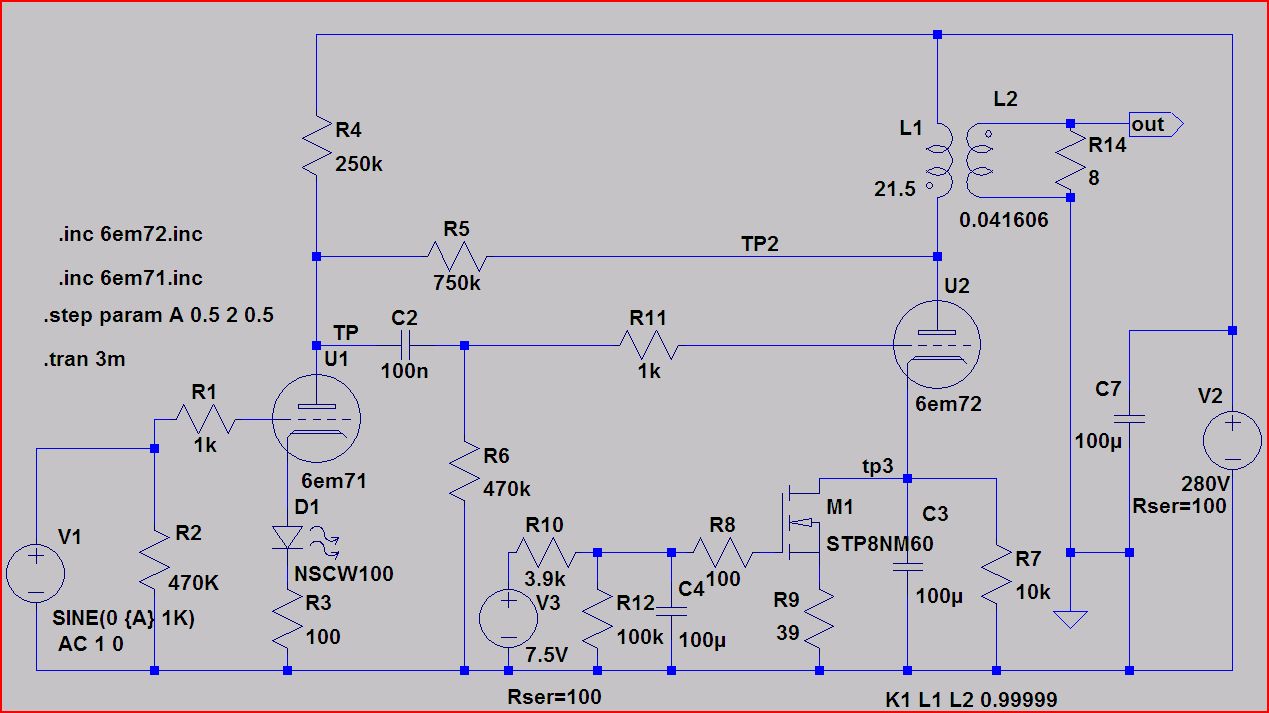

New to pcb layout for tube amp so started from a spud (single tube amp) is easer.First for 6GF7/6ar8/6ky8 pcb.than any others like 6bm8 6ea7 etc.. firstpcb.JPG

firstsch.JPG Advice needed.Thanks for any input. Cheers!
Santa
