Finished my stereo amp!!

[Tim Wyatt]

Finished it. It sounds great running into a pair of KLH tweenty-two speakers. My wife ask what I was going to do with it, after she heard it she said "that goes in the front room". Tube glow in the dark and Pink Floyd🙂 Thanks everyone who gave me advice.

An externally hosted image should be here but it was not working when we last tested it.



[Cloth Ears]

WOW! Looks fantastic. And I guess it must sound good too if it's going to the front room.



[pedroskova]

For us oldsters who can't remember one thread from the next: could you please post a schematic?


thanks,

pete



[Tim Wyatt]

Thanks ears. Well, no schematic. I copied the output from the Eico HF-12 amplifiers that I gutted for the project with a couple changes (smaller cathode resistors ect.), The rest I just made up as I went.



[cogsncogs]

Tube glow in the dark and Pink Floyd

Not dark enough! 😀

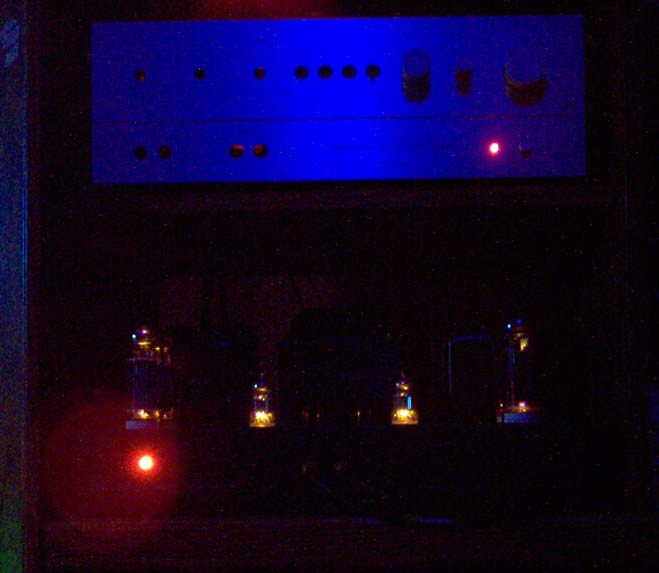

Here's mine playing DSOTM

Wayne🙂



[EC8010]

Looks good, and output transformers that are bigger than the choke are always a good sign...
