Diode on irs2184s

[Aqeeb127]

Hi does anyone know what diode is used from vcc to vb

Thanks on advance



[Perry Babin]

I can't cross most of the diode markings but you need a high-speed diode that can easily withstand the full rail-rail voltage.

The ES1G and ER1D (similar but different size and voltage) are used in some amps.



[Aqeeb127]

Thanks



[Aqeeb127]

Im actually looking for through hole



[Perry Babin]

Is there a driver board that uses through-hole diodes?



[Aqeeb127]

These ones we got here in south africa dont use driver boards its just one board from energy audio



[Perry Babin]

Photos?

Are the diodes without markings?



[Aqeeb127]

The one i have here has no markings only the direction of anode and cathode



[Aqeeb127]

I have another one and it needs that diode



[Perry Babin]

Are you loading the images like this:

Go Advanced
Manage Attachments
Browse
Upload

Repeat as necessary

Preview post to see how the post will look.

Click Submit Reply to send it to the forum.



[Aqeeb127]

Im doing it like this:

Go advance
Manage attachments
Choose file
Select image
Close this window
Submit reply

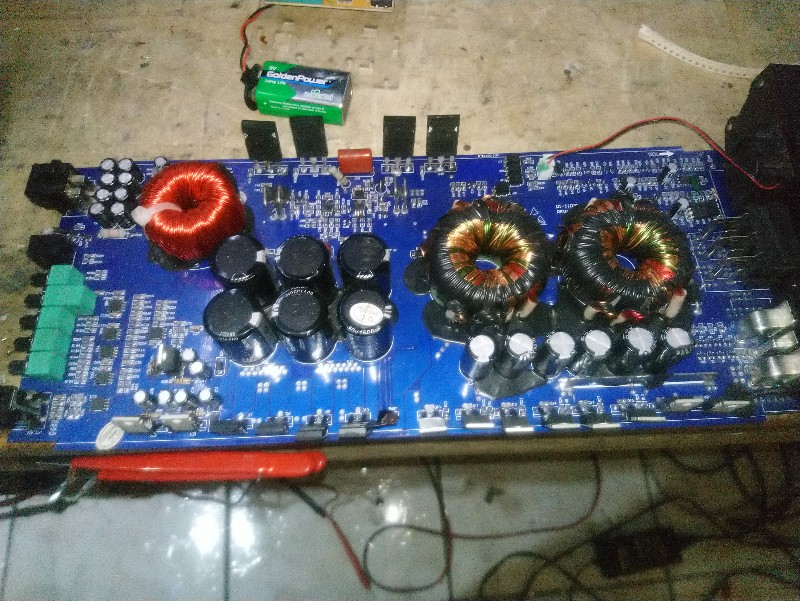

I only took one picture now as its night and my lighting aint good



[Aqeeb127]

I found some markings on it but dont know its prefixes it 200A on the end
