Hello.

I am working on PCB Clone version of DX HR-II.

Modification: Double Side PCB tracing for DX HR-II version Clone PCB.

Please let me know if its appropriate to do so.

and If I can make same PCB available here in GB

Thanks
suds

#4
Work in progress..

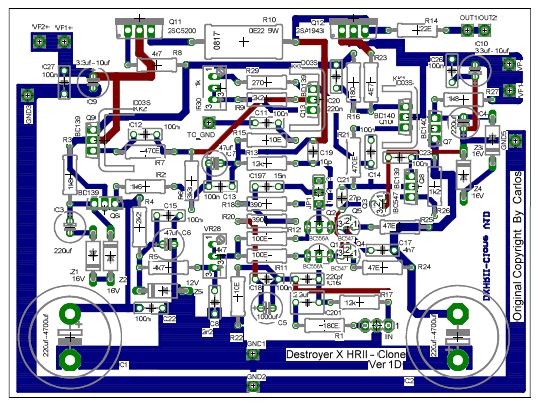

Here is Artwork image ..

PCB Size, 4.5inch X 3.5 Inch
FR 4 - with Solder Mask and Silk screen.

Approx PCB Cost, $9 Each Plus shipping.


-suds
