I am converting the Sony TDM-IP1 Digital Media Port iPod Dock to RCA. This post was a good start to find and understand the pinout.
https://www.diyaudio.com/community/threads/sony-dmp-to-line-in.183135/
I connected:
In the above configuration iPod starts to charge, great news. But no music. I have to disconnect the power (5V) so the music starts to play.
So I have one or another. Not sure what I am doing wrong.
Any ideas?
https://www.diyaudio.com/community/threads/sony-dmp-to-line-in.183135/

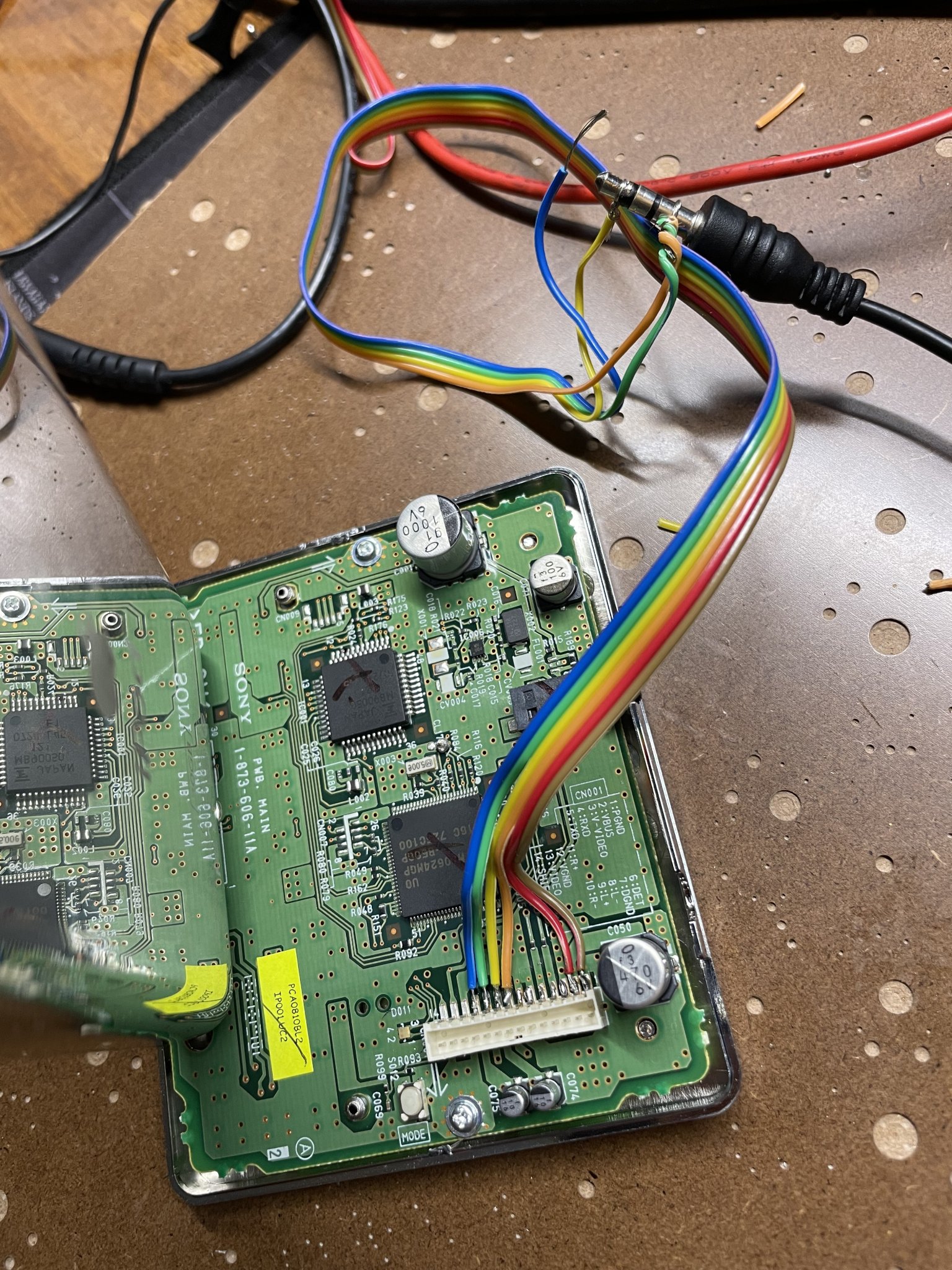

I connected:
- AGND(L) and LGND(R) together and to the RCA GND
- L to Left channel
- R to R channel
- VBUS to 5V source
- PGND to the GND source
In the above configuration iPod starts to charge, great news. But no music. I have to disconnect the power (5V) so the music starts to play.
So I have one or another. Not sure what I am doing wrong.
Any ideas?
Attachments
There is an R6550 in the schematic in the thread you linked to. Do you know what it is for and whether it can have anything to do with your problem?
He wanted to build DMport device to connect to the Sony AMP/Receiver. Kind of the opposite of what I want.
Should I try to pull DET high as well?
Should I try to pull DET high as well?
