J jjmenking Member Joined 2015 2015-11-13 5:25 am #1 2015-11-13 5:25 am #1 Anyone have thoughts on the attached chassis layouts for EL34 PP? I think both are visually appealing and should make easy grounding scheme. Thanks Attachments IMG_0838.JPG 43.2 KB · Views: 191 IMG_0839.JPG 42.9 KB · Views: 189 JonSnell Electronic Member Joined 2012 jonsnell.co.uk 2015-11-13 10:06 am #2 2015-11-13 10:06 am #2 Make sure your power transformer is not the same way round as your output transformers, otherwise you may get inherent mains hum from induction. D DF96 R.I.P. Joined 2007 myweb.tiscali.co.uk/g8hqp/ 2015-11-13 10:07 am #3 2015-11-13 10:07 am #3 The first one seems to place the input stage rather too close to the PSU. Status Not open for further replies. Share: Facebook X (Twitter) LinkedIn Reddit Pinterest Tumblr WhatsApp Email Link

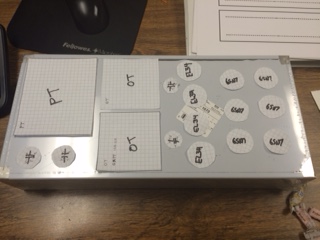

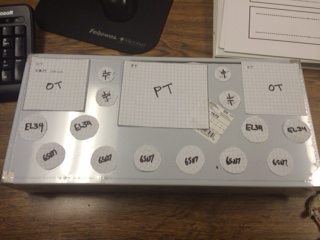

Anyone have thoughts on the attached chassis layouts for EL34 PP? I think both are visually appealing and should make easy grounding scheme. Thanks
JonSnell Electronic Member Joined 2012 jonsnell.co.uk 2015-11-13 10:06 am #2 2015-11-13 10:06 am #2 Make sure your power transformer is not the same way round as your output transformers, otherwise you may get inherent mains hum from induction. D DF96 R.I.P. Joined 2007 myweb.tiscali.co.uk/g8hqp/ 2015-11-13 10:07 am #3 2015-11-13 10:07 am #3 The first one seems to place the input stage rather too close to the PSU. Status Not open for further replies.
Make sure your power transformer is not the same way round as your output transformers, otherwise you may get inherent mains hum from induction.
D DF96 R.I.P. Joined 2007 myweb.tiscali.co.uk/g8hqp/ 2015-11-13 10:07 am #3 2015-11-13 10:07 am #3 The first one seems to place the input stage rather too close to the PSU.
