Cad new Yamaha CR-2020 capacitor board

[niclasf]

Hi,

My first post here.

I have bought a vintage amp (cr-2020) at an auction.
I am familiar with electronics but mostly digital electronics. But I have also made five or so recappings of other vintage amps so I do have experience.

In the Yamaha it turns out that the e-cap pcb is in very bad shape, so I started to cad a new board in KiCad. Then it hit me that someone might have done this before.

Do anyone of you know if it has been done already the e-cap pcb for the cr-2020?



[niclasf]

Seem like I am among the very few that need one 🙂

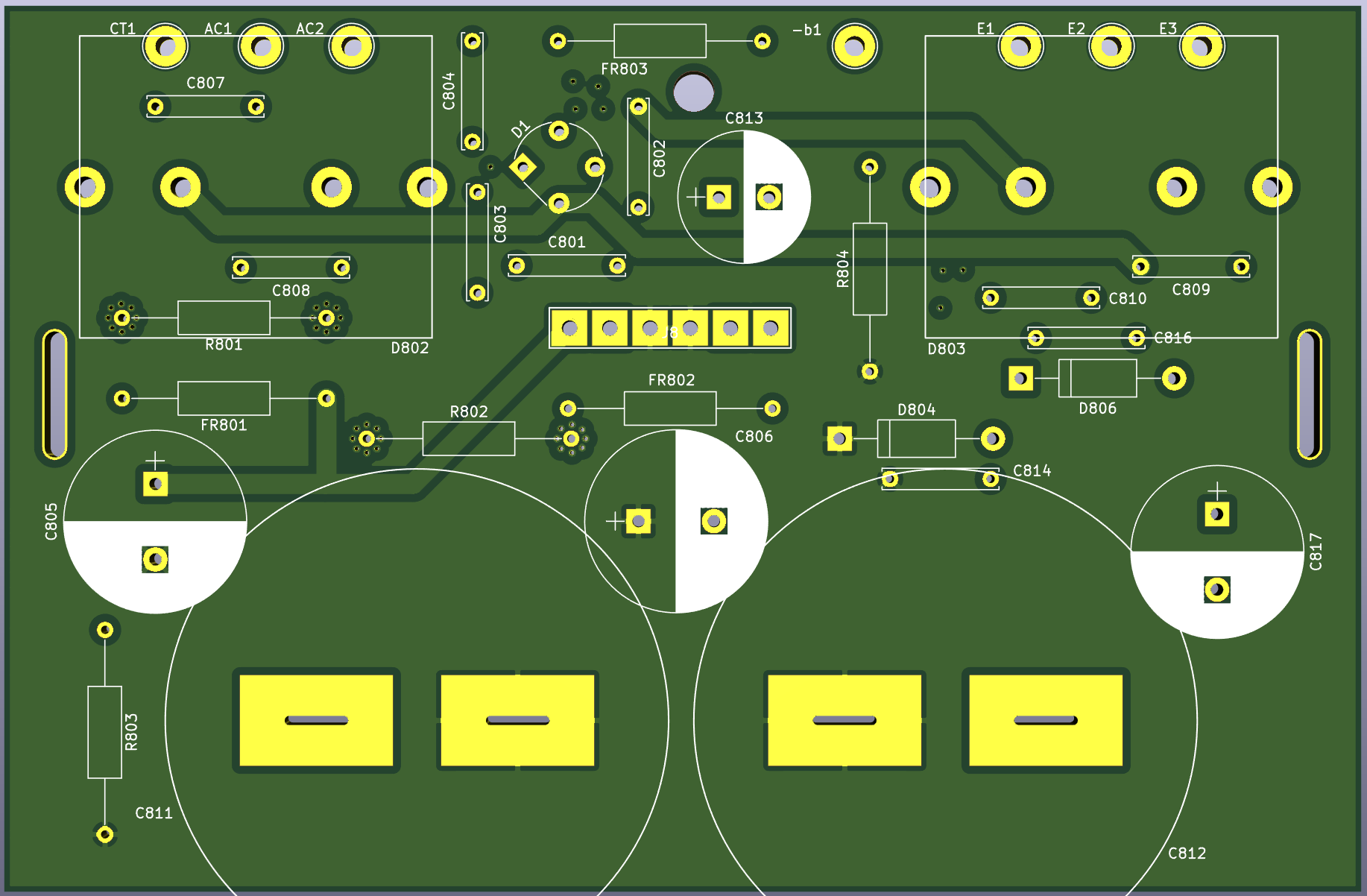

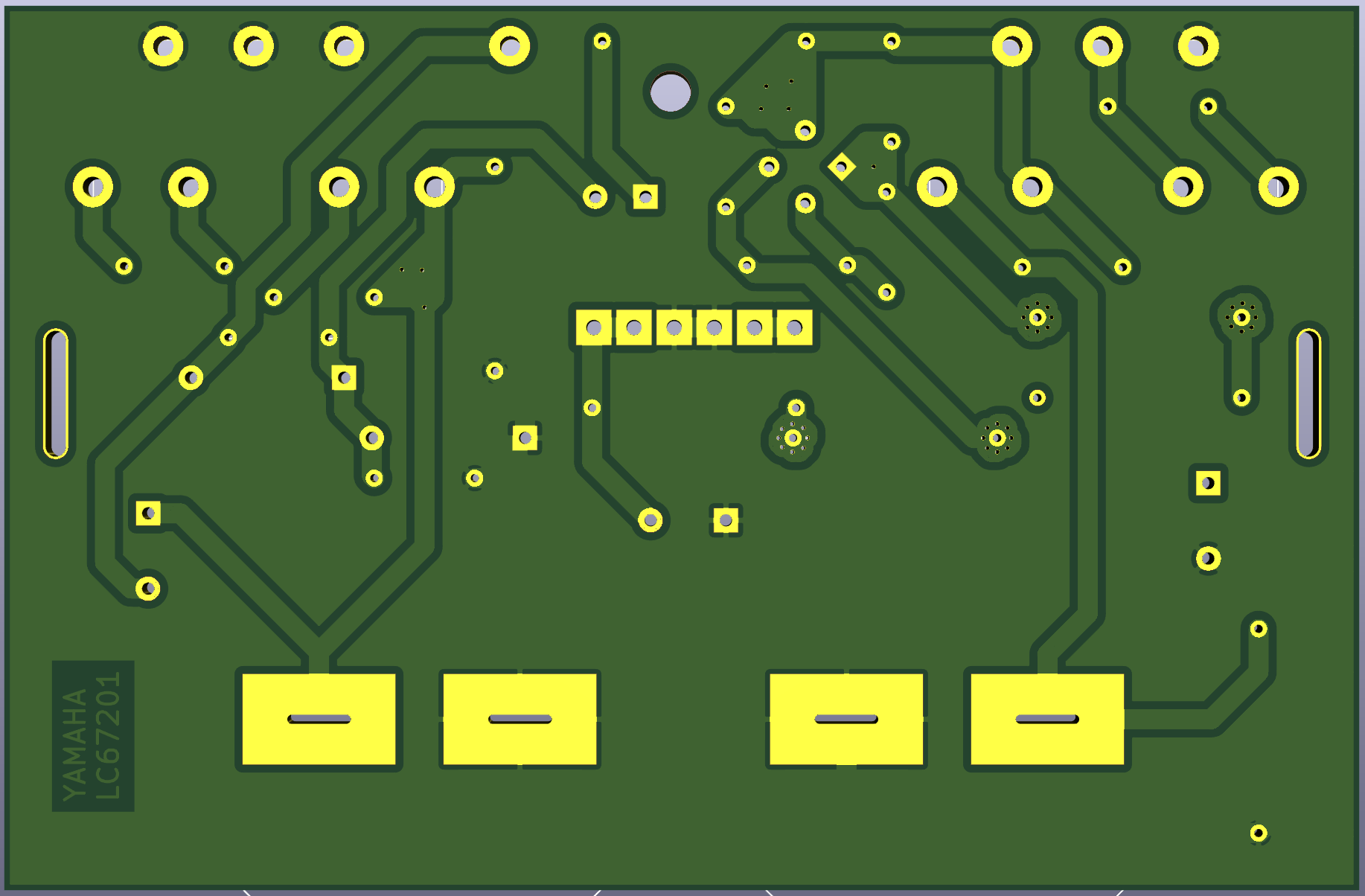

Here is my take on it.



[TesTech]

Greetings,


I just saw this, did you have some boards made? If so, I could use one, the board in my newly acquired CR-2020 is pretty bad!
