6-channel X250 build

[Tarasque]

In this thread I'm going to post the updates for my 6 channel X250 amplifier.

This will be housed in 2 cases, one for each of the Orion speakers.

The plan is to use 4 toroids of 2KVA at 40 - 0 - 40V for the power stage and 60V for the driver stage.

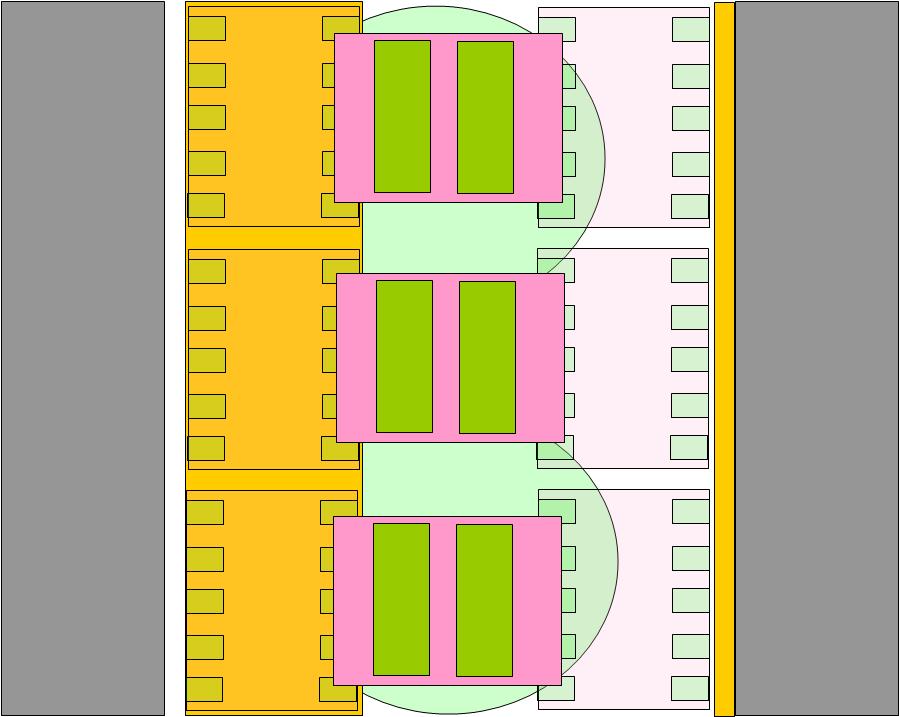

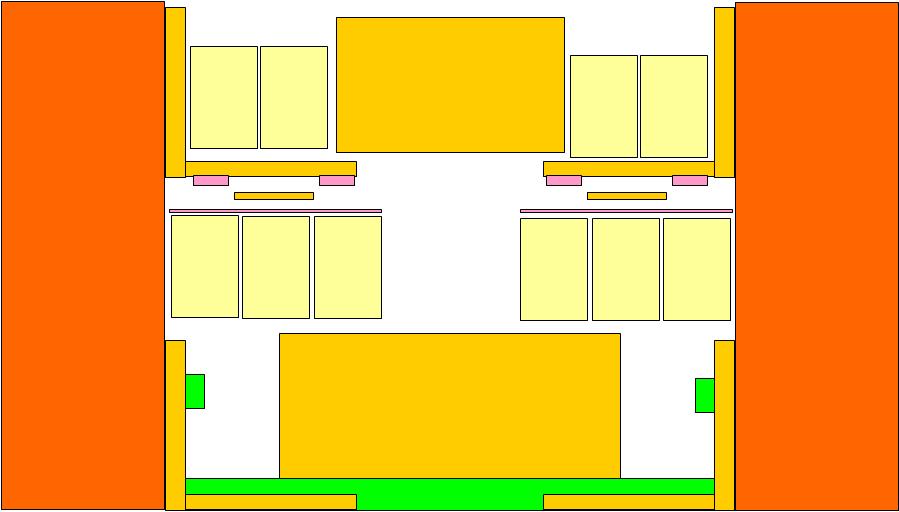

This is the case planning.



[Tarasque]

Case planning

Case planning



[Magura]

Ambitious 😎


Magura 🙂



[h_a]

Hi Marcel,

what happened? The Orion is a 4-way, so 6 channels...?

Have fun, Hannes

PS: don't know if you're still interested, the Krell board is populated and now being tested...



[Tarasque]

The 2 units in the woofer section will be in parallel 😀



[Tarasque]

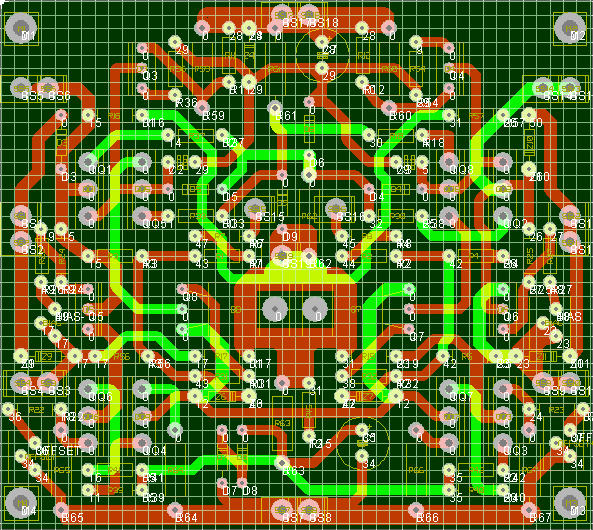

This is the driver section of one channel.
