6 Channel Pre-Amp

[suds]

Hai,

Here is schematic and PCB Layout for 6 Channel Pre-amp with adjustable input, and gain.

Sometimes, input from a DVD Player or some other instrument it too high, or low. this pre-amp as an input (RCA Input) will enable users to adjust as per requirement.

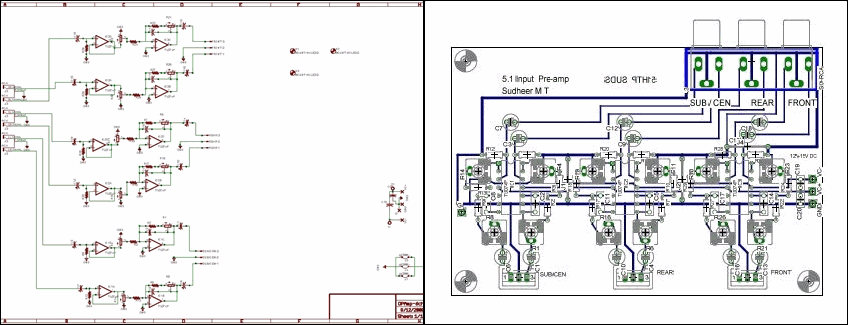

Image of schematic and board.
(Its very small, will host the image in some other server soon)

Thanks
suds



[suds]

Schematic and Layout images.

I have uploaded the images..

http://tinypic.com/useralbum.php?ua=g2XDLvPdnAy9u2RXNMJEVQ==
