3D Printed Egg Speakers

[dr frost dk]

I made these 3D printed egg speakers about a year ago and now they are ready to be posted (many things had to be worked out and tested), many color variations can be made 🙂


Sound with the sioux unit is very good, well Make: Magazine posted them as Audiophile speakers, i have been using these units for 10 years and have never found anything that comes close to sound and price, just needs a tweek with a small upgrade to treble crossover
3" Egg is based on the W3-871SC unit, good sound but very little bass, with a sub they would make great satellites and they are cute, have been thinking about doing a 2" also

For now i have 3, 4 and 5" sizes but more will come later, TDA7294 + Transistors will also be in various versions + Class D amp(s) in 3D printed cases


Thingiverse (Download and make your own, and info on volume etc)
About dr_frost_dk - Thingiverse

Make: Magazine Article
3D Printed Egg Speakers | Make:



[dr frost dk]

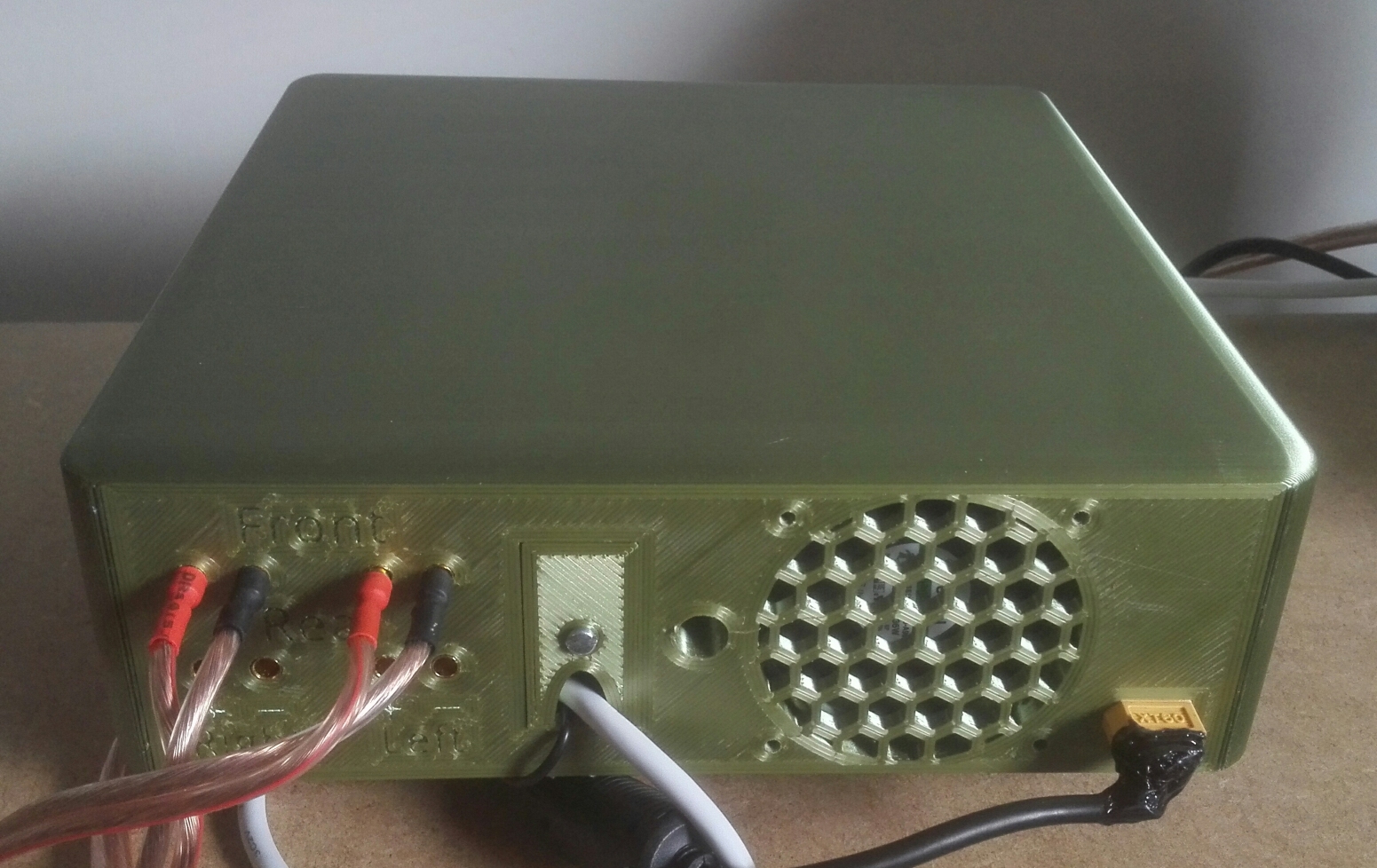

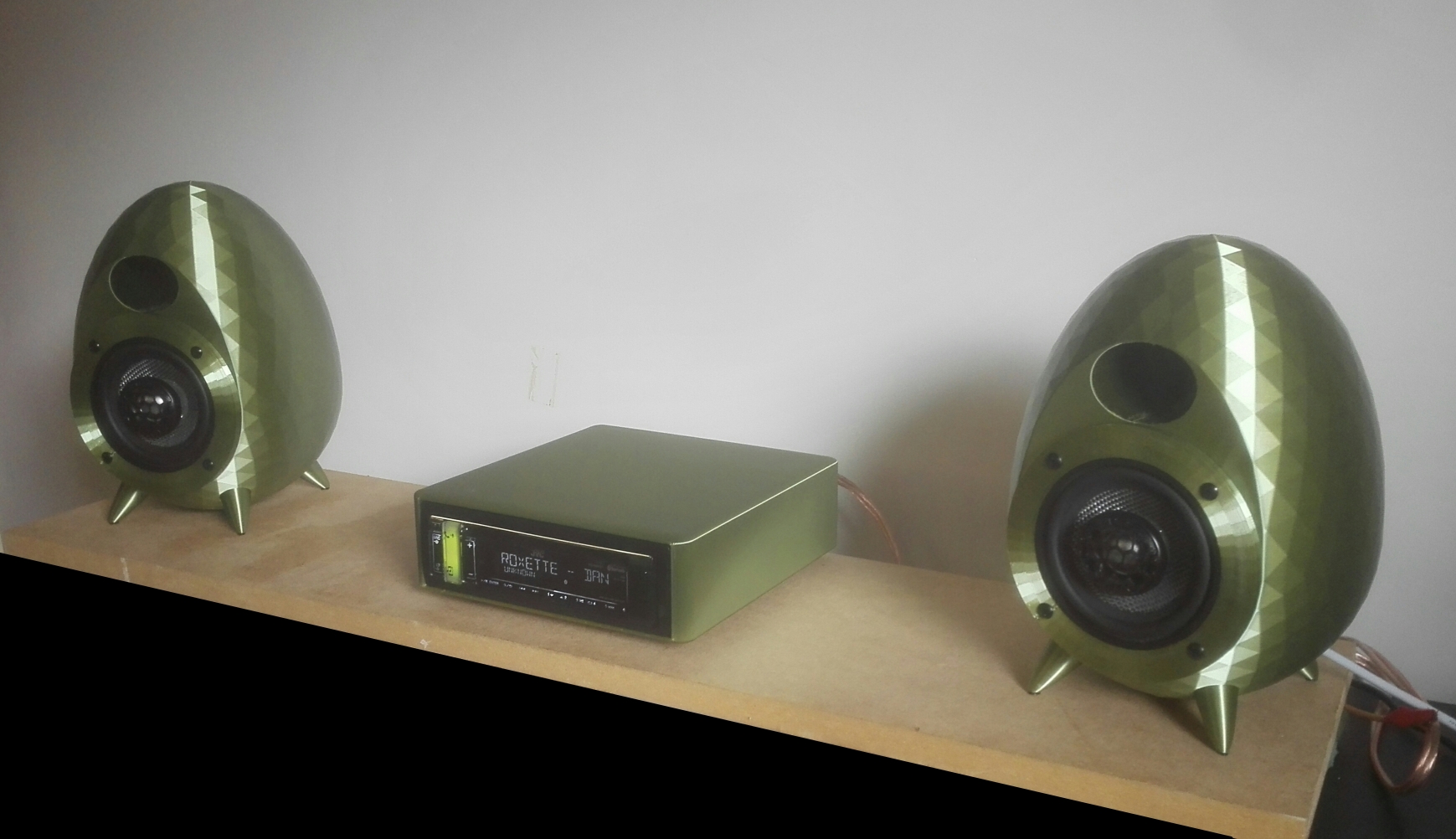

Also made a case for a Car radio, TDA7293/4 is also on the way

Car/Marine Radio Case



[U102324]

Very nicely done!



[Ugg10]

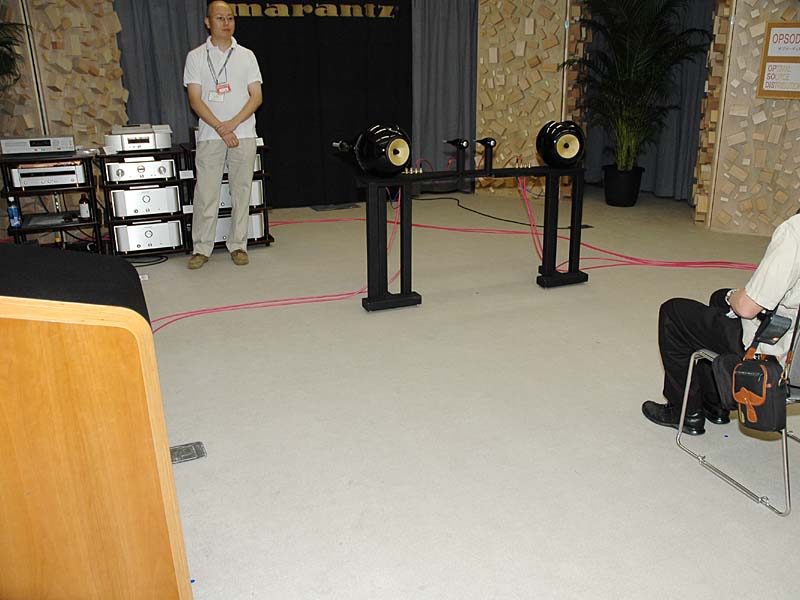

Should have copyrighted the diamond pattern, looks like B&W have copied you 🙂

Bowers & Wilkins | Award-winning wireless speakers, Wired & Wireless Headphones, Earphones, Hi-Fi Speakers and Home Theater Speakers



[dr frost dk]

hehe well not quite the same pattern, mine's triangle the bowers looks like pentagons



[LineSource]

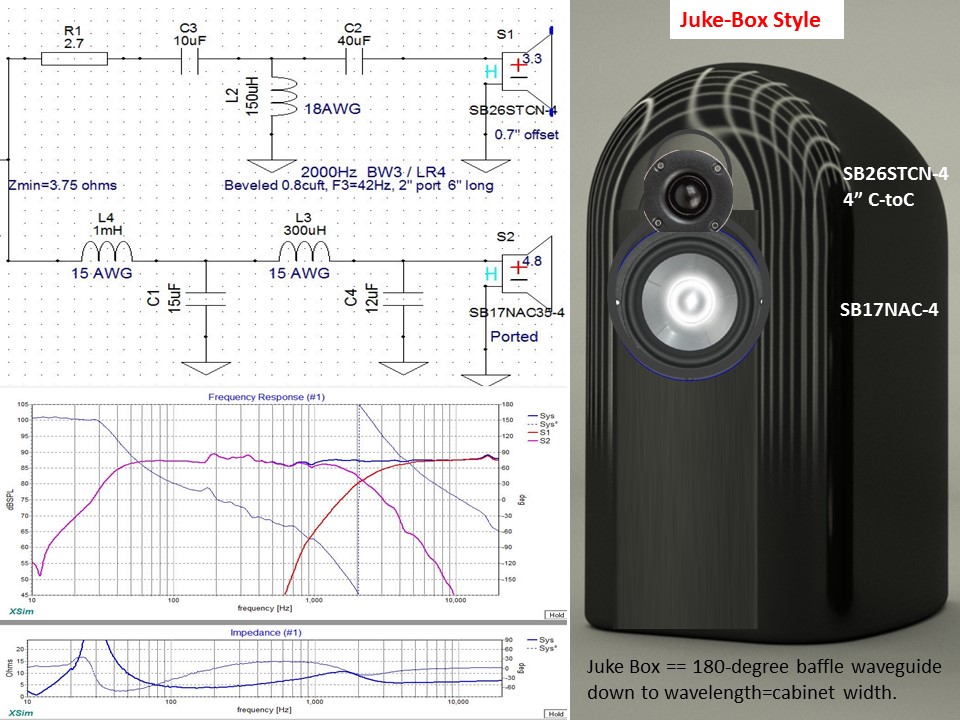

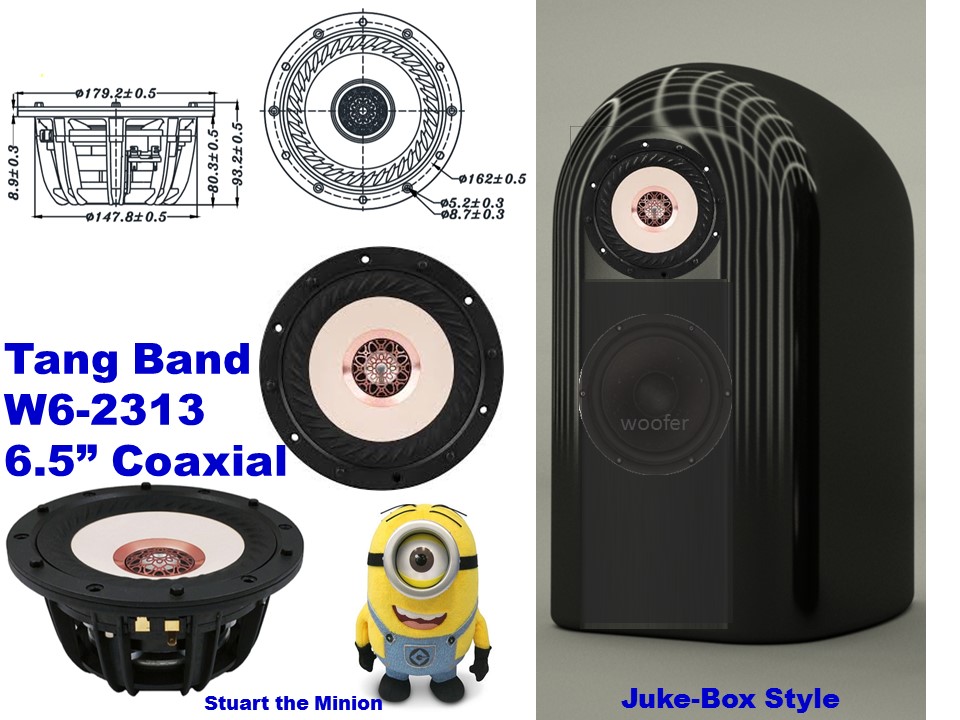

A "Juke Box" shaped cabinet looks interesting.

For desktop speakers and music monitors located near the walls, it can be desirable to create a baffle shape which produces mainly forward directivity down to wavelength=cabinet_width, and also has large radius quarter rounds to reduce edge distortion on longer wavelengths.

Juke Box = 180-degree baffle waveguide down to wavelength=cabinet width. 180-degree baffle waveguide up to tweeter's natural beaming.



[norman bates]

good stuff there.


Here looks like b&w, but I'm unsure.



[bentoronto]

I have two sets of big egg speaker prototypes made by Leigh Industries but never issued commercially. Quite nice speakers which I use for our TV.

Two-way, they have XOs resembling the famous BBC-Rogers LS3/5A with 18 elements.... which is where you end up after careful testing of any speaker.... unless you just go bi-amp DSP which makes a lot more sense today.



[dr frost dk]

RGB version ("transparent" with 72 ws2812b diodes) will have a video out soon'ish, will post here when ready, this is like the 3" i posted almost 2 years ago, but in the new design and WAY cooler light



[dr frost dk]

Audio is not the best, but RGB versions of the Egg speakers (4") are getting there, only 2 patters in this video (split in the middle of video)
3D printed Egg Speakers RGB version



[dr frost dk]

going to be 3 videos up soon (3 songs) to show the light system, have 18 patterns so far, still some tweaks to do, another demo video so far
RGB egg speakers test



[Boden]

Hello Heine ,

Could you produce a .stl file of your Egg without the reflex port in the front and thus a somewhat shorter baffle/flat front section?

Thanks ,
Eelco



[gerenis69]

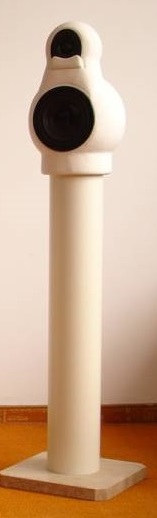

Somewhat similar to the spherical concrete speakers I made back in 2000. Sphere-like shape is wonderful on the outside, gives smooth baffle step, but terrible on the inside, because almost all dimensions on the inside are the same giving a terrible standing wave resonance. The egg might be somewhat better than an exact sphere though. I ended up stuffing the inside of the sphere heavily with polyfill for the closed box version, and installing a tilted inside wall that cut the inside into a half sphere in the ported version to reduce the standing waves.



[dr frost dk]

Hello Heine ,

Could you produce a .stl file of your Egg without the reflex port in the front and thus a somewhat shorter baffle/flat front section?

Thanks ,
Eelco

Maybe in the future, right now im concentrated on finishing up patterns and documenting the RGB´s to go online, next laser weapons, VERY big printer, Velomobile etc so can't make any extra stuff anytime soon



[Greebster]

Shame, port on the front almost kills it. Meshmixer should erase that port, cover the hole and eliminate the ugly diffraction it creates. Ehh easy enough to make a real plywood baffle.



[dr frost dk]

Shame, port on the front almost kills it. Meshmixer should erase that port, cover the hole and eliminate the ugly diffraction it creates. Ehh easy enough to make a real plywood baffle.

well then do it and post results



[remotion]

I feel at home watching these. I have Scandyna Megapods + Blueroom Bass Station and another set is Everything But The Box Pluto F + Subterranean Model One.



[dr frost dk]

Finally got the last things done on the RGB system 😉

So a new video out showing lights and APP (webserver)
RGB System - Release Video - YouTube
