Ultimate Open Baffle Gallery

[webby]

ooh er,
There mine!

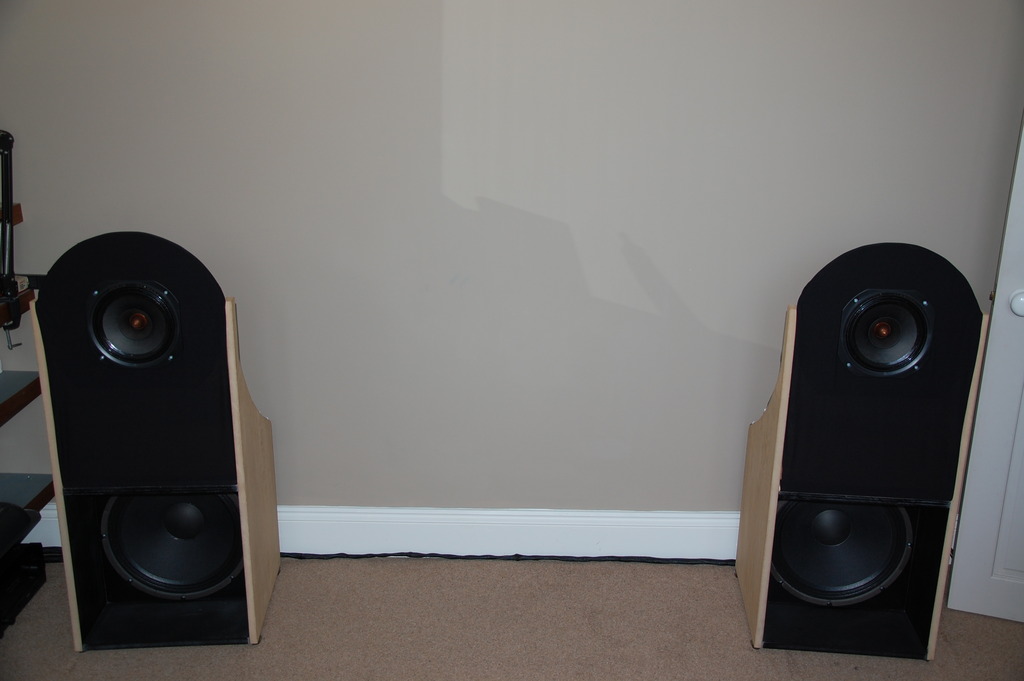

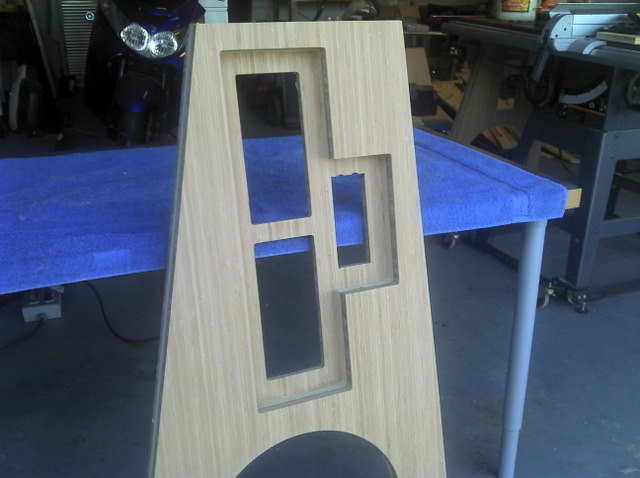

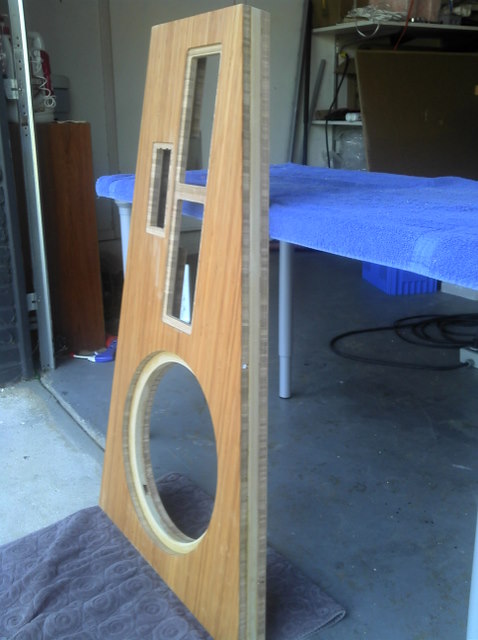

They have evolved into these;
Better sound, but not as much WAF, in fact she hates them now!
I'm going to post details in the full range forum, as i need help tuning them.
Cheers
Ian



[DQ828]

ooh er,
There mine!

Maybe do the flower thing



[_henry_]

webby, they are nice

i think i will try them out.

cheers
henry



[Tea-Bag]

How was the flowers done?
My wife hates my current OB's. 5' x 2'



[webby]

How was the flowers done?
My wife hates my current OB's. 5' x 2'

I hear you!I used some nice quality fabric and just stapled it on the rear of the baffle and pulled it taught.My wife helped me, i think that's why she hates the replacements
Cheers
Ian



[studiotech]

Almost there....



[norman bates]

here is the tang band w8-1808 in an open baffle............

Norman



[rjbv17]

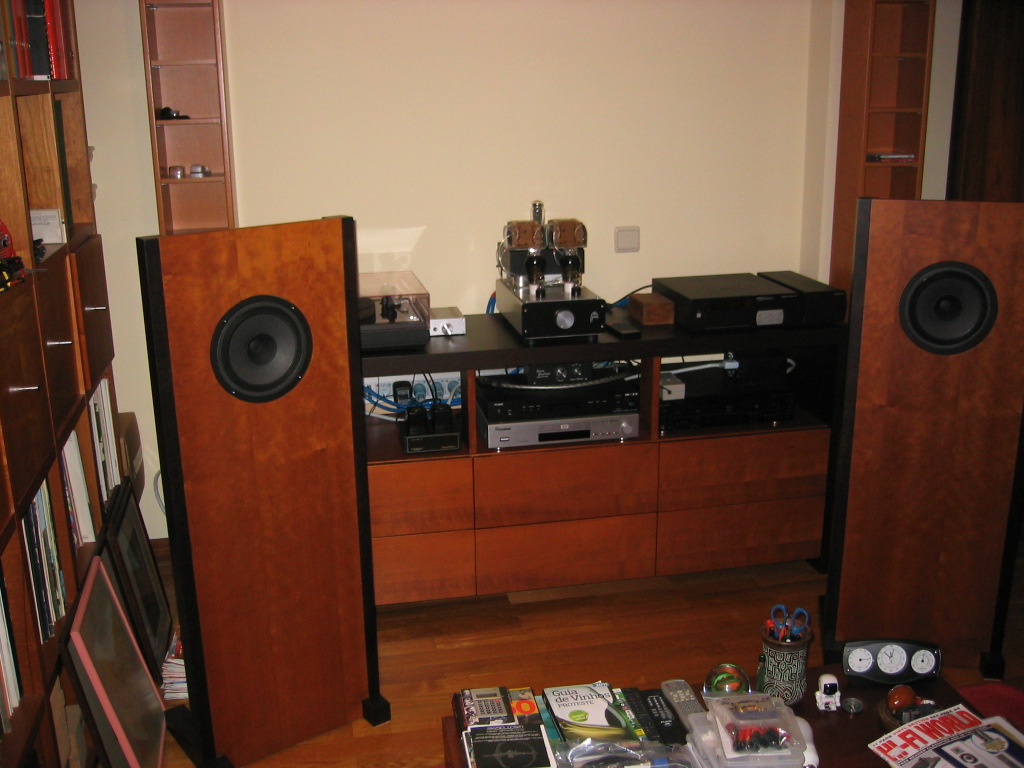

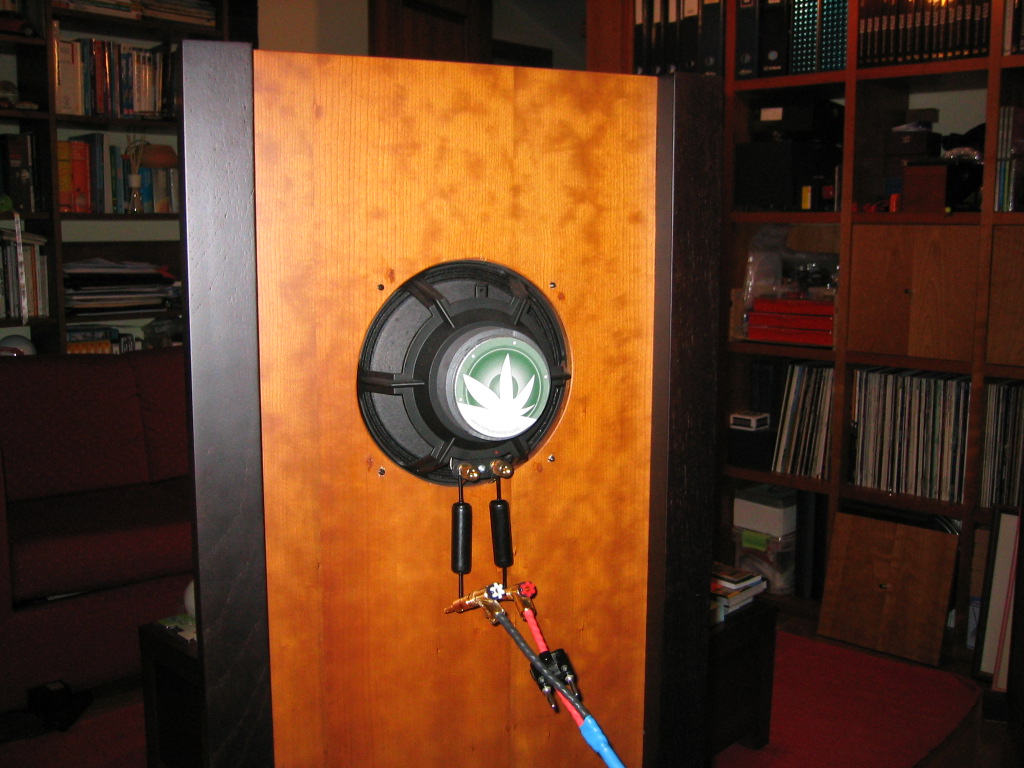

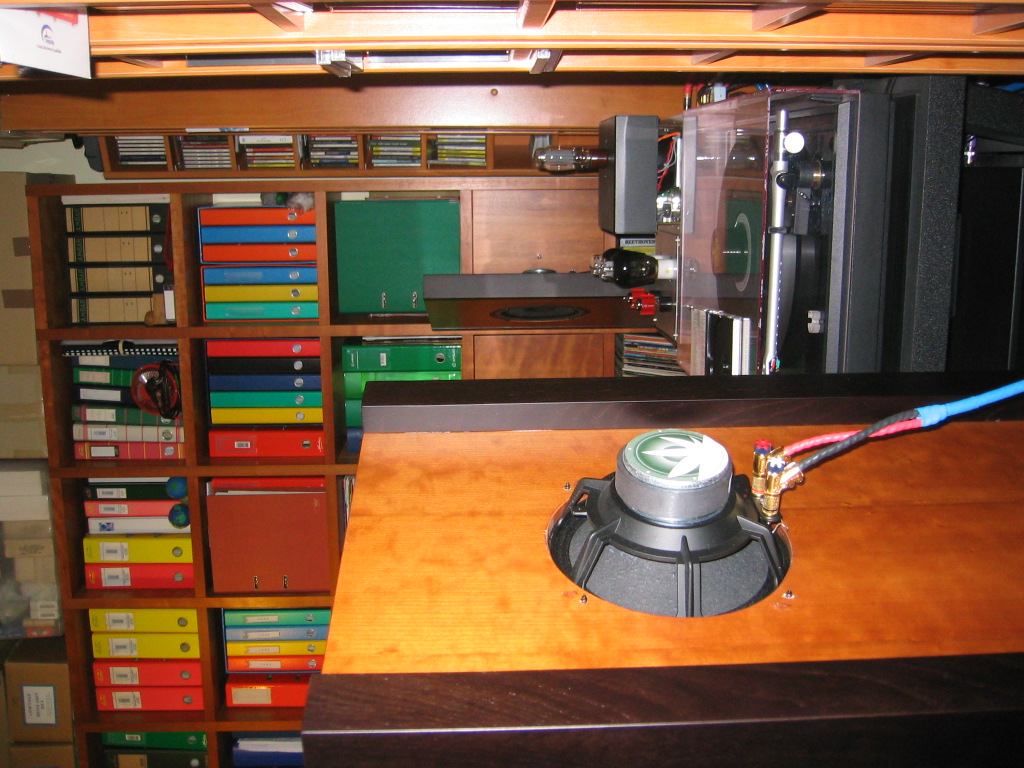

This is my approach to the subject: Hemp 8" in an OB.

sub frequencies are achieved with a Rel Quake.



[DQ828]

This is my approach to the subject: Hemp 8" in an OB.

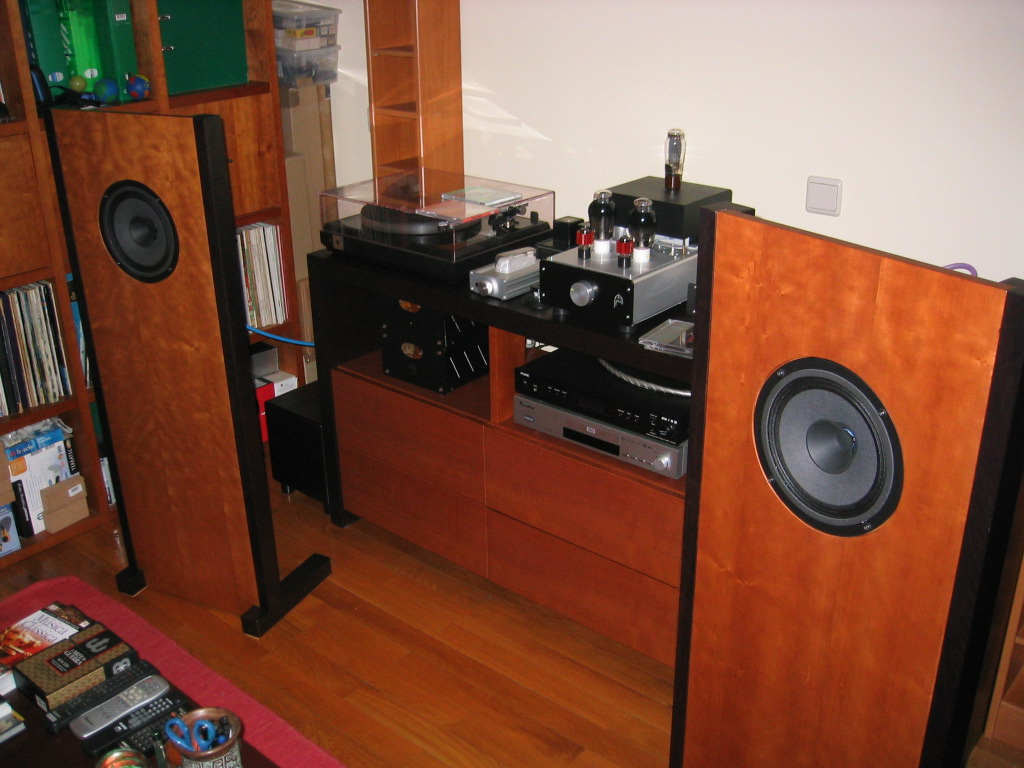

sub frequencies are achieved with a Rel Quake. View attachment 219964

View attachment 219965

Very nice & simple, I like it



[rjbv17]

Sounds great , too.

Now I'm trying the Bybees (with pleasure) .



[Godzilla]

Those hemps came out nice. Where's the REL?
Zilla



[rjbv17]

I put two pictures in the first post (24th April). You can see in one of the pictures the REL placed behind the left pannel (now it is placed behind the right pannel - better results). REL is set with half volume and roll-off is around 50-60 Hz.



[gainphile]

here is the tang band w8-1808 in an open baffle............

Norman

I've been looking at this for a simple OB build. How is the highs??



[norman bates]

Intelligibility is great.
1808 highs seem fine, but watch on the freq graph for +5db from 1.5khz to 3.5khz. That "presence" region is a bit hot.
I can't understand why no one has mentioned it before.

Norman



[superlian]

Intelligibility is great.
1808 highs seem fine, but watch on the freq graph for +5db from 1.5khz to 3.5khz. That "presence" region is a bit hot.
I can't understand why no one has mentioned it before.

Norman

I am very satisfied with mine. I didnt use filter at all, only a little toe in. Now i will build a OB to them with Tang Band ribbon tweeter on top and 2 x Eminence 15A in the bottom driven by Hypex sub amps.

PS, Klipsch is hotter in the presence area than theese Tang Bands.

Hans Erik



[norman bates]

Yup, they are just a little hot for me, not that my ears are more correct than anyone elses. On my 10 band eq, the 1khz setting at 0db, the 2khz setting at -9db, 4khz at 0db. The q of the bands is usually wide on cheapie equalizers.

Soon I'll be doing something for the bass. Currently I'm not thrilled, but it is performing exactly as designed (open baffle that has an Feq around 180hz with superior intelligibility).

Norman



[gainphile]

Finished Orion-4.

ORION-4

Apparently this is a commercial offering (as not DIY as previously).



[_henry_]

OB with Alpair10 gen1 + Eminence Beta15a

inspired by troels gravesen homage to Mr. Briggs's WHARF.

cheers
Henry



[_henry_]

im interested on the seas woof they used there



[gainphile]

Yes. From what is being said, they are not standard "26LROY" and will be available in 3-4months time.
