I have circuitmaker 2000, and this works for me
* 6DJ8 Spice 3F4 model
.SUBCKT X6DJ8 P G K
Bp P K I=(0.06867321543e-3)*uramp(V(P,K)*ln(1.0+(-0.03262478644)+exp((7.453794563)+(7.453794563)*((31.84399594)+(-13.80505589e-3)*V(G,K))*V(G,K)/V(P,K)))/(7.453794563))^(1.37713474)
C1 G K 3.1E-12
C2 G P 1.4E-12
C3 P K 0.18E-12
.ends X6DJ8
another version
*Vacuum Tube Triode (Audio freq.) pkg:VT-9 (A:1,2,3)(B:6,7,8)
.SUBCKT X6DJ8a 1 3 4
B1 2 4 I=((URAMP((V(2,4)/31)+V(3,4)))^1.5)/120
C1 3 4 3.1E-12
C2 3 1 1.4E-12
C3 1 4 0.18E-12
R1 3 5 10E+3
D1 1 2 DX
D2 4 2 DX2
D3 5 4 DX
.MODEL DX D(IS=1.0E-12 RS=1.0)
.MODEL DX2 D(IS=1.0E-9 RS=1.0)
.ENDS X6DJ8a
12AT7:
*Vacuum Tube Triode (Audio freq.) pkg:VT-9 (A:1,2,3)(B:6,7,8)
.SUBCKT X12AT7A A G K
* ANODE MODEL
BLIM LI 0 V=(URAMP(V(A)-V(K))^ 1 )* 0.0037
BGG GG 0 V=V(G)-V(K)--0.5
BRP1 RP1 0 V=URAMP(-V(GG)* 0.09869 )
BRP2 RP2 0 V=V(RP1)-URAMP(V(RP1)-0.999)
BRPF RP 0 V=(1-V(RP2)^ 1 )+URAMP(V(GG))* 0.1
BGR GR 0 V=URAMP(V(GG))-URAMP(-(V(GG)*(1+V(GG)* 0.012937 )))
BEM EM 0 V=URAMP(V(A)-V(K)+V(GR)* 45.093 )
BEP EP 0 V=(V(EM)^ 1.4 )*V(RP)* 0.00000863
BEL1 EL1 0 V=URAMP(V(EP))
BEL EL 0 V=V(EL1)-URAMP(V(EL1)-V(LI))
BLD LD 0 V=URAMP(V(EP)-V(LI))
BAK A K I=V(EL)
* GRID MODEL
BGF GF 0 V=(URAMP(V(G)-V(K)--0.5 )^1.5)* 0.00012
BG G K I=V(GF)+V(LD)
* CAPS
CAK A K 0.0000000000004
CGK G K 0.0000000000023
CGA G A 0.0000000000016
.ENDS X12AT7A
don't have anything for the 6N3P
Other models I do have are at:
http://home.netcom.com/~wb2jia/tubes/spice.txt
http://home.netcom.com/~wb2jia/tubes/spice2.txt
http://home.netcom.com/~wb2jia/tubes/spice3.txt
http://home.netcom.com/~wb2jia/tubes/spice4.txt
* 6DJ8 Spice 3F4 model
.SUBCKT X6DJ8 P G K
Bp P K I=(0.06867321543e-3)*uramp(V(P,K)*ln(1.0+(-0.03262478644)+exp((7.453794563)+(7.453794563)*((31.84399594)+(-13.80505589e-3)*V(G,K))*V(G,K)/V(P,K)))/(7.453794563))^(1.37713474)
C1 G K 3.1E-12
C2 G P 1.4E-12
C3 P K 0.18E-12
.ends X6DJ8
another version
*Vacuum Tube Triode (Audio freq.) pkg:VT-9 (A:1,2,3)(B:6,7,8)
.SUBCKT X6DJ8a 1 3 4
B1 2 4 I=((URAMP((V(2,4)/31)+V(3,4)))^1.5)/120
C1 3 4 3.1E-12
C2 3 1 1.4E-12
C3 1 4 0.18E-12
R1 3 5 10E+3
D1 1 2 DX
D2 4 2 DX2
D3 5 4 DX
.MODEL DX D(IS=1.0E-12 RS=1.0)
.MODEL DX2 D(IS=1.0E-9 RS=1.0)
.ENDS X6DJ8a
12AT7:
*Vacuum Tube Triode (Audio freq.) pkg:VT-9 (A:1,2,3)(B:6,7,8)
.SUBCKT X12AT7A A G K
* ANODE MODEL
BLIM LI 0 V=(URAMP(V(A)-V(K))^ 1 )* 0.0037
BGG GG 0 V=V(G)-V(K)--0.5
BRP1 RP1 0 V=URAMP(-V(GG)* 0.09869 )
BRP2 RP2 0 V=V(RP1)-URAMP(V(RP1)-0.999)
BRPF RP 0 V=(1-V(RP2)^ 1 )+URAMP(V(GG))* 0.1
BGR GR 0 V=URAMP(V(GG))-URAMP(-(V(GG)*(1+V(GG)* 0.012937 )))
BEM EM 0 V=URAMP(V(A)-V(K)+V(GR)* 45.093 )
BEP EP 0 V=(V(EM)^ 1.4 )*V(RP)* 0.00000863
BEL1 EL1 0 V=URAMP(V(EP))
BEL EL 0 V=V(EL1)-URAMP(V(EL1)-V(LI))
BLD LD 0 V=URAMP(V(EP)-V(LI))
BAK A K I=V(EL)
* GRID MODEL
BGF GF 0 V=(URAMP(V(G)-V(K)--0.5 )^1.5)* 0.00012
BG G K I=V(GF)+V(LD)
* CAPS
CAK A K 0.0000000000004
CGK G K 0.0000000000023
CGA G A 0.0000000000016
.ENDS X12AT7A
don't have anything for the 6N3P
Other models I do have are at:
http://home.netcom.com/~wb2jia/tubes/spice.txt
http://home.netcom.com/~wb2jia/tubes/spice2.txt
http://home.netcom.com/~wb2jia/tubes/spice3.txt
http://home.netcom.com/~wb2jia/tubes/spice4.txt
I think wa2ise is my saver. I use circuit maker and I do not understand an indication in the spice data, so I can not create a new model of valve.
If I take your:
*Vacuum Tube Triode (Audio freq.) pkg:VT-9 (A:1,2,3)(B:6,7,8)
.SUBCKT X6DJ8a 1 3 4
B1 2 4 I=((URAMP((V(2,4)/31)+V(3,4)))^1.5)/120
C1 3 4 3.1E-12
C2 3 1 1.4E-12
C3 1 4 0.18E-12
R1 3 5 10E+3
D1 1 2 DX
D2 4 2 DX2
D3 5 4 DX
.MODEL DX D(IS=1.0E-12 RS=1.0)
.MODEL DX2 D(IS=1.0E-9 RS=1.0)
.ENDS X6DJ8a
first line: 31 is the ampli factor : ok?
but what is 120?
c1/2/3: the capacitors
R: the ri of the valve
thanks for your help
If I take your:
*Vacuum Tube Triode (Audio freq.) pkg:VT-9 (A:1,2,3)(B:6,7,8)
.SUBCKT X6DJ8a 1 3 4
B1 2 4 I=((URAMP((V(2,4)/31)+V(3,4)))^1.5)/120
C1 3 4 3.1E-12
C2 3 1 1.4E-12
C3 1 4 0.18E-12
R1 3 5 10E+3
D1 1 2 DX
D2 4 2 DX2
D3 5 4 DX
.MODEL DX D(IS=1.0E-12 RS=1.0)
.MODEL DX2 D(IS=1.0E-9 RS=1.0)
.ENDS X6DJ8a
first line: 31 is the ampli factor : ok?
but what is 120?
c1/2/3: the capacitors
R: the ri of the valve
thanks for your help
Hi,
I found some models I needed and also found the explanations I was looking for. So I can save them in my circuit maker.
But: edit macro; Save macro, expand macro, and macro lock do not work. These positions remain grayed out.
Only new macro; Macro utilities etc work.
What can I do ?
I found some models I needed and also found the explanations I was looking for. So I can save them in my circuit maker.
But: edit macro; Save macro, expand macro, and macro lock do not work. These positions remain grayed out.
Only new macro; Macro utilities etc work.
What can I do ?
I simply open "triode.sub" with a text editor and add a model. Attached is my file with much more accurate models than the one above. Feel free to grab the ones you need.Hi,
I found some models I needed and also found the explanations I was looking for. So I can save them in my circuit maker.
But: edit macro; Save macro, expand macro, and macro lock do not work. These positions remain grayed out.
Only new macro; Macro utilities etc work.
What can I do ?
Attachments
What do you mean by "cannot read it"? You can't open it in a text editor like Notepad?Many thanks
I have extract the zip but I cannot read it.
Forget the tutorial. Just copy and paste the models you want from the "triode.sub" I posted to the triode.sub in your "models" directory.ok groucho, I don't why I do not know why it did not work????
now what is the procedure for introduce the datas in circuit maker?
the informations in the tutorial circuit maker are grey and when I try to modify the existing datas, a window open with '' only to read ''
Forget the tutorial. Just copy and paste the models you want from the "triode.sub" I posted to the triode.sub in your "models" directory.
If running Windows 10, then that may explain problems re read only. To add data to TRIODE.SUB, I have to copy it elsewhere and then work on it with Notepad, then save and copy it back and over-ride the original TRIODE.SUB file. That worked for me. Now I can add new data to SUB files using that method, even remove stuff I don't want. Hope that helps?
Hello,
I sorry for my late response but I was missing + computer problems.
Yes it is Windows 10.

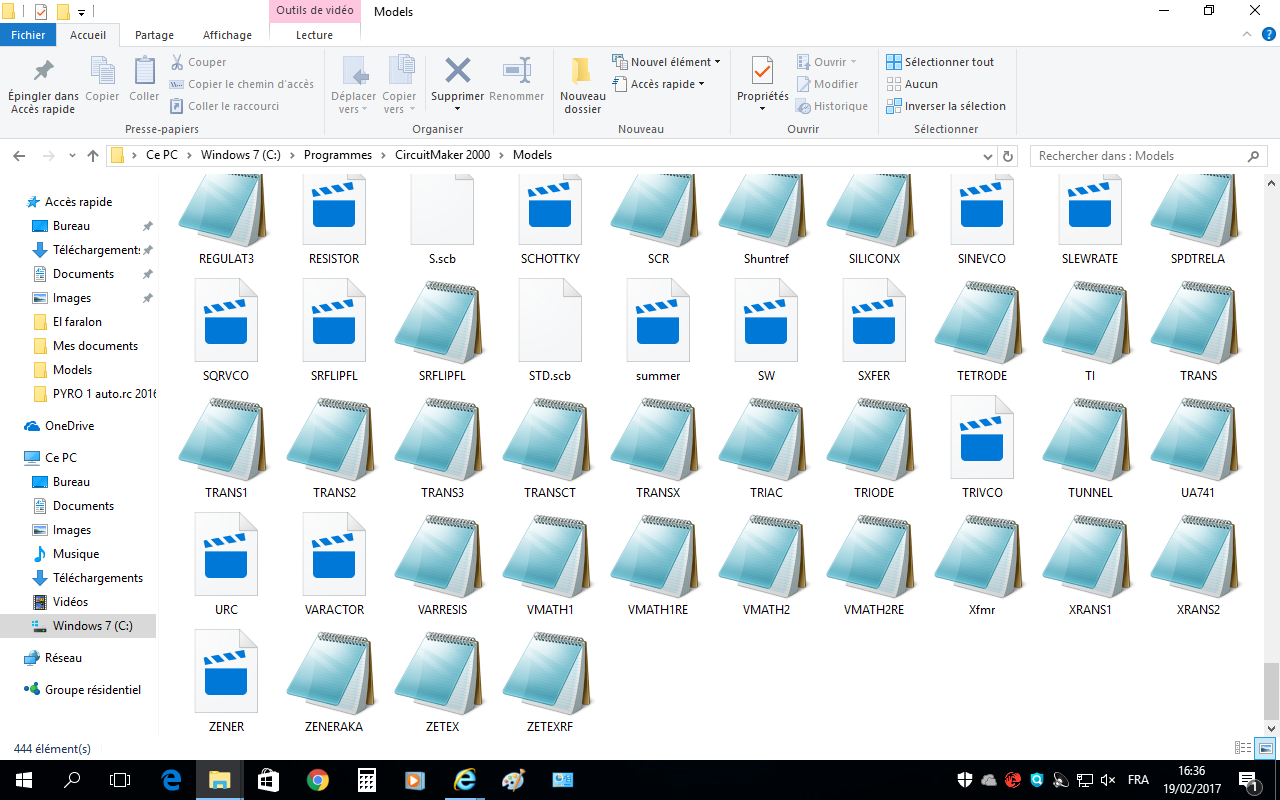

I do not find TRIODE SUB. Yiu can see on my copy the TRIODE that I registered in MODELS. That oes not work.
I dont find anywhere a ''SUB'' file in the Library or models...
Thank you for your help
I sorry for my late response but I was missing + computer problems.
Yes it is Windows 10.
I do not find TRIODE SUB. Yiu can see on my copy the TRIODE that I registered in MODELS. That oes not work.
I dont find anywhere a ''SUB'' file in the Library or models...
Thank you for your help
