The Holy Grail Follower Output Stage

[lhquam]

Yes, there could be considered a quad match, since each N came from the same sorting bin, as did each P. That does not mean that there are not differences.



[gary s]

To be clear then - they are not marked as a left pair and a right pair? The 4 fets without the rear "X" marking can be used in any channel?



[manniraj]

Received my package too

Thank you @Rush and @lhquam



[tom1066]

Mine arrived safely as well. Thanks again and will be following along.



[lhquam]

To be clear then - they are not marked as a left pair and a right pair? The 4 fets without the rear "X" marking can be used in any channel?

Yes. The gold markings are on the NFETs, silver on the PFETs. When in doubt look carefully for the FQA28N15 or FQA36P15 marking of the FET.
No attempt was made to match the 2 NFETs to the 2 PFETs.



[gary s]

OK, thanks for that follow up answer - all clear now.



[codyt]

Everything arrived safely - thanks for the efforts @lhquam and @Rush! Especially appreciate the experimental options on the PCB



[Murdoc]

Thank you so much lhquam and Rush! I appreciate your work a lot, and will be thinking of you two when I can build the amp and later listen to it!



[von Ah]

Received, thanks!



[william2001]

Received mine yesterday along with all the parts from Mouser. F5m is built and ready to install. Excited to try both of these. Now which project to go with first? My feeling is both will be outstanding in their own way. But I'm almost leaning towards Lynn's creation with one of my own front end solutions.



[Jacruzer787]

Questions: are there any pcbs/FET still available? Also will this OPS work with the 2022 DIY FE?



[ElArte]

Got mine, thanks!



[kannan_s]

Got mine - thanks to Rush and Lhquam



[lhquam]

Questions: are there any pcbs/FET still available? Also will this OPS work with the 2022 DIY FE?

1. "Are there any pcbs/FET still available?": It would be relatively easy to order more PCBs. You would have to source your own FETs do some simple matching.
2. "Will this OPS work with the 2022 DIY FE?": It would probably work as a front-end with no global feedback. I do not know how well.



[Jacruzer787]

"Are there any pcbs/FET still available?": It would be relatively easy to order more PCBs. You would have to source your own FETs do some simple matching.

Thanks! If you are going to order more, I would be interested! I have no clue to how to match fets, but not a big deal.

Will this OPS work with the 2022 DIY FE?": It would probably work as a front-end with no global feedback. I do not know how well.

ah okay! Just curious as to what would be a solution for a complete amp.



[e_fortier]

Hi @Jacruzer787

For the PCB you can order your own, the OP was kind and made the Gerbers available.



[yoaudio]

Received mine - thanks to Rush and Lhquam!!



[lhquam]

Thanks! If you are going to order more, I would be interested! I have no clue to how to match fets, but not a big deal.

ah okay! Just curious as to what would be a solution for a complete amp.

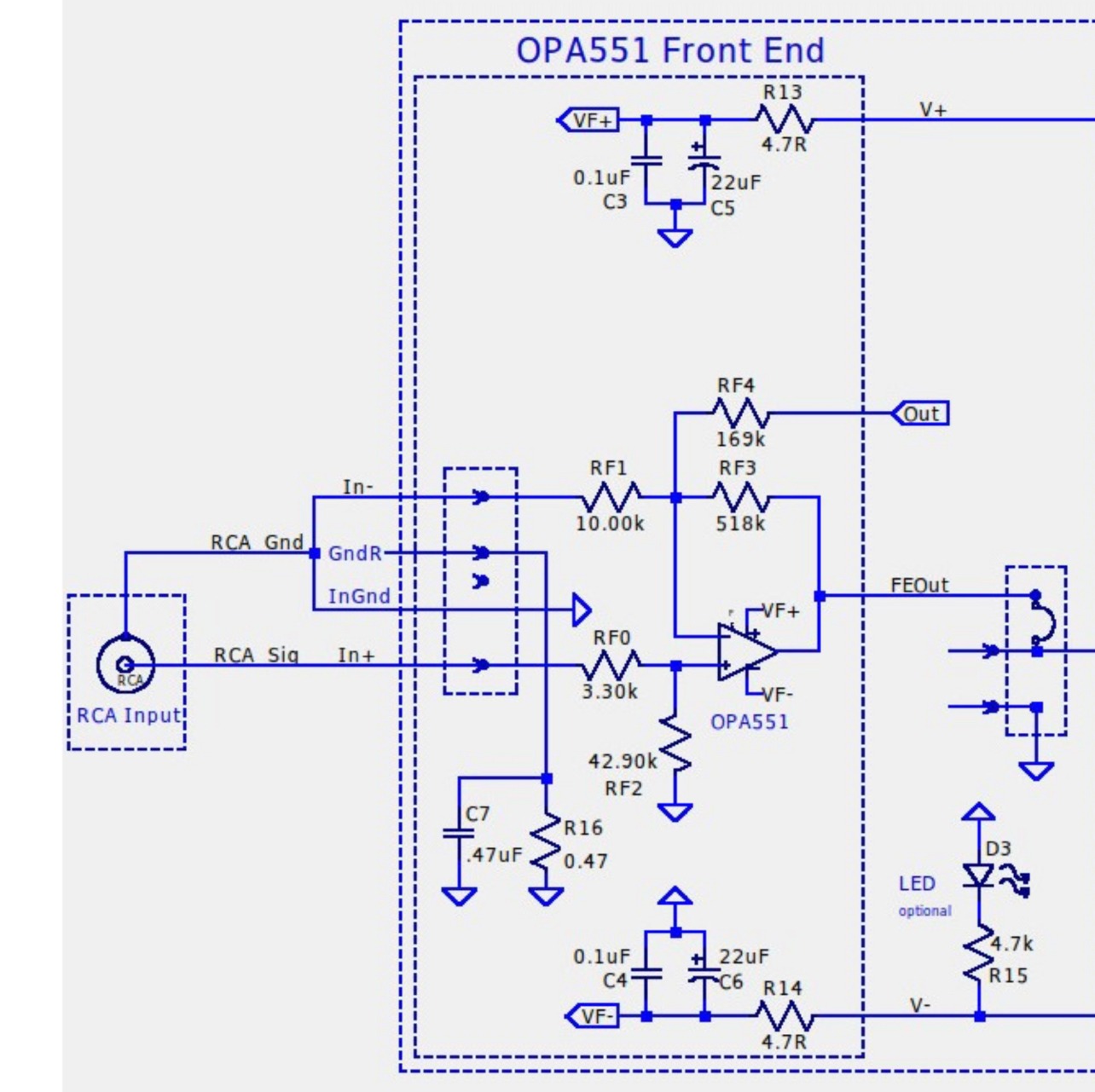

The schematic and PCB include the opa551 opamp front-end that works quite well. Go to post #306 and download the Build Guide.



[Jacruzer787]

For the PCB you can order your own, the OP was kind and made the Gerbers available.

Thank you will do that!

The schematic and PCB include the opa551 opamp front-end that works quite well. Go to post #306 and download the Build Guide.

looks like I have some reading to do. Thank you as well!

Edit: duh!!! Right in the build guide!!!



[brian.goodman]

Got the boards & FETs today. Thanks for all the hard work!
