SSLV1.1 builds & fairy tales

[Salas]

Seem ok those two



[merlin el mago]

Replaced Q104, time to test?



[Salas]

Yes, so we see if ok or to look furter



[merlin el mago]

ok



[merlin el mago]

Still can't fix Vout & still don't lit the two Vref red LEDs



[Salas]

Can a led had been burned? Can they light with DMM's diode test?



[merlin el mago]

On red LED is gone



[merlin el mago]

Vout max. 4.921 CCS 0.841V:0.6R = 1.4A

All LEDs lit.



[Salas]

Success!!! But where all this current goes?



[Salas]

Needing little R103 value help or too much current goes to the heaters? Does Q106 get any hot?



[merlin el mago]

Success!!! But where all this current goes?

No success, can't reach 6.3Vout



[merlin el mago]

Changed trimmer 1K for now 2K but Vout max. only 5.05V



[merlin el mago]

Should I increase the trimmer to 5K?



[Salas]

No change q103 first



[merlin el mago]

Success!!!

Can regulate Vout to 6.3V!!!!

CCS set 1.373A

Measured the real heater power consumption is 818mA.



[merlin el mago]

The other measured real heater power consumption is 840mA.



[merlin el mago]

Many thanks Salas for all your support and time.



[Salas]

Congrats for fix. Now I saw your final posts, I was at a friend's listening to vinyl with his valve itch phono.



[merlin el mago]

Thanks Salas. Now enjoying listening the Itch, a very huge increase of SQ. Finally both regs with the same CCS 0.68R. Next week arrives the 4.7uF Auricaps but now Vref caps are the BG 220uF.

I don't know how can do this big amount of information & dynamics it's unbeliable. Only are for indirecta heated valves.



[Salas]

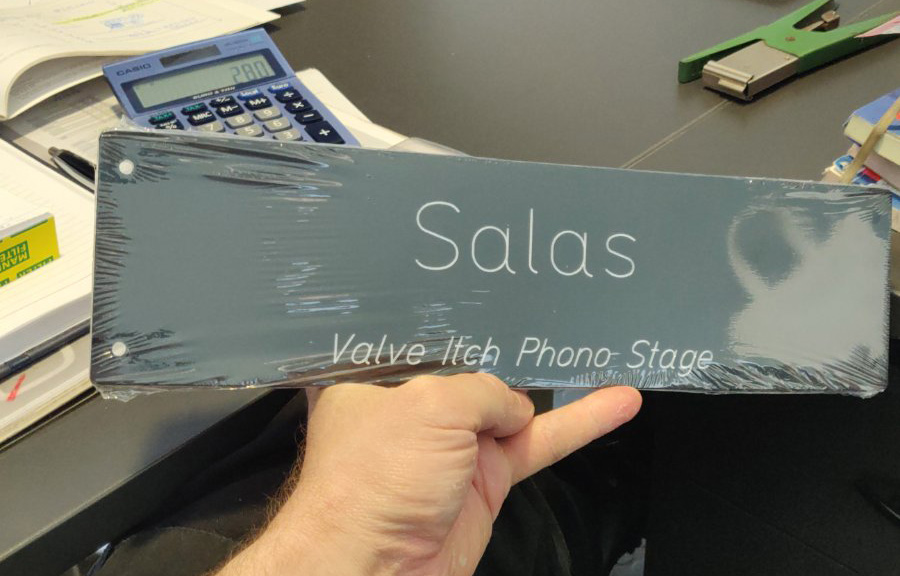

Valve Itch Phono is for V.I.P. tube listeners
