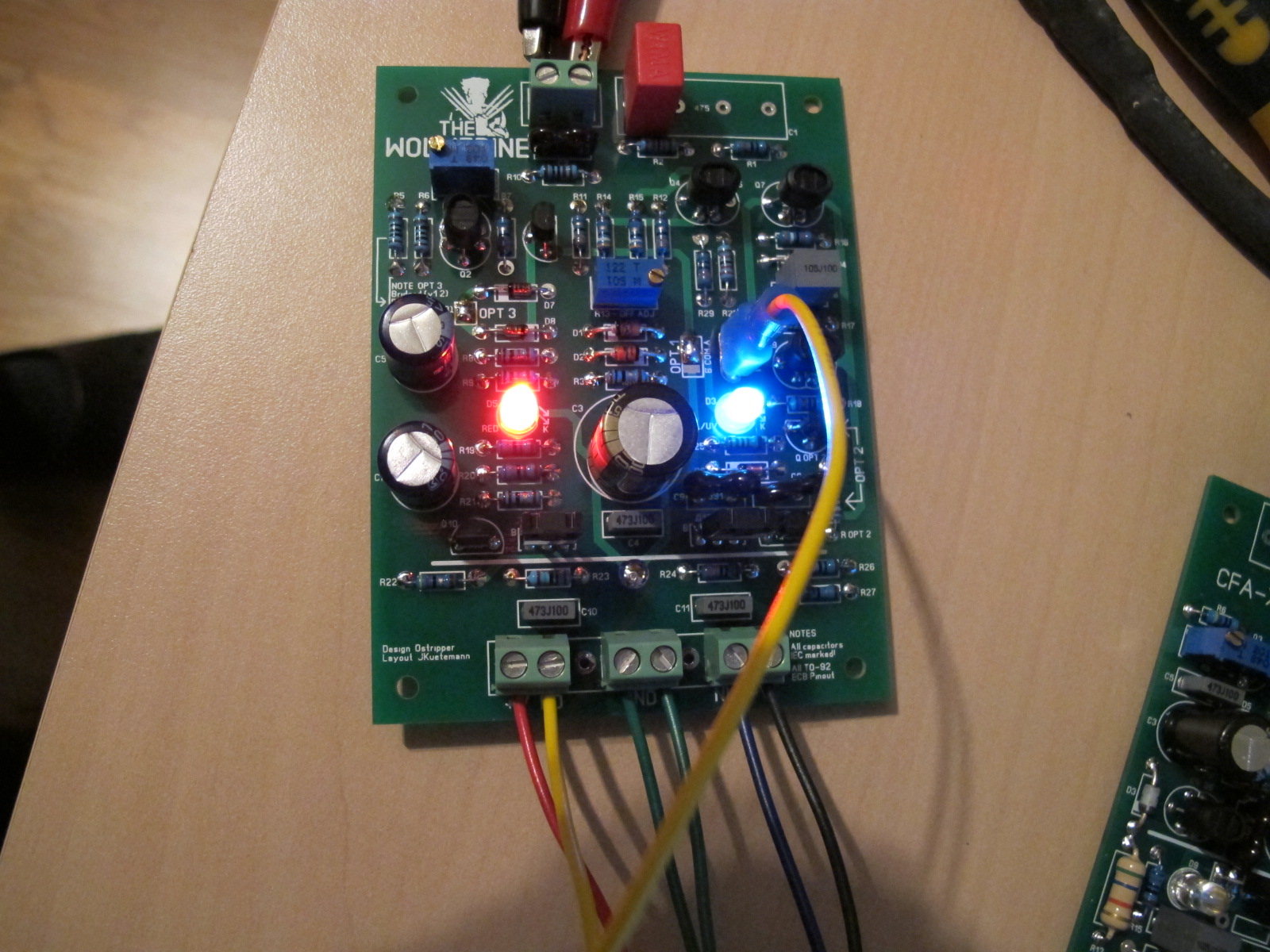

Wolverine powered up just fine, set the CCS current and adjusted the offset without any difficulty. Tested into 8R dummy load through a SlewMaster Baby MOSFET OPS.

I will be getting PMs out to those with requests shortly.



[still4given]

Dude, why do you keep tempting me??????

I already built one from etched boards. It's really hard to beat a well designed Blameless.



[jkuetemann]

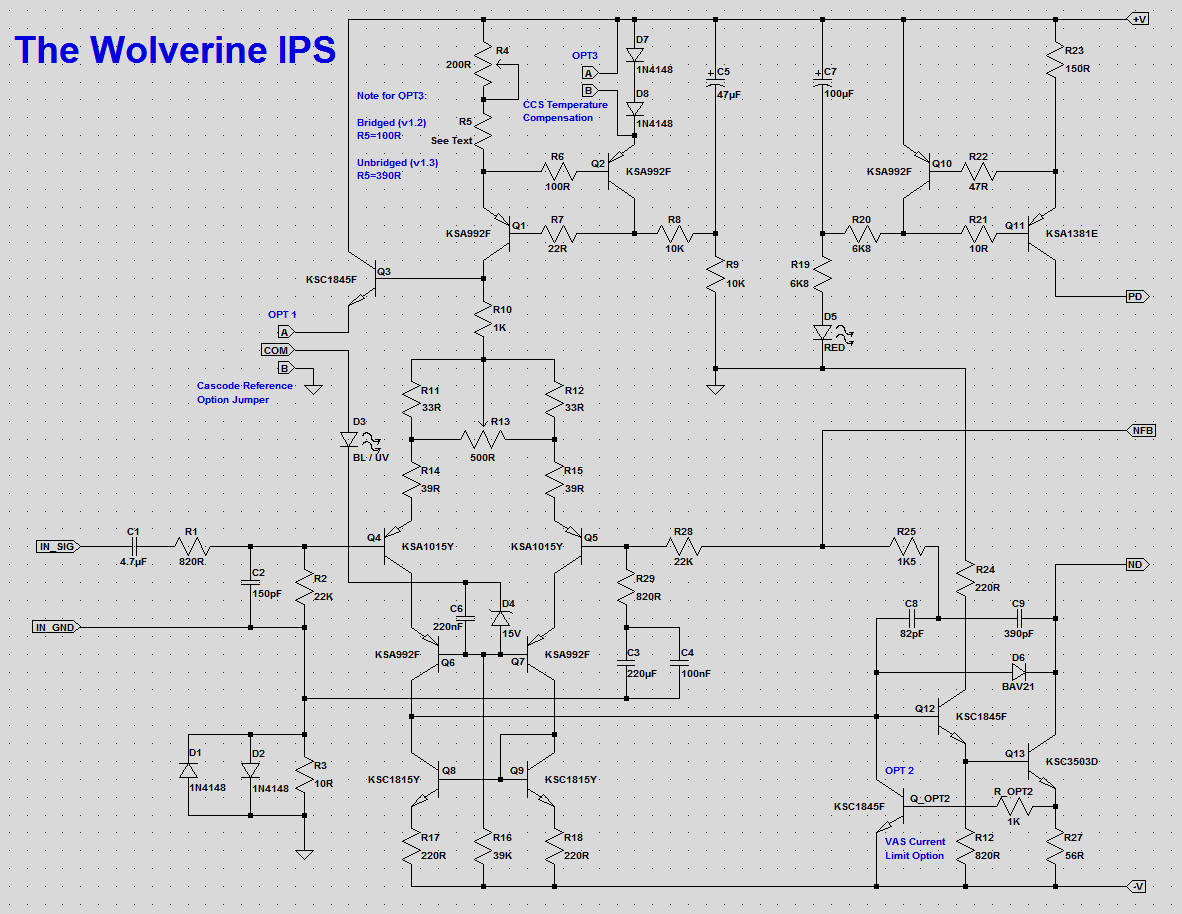

I think these came out nice. They could be built quite literally without a schematic if you wanted to do so. See the attached schematic.

The only thing that will need a little explanation is the use of the options. I placed SMD pads so a little dab of solder can be used as a jumper to set options 1 and 3, and for option 2 you either install the two components or not. These can be configured as either v1.2 or v1.3, builder takes his / her pick.

Option 1 is the LTP cascode reference source. Bridging pads 'A' and 'COM' is the default reference via Q3. Alternatively, bridging pads 'B' and 'COM' makes ground G2 the reference. Make sure only one solder bridge is placed.

Option 2 is the VAS current limiting (protection) option. If you want this option just install 'Q OPT 2' and 'R OPT 2'.

Option 3 is intended to assist with LTP CCS thermal compensation. Note that the appropriate value for R5's has to be installed when choosing wether or not to utilize this option. This is noted on the silk screen.
