SKA GB150D now public domain...

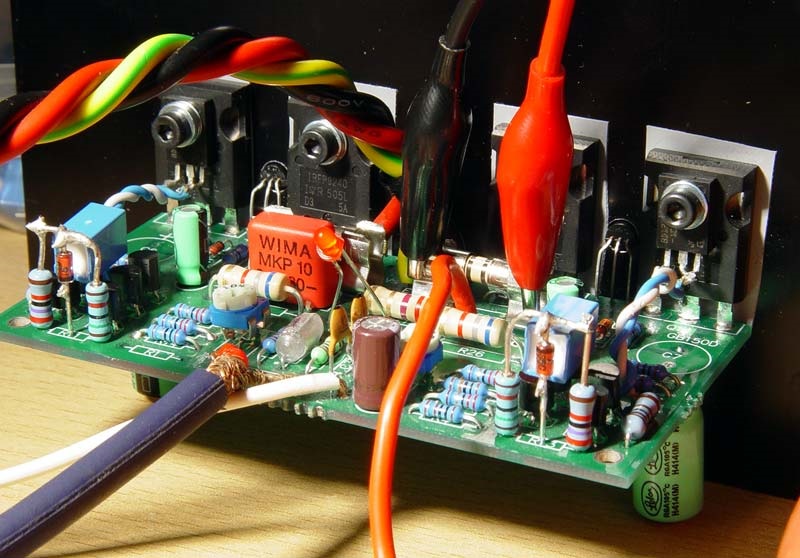

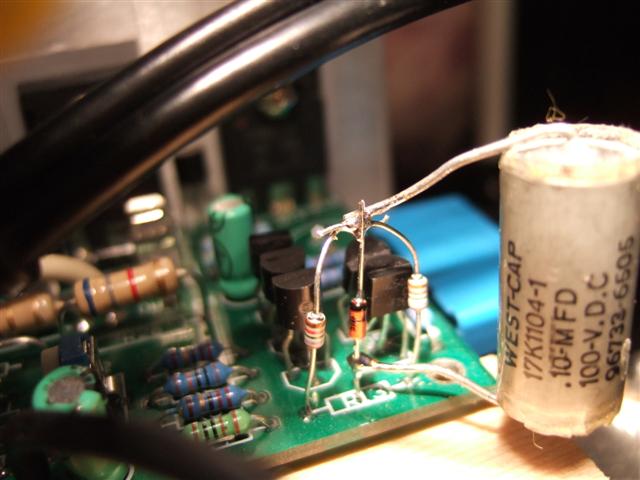

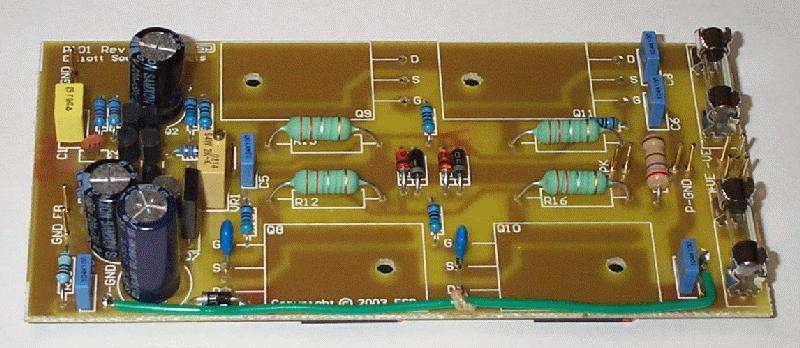

I have seen these plus another photo which I will upload after changing the format.


Attachments

  • gb150ZenerMod.png
    5.3 KB · Views: 1,432
  • gba150ZenerModPhoto.jpg
    48 KB · Views: 1,428
Thanks for the info Mike.

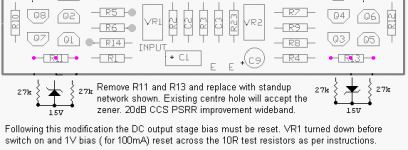

However, the schematic in post #31 from Greg Erksine does not show the updated RCR values and PauloPT confirms in post #30 that the RCR mod replaced the Zener mod. So should one assume that the updated RCR mod enables easier stabilization of the amp, measures better (PSRR) and sounds better as well? ....just logical ramblings, because I am interested in designing a single sided PCB and building. Thanks.

Many countries are relaxing their rules on voltage and frequency stability of the mains supply these days to cope with too much unpredictable "green power"

In Malaysia power demand in hosing areas peaks in the evening, when people go home and turn their air cons on, drawing heavy load until the rooms have cooled down.
The distribution system was not built for the load and this makes the supply at the wall socket unstable

D

Deleted member 148505

My first iteration for the PCB design for this amp. :)
I am still aligning the labels hence no component name/values.

PCB size is exactly 3.35 x 3.85 inches

Less than 10x10cm so that pcb manufacturing will be cheap


Attachments

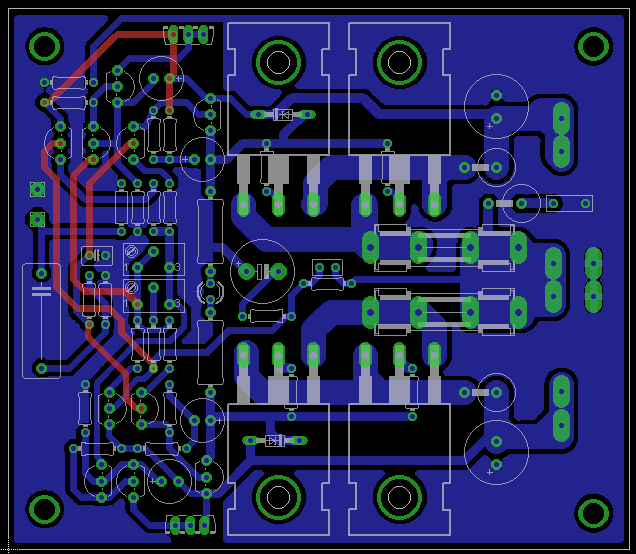

  • SKA GB150.PNG
    SKA GB150.PNG
    50.3 KB · Views: 1,319
Last edited by a moderator:
D

Deleted member 148505

Second iteration using GDS pinout.

I've also made it to be TO-220 compatible. In case there is.


Attachments

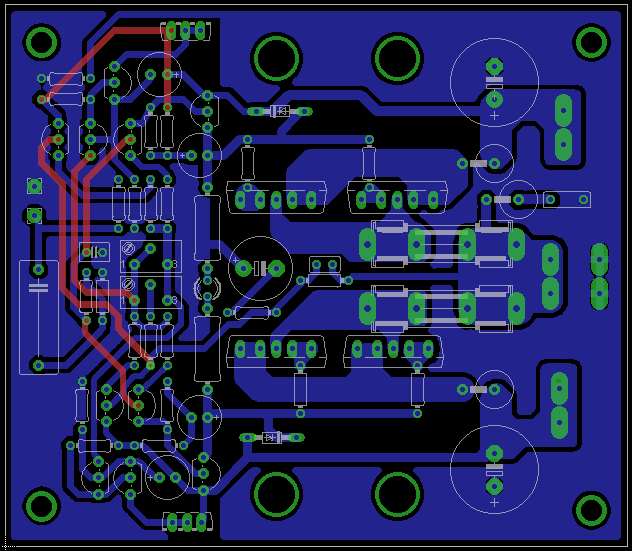

  • SKA GB150.PNG
    SKA GB150.PNG
    48 KB · Views: 1,136

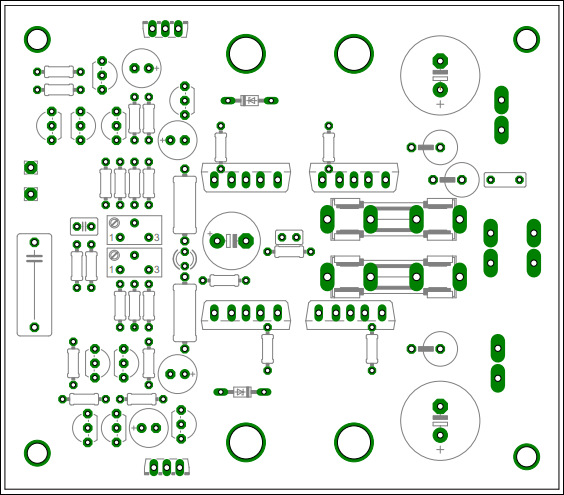

  • gb-150 overlay.PNG
    gb-150 overlay.PNG
    83.4 KB · Views: 1,090

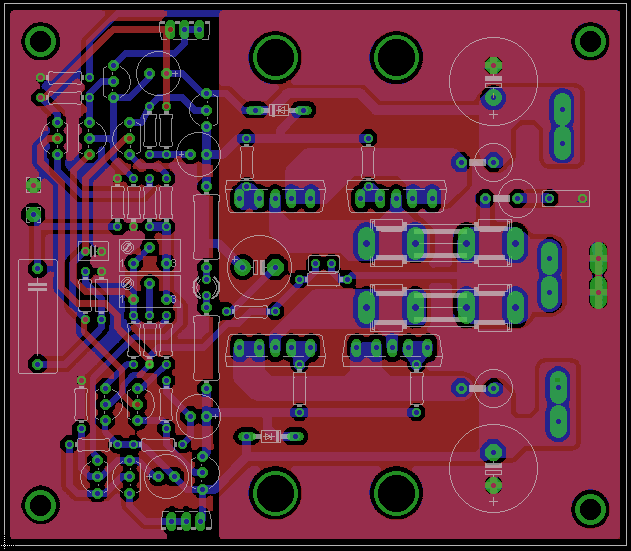

  • top.PNG
    52.8 KB · Views: 1,051
Last edited by a moderator:
