Roender's FC-100 Rev.1 Group-Buy

[RKH]

Payment sent

Rudi,
I have sent you payment. Thank you.

Ryan

PS I prefer without holes for breaking segments.



[Rudi_Ratlos]

I received your payment, Ryan, thank you.

I do not like a line of holes, because this line will interrupt / destroy the GND-plane on the solder-side of the PCB.

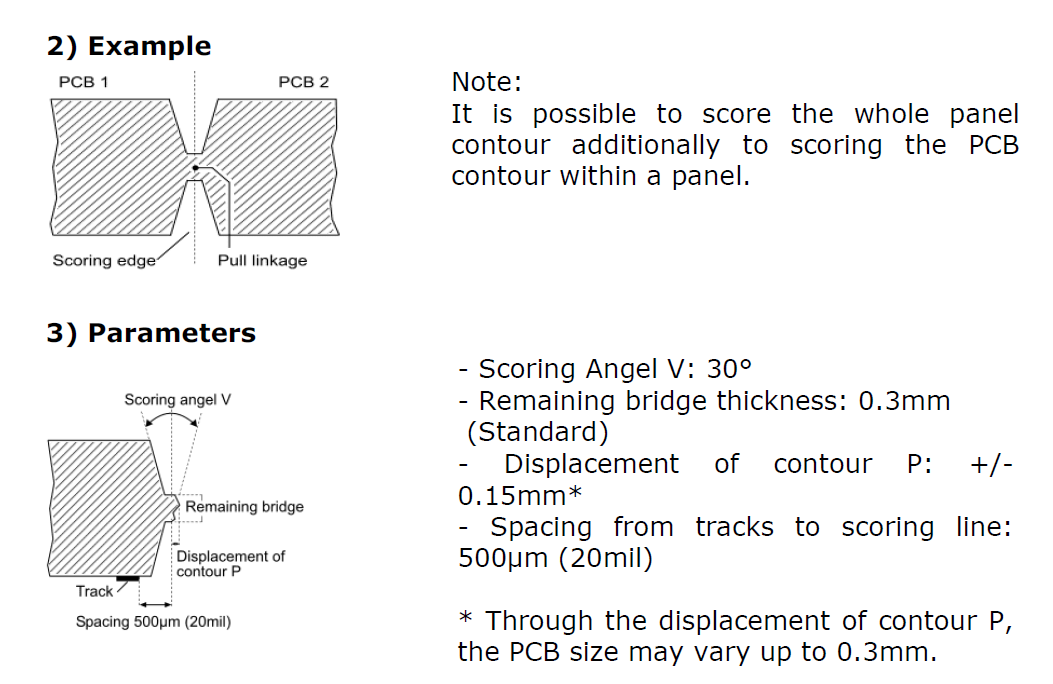

I cannot use standard V-scoring either, because V-scoring will introduce a "must-break-line" (see image attached).

I will do my best.

Best regards - Rudi_Ratlos



[Rudi_Ratlos]

Gentlemen,

it looks like there is a supply bottleneck concerning the NJL0281DG / NJL0302DG transistors currently.

Neither MOUSER, nor DIGIKEY, nor ... has them on stock right now.

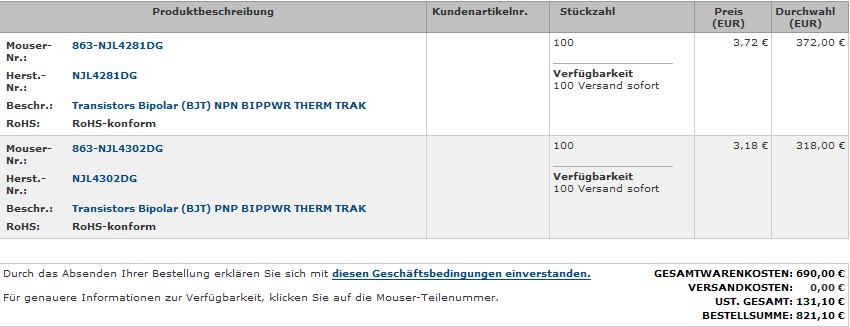

On the other hand: MOUSER offers the high-power version of the NJL transistors, the NJL4281DG and NJL4302DG, capable of dissipating 250W.
MOUSER has 108 pairs of these left.

The price per pair is 8.20€
I can order the transistors and will enclose them into your letters.

You need 6 pairs of NJL-transistors for 2 PCBs.
I advise you to take some more pairs (10) and match them.

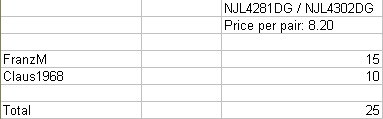

Who is interested in my offering?

Best regards - Rudi_Ratlos



[Luke]

Hi Rudy,

dont you need sextuplets, 3 of each all matched? If that's what your proposing then I would like to order 4 sets for 4 pcbs please. I obviously need 4 pcbs, 4 shunts and a slow start. Almost forgot 4 sets of resistors.



[meanman1964]

What about NJL3281DG/1302DG pairs?



[Rudi_Ratlos]

Patrick,

thank you for your hint.
The NJL3281DG / NJL1302DG are 200W types (instead of 180W which is the total power dissipation of the NJL0302DG / NJL0281DG) and will work as well.
MOUSER and DIGIKEY have these transistors on stock.

@Luke: I have put down your order into my EXCEL sheet.
You can use PAYPAL (my PAYPAL-ID is: RRozek@t-online.de) to transfer the money.

Best regards - Rudi_Ratlos



[meanman1964]

Rs has them too



[Luke]

Hi Patrick,

are you matching all 6 devices or pairs, I dont see the point in matching pairs so I assume you are matching all 6. Can you please confirm?
I will be bridging so its fully balanced, I will require the higher power devices so let me know which you go for.



[Rudi_Ratlos]

Patrick,

RSONLINE does not have the NJL1302DG on stock.

Gewünschte Menge nicht sofort lieferbar.
Versand erfolgt voraussichtlich am 22/05/2012.

The shipping date of the NJL1302DG ist May, 22nd.

Rudi



[meanman1964]

In Belgium and Netherlands they do
Luke,
I already have my trannies from Rudi and the first boards.I need to wait for the answer of my friend if he also order at RS but I don't think it is a problem.About matching never did that before but will look into it.
Regards
Patrick



[P. Lambda]

Hi Rudi,

I found that it is possible to order NJL0281DG / NJL0302DG from the onsemi website: Semiconductor and Integrated Circuit Devices



[zsaudio]

OnSemi says NJL0281DG not in stock.
And the shipping cost is 116$ to my country. Wow!



[Rudi_Ratlos]

Zsolt,

the shipping cost to Germany is similarly high!

But no problem: you can order the NJL0 - transistors from a local OnSemi distributor!
You just have to wait a little time (5 weeks).
But since I will close this group-buy only in April and taking into account 3-4 weeks lead time to etch the PCBs, receive and send them to you,
you will have the transistors "just in time".

Best regards - Rudi_Ratlos



[zsaudio]

Hi Rudi,

Thanks for the info. Shame on me i did not take the time for look around me.
You manage well this project.
Zsolt



[meanman1964]

Hi Rudi
Did get mail from my friend placing orders at RS are no problem.Must I order the trannies at RS?



[Ferrari]

Payment has just been sent.
Thanks a lot Rudi !



[mlloyd1]

payment sent.
thanks, Rudi

mlloyd1



[Rudi_Ratlos]

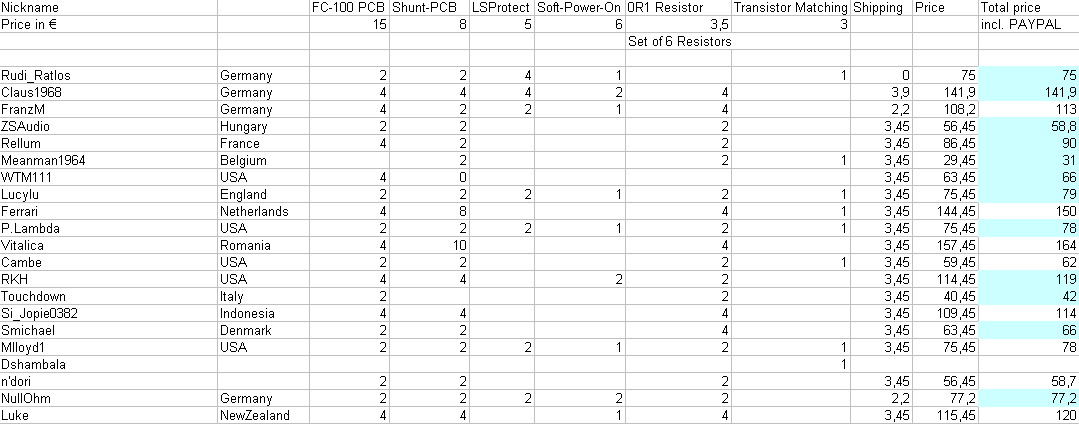

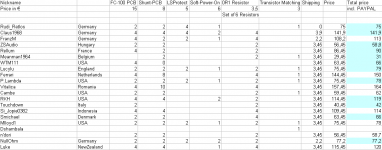

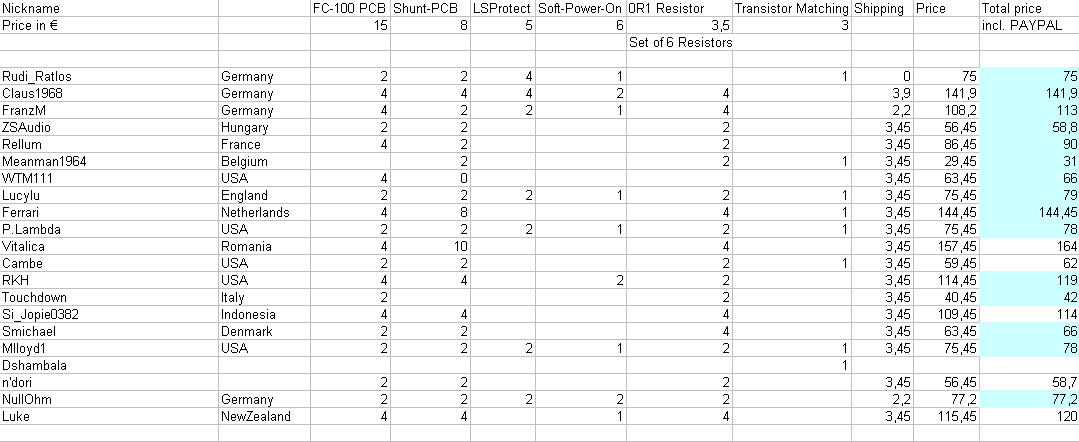

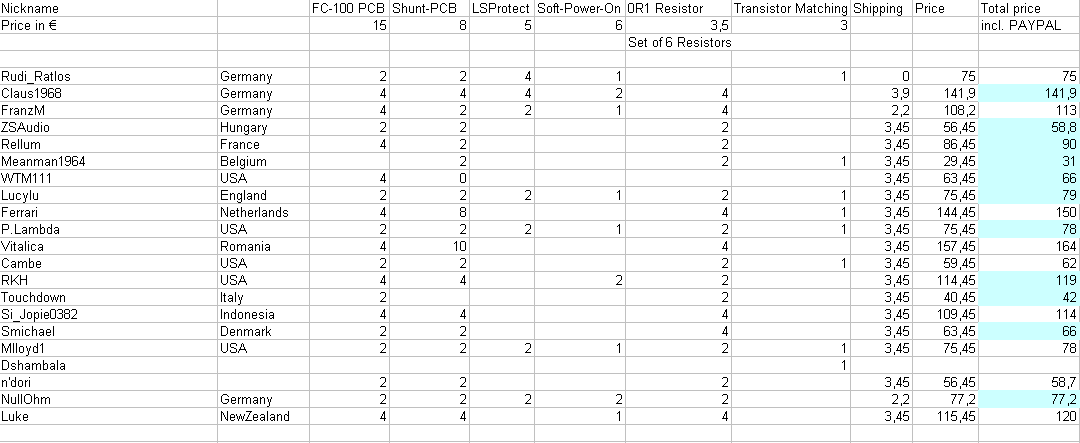

This is an update of the current order list.

The price listed in the right column is in € (EURO), not in $.

Best regards - Rudi_Ratlos



[mlloyd1]

revised payment sent.
thanks rudy



[Rudi_Ratlos]

I received several payments today.
Thank you, Gentlemen.

I started with the documentation - the "FC-100 Builder's Manual" - today and will include the BoM of each PCBs in the form of an URL.

For example: this is the BoM of one FC100 - shunt - regulator.

https://secure.reichelt.de/index.html?;ACTION=20;AWKID=563980;PROVID=2084

Most of you cannot read German, but you will understand immediately what is meant, when you look at the pictures.
A double-click on a little picture will give you more details.

Best regards - Rudi_Ratlos
