R evenge C omes with F orce

[olsound]

Thanks a lot to Epa and the other experts for helping with this project.
Epa
Djim
Tb46
Jbell
Jricci
Bjorno

Thanks alot



[epa]

we want pics of the bilding proces.



[olsound]

we want pics of the bilding proces.

Will do

Once i have all the parts building will start



[jbell]

I personally use flattened expanded mesh. Here's a pic of some cb-18 using the same mesh for grill for inspiration. (it really stiffens up the front panels, and keeps things from vibrating)



[olsound]

I personally use flattened expanded mesh. Here's a pic of some cb-18 using the same mesh for grill for inspiration. (it really stiffens up the front panels, and keeps things from vibrating)

Nice grill

jbell, Thanks for the info



[Djim]

Here's a pic of some cb-18

Does that explain you absence?



[jbell]

Does that explain you absence?

nope... just been busy. that pic was a gratuitous copy from a speakerplans post -- not mine.

Since that builder used the same grill material as I do, I thought it might be helpful to cross post the picture.

(btw -- right now my shop is littered with test cabinet designs -- when I have something of value to post -- be sure, I will....)



[olsound]

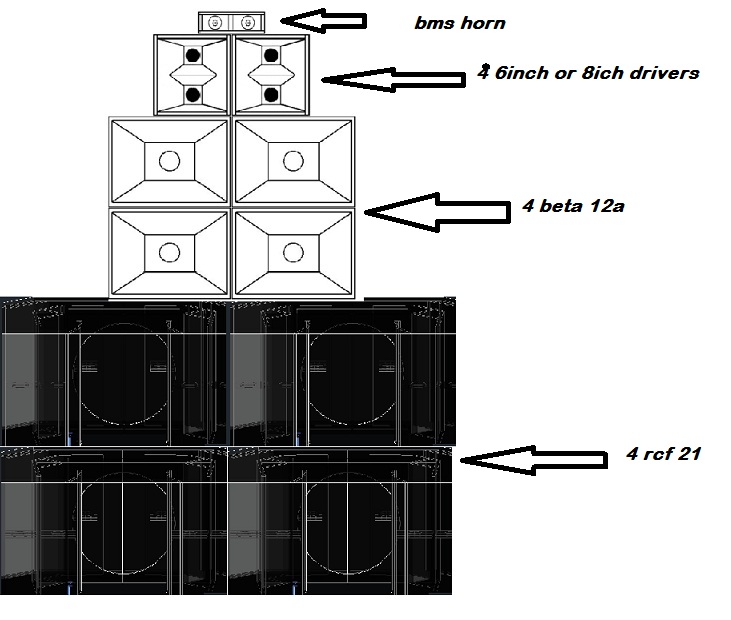

My dream system

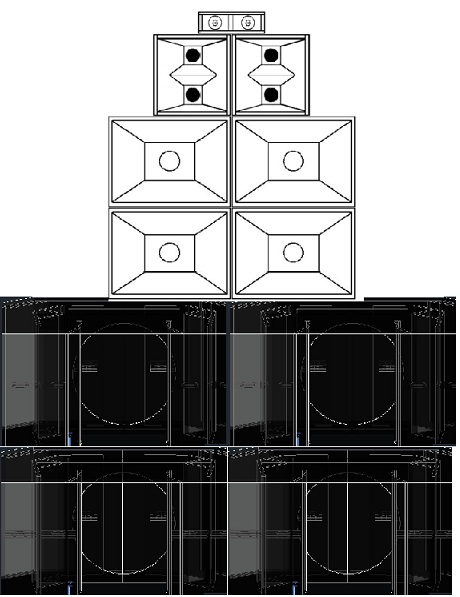

My dream system



[olsound]



[Dr_EM]

Cool project, look forward to seeing a build of this! Didn't know you could horn load a cone as big as 21", or is it fine becuase it's a tapped horn?



[olsound]

Cool project, look forward to seeing a build of this!

Thanks Dr, it was design was by Epa.


[special=]%[/special]



[epa]

the plan has changed a bit.

you can load any speaker to a horn.
its just that some wil work better then others.



[epa]

you can make panels 10 and 11 12 mm wood,no need to make them 18 mm heavy.



[olsound]

you can make panels 10 and 11 12 mm wood,no need to make them 18 mm heavy.

Good morning Erik, I see you still tweaking this cabinet. I like a person who take pride in there work .

Thanks.



[epa]

Good morning Erik, I see you still tweaking this cabinet. I like a person who take pride in there work .

Thanks.

hi stanley
wel i was looking over the design,when saw this.
it maybe saves 1 or 2 kg doesnt make much difference tho.



[olsound]

Erik how much sheet of plywood will be needed to make one cabinet.



[epa]

2,5 sheet of 4'*8' per cab.



[olsound]

2,5 sheet of 4'*8' per cab.

Thanks



[epa]

pic in post 112 updated



[epa]

the vertical pannel bracing of 10.32 mm (perpendicular to the speaker)need to be cut a piece out where the surround is,of 15 mm ,so the speaker wont hit it when getting close to x- limit.
atm you have "only" 18 mm off max excursion before the suround hits it
