preamplifier preCario ecc86 based

only one tube for this preamplifier and work with a 12v 7Ah battery.

the next step will be the SE based on el84.
little and apparently simple, also if the power supply tension are high for me.



[jane]

Small 2x12W EL84 amplifier:

An externally hosted image should be here but it was not working when we last tested it.

Feedback conditions are 18dB loop feedback plus UL-feedback and common mode feedback in the LTP. Zo is 0.7ohm. Square wave response at 10kHz is quite nice, without no overshoots or ringing.
The tubes I'm using for the moment is matched pairs of Russian 6P14P-EV (EL84), 6CG7 and another Russian comrade: 6F1P (ECF80) for input and CCS.

An externally hosted image should be here but it was not working when we last tested it.

Amplifier unit and power supply put together with side panels:

An externally hosted image should be here but it was not working when we last tested it.

Jan E Veiset



[adamus]

very nice. Can i ask where you got the small panel meters from?



[Miniwatt]

My 70 Watt 2 channel guitar amp:

An externally hosted image should be here but it was not working when we last tested it.



[dinu]

Very Nice Miniwatt. All the tone controls and effects always kept me from doing a guitar amp. How does it sound?



[soundbrigade]

very nice. Can i ask where you got the small panel meters from?

A wylde guess: HiFi DIY Site - VT4C/211 Power Triode



[robertor]

very nice jane.



[AlejandroR]

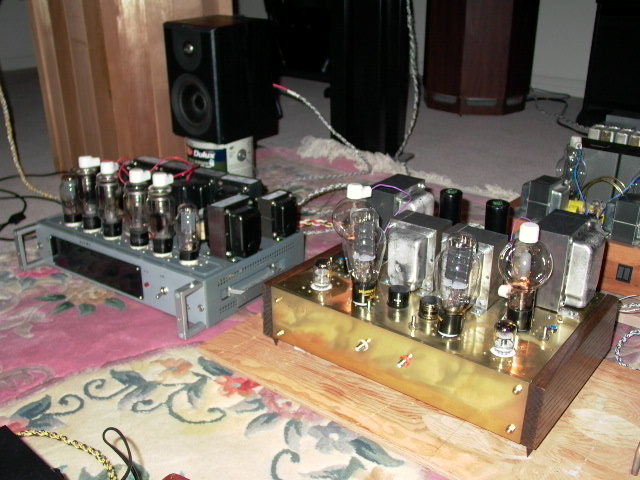

Two of my amplifiers (only one selfmade ):

The EL34 Single Ended with Joseph Audio Transformers and the Tatic Audio 6B4G, made in Serbia by Ivan Tatic

An externally hosted image should be here but it was not working when we last tested it.



[Alaska Bill]

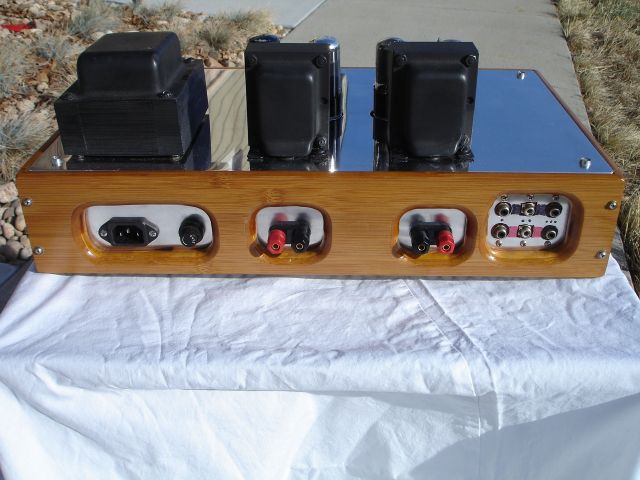

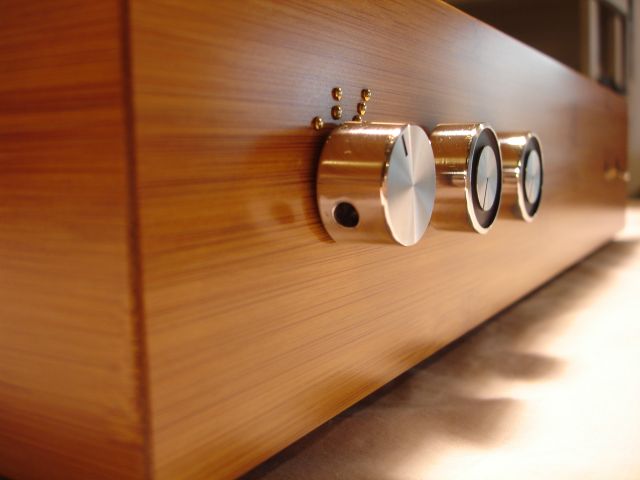

First Amp

My first amp. A P-P ultra linear. Was fun and I have learned a lot from this forum. Sounds great ie clear and quiet.



[Alaska Bill]

First Amp

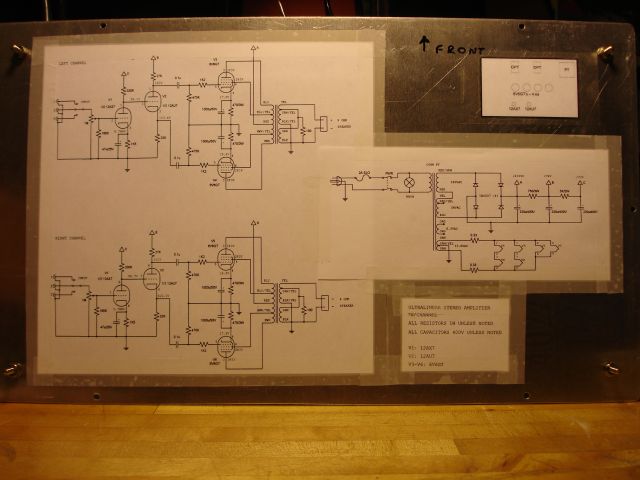

And the schematic. Cathode bias. Cabinet is made from bamboo flooring. Input signal wiring is Atlas missile wiring (pure silver including the shielding), PT and tubes etc harvested from old Conn organ.



[planet10]

ith Joseph Audio Transformers

Do you mean James... Joeseph Audio builds speakers.

Nice looking amp

dave



[planet10]

My first amp. A P-P ultra linear.

Also very nice. You coulda fooled me it was your 1st

dave



[navin]

And the schematic. .

The picture size is a bit small can barely read this schematic. can you please post a bigger picture of this? thanks.



[595ss]

A wylde guess: HiFi DIY Site - VT4C/211 Power Triode

Or Automatic Electric Europe

Rob



[AlejandroR]

Do you mean James... Joeseph Audio builds speakers.

Nice looking amp

dave

James of course



[Bas Horneman]

And the schematic.

I like the way you have attached the schematic to the amp.



[Alaska Bill]

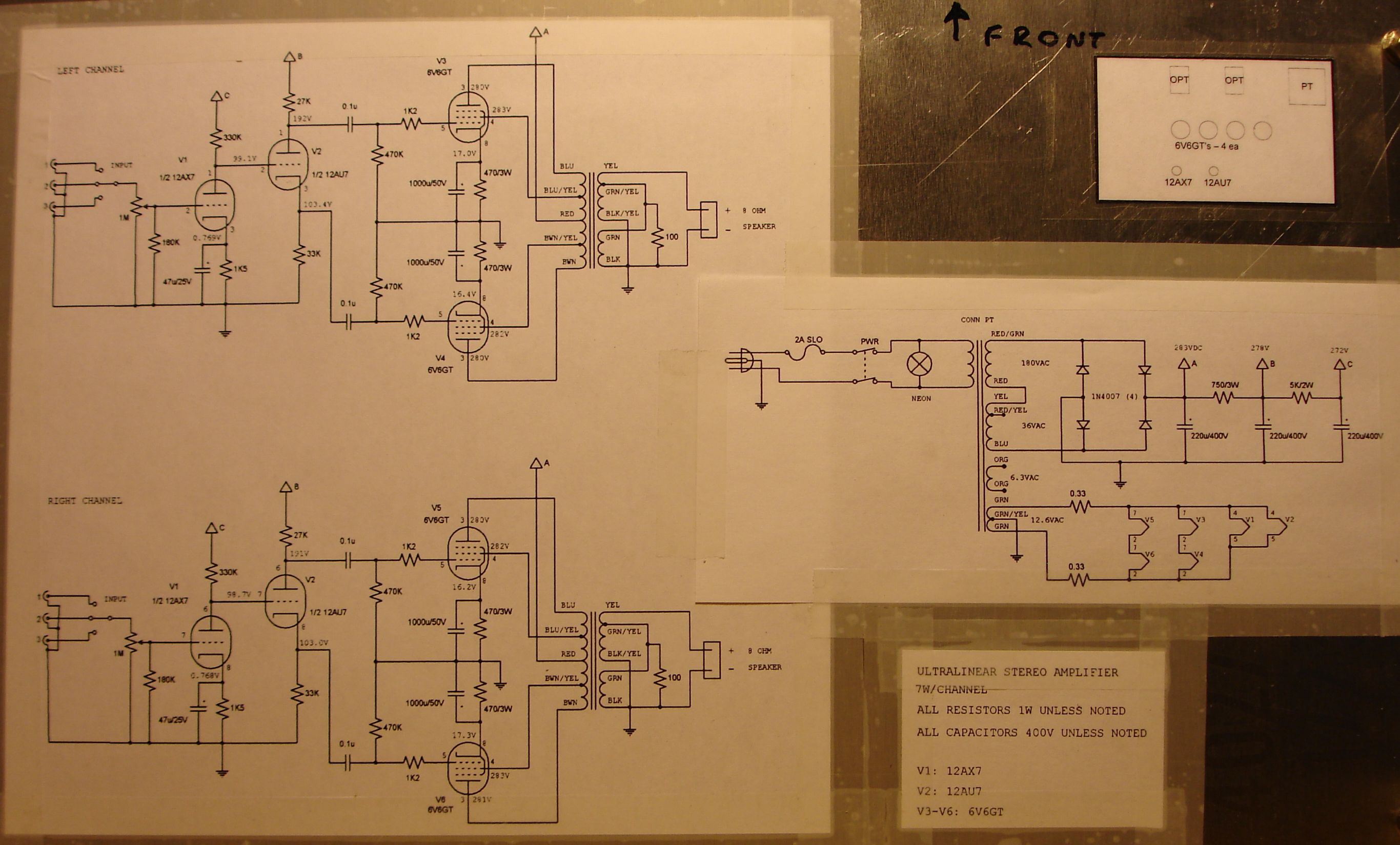

"The picture size is a bit small can barely read this schematic. can you please post a bigger picture of this?" Hopefully this will be better.

Also, a bit of clarification: this is the first amp built from scratch. Got the design and technical assistance from my son. In the past, I have modded the amps from the old Akai/Roberts R-2-R into stand alone mono blocks and put cabinets around them.



[navin]

"The picture size is a bit small can barely read this schematic. can you please post a bigger picture of this?" Hopefully this will be better.

much better!! thanks.



[Miniwatt]

Very Nice Miniwatt. All the tone controls and effects always kept me from doing a guitar amp. How does it sound?

How do you think? Amazing of course And thanks!
But seriously, I really really like it. Sort of 'hi-fi', very clean and powerfull but warm at the same time. And a distortion with lots of second harmonics.

Wiring all the controls was a labour of patience alsmost as much work as the amplifier section. A hifi amp is much easier in comparison..



[makaiyumtony]

stupid enough ? WE437A+WE300B+RCA808=5W out

Am I stupid to do that ? only WE300B can deliver 8 watts, actually RCA808 can up to 12 watts, but really red hot. now 5 watt look more comfort for them, only reason for this is 808 in positive bias driving, sound completely different, my personal favor. big power supply in left, just for a 5 watts amp
Tony KY Ma
