My class D amp

[rohin]

dear manoj sir i want to make this 200u amp and i already have all component sir can you please tell us thd at different frequency up to 20 khz like all amp specification. thanks.



[manojtm]

Hi Rohin,

I don't have THD measuring equipment. AUD200U is not good(audiophile)for full band.Best for MID band and SUB woofer.
compare with class AB{ dB BASIC 400 BI-AMP} AUD200U is very good performer.

Regards
MANOJ



[manojtm]

How many days will it require to complete your board?

Hi Sabir,

I think more than 21 days for completing PCB and over all it will take 45 days

Regards
MANOJ



[sweetperfume]

Hi Sabir,

I think more than 21 days for completing PCB and over all it will take 45 days

Regards
MANOJ

That will be a long wait. Anyways will be excited to see the results
Regards,
Sabir



[manojtm]

Hi All,

Any one have SANSUI AU-X611AV Service manual pls help
my email id : manojtm@engineer.com
thanks

Regards
MANOJ



[andrewlebon]

SANSUI AU-X611AV - Service Manual Immediate Download



[manojtm]

Hi andrew,
Thanks, but its not free

Regards
MANOJ



[andrewlebon]

Hi Manojtm
greetings yes its a pay site for downloading
warm regards
Andrew



[manojtm]

Hi All,

AUD-Dynamic Limiter for AUD200U Amp, we can use Bridge mode also

Regards
MANOJ



[luizcpimenta]

Hi All,

AUD-Dynamic Limiter for AUD200U Amp, we can use Bridge mode also

Regards
MANOJ

Hi Manoj.
What is the value of the IC U5?
Thank you.



[manojtm]

Hi,

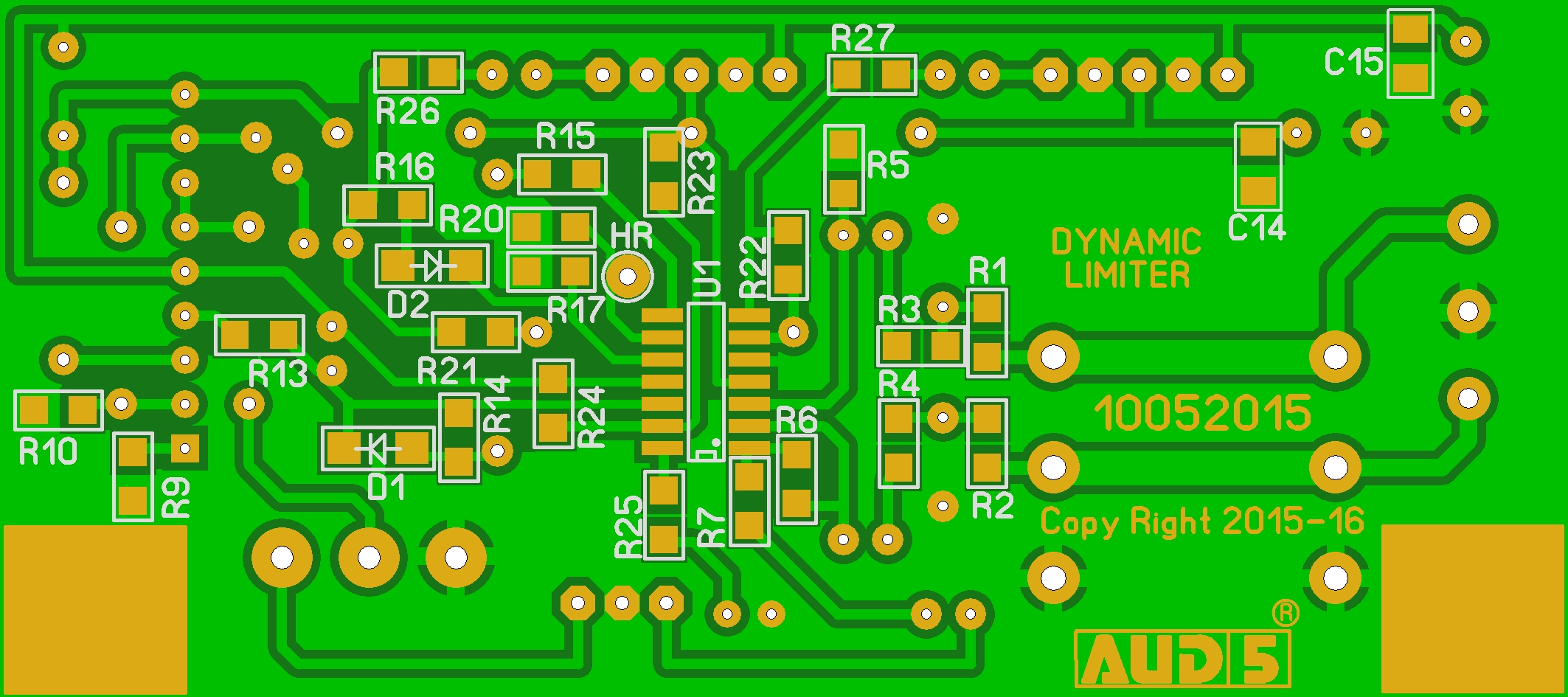

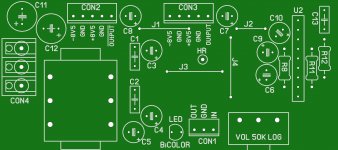

AUD-LIMIT PCB ready now

4x9 cm size

Regards
MANOJ



[manojtm]

Hi,

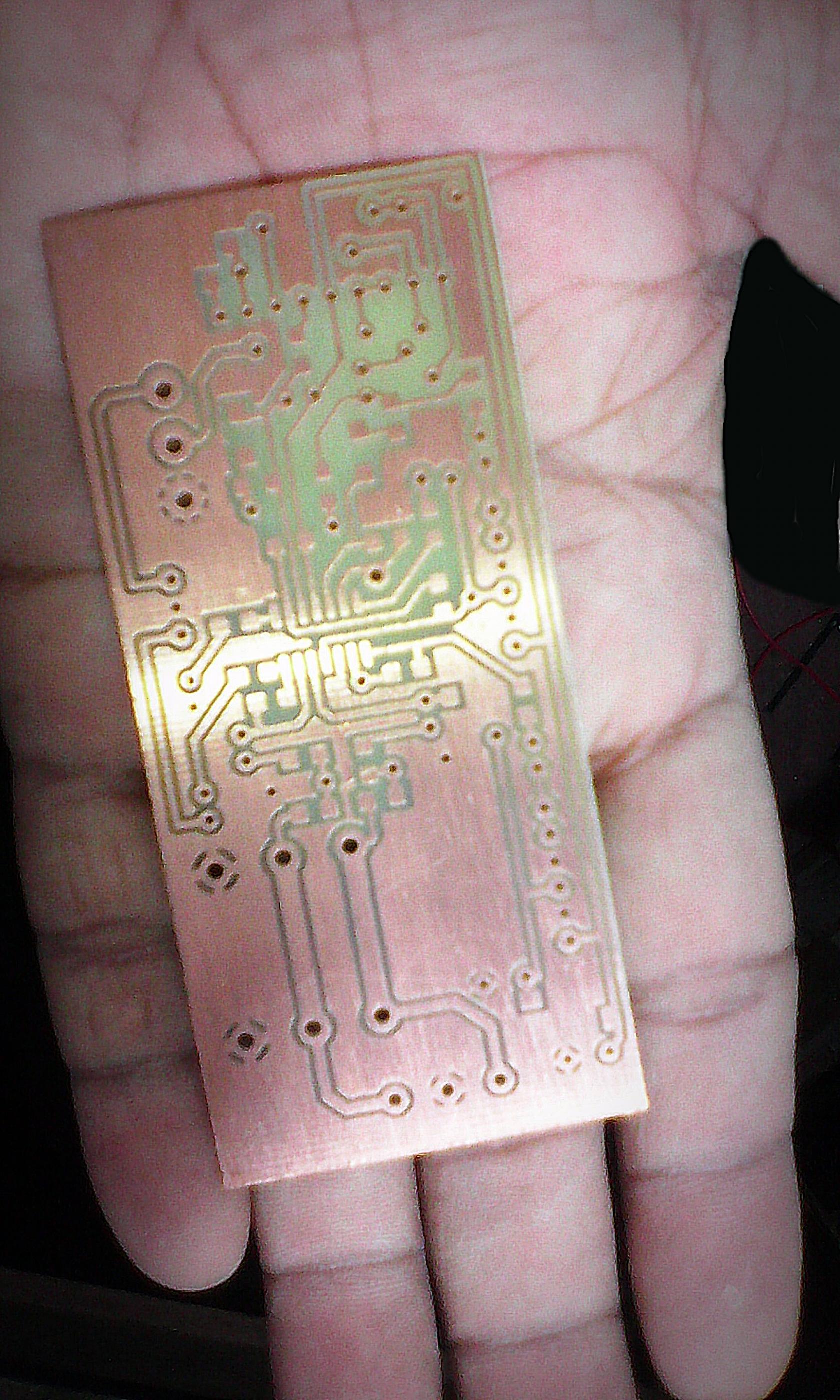

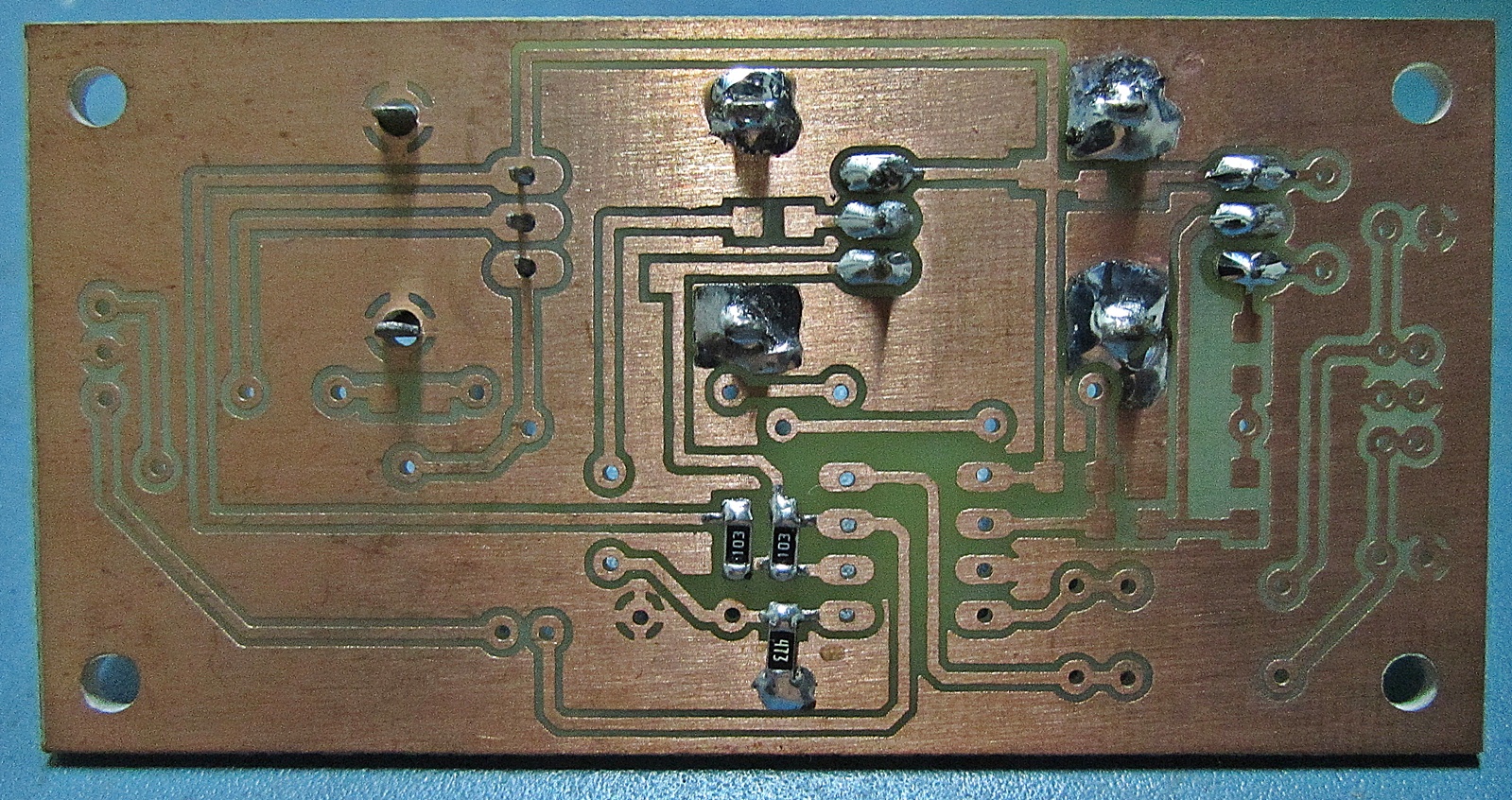

Limiter PCB Ready
toner transfer method, looks good
test result will give in short time

Regards
MANOJ



[manojtm]

Hi,

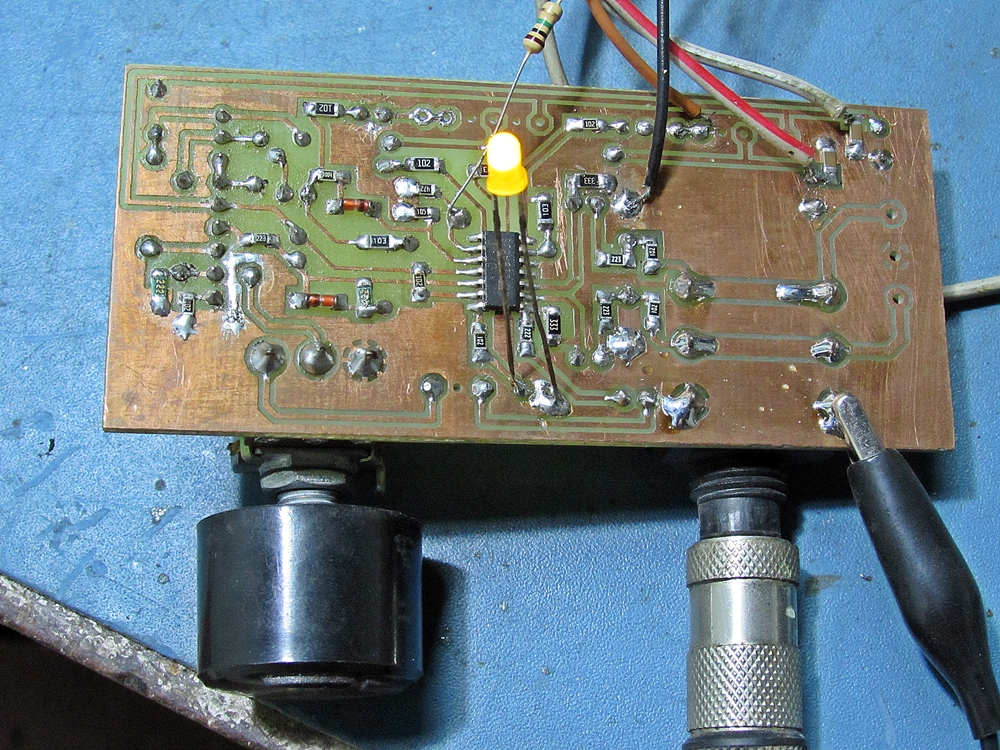

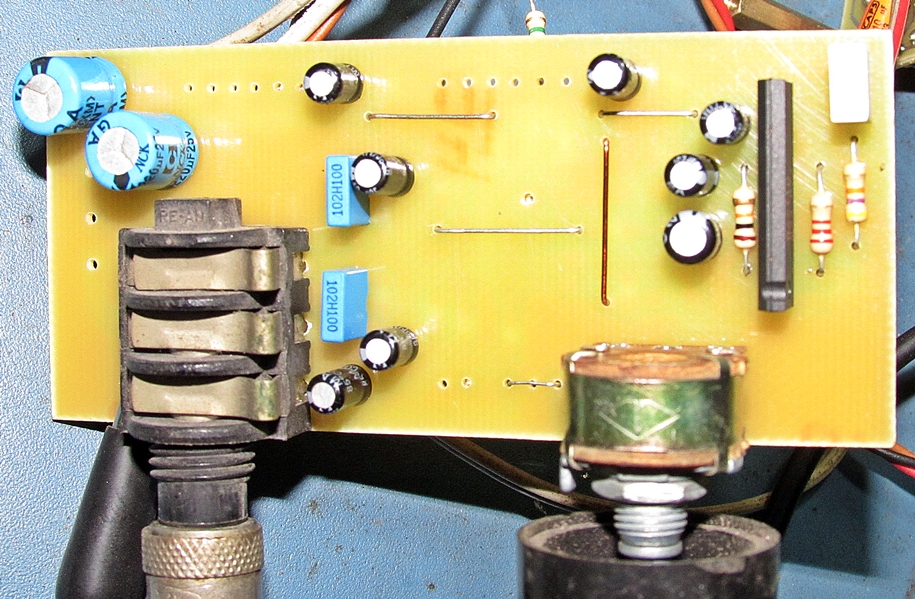

AUD-Limiter tested result
modified parts
R24-1K,R16-1M,R4&R3-22K,R28-4K7,C6-22uF

signal input and output limited level
100Hz - 1.18v p-p
250Hz - 1.21v p-p
1KHz - 1.28v p-p
10KHz - 1.32v p-p

Regards
MANOJ



[Cresnet]

Hi Manoj.
What is the value of the IC U5?
Thank you.

Closest chip to U5, looks to me like:

http://www.classiccmp.org/rtellason/chipdata/an6551.pdf



[manojtm]

Hi cresnet,

No it is not an6551.It's VCA (Voltage controlled amplifier)

Regards
MANOJ



[manojtm]

Hi,

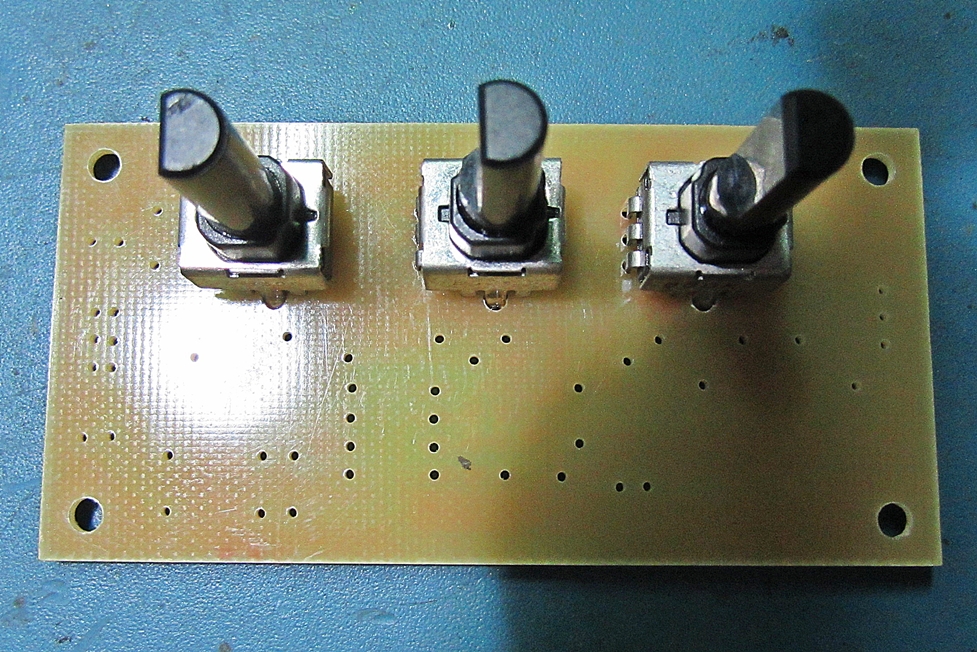

Small size 3 Band EQ(Low,Mid & High) for AUD200

Regards
MANOJ



[stewin]

nice work sir manoj



[vargasmongo3435]

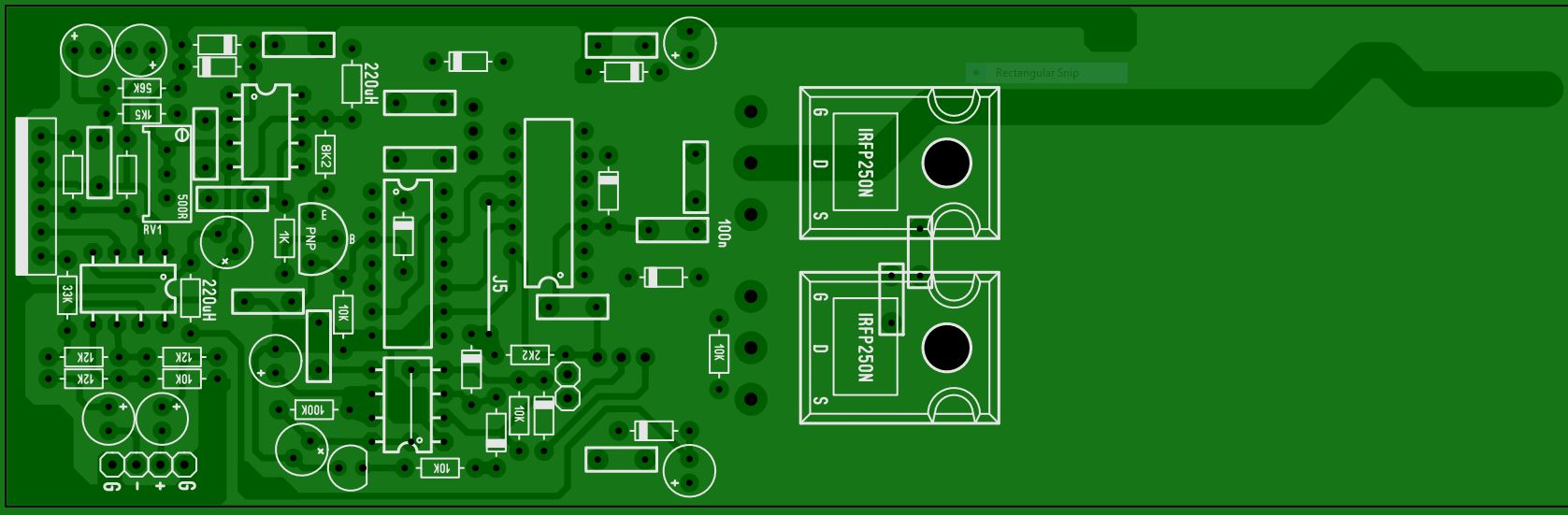

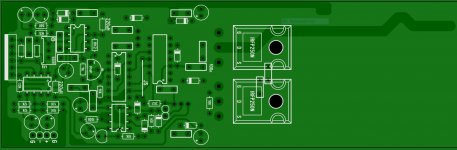

Hello monojtm do you have a more clear image of this layout ? I really want it to make a re-drawing for Sprint Layout 6 also if you can please send me the schematic to my e-mail vargasmongo@gmail.com

I already begin yesterday but image is too fuzzy no good for my eyes

I mean if you can of course



Best Regards
Juan



[vargasmongo3435]

some one mention that there is a Aud600 rev3 ?



[manojtm]

Hi,

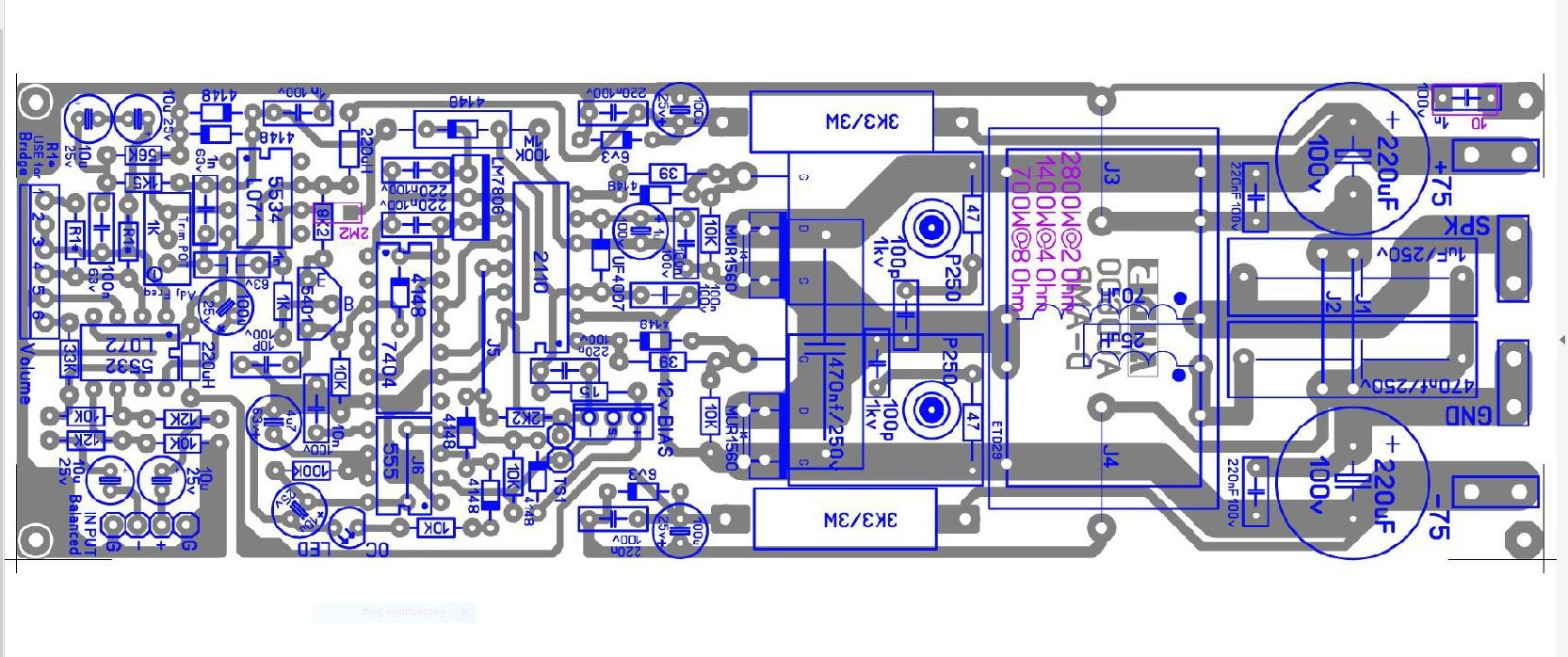

Here is ckt (not full) class D with Class H power

Regards
MANOJ
