12V PSU TX
Hi
My nuvotem +-18V just arrived.
Can anyone suggest a good way to set it up inside my CD53 ?
The whire collors are a bit confusing... Can you help me sort it out ?
Can I use the following setup?
Red + 18V
Black // Yellow Common Earth
Orange - 18 V
Best Regards
Ricardo
PS: Brent, come back please....
Hi
My nuvotem +-18V just arrived.
Can anyone suggest a good way to set it up inside my CD53 ?
The whire collors are a bit confusing... Can you help me sort it out ?
Can I use the following setup?
Red + 18V
Black // Yellow Common Earth
Orange - 18 V
Best Regards
Ricardo
PS: Brent, come back please....
Linking the datasheet might prove helpful:
http://docs-europe.electrocomponents.com/webdocs/0030/0900766b80030cb8.pdf
The primary should be self-expanatory... brown to hot and blue to neutral (I'm from the US, so if I say something wrong for UK, rest of world, someone step in
).

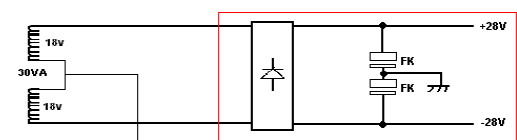

For the secondaries, you have 2x18V and it appears your PSU is set up for center tapped. Per A,veco's datasheet (http://www.amveco.com/pdf/Amveco_Catalog.pdf#page=25), the secondaries should be wired as you noted with the black and yellow tied together for the "center tap".
http://docs-europe.electrocomponents.com/webdocs/0030/0900766b80030cb8.pdf
The primary should be self-expanatory... brown to hot and blue to neutral (I'm from the US, so if I say something wrong for UK, rest of world, someone step in
).For the secondaries, you have 2x18V and it appears your PSU is set up for center tapped. Per A,veco's datasheet (http://www.amveco.com/pdf/Amveco_Catalog.pdf#page=25), the secondaries should be wired as you noted with the black and yellow tied together for the "center tap".
Don't suppose anyone would know what causes a -0.65v reading on my dac's left-channel positive output (pin 18) would they?
The negative output reads ~2v which seems ok.
Right channel is perfect.
It would be nice one day to be able to help someone else rather than just always wanting help myself!
Lee.
The negative output reads ~2v which seems ok.
Right channel is perfect.
It would be nice one day to be able to help someone else rather than just always wanting help myself!
Lee.
6h5c said:
Hi Ray
I just replaced the OpAmps and removed the output caps in the CD53.
The Raygulators are in place the voltage is ok.
I am considering the rest of the mods in the output (C659 C660
R655 656 R657 / 658 R659 / 660) but would like to have your input in the two R619 R620..
As the CD53 does not have a HDAM, the entire circuit is replaced by a 10R in each channel.
Should I shunt these or should I wire the pin 7 of each opamp to R659 660 ?
If I am right, you remove everything in the output, leaving only the voltage drop circuit R659 / R661 and 660/662.
Removing R619 R620 will affect the values you indicate for voltage drop ?
Your advise is highly appreciated,
Regards
Ricardo
I've just picked up an old Vanilla CD63 which i'm using as a transport only to my Beresford DAC.
Would i see any benefit in modding this unit if i'm only using the Digital output. I presume that i'd only see a benefit from playing with the Power section and damping the case as much as possible.
Sorry if my question seems a bit stupid and i know it's probably covered in the last 300 odd pages
Would i see any benefit in modding this unit if i'm only using the Digital output. I presume that i'd only see a benefit from playing with the Power section and damping the case as much as possible.
Sorry if my question seems a bit stupid and i know it's probably covered in the last 300 odd pages
