Some distortion measurements with my Shibasoku 725. These are all at 10V, 2400 Hz.
First are from a Fluke 510 AC standard (tweaked). The second 2 are the Shibasoku 590AR. They are scope pictures of the display from a Wavetek FFT, which has the internal corrections for bandwidth. These are from the monitor out at -90 dB (= 1V).
Scaling is pretty straightforward. 1V = -90 db from the signal (10V or + 20dBV) so for example first picture the -32 dB is -122 dB from the fundamental Second picture, the displayed noise is -67 dBV/rtHz so scaling 67 dB + 90 dB to the signal -20 dB to get to 1V yields -137 dB/rtHz noise density. Its -157 db from 10 V. I'm not sure that noise is the source or internally limited.
On this model the AGC starts at the input amp. That means, unless the noise is pretty high in the source, it will probably change with level as the input gain changes. What I have noticed is that the distortion and noise do change with level. The 590AR uses a passive 600 Ohm attenuator on the output for all levels. As a source it will never have less than 3 nV/rtHz.
I tried different levels with the 590AR and the distortion remains the same until the front end gain changes and then it all changes a lot with the harmonics shifting in levels significantly. All below -120 db so it meet spec.

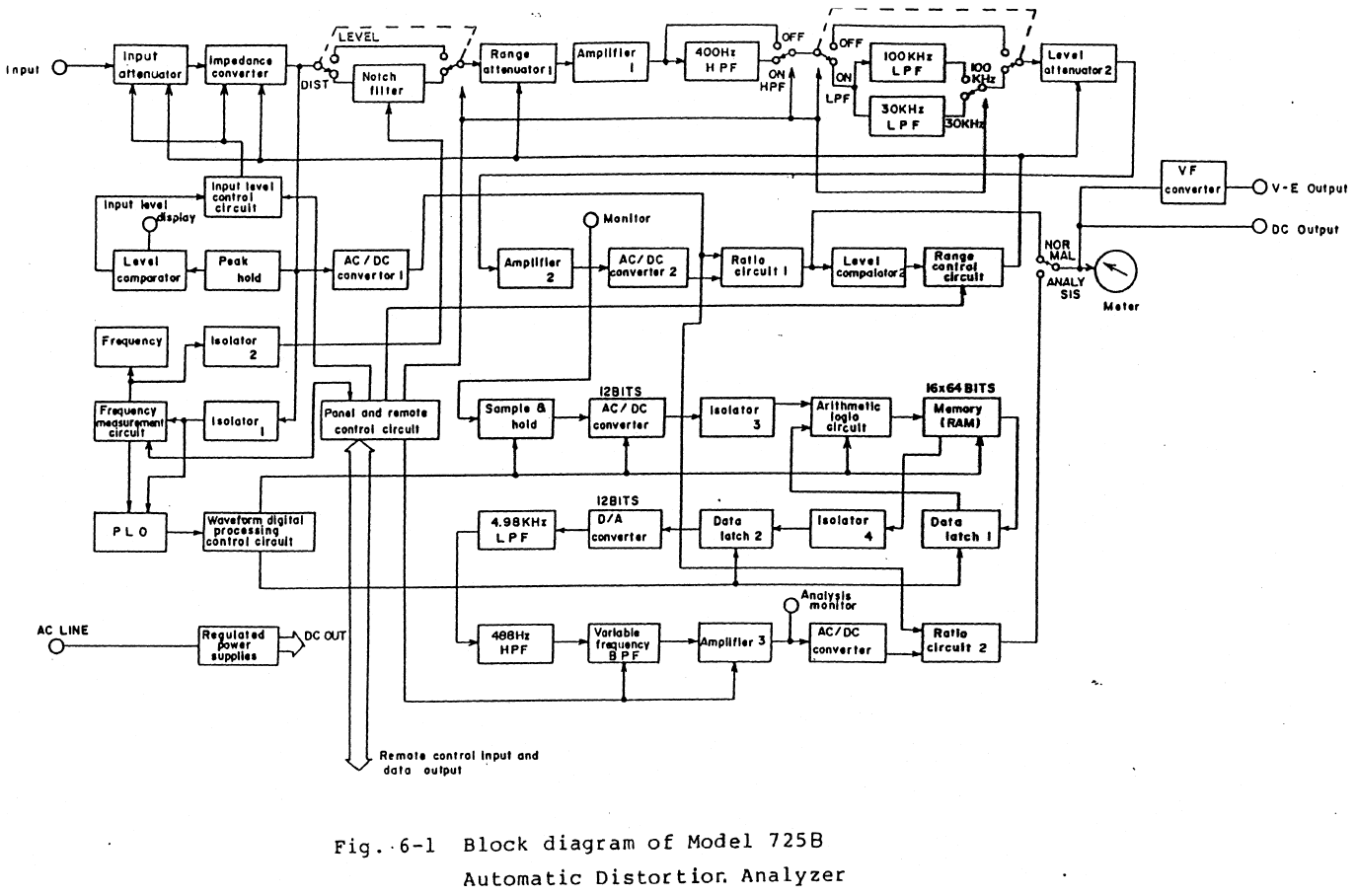

Looking at the block diagram the meter gets its input in different ways but not directly from the monitor output. It looks at the ratio of input to output but the agc's are not that fine grained so it may have +/- 2 dB variation from level to level or more? Lots of moving parts in this thing.

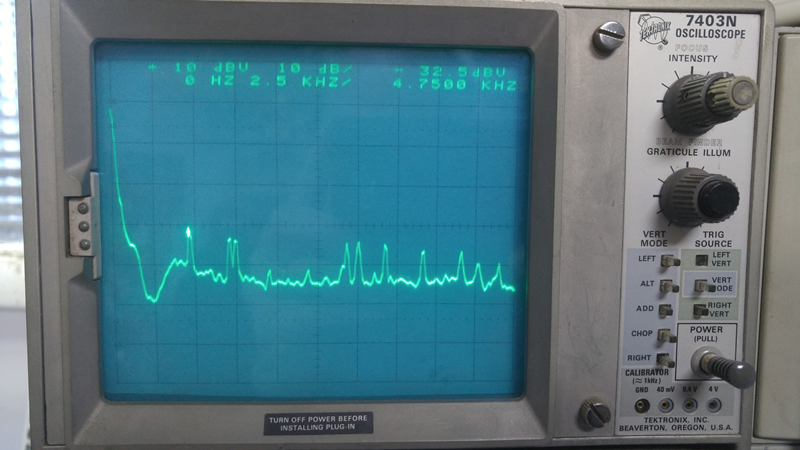

Fluke 510 distortion w/ marker at distortion

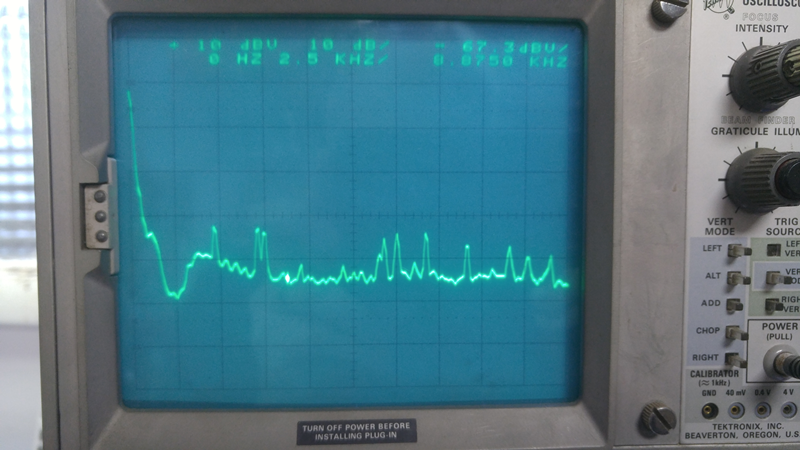

Fluke 510 distortion w/ marker at noise in noise density mode
Shibasoku 590AR distortion w/ marker at distortion

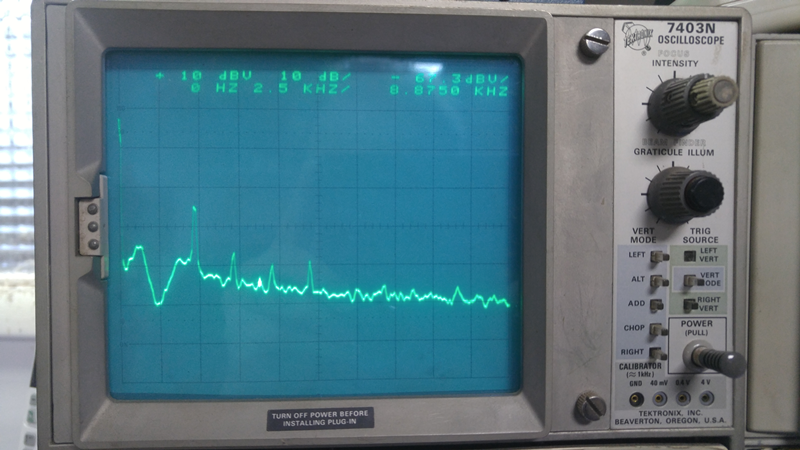

Shibasoku 590AR distortion w/ marker at noise in noise density mode
First are from a Fluke 510 AC standard (tweaked). The second 2 are the Shibasoku 590AR. They are scope pictures of the display from a Wavetek FFT, which has the internal corrections for bandwidth. These are from the monitor out at -90 dB (= 1V).
Scaling is pretty straightforward. 1V = -90 db from the signal (10V or + 20dBV) so for example first picture the -32 dB is -122 dB from the fundamental Second picture, the displayed noise is -67 dBV/rtHz so scaling 67 dB + 90 dB to the signal -20 dB to get to 1V yields -137 dB/rtHz noise density. Its -157 db from 10 V. I'm not sure that noise is the source or internally limited.
On this model the AGC starts at the input amp. That means, unless the noise is pretty high in the source, it will probably change with level as the input gain changes. What I have noticed is that the distortion and noise do change with level. The 590AR uses a passive 600 Ohm attenuator on the output for all levels. As a source it will never have less than 3 nV/rtHz.
I tried different levels with the 590AR and the distortion remains the same until the front end gain changes and then it all changes a lot with the harmonics shifting in levels significantly. All below -120 db so it meet spec.
Looking at the block diagram the meter gets its input in different ways but not directly from the monitor output. It looks at the ratio of input to output but the agc's are not that fine grained so it may have +/- 2 dB variation from level to level or more? Lots of moving parts in this thing.
Fluke 510 distortion w/ marker at distortion
Fluke 510 distortion w/ marker at noise in noise density mode
Shibasoku 590AR distortion w/ marker at distortion
Shibasoku 590AR distortion w/ marker at noise in noise density mode
yes, Nasty bugs and malaria .... I think my shots are still good from time I went to Nepal right after earth quake... had to leave because of spreading cholera. Cant get enough shots for everything.
Another lawless area with no 911, no hospitals nor help. But hey... they have real heavy-duty Shamans. So it cant be all bad.
Actually it is mostly bad but worth the torturous experience seeing the tribal people and villages along the many streams and rivers which form to make up the mighty Amazon. The anaconda, the pirana, constrictors, Jaguars, crocodiles, army ants etal. As long as i bring gifts and a machete, I'm OK. Going with guide who has a home in there somewhere. years ago, he had a shoot out with local area robbers in his house... they had shot guns... he had 45. He lost 2 fingers and a big hole in his side but with his wife reloading for him, he killed both of them. In the middle of the night his wife stuffed his side with cloths... gave him a loaded weapon and ran a long way to a village, they came back and carried him out to another village where a small plane could land and get him to hospital. Its that kind of area. -Richard
Last edited:

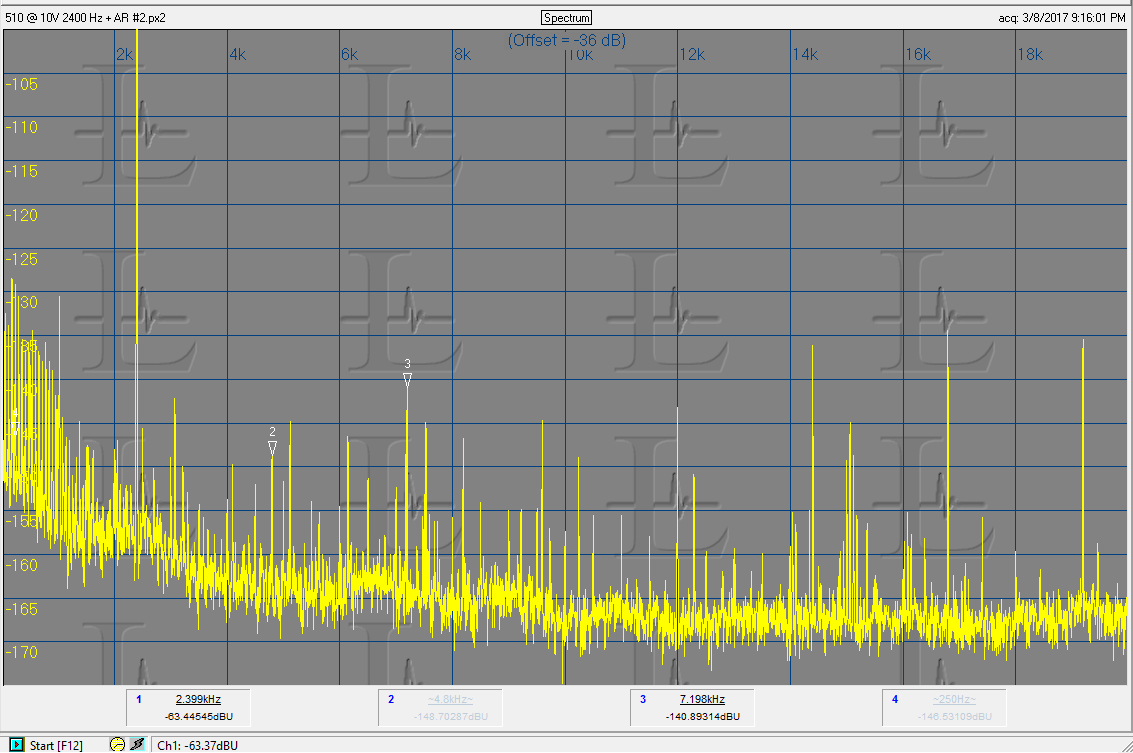

And just to get more data here are measurements of the same two sources using a passive (B&K 1604) notch filter. The harmonics are not corrected.

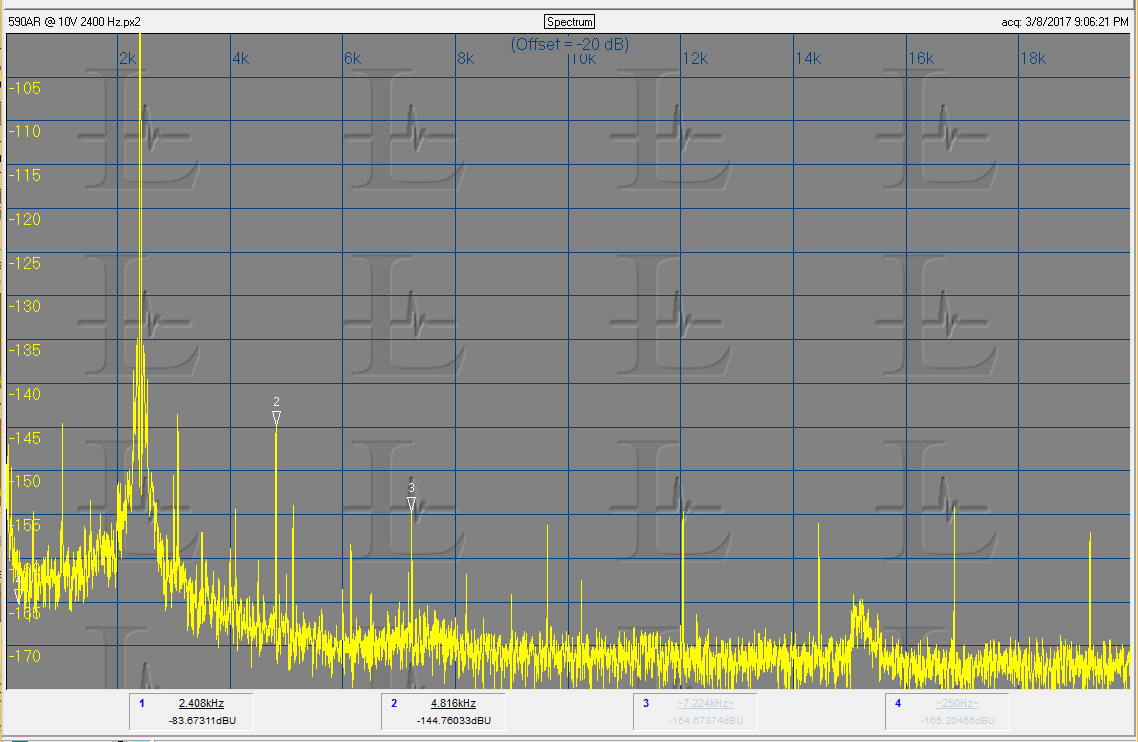

First the Shibasoku 590AR same as above.
Then the Fluke 510
The noise pickup on the 510 measurement is frustrating but typical when going directly into a PC sound card, even differentially.

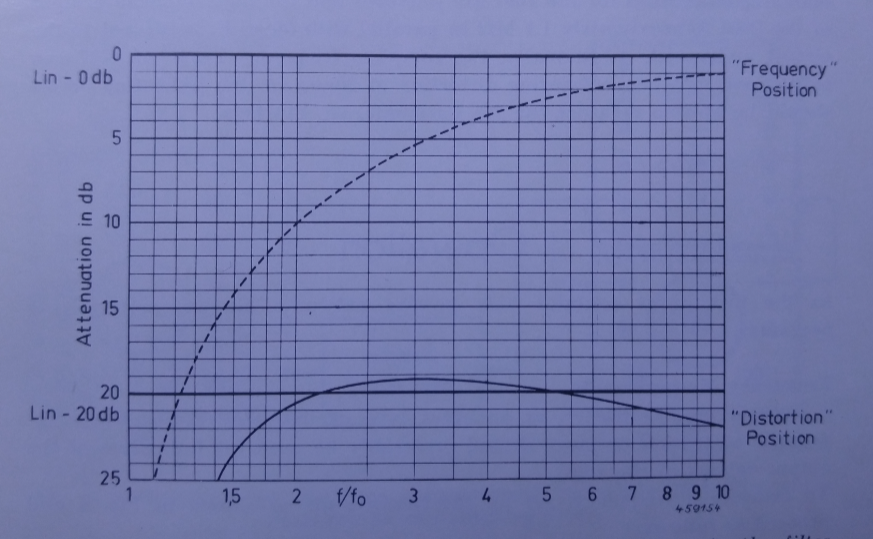

Use the upper correction curve to correct for the harmonic levels to compare. Using the "distortion" setting introduces too much loss.
First the Shibasoku 590AR same as above.
Then the Fluke 510
The noise pickup on the 510 measurement is frustrating but typical when going directly into a PC sound card, even differentially.
Use the upper correction curve to correct for the harmonic levels to compare. Using the "distortion" setting introduces too much loss.
