Krell KSA 100 type amplifier

[HarryHaller]

Mark Levinson

I'm not but for you who are:

http://marklev.com/marklev/

H.H.



[webercarbmann]

Wow great page

Hi again.

Check out the scematics of the famus ML-2 25w kl A mono amp

http://marklev.com/marklev/ML2/index.html

Peter



[hifi]

here it is guys.



[Elso Kwak]

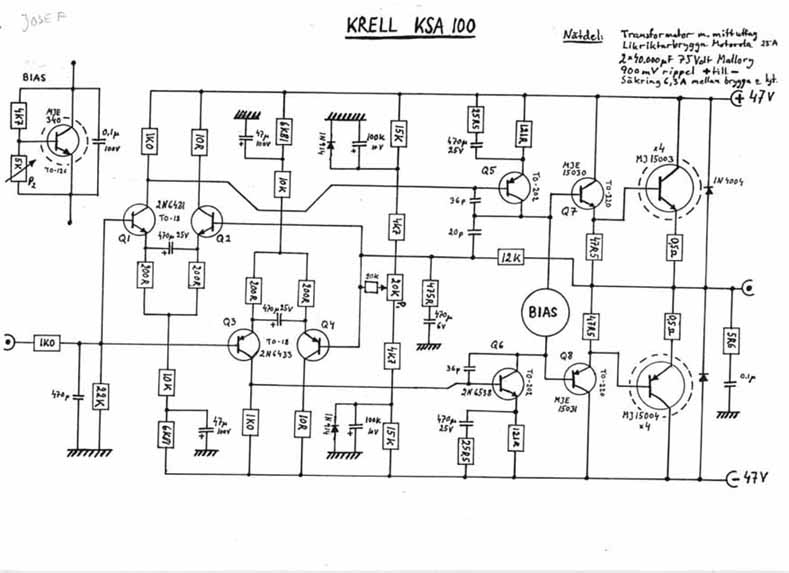

Krell Schematic

Hi Hifi,
Thanks for the schematic. It is <B>very</B> similar to the GAS Son of Ampzilla.
I was hoping for the FET input schematic..........



[scottnixon]

Looks like Bill Snider had a hand in that one!
Thanks for posting.



[Nelson Pass]

I can state with authority that the circuit existed at
Krell before Mr. Snider.



[sonnya]

Okay is this what we pay a lot of money for!!!!!!!!!!!!!!

Sonny



[scottnixon]

Thanks for the clarification

I will re-phrase. Looks like Krell had a hand in Bill Snider's Class A Handbook.



[scottnixon]

Unecessary photo alert!

Afterall this guy was around way before Snider



[jam]

Is that Mr.Rogers?



[Tube_Dude]

my mouth is still open with the scmatic of KSA 100.
First of all a run of the mill project that not even use corrent sourses in the LTPs but even worse use a electrolitic capacitor with no dc voltage across the emiters of the LTPs.
Amazing world!!!
Regards from Portugal
ps:sorry for my english!



[Elso Kwak]


Hi
The picture is of Mr. Krell himself Dan d'Agostino in his younger years.



[audio_cf]

What about the ML 27.5 schematic I couldnt find it on the site that was linked in the earlier post ???

Best regards

/// Carl-Fredrik



[Freddie]

Here's a webpage, with pictures and some info about the Krell KSA 100, for those who are interested.

http://hem.passagen.se/xayide/krell/KrellAmplifiers.html#Krell KSA-100S

/Freddie



[leffe]

Re: Krell scematics.

Hi,

It would be very nice with PCB,s



[Peter Daniel]

ML 27.5 is not on a site dedicated to Mark Levinson gear, probably because it's not old enough. I have the schematics but they are way more complicated than Krell and would use 5 times more space. With the current bias toward posting images on a forum I would be rather hesitant to do that. If someone can offer a web space I would do it there.



[jam]

Peter,

Go for it . It's not a gratuitous image ...well some people might think so, but we could all learn from it. Don't let a few peoples opinion spoil it for the rest of us.

Jam



[GRollins]

As far as I recall, schematics weren't included in the gratuitous category--just girls, motorcycles, album covers, postcards, restaurants...

Grey



[Freddie]

HPotter,

Go ahead and post the schematics..
Or if you prefer, I have some webspace to offer.
If you want me to upload the schematics to the webserver, mail the schematics to fty@spray.se

regards
/Freddie



[Franklin]

Hello,

My name is Franklin a Dutch newbie to this forum.
Really inspiring developments going on here.

Has anyone been able to figure out the right transistor types
on the posted Krell KSA 100 schematic? Looks interesting.

BTW I have the complete schematics of the ML 20.5.
Also very interesting. Only a bit too much to post as an attachment.
If someone is willing to host it on a site (free) I will scan and
mail them. You can e-mail me in the usual way.

I think sharing information, experience and knowledge
is what makes this forum very special.

Thanks,

Frank
