+ Vintage book's with schematics classified in public domain
https://ia902803.us.archive.org/33/...RobinLipman1947PracticalAmplifierDiagrams.pdf

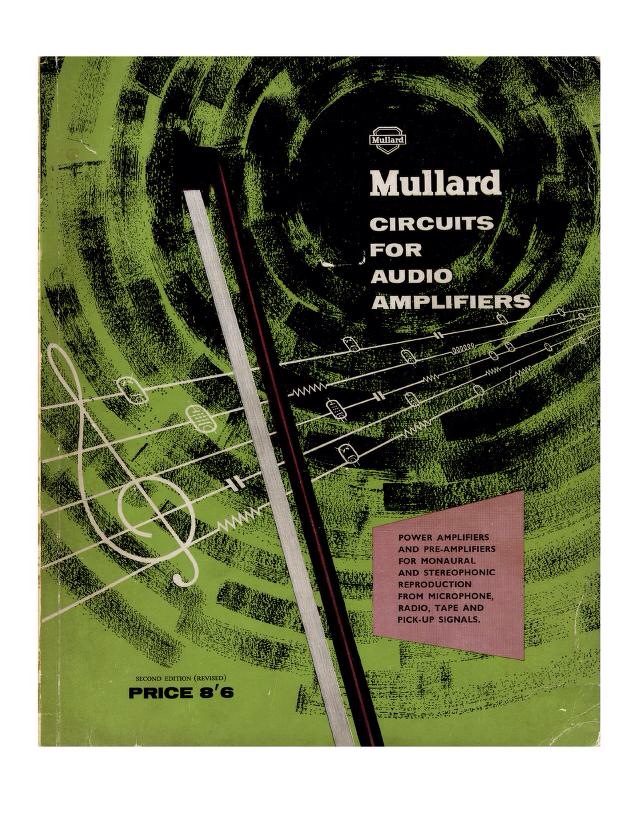

https://ia800802.us.archive.org/13/...164-Mullard-Circuits-for-Audio-Amplifiers.pdf
https://ia902803.us.archive.org/33/...RobinLipman1947PracticalAmplifierDiagrams.pdf
https://ia800802.us.archive.org/13/...164-Mullard-Circuits-for-Audio-Amplifiers.pdf

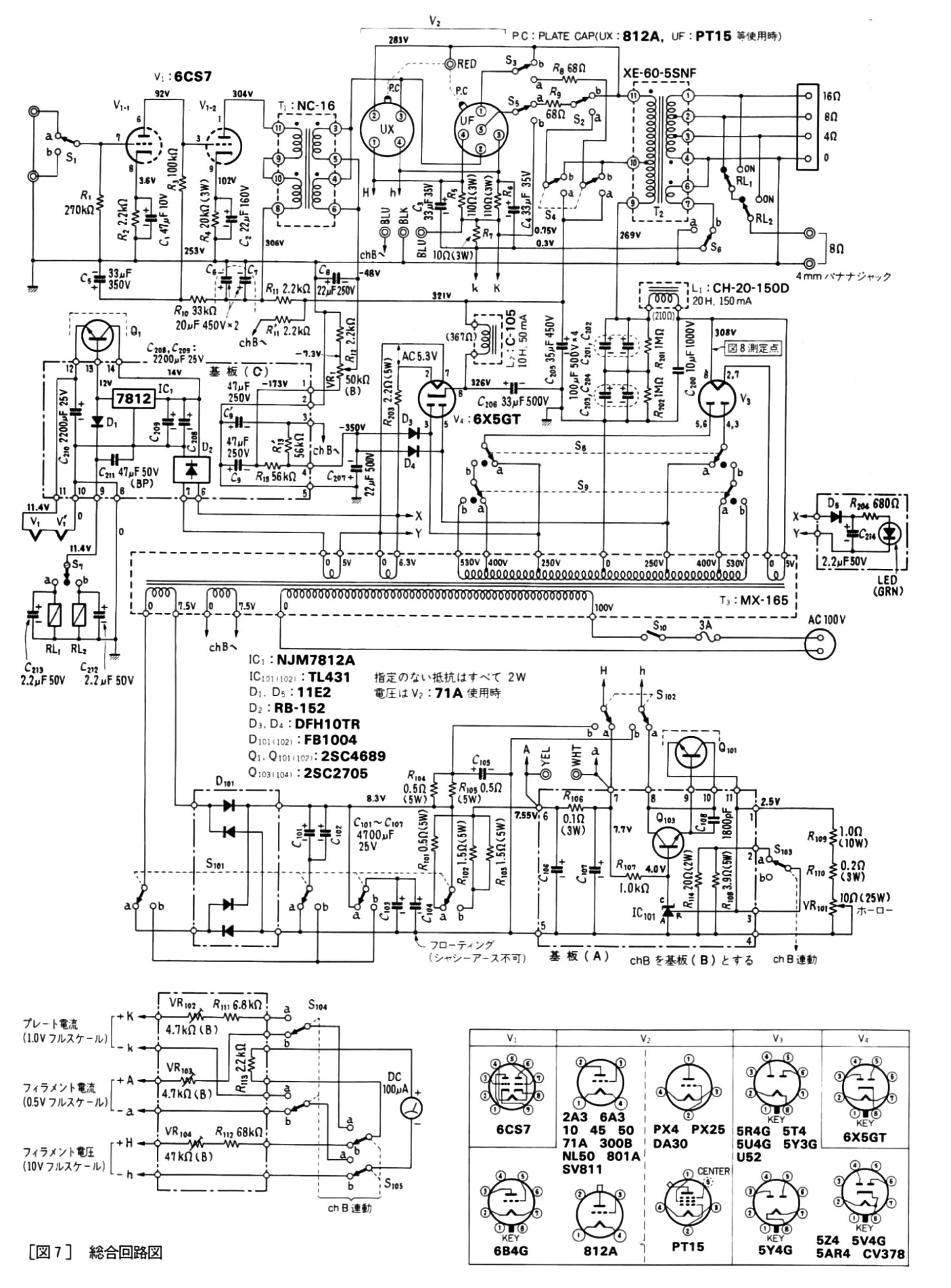

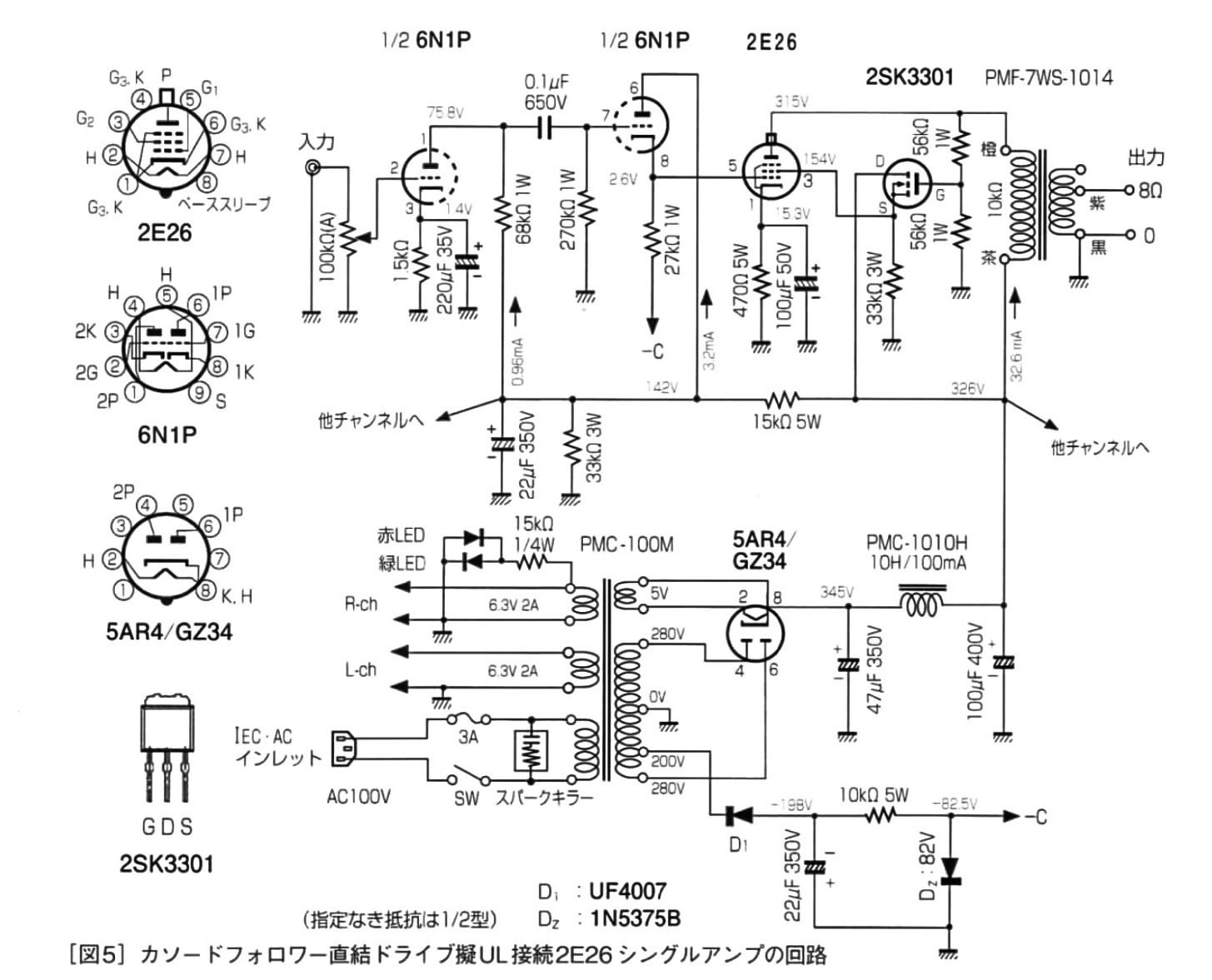

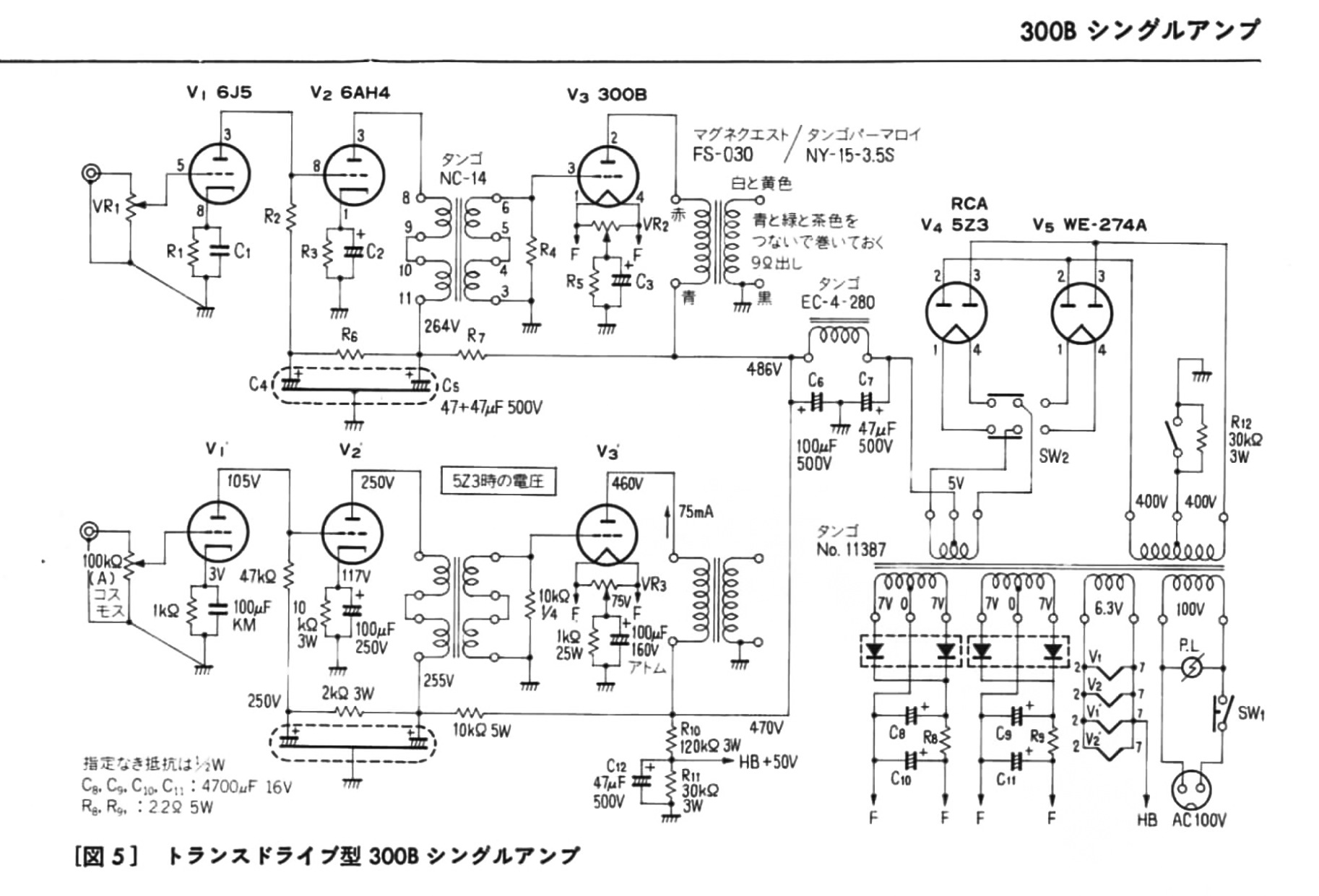

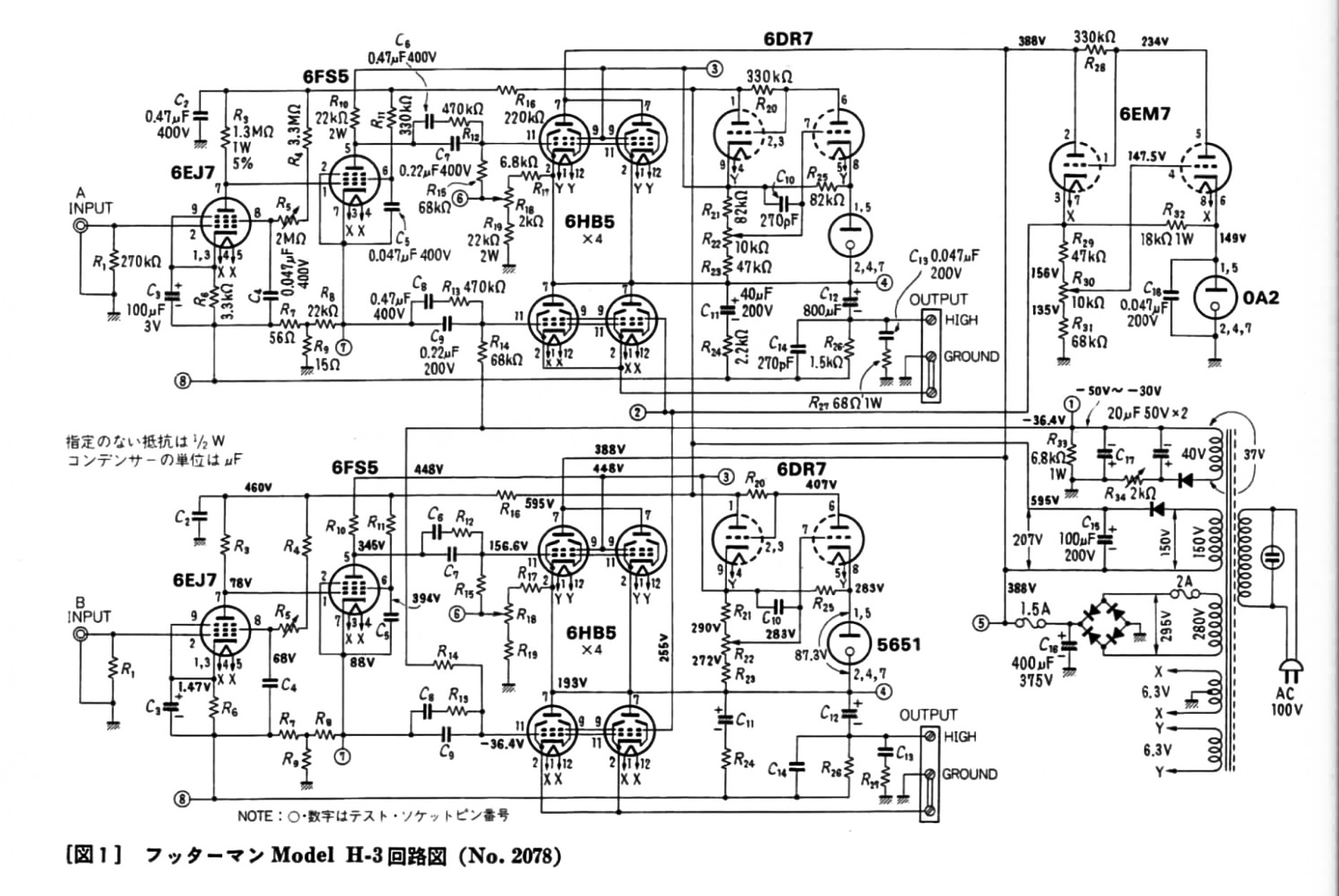

Attachments
interesting to see how many times they use small signal pentode in pentode mode mixed with triode and not in pseudo triode like nowadays. perhaps tone was more appreciated than bandwidth
You believe a small signal pentode run as a pentode has lower bandwidth than a high mu triode?
Update for inspiring your audio hobby Diy schematics HOME

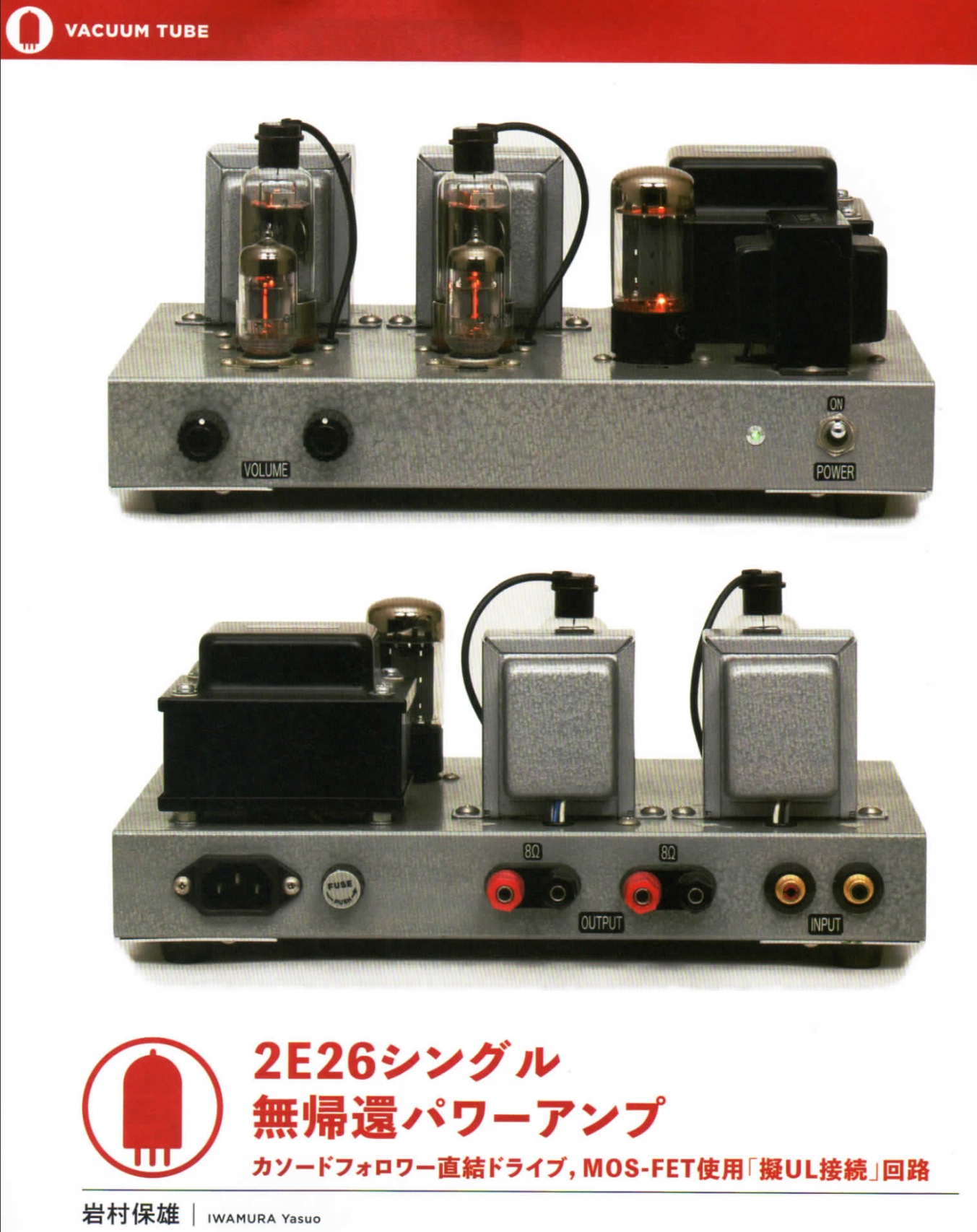

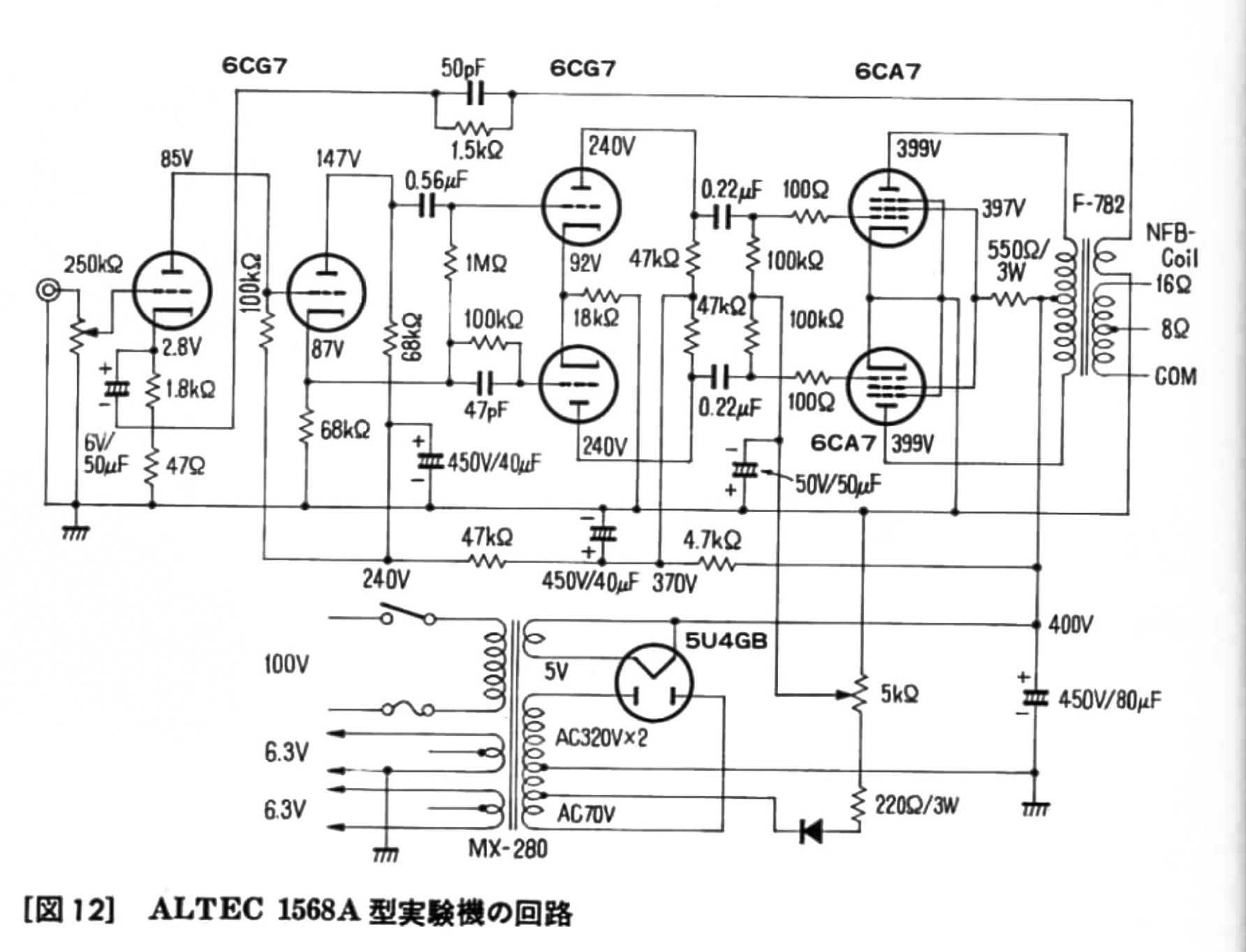

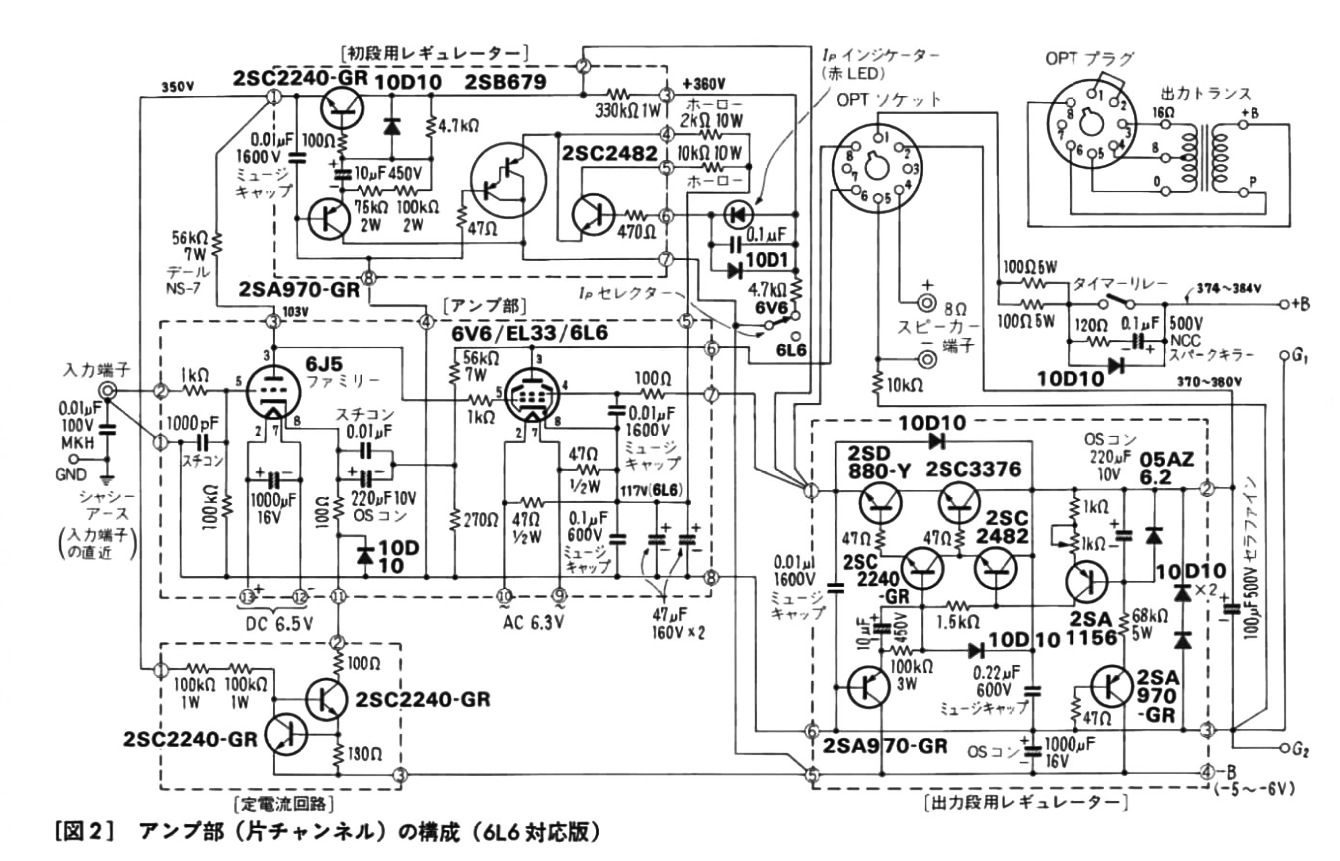

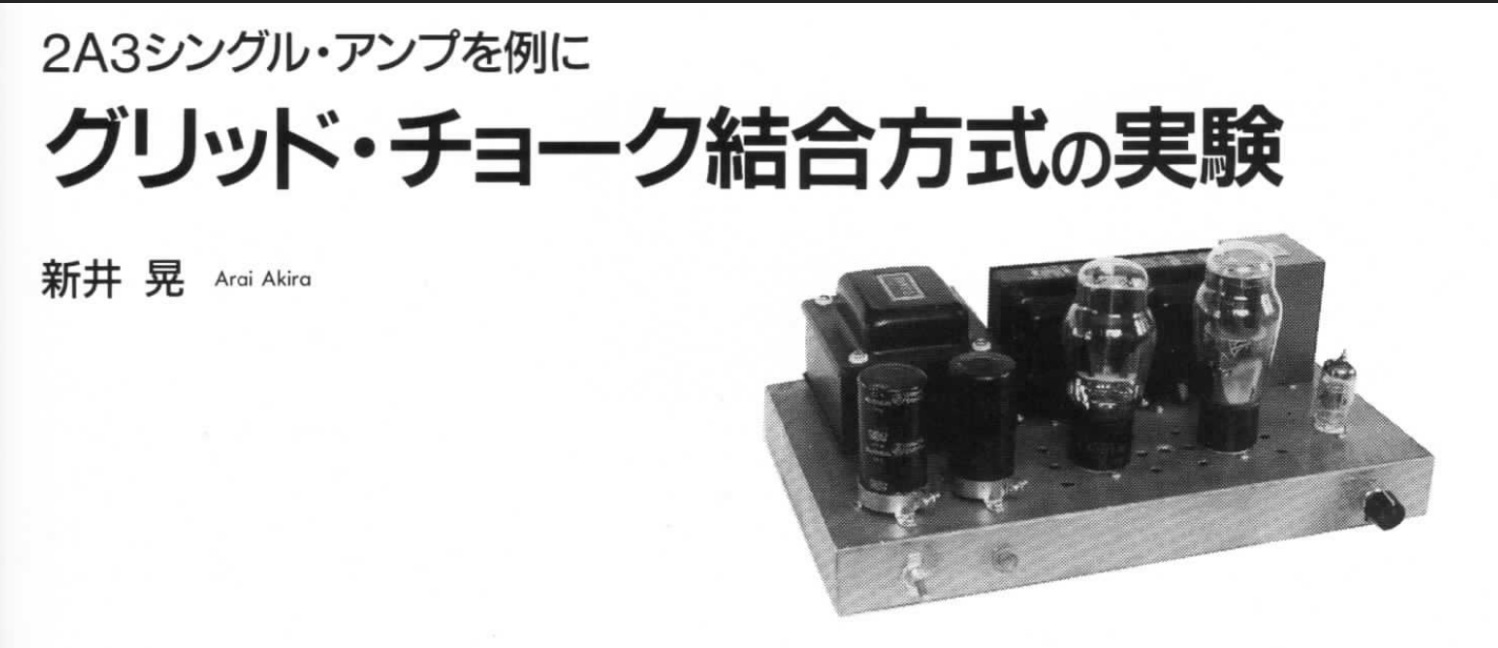

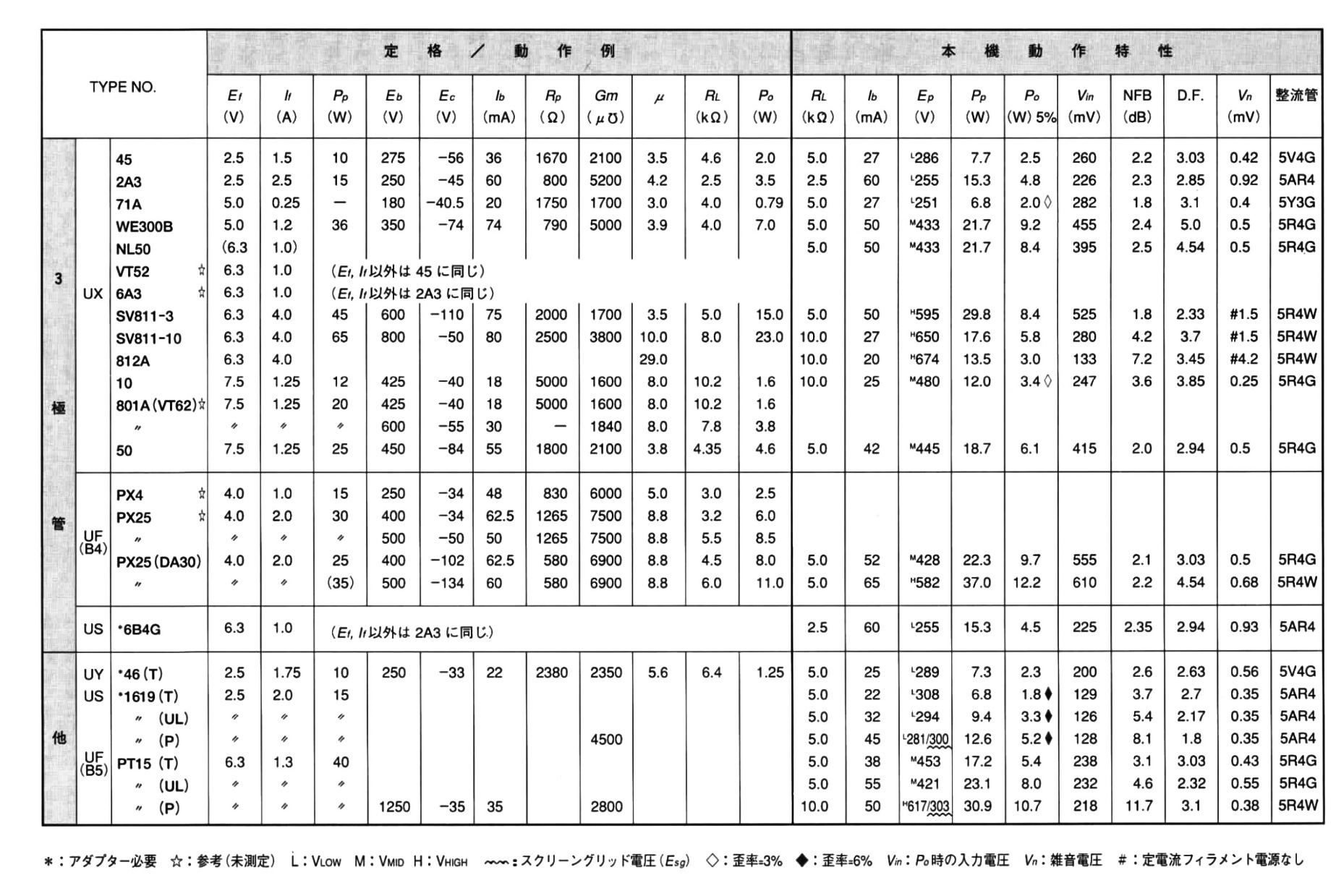

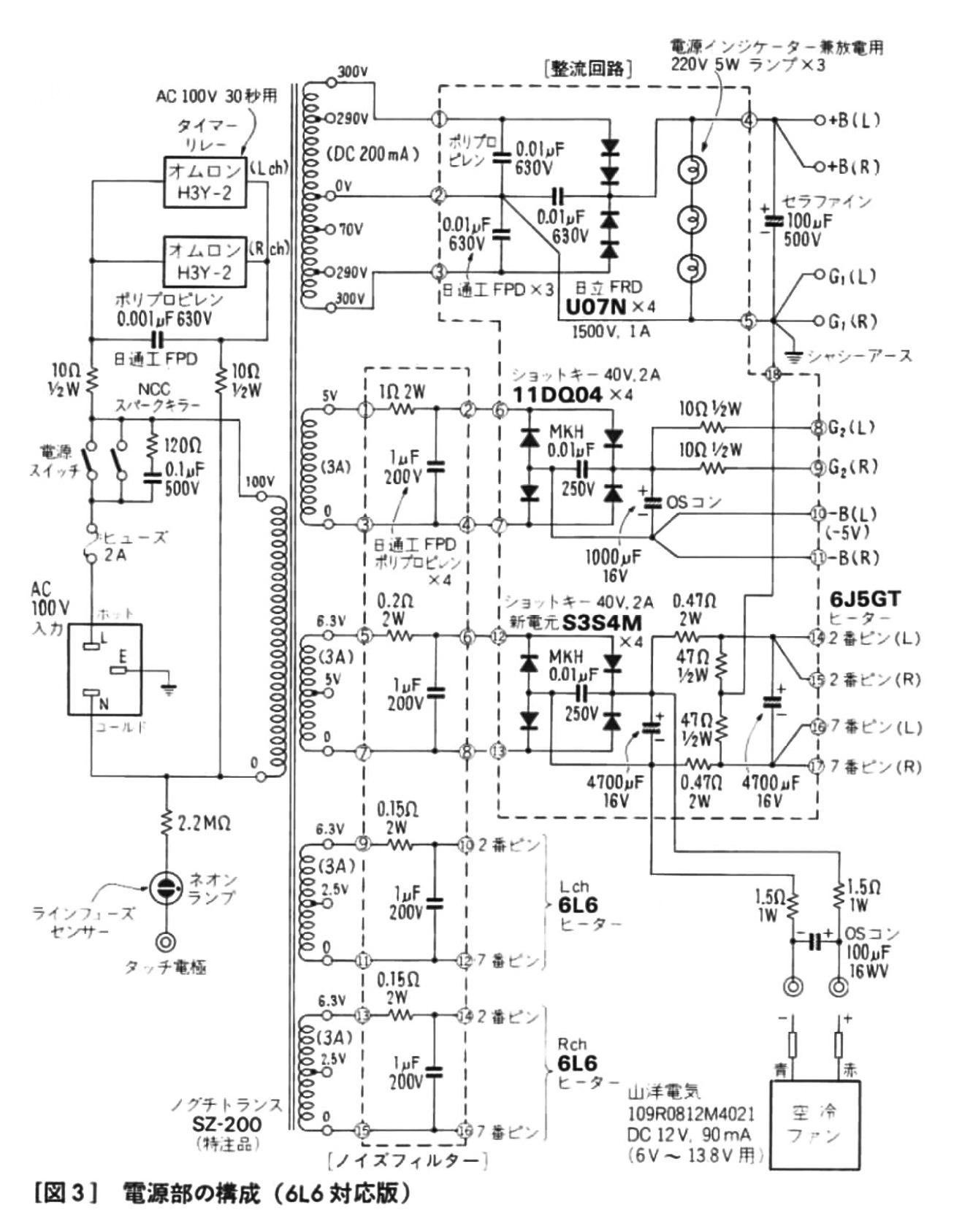

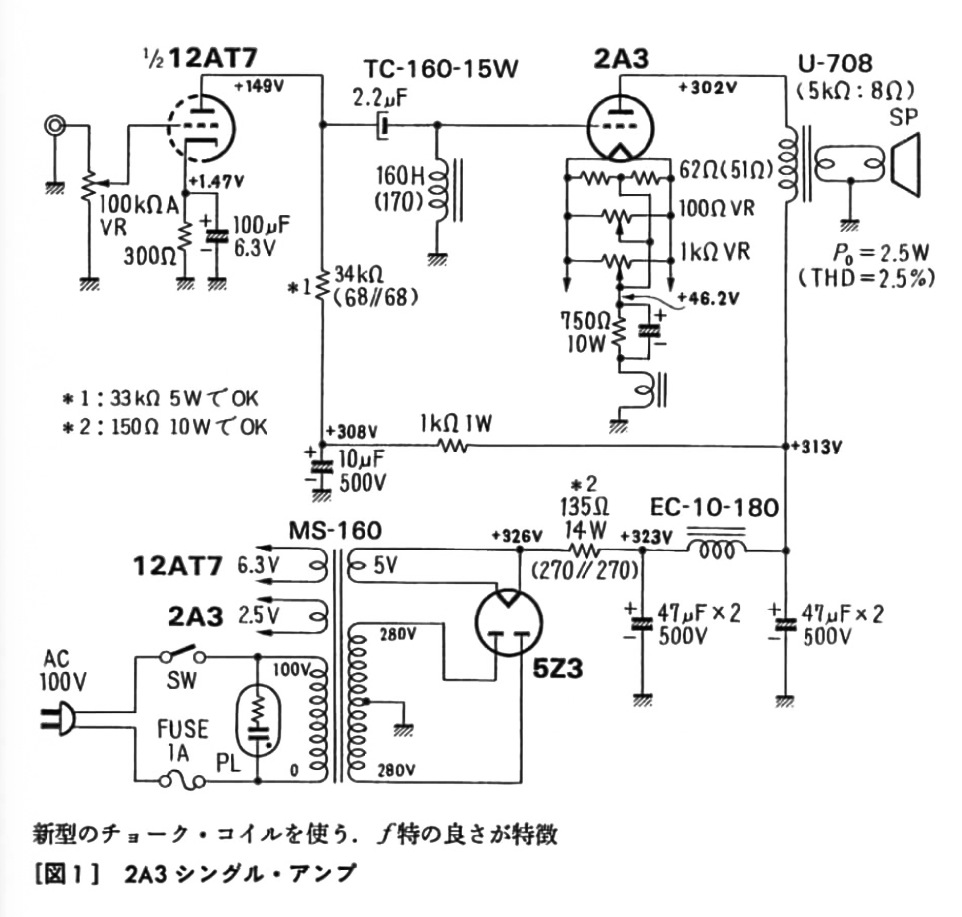

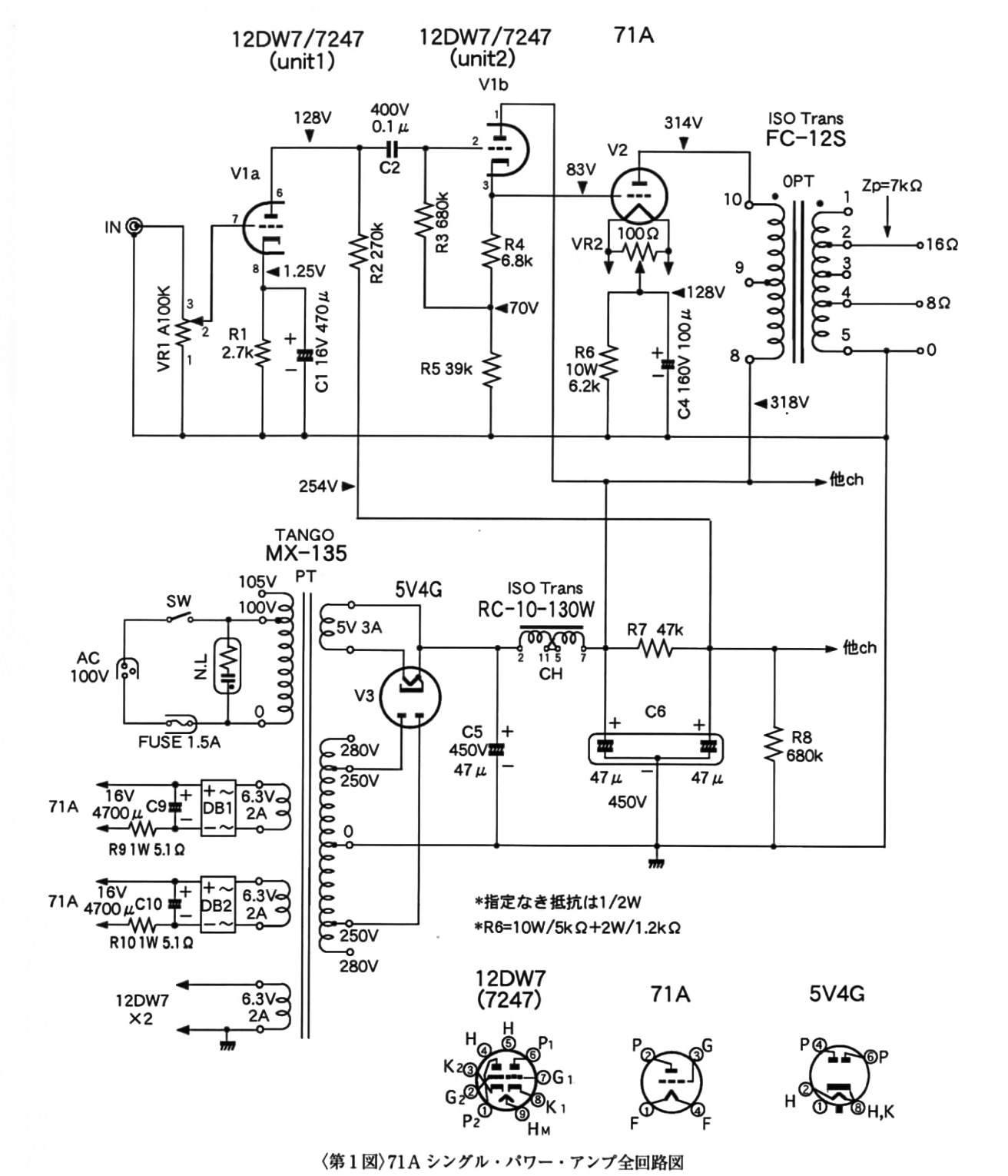

Attachments
-

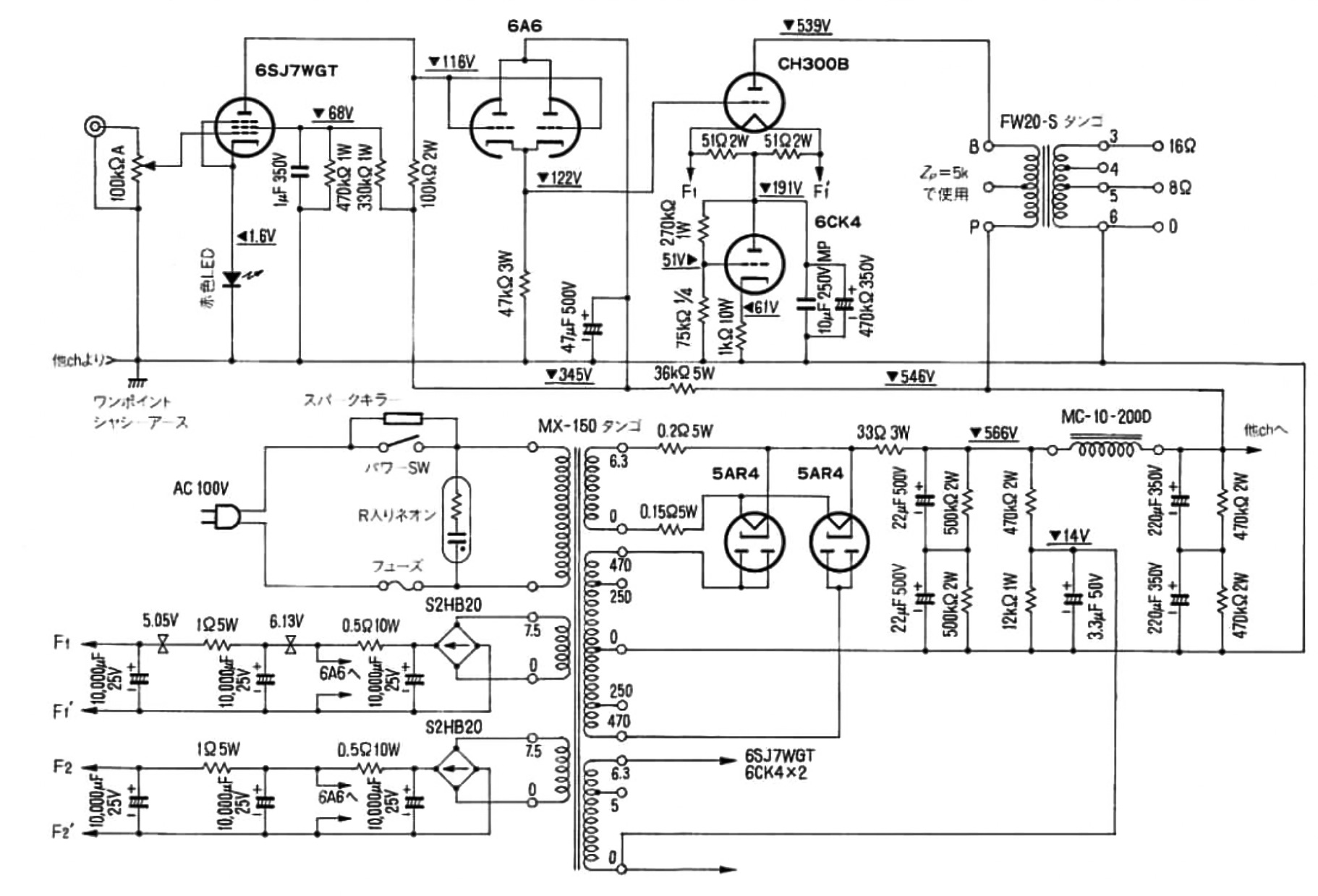

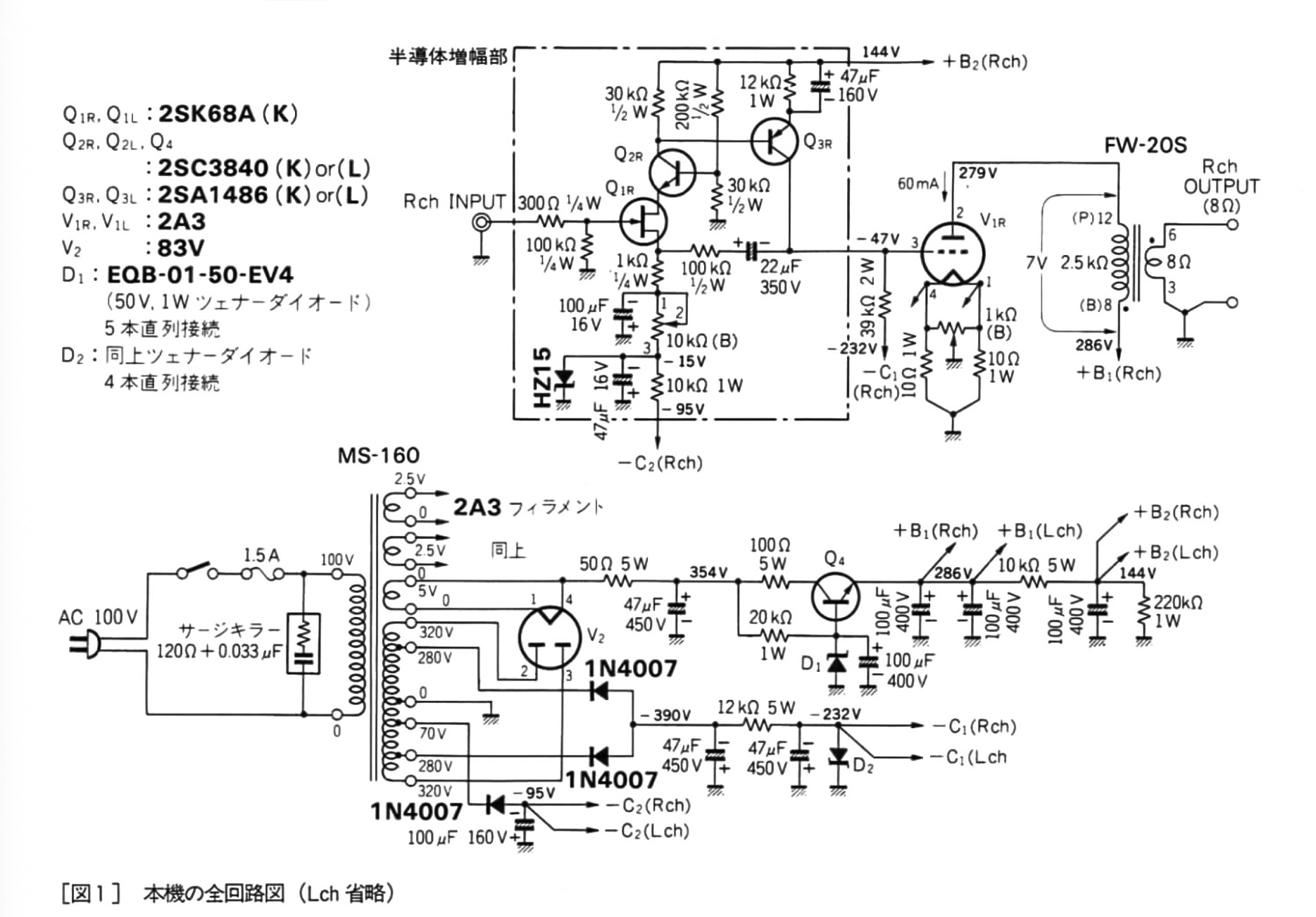

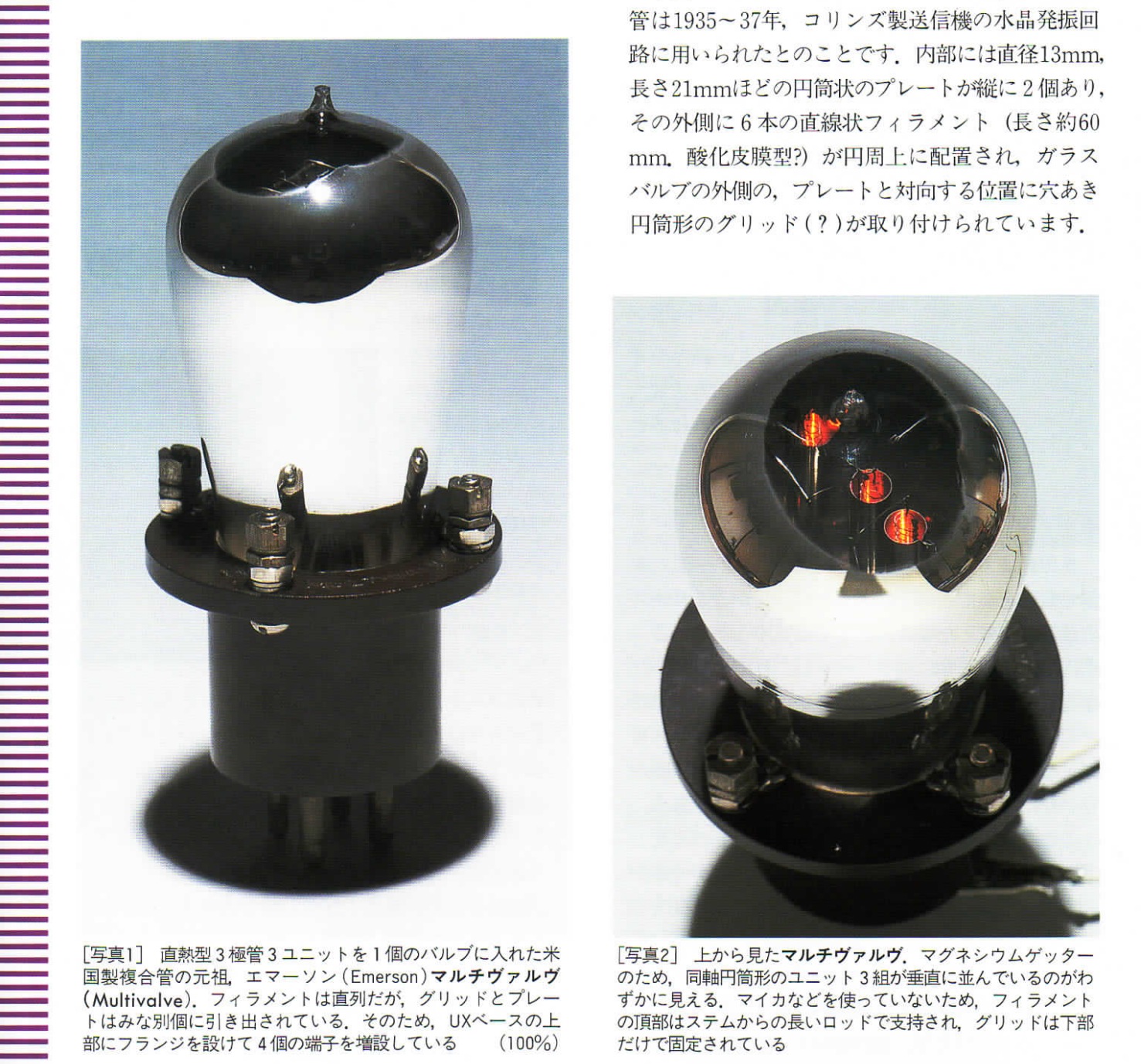

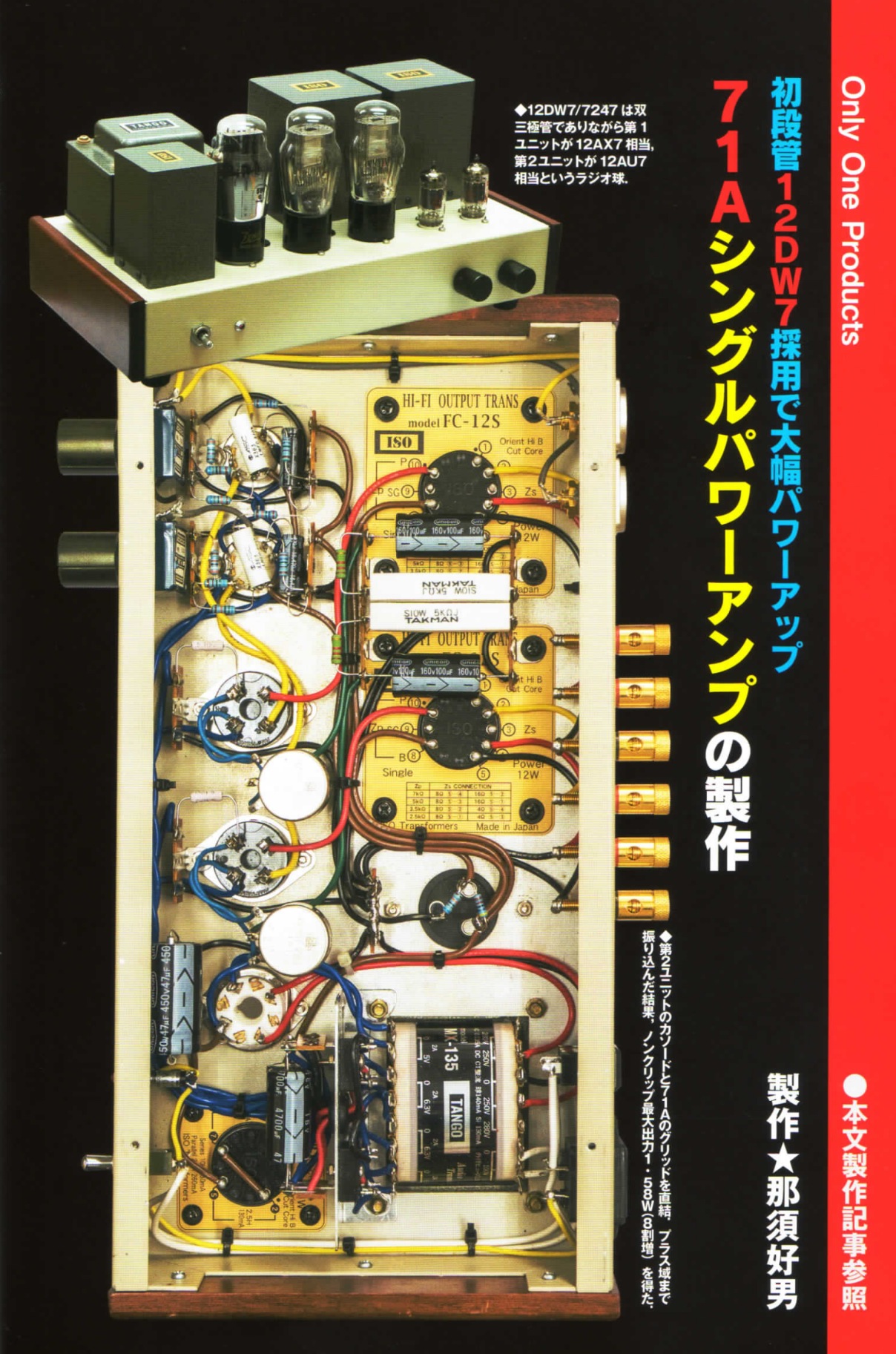

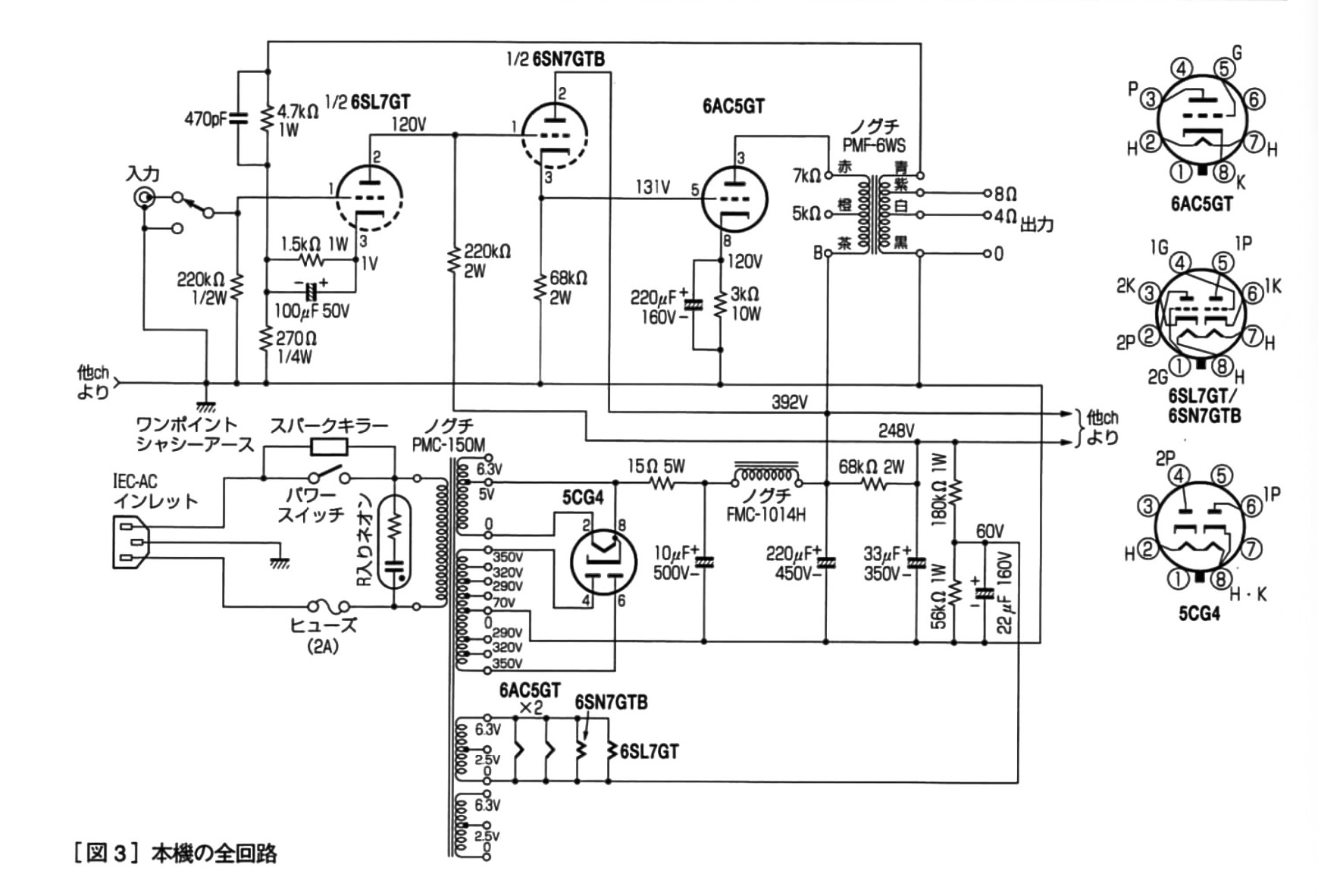

8D900237-1DB9-4C48-BFE2-7A8D6A414061.JPG329.3 KB · Views: 506
-

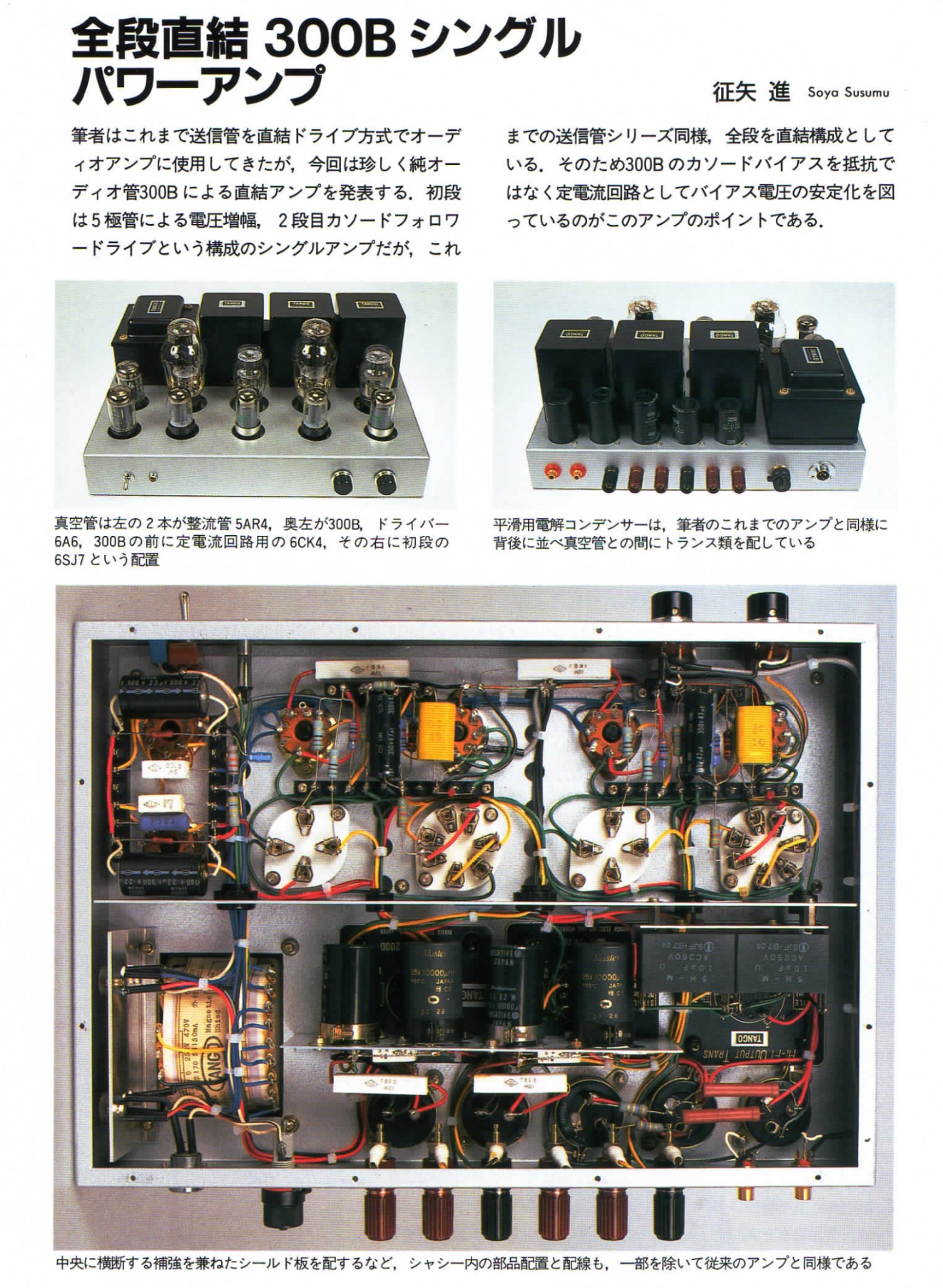

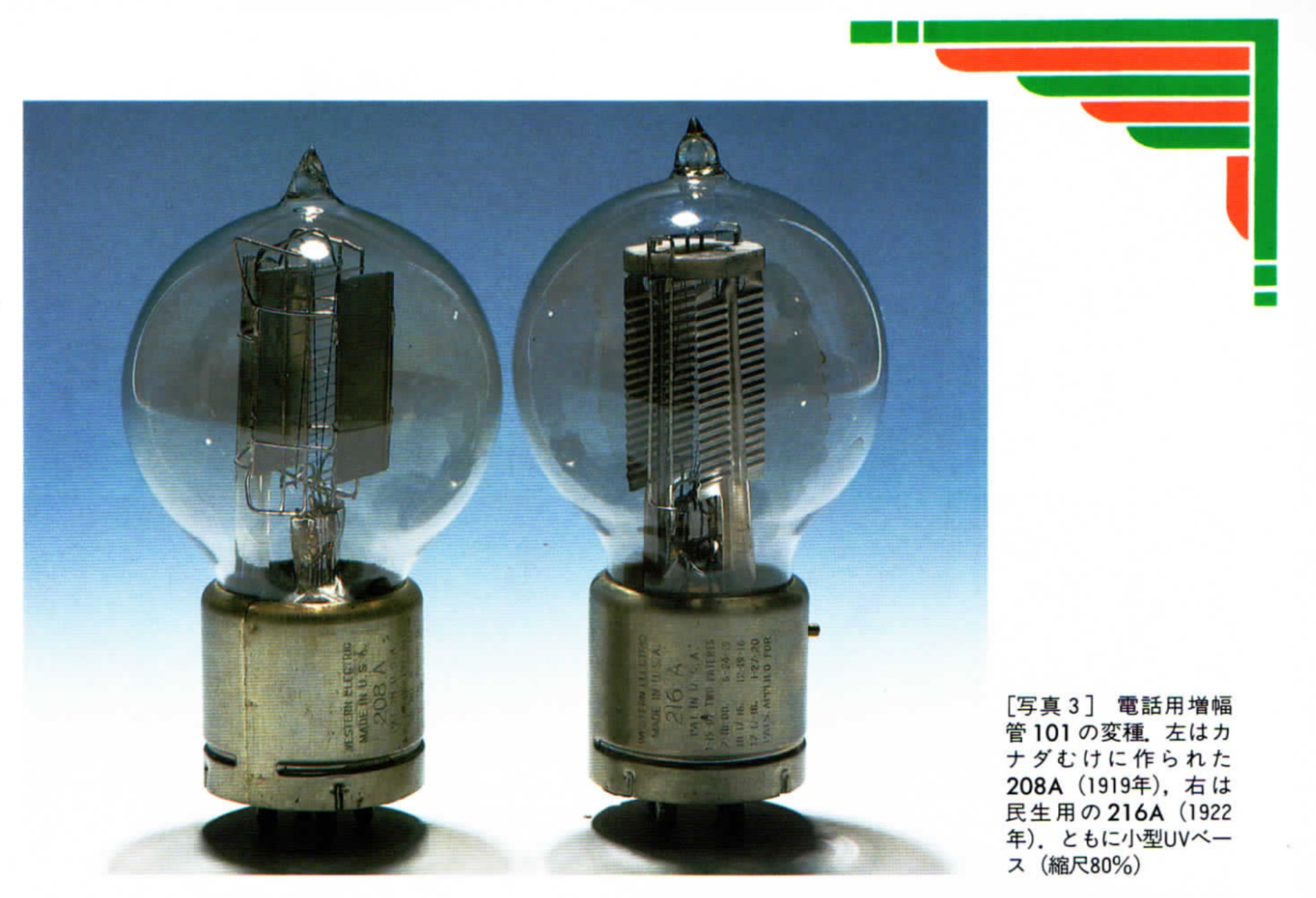

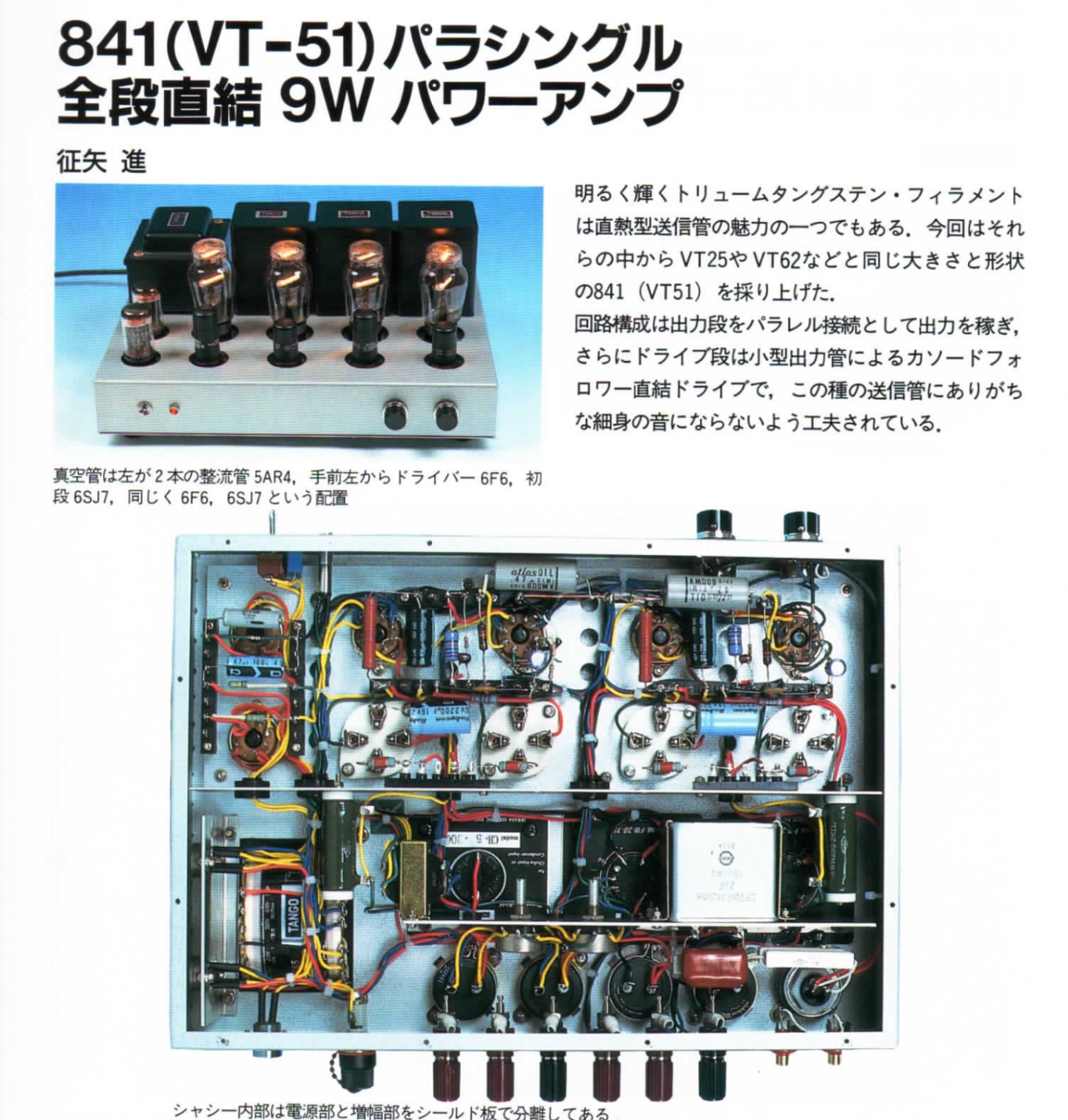

B890B49D-A6DA-4B3F-BB84-44476BD5BEA2.JPG680.1 KB · Views: 515
-

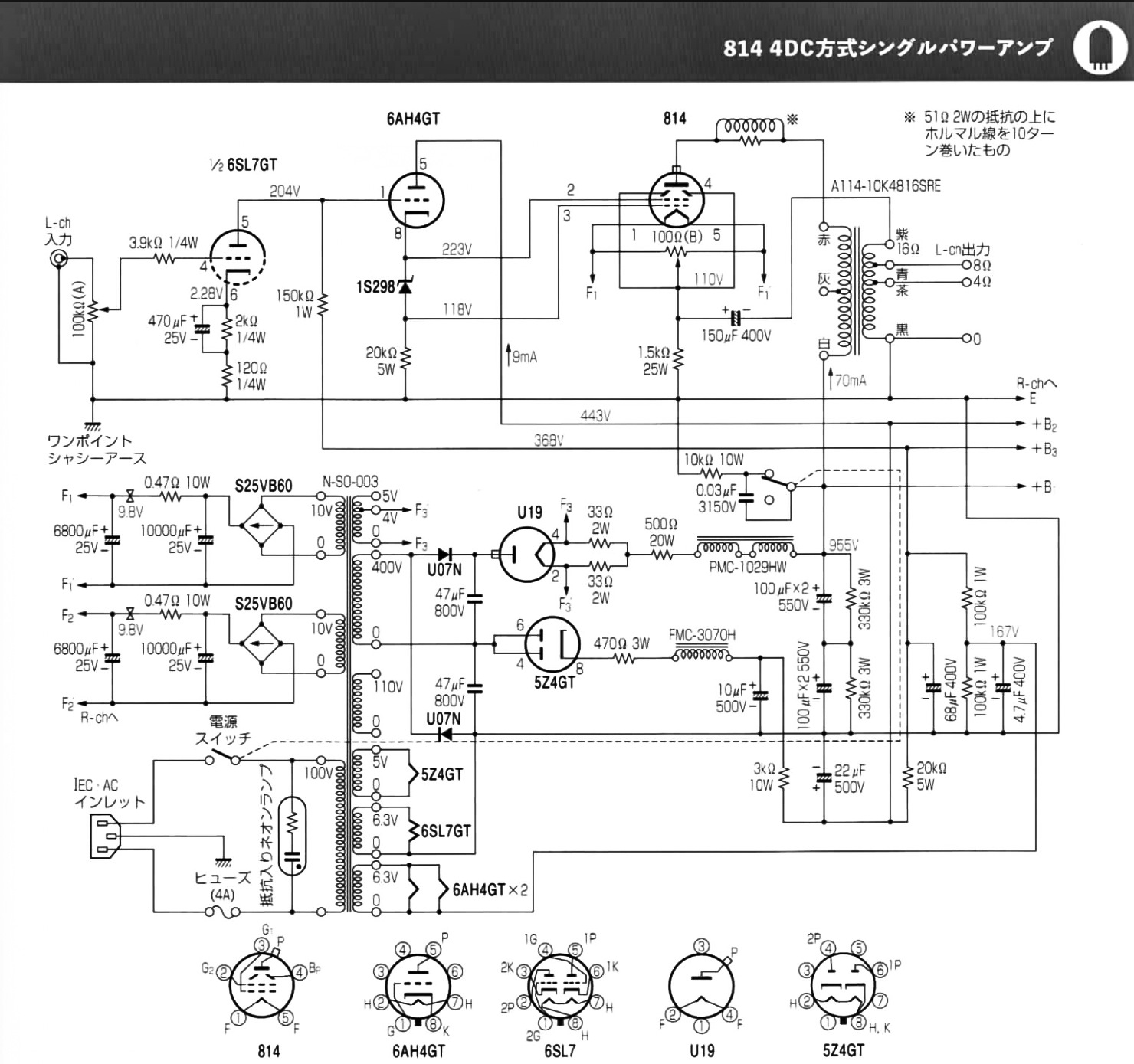

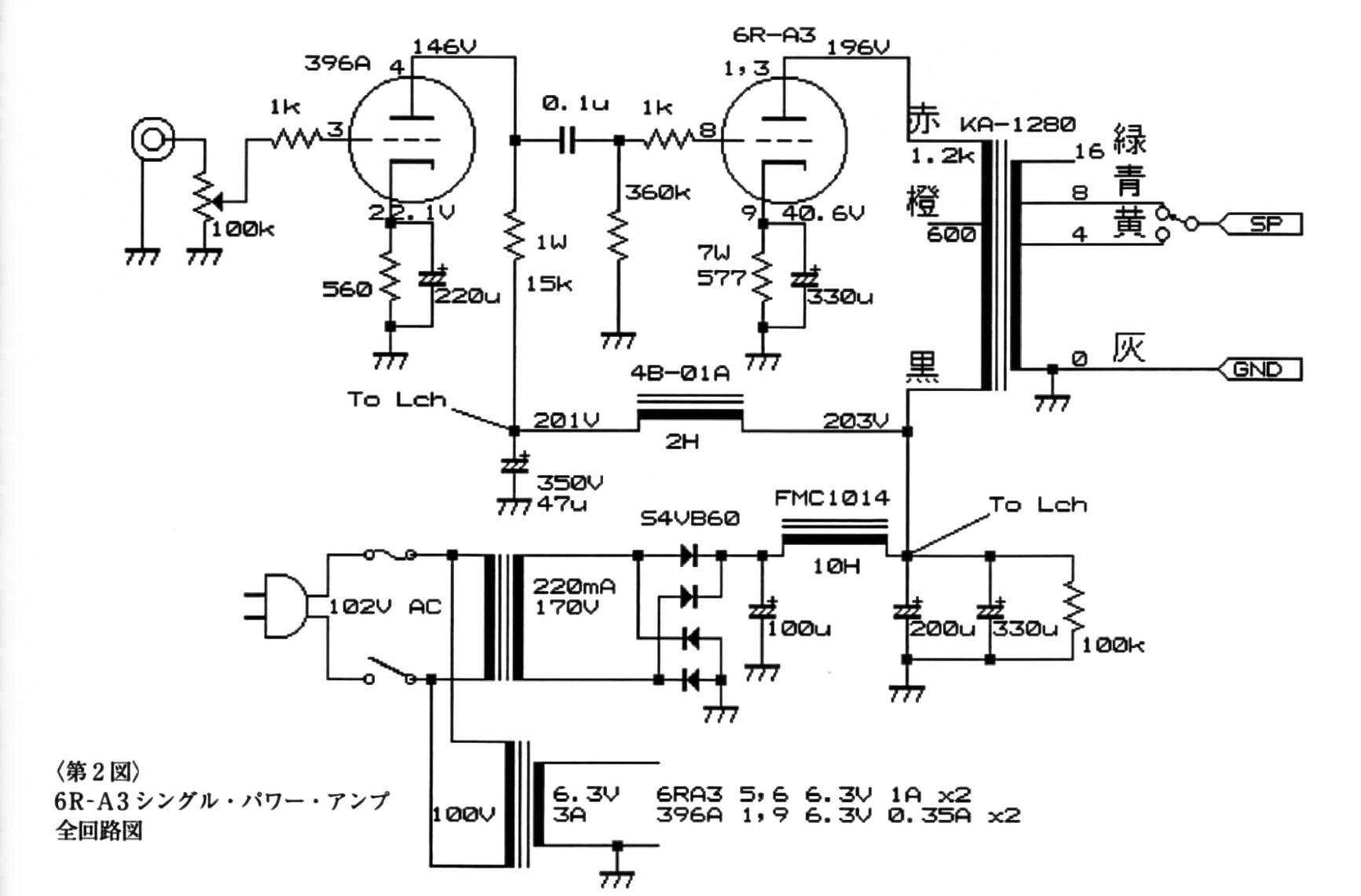

06963301-A202-4BC6-AFC4-30EEAC022814.JPG438.1 KB · Views: 673
-

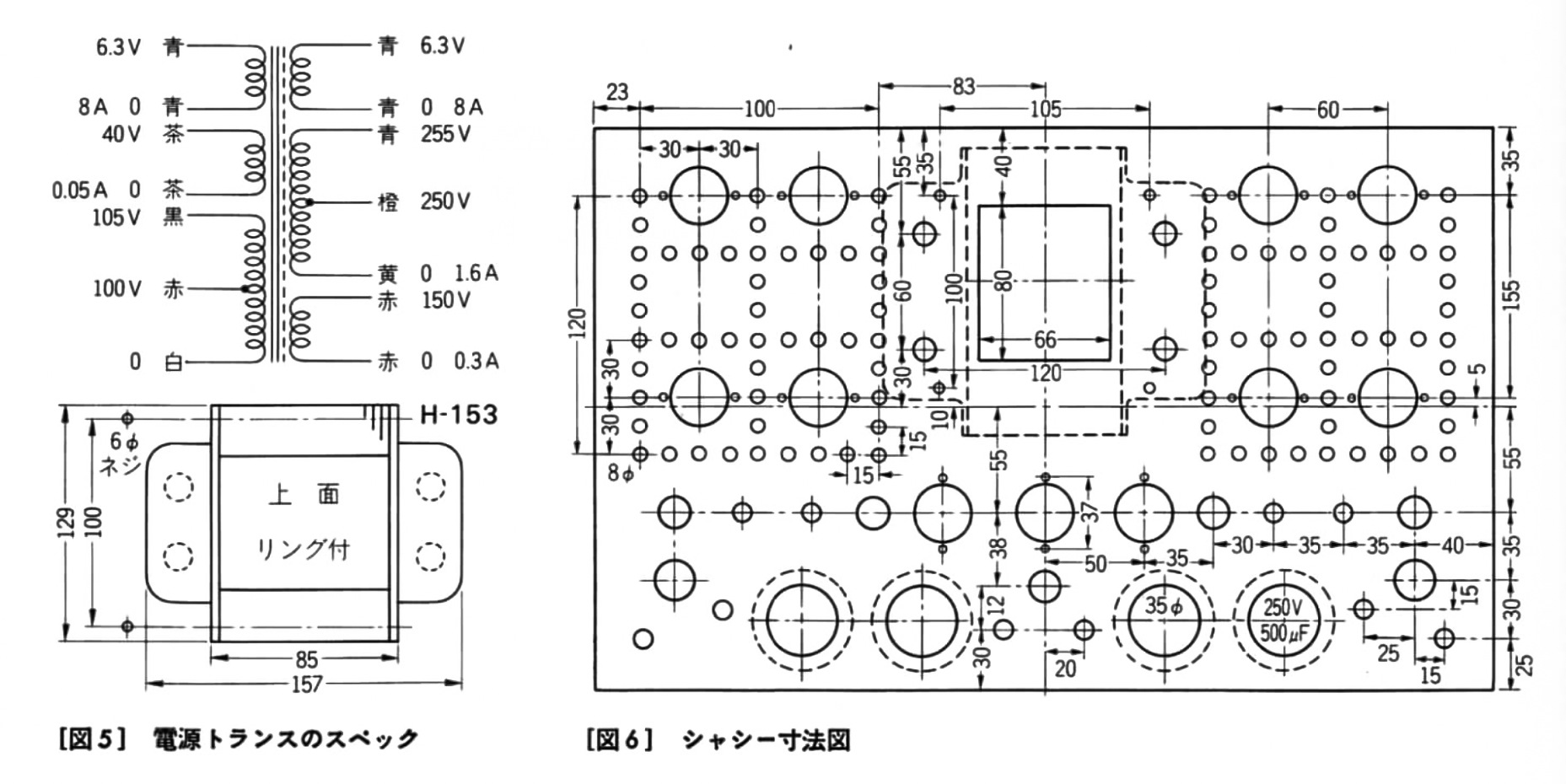

80F88D50-43EE-4003-B0E7-35D5B578D87F.JPG382.8 KB · Views: 497
-

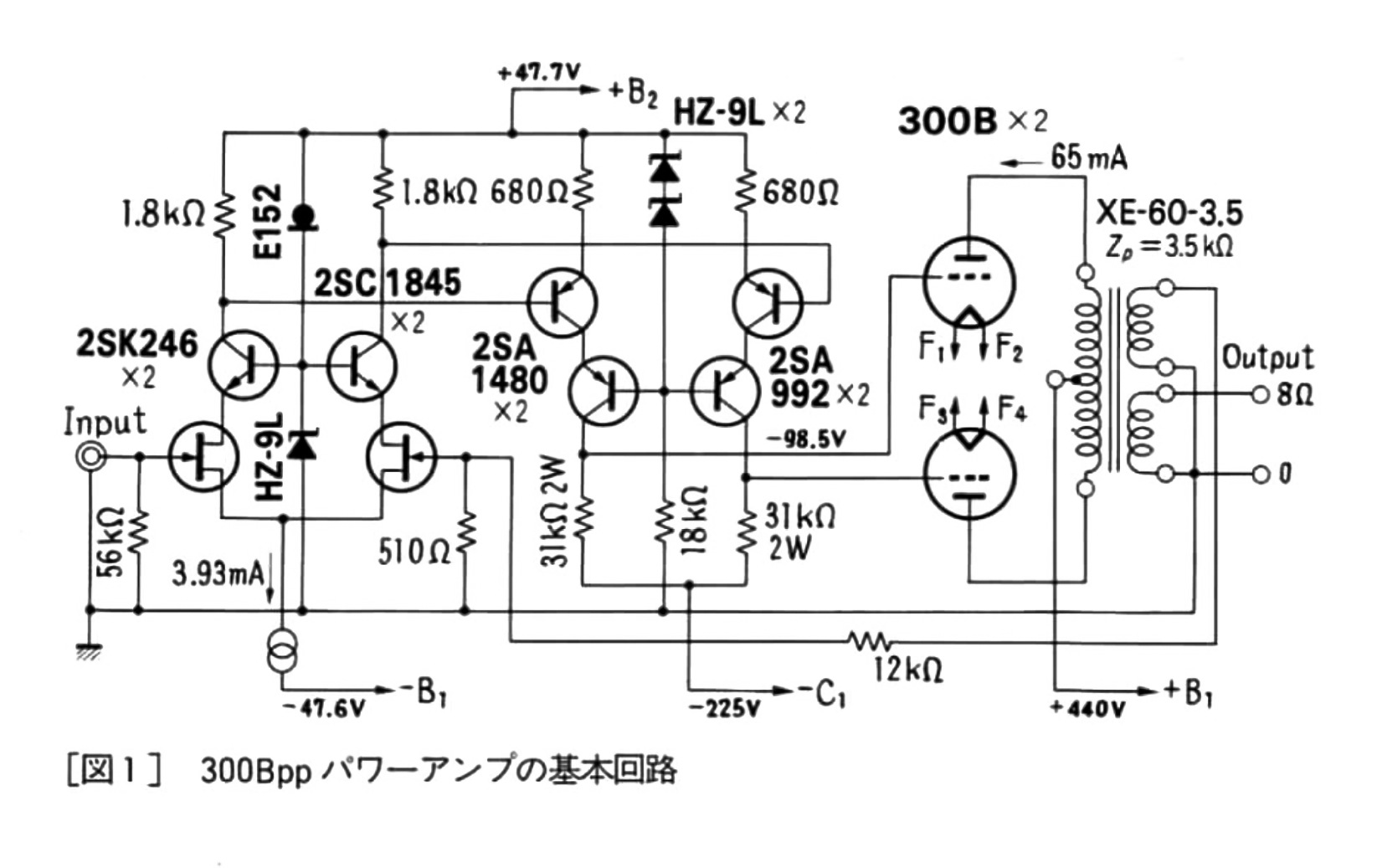

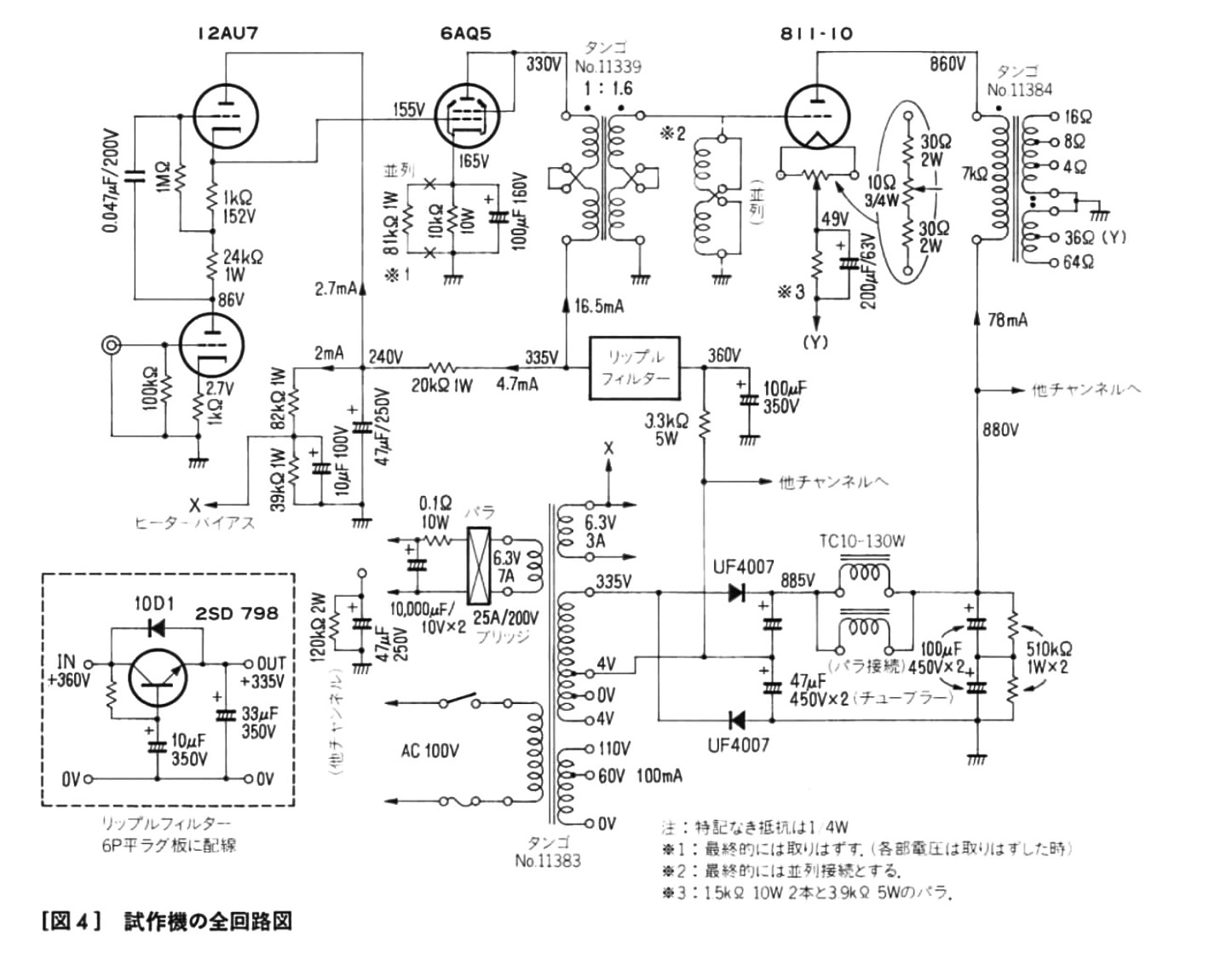

A74651C9-BBDF-4C6D-BED1-7766FFA38F44.JPG456.6 KB · Views: 494
-

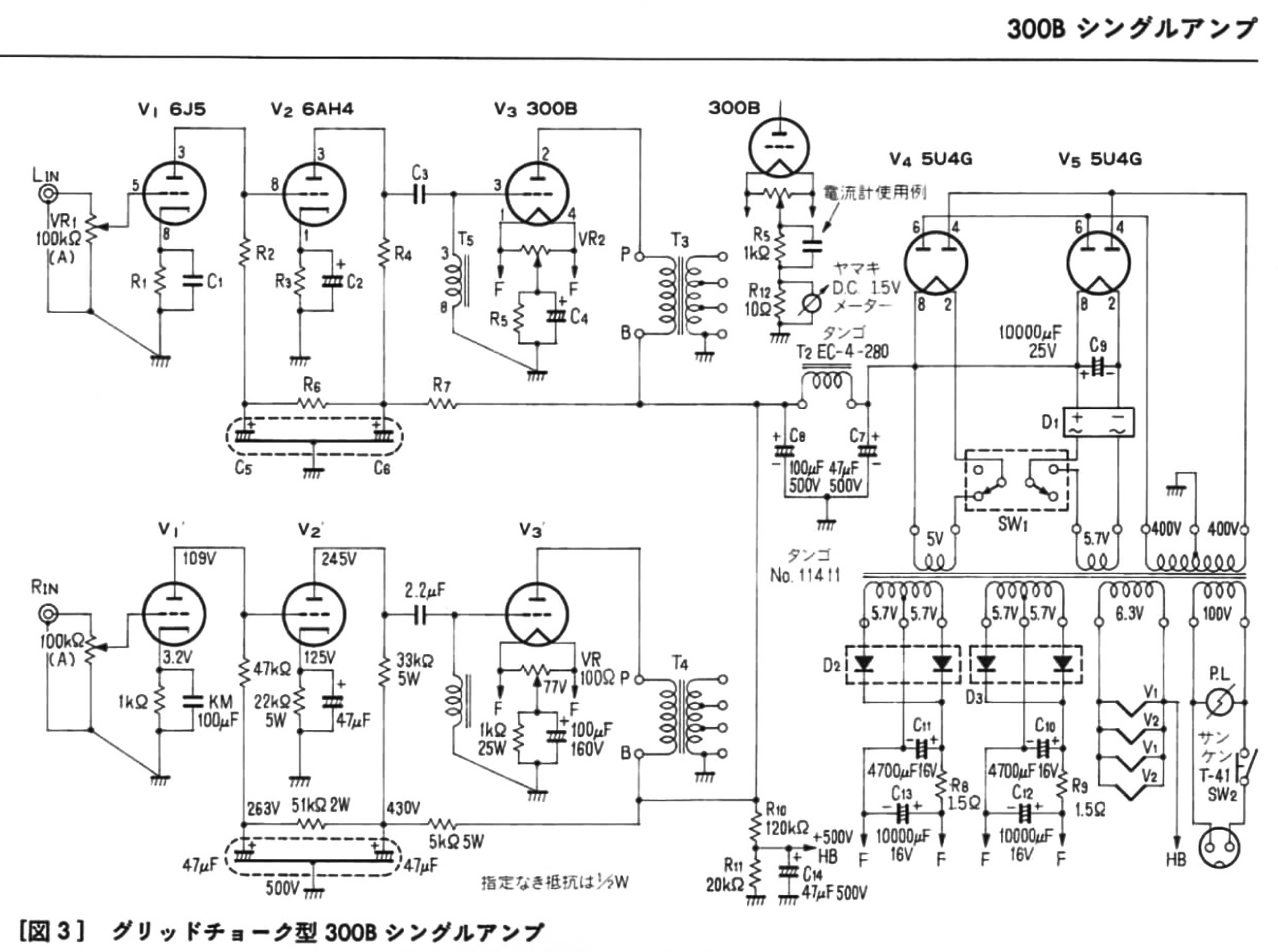

A423000F-EAF4-40C6-A872-BBB622BD7629.JPG153.6 KB · Views: 225
-

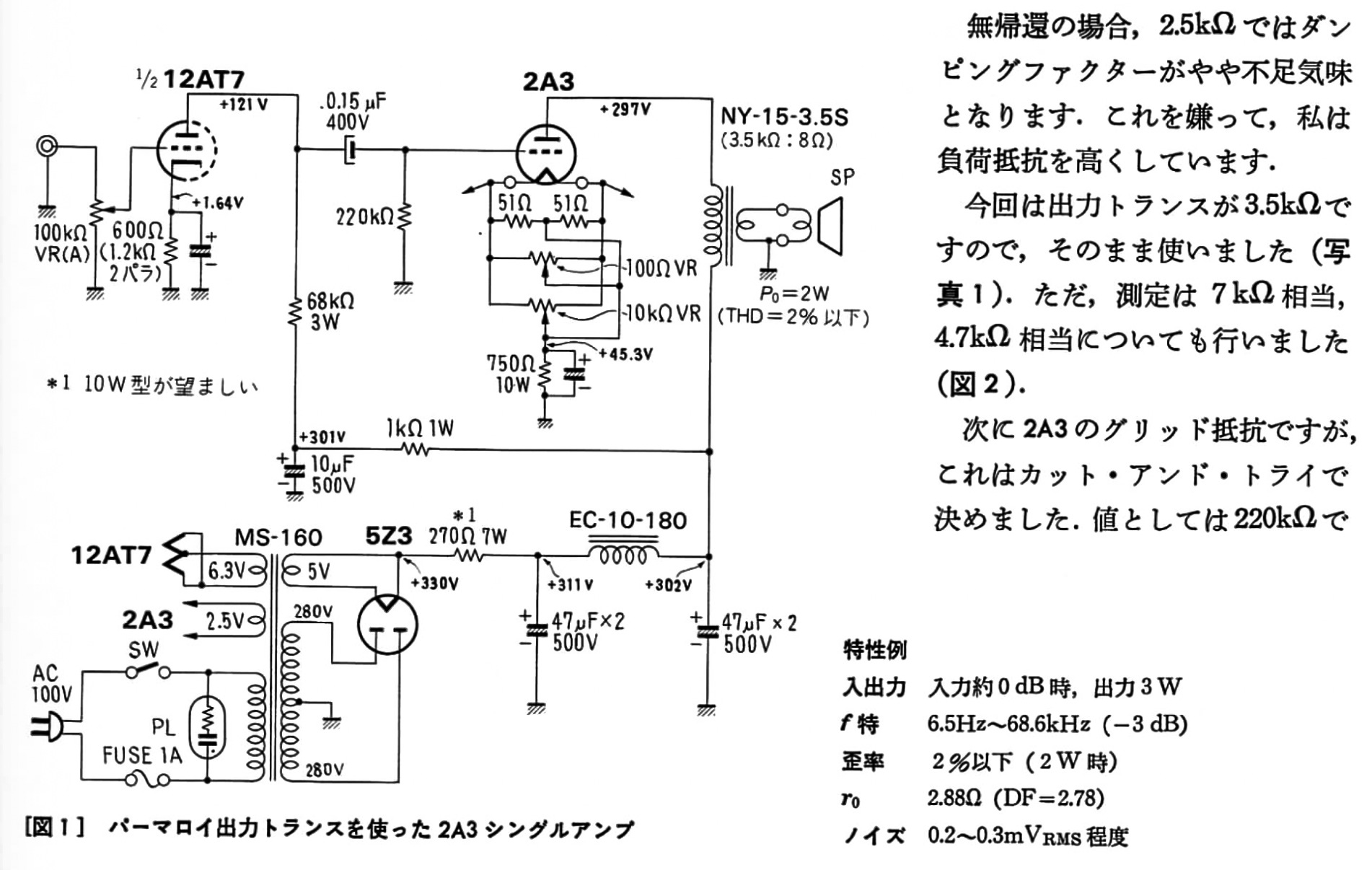

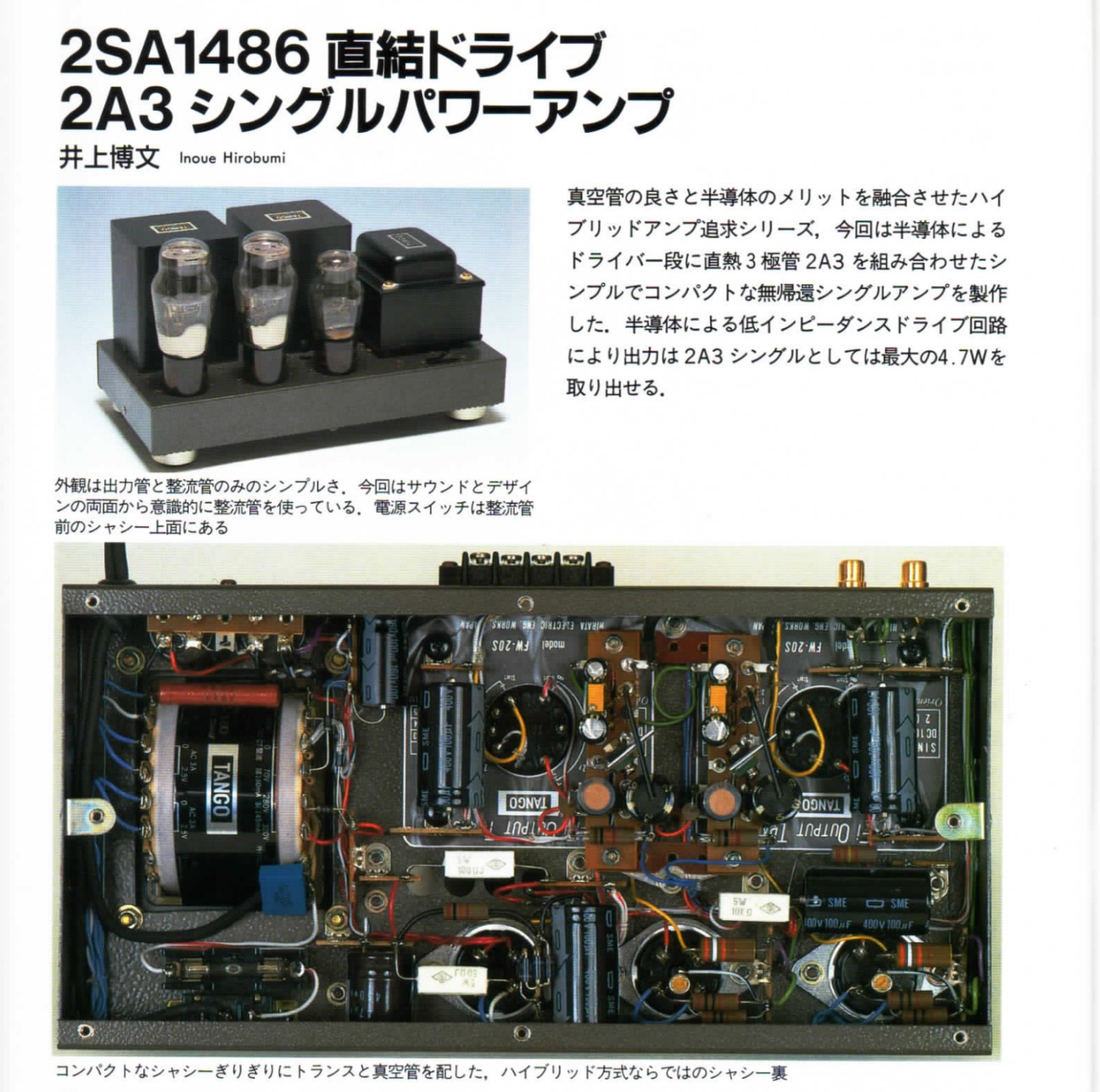

E14BEBCC-CA2C-4AA3-8A23-350D0E54D676.JPG378.4 KB · Views: 226
-

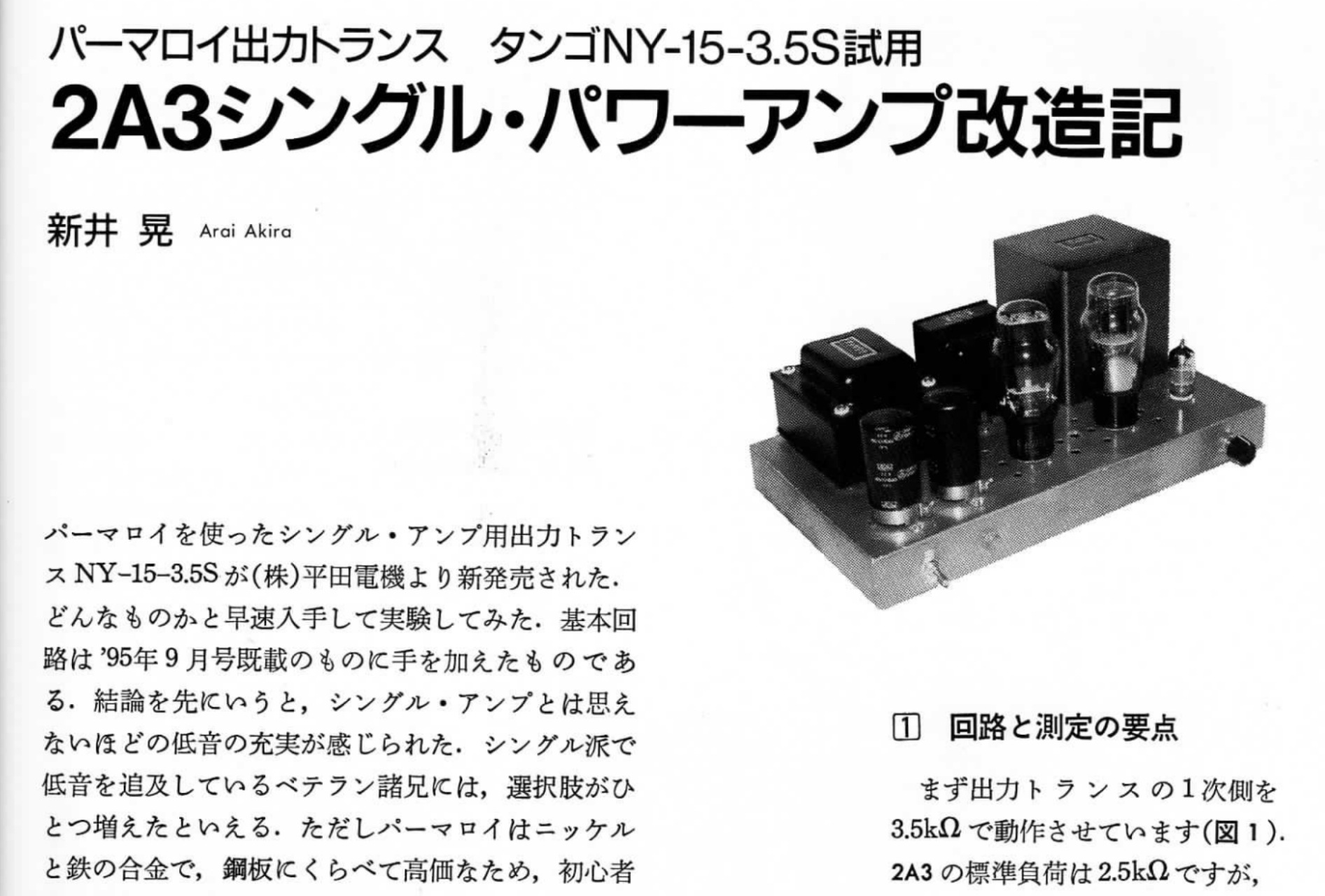

7B30D0D9-E61C-4F8F-875A-DA761529598B.JPG381.2 KB · Views: 230
+

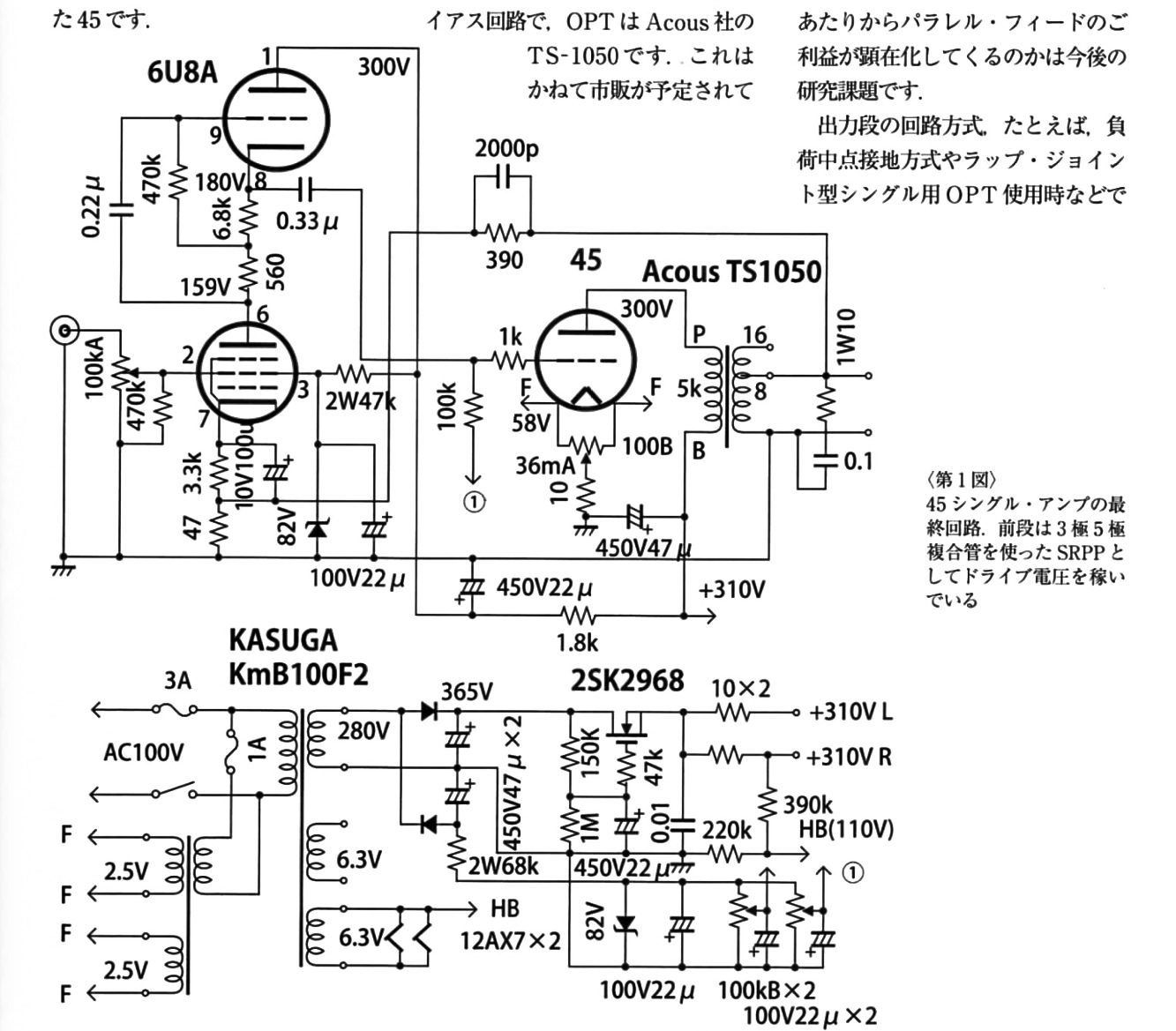

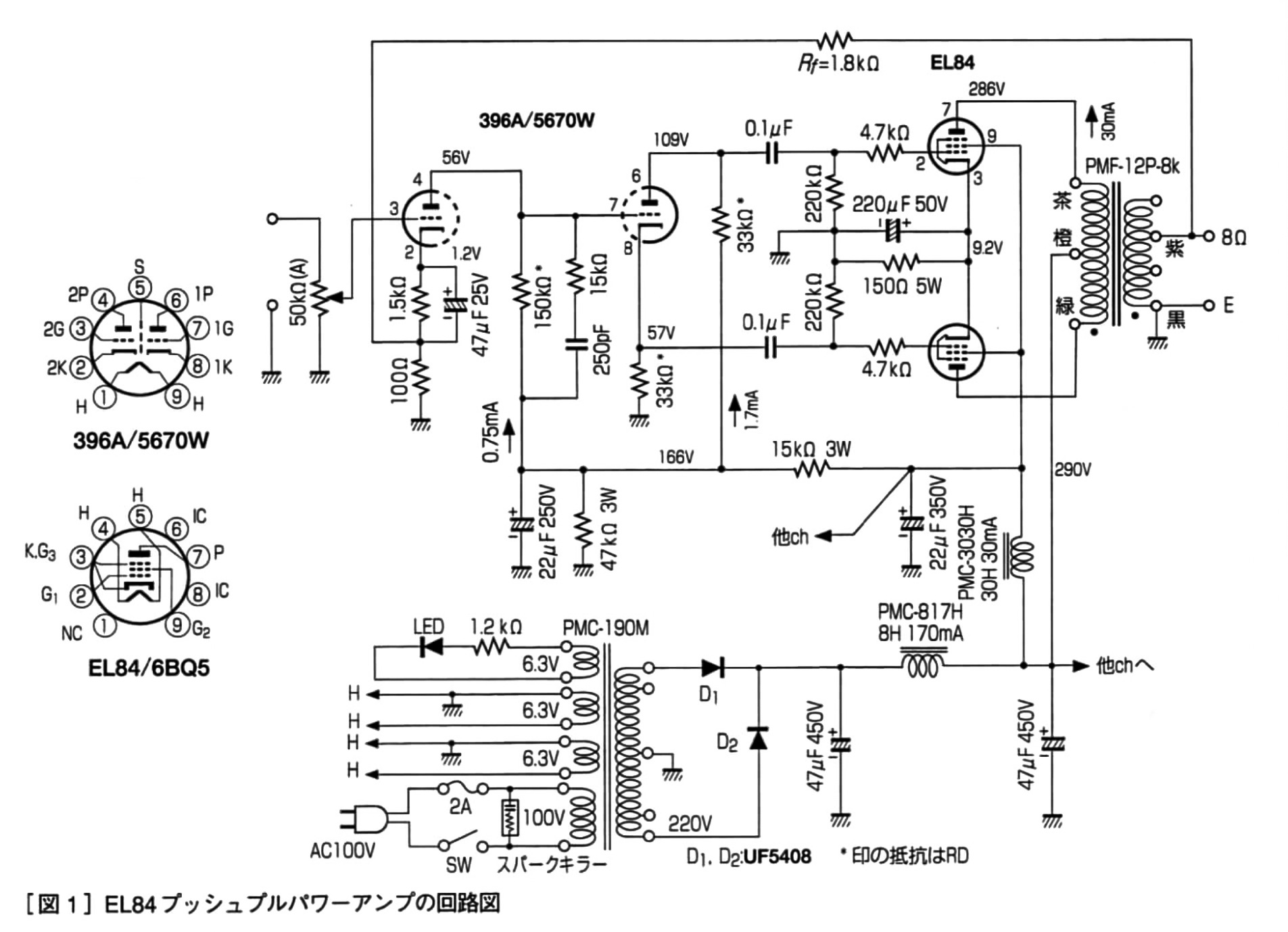

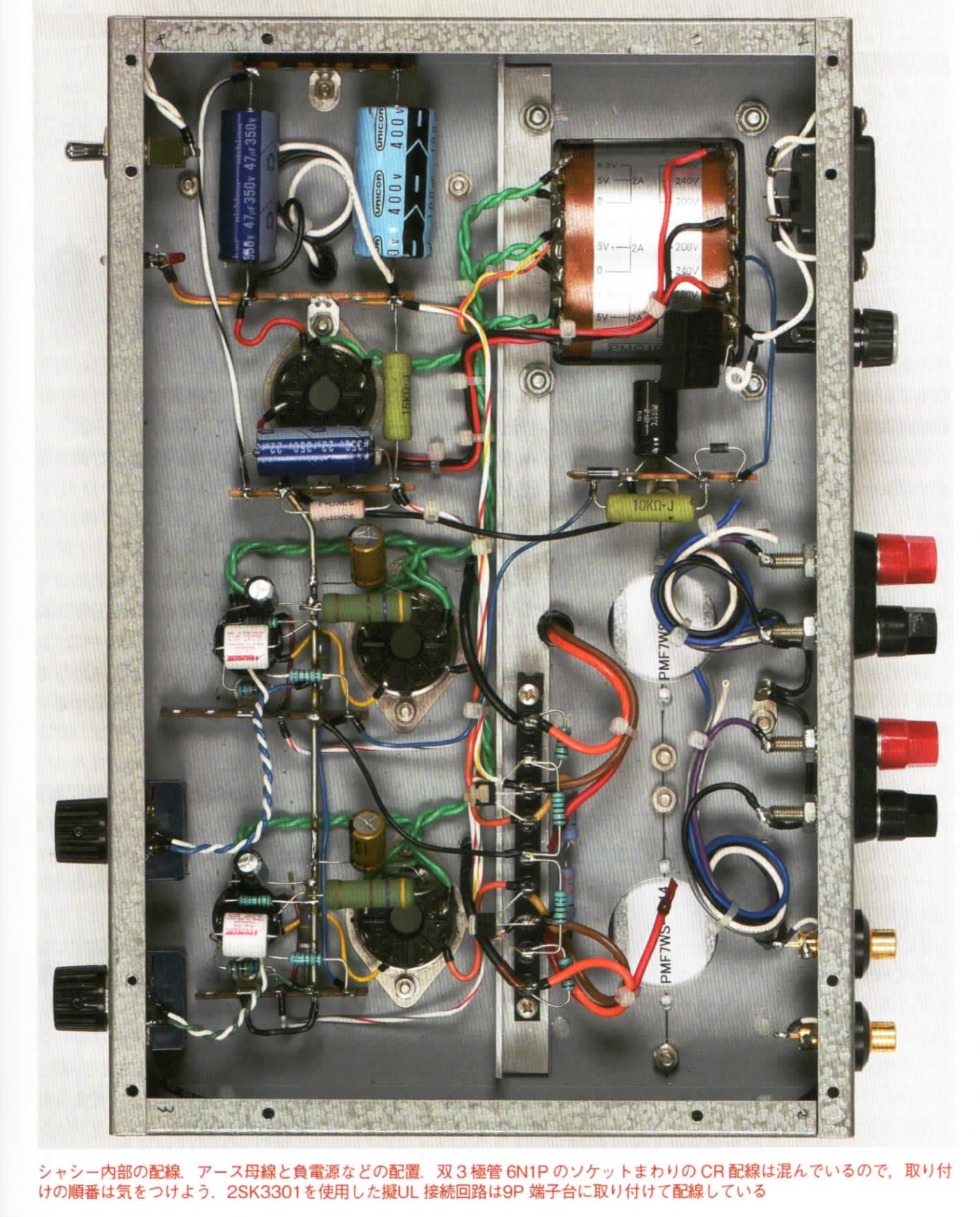

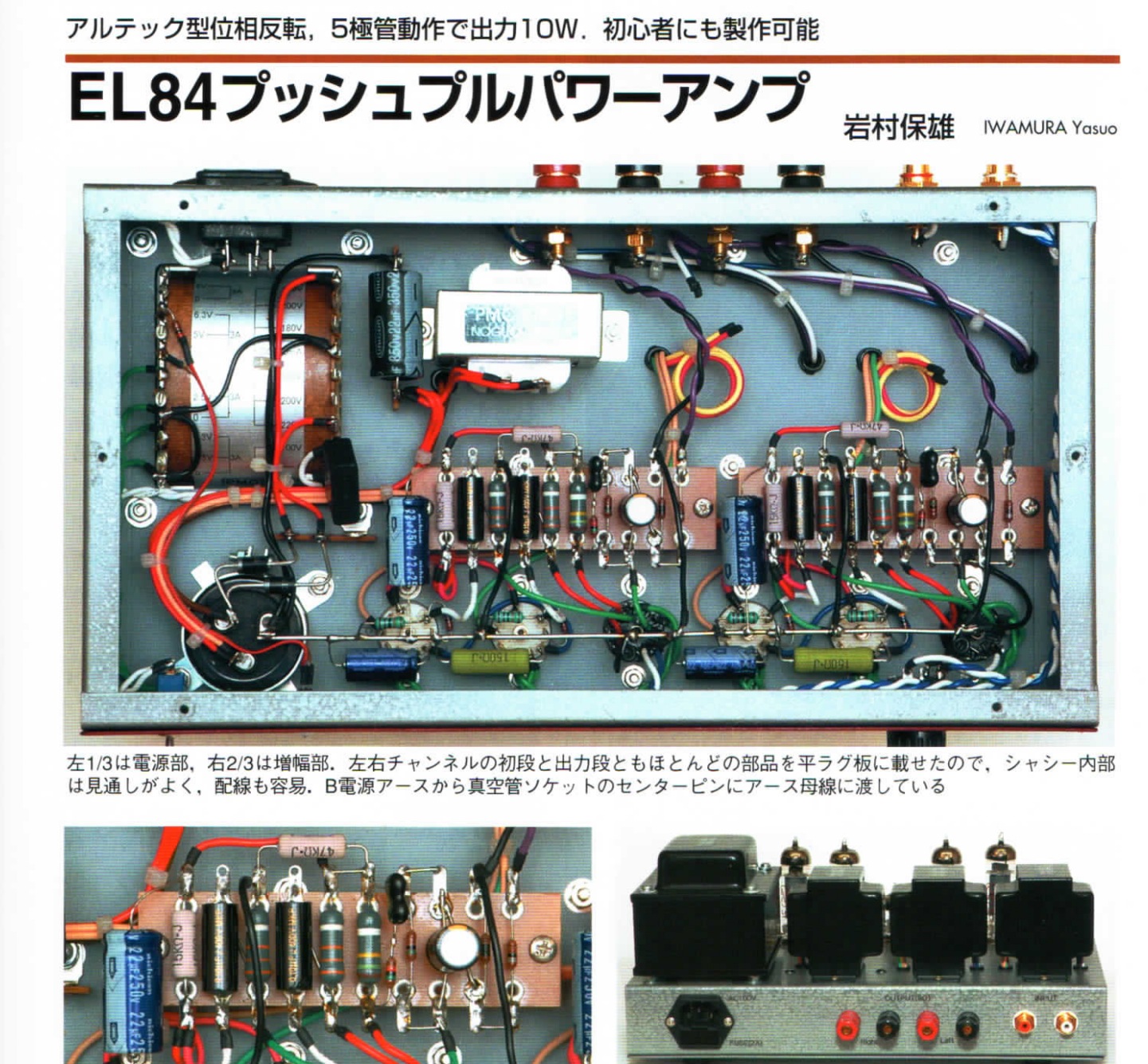

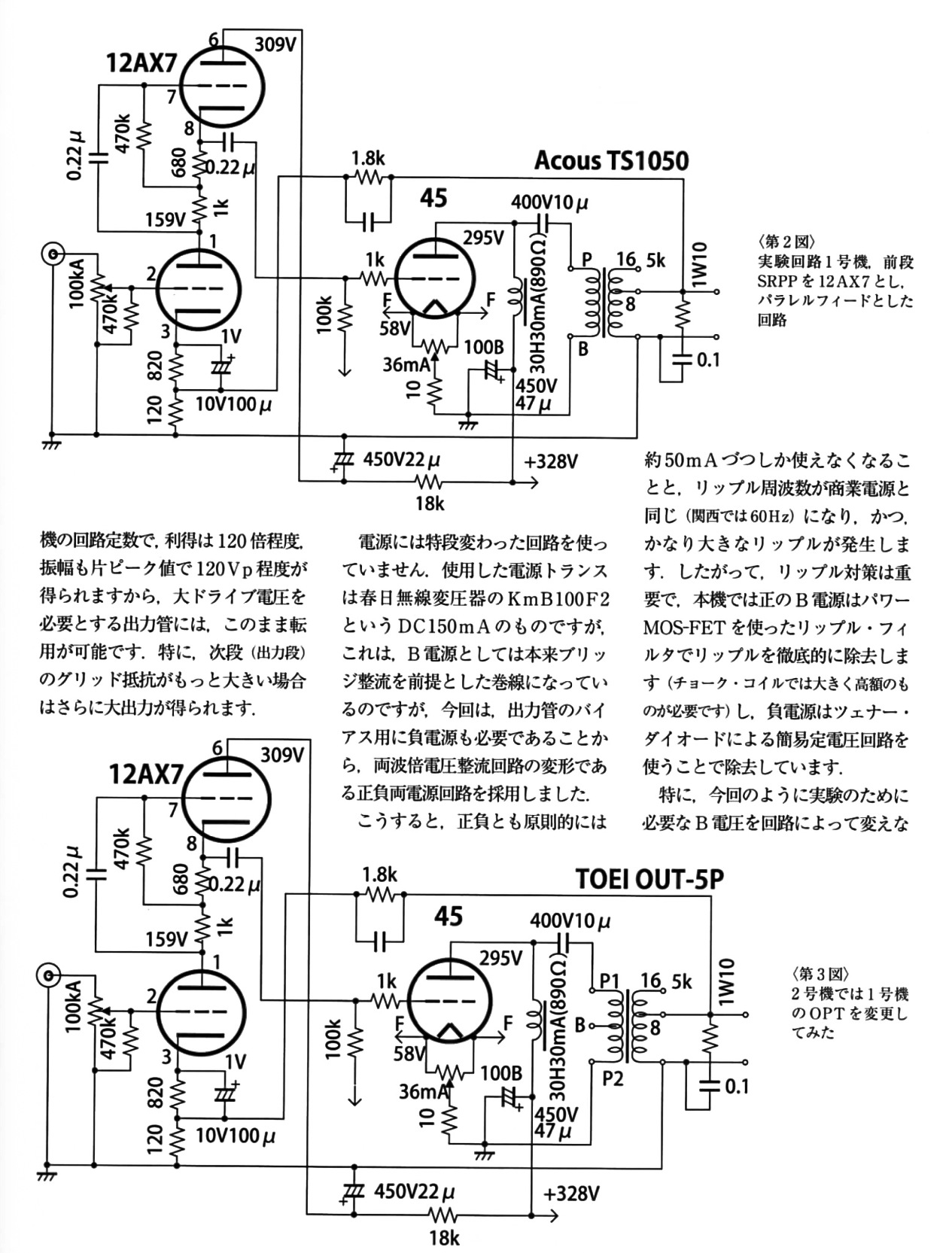

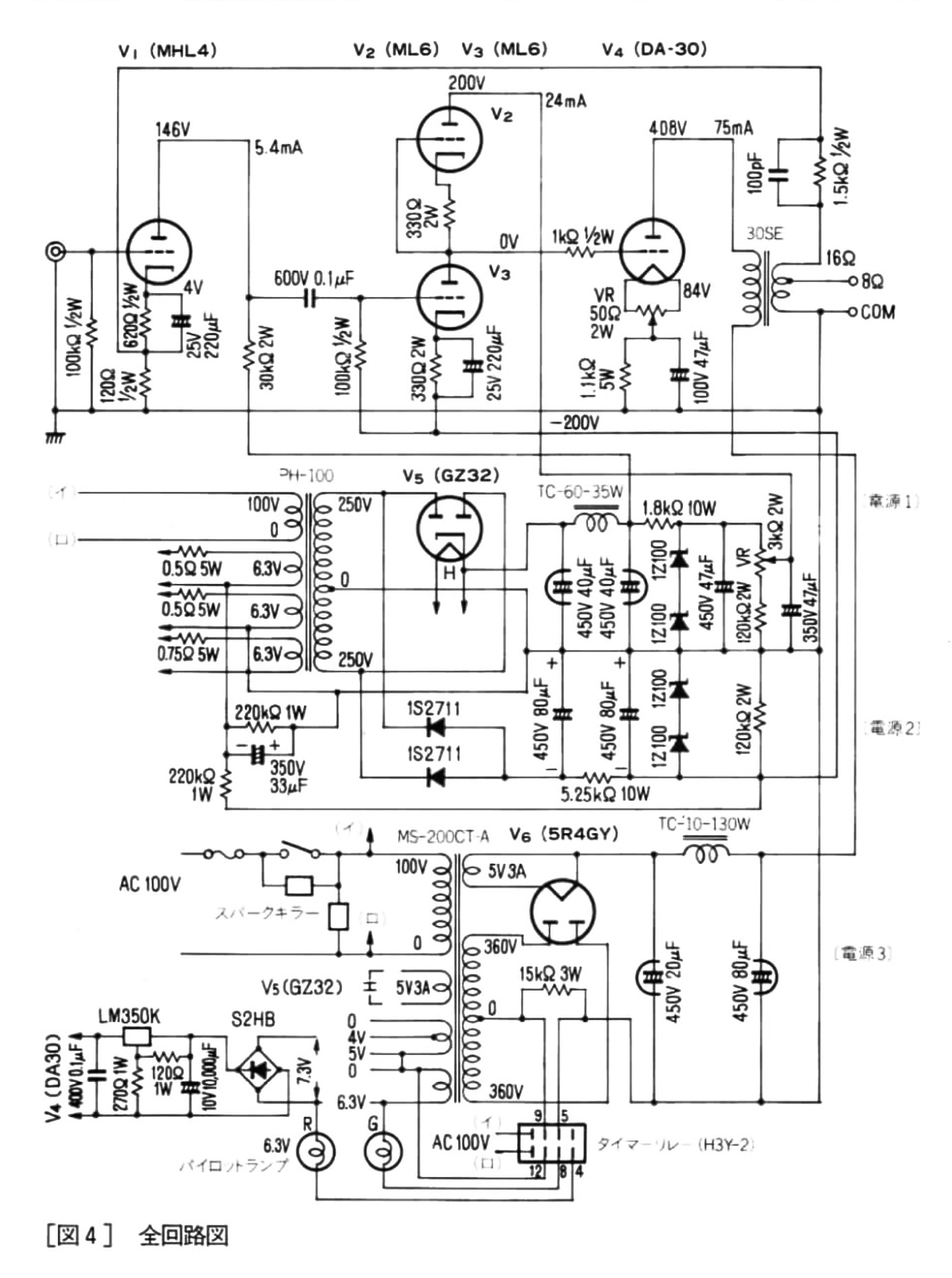

Attachments
-

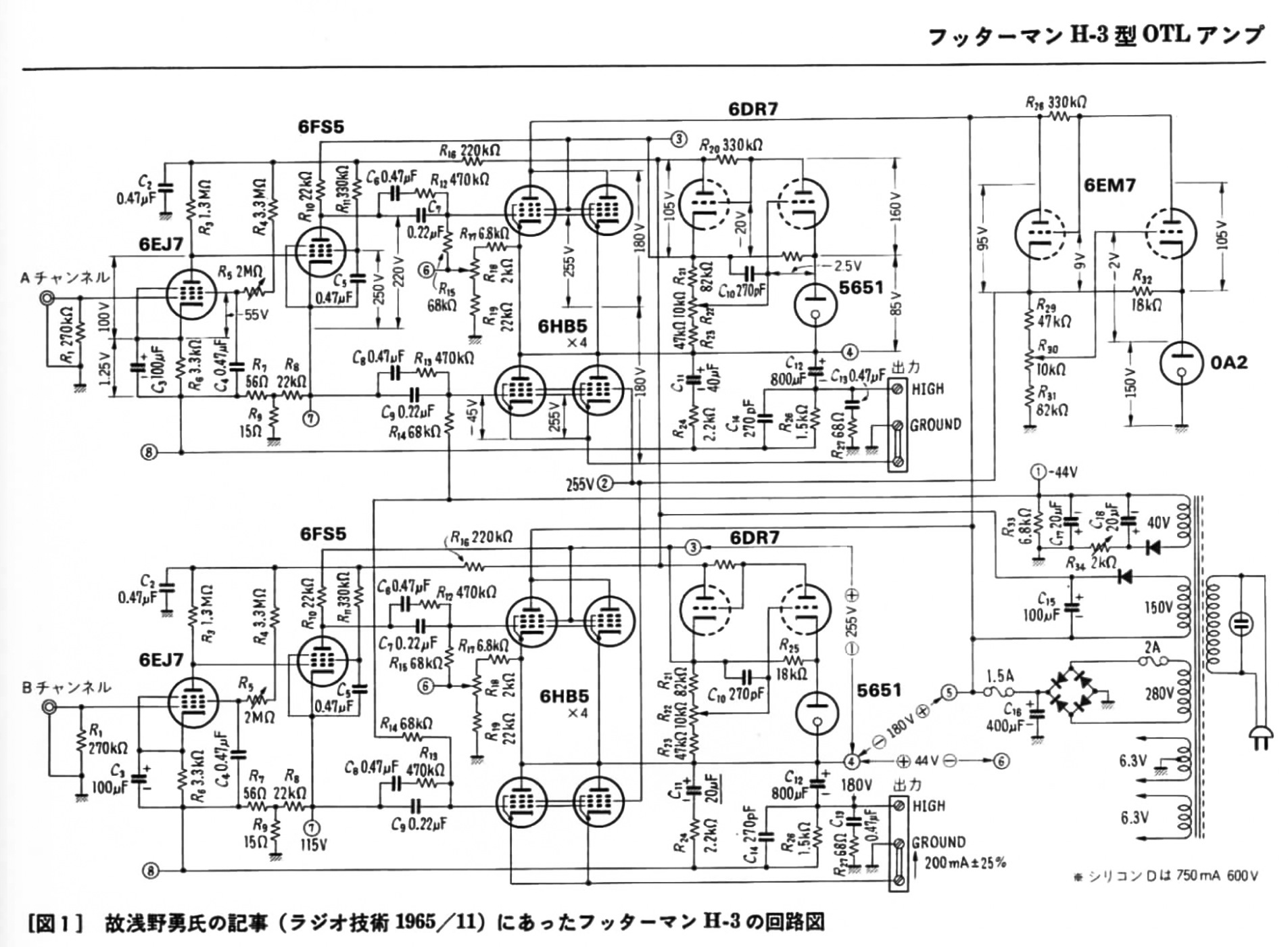

4C05B529-06F2-4A66-B36C-45B879D5384F.JPG443.5 KB · Views: 131
-

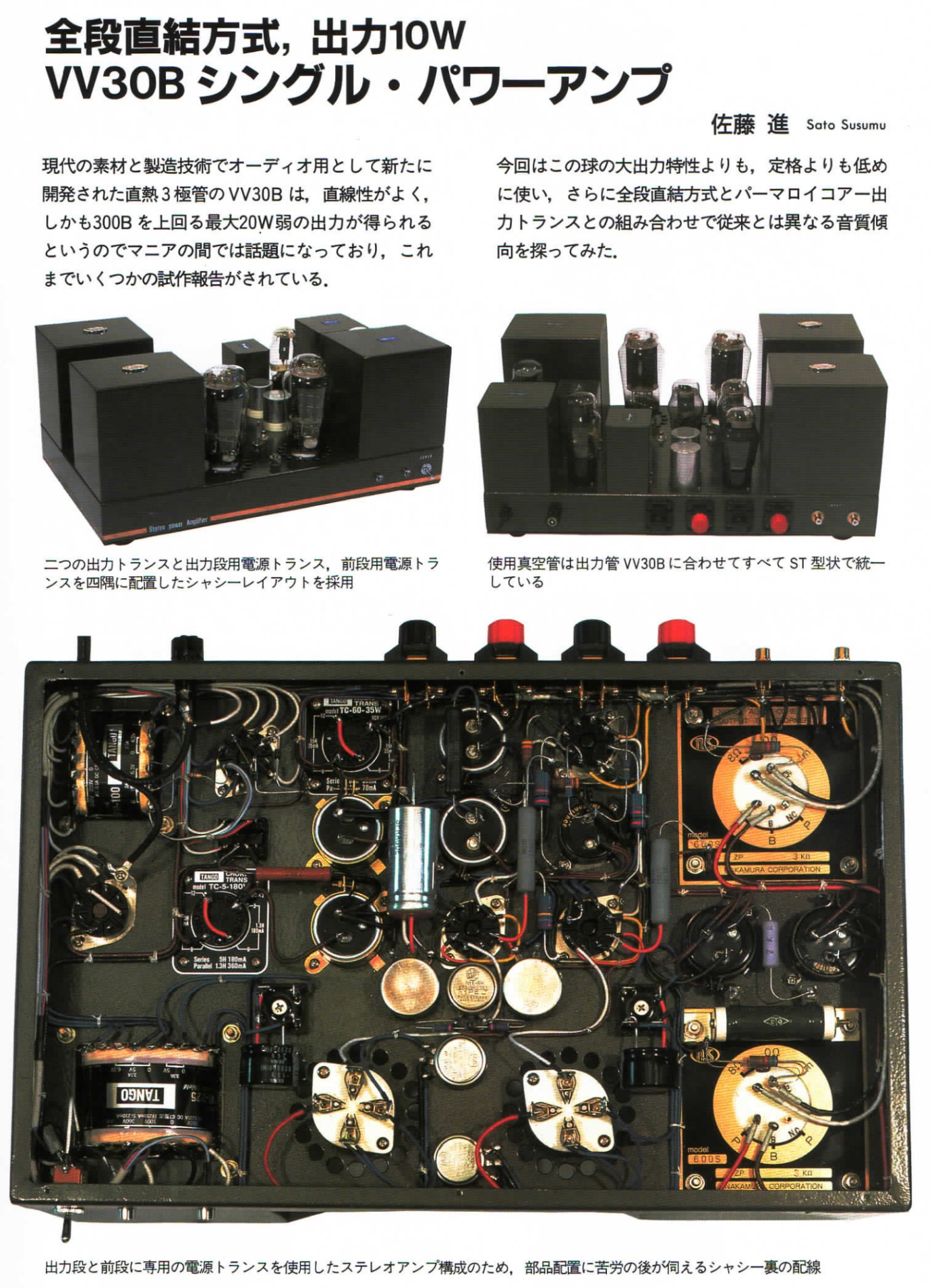

43332229-8026-4A34-AE0A-AA74261D1C59.JPG658.9 KB · Views: 169
-

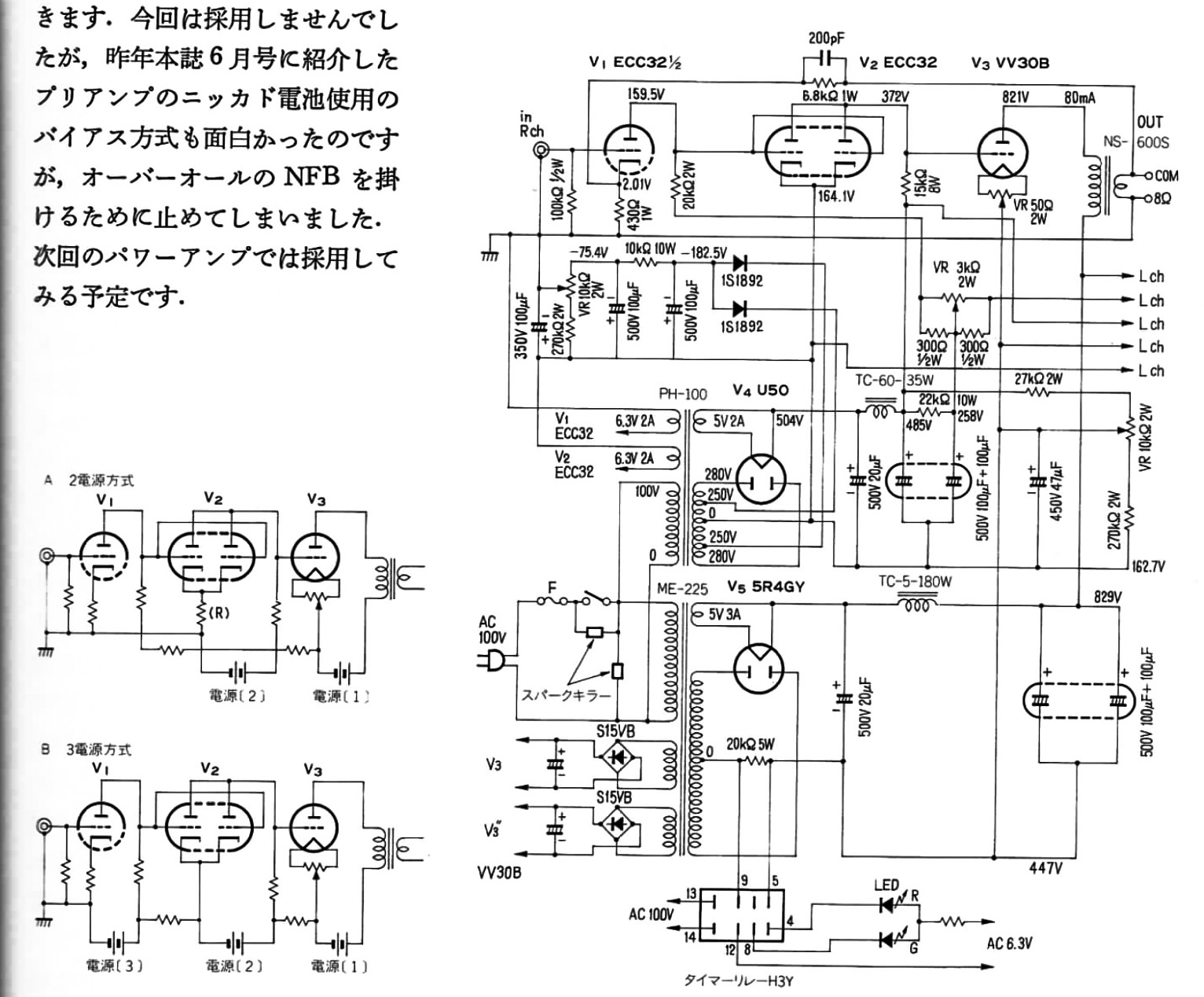

D5E53C8D-B733-48E9-B6D9-B1BBE98BA55D.JPG387.8 KB · Views: 253
-

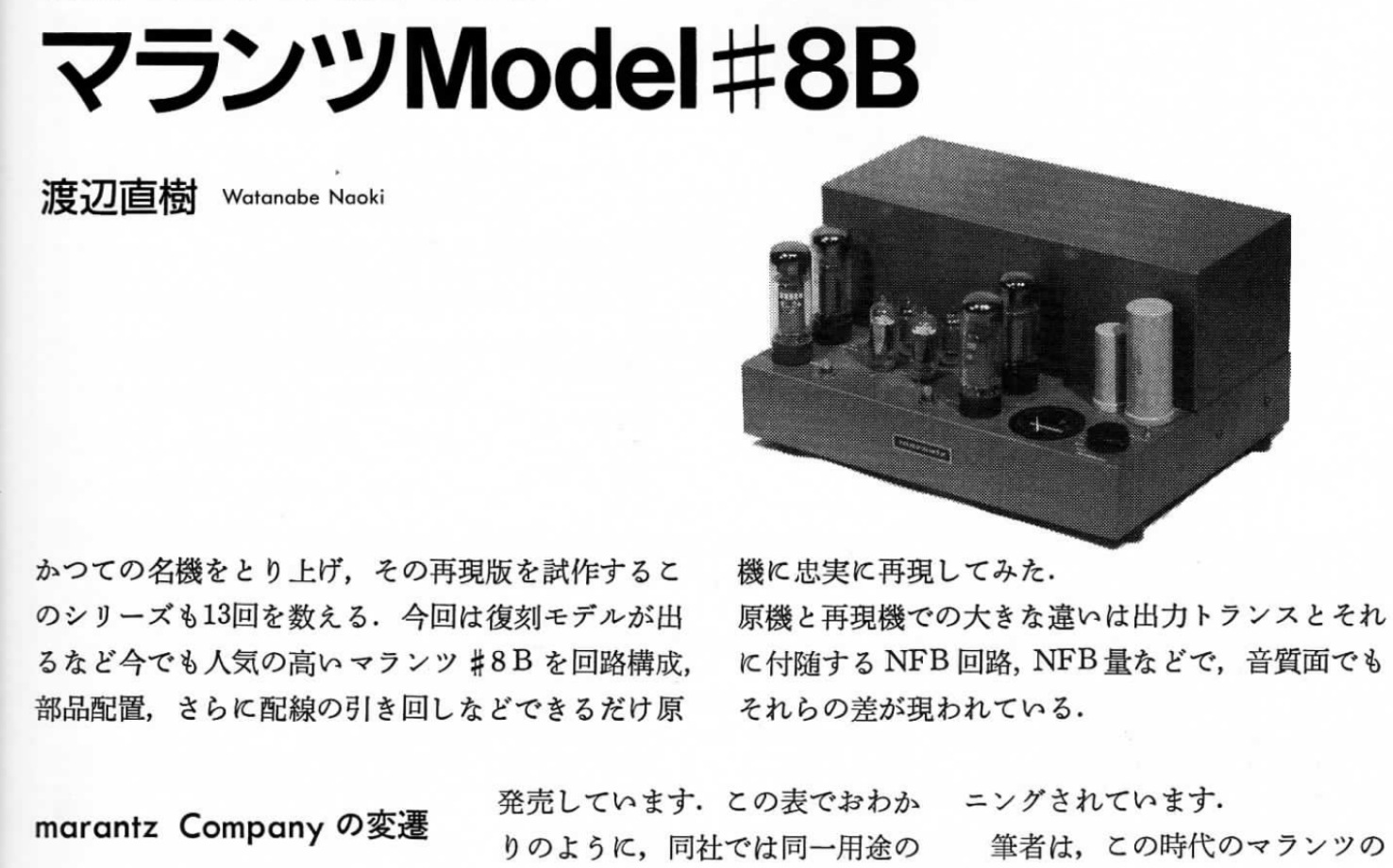

4714CBE8-2168-445F-9D26-5B8729796AC1.JPG259.8 KB · Views: 234
-

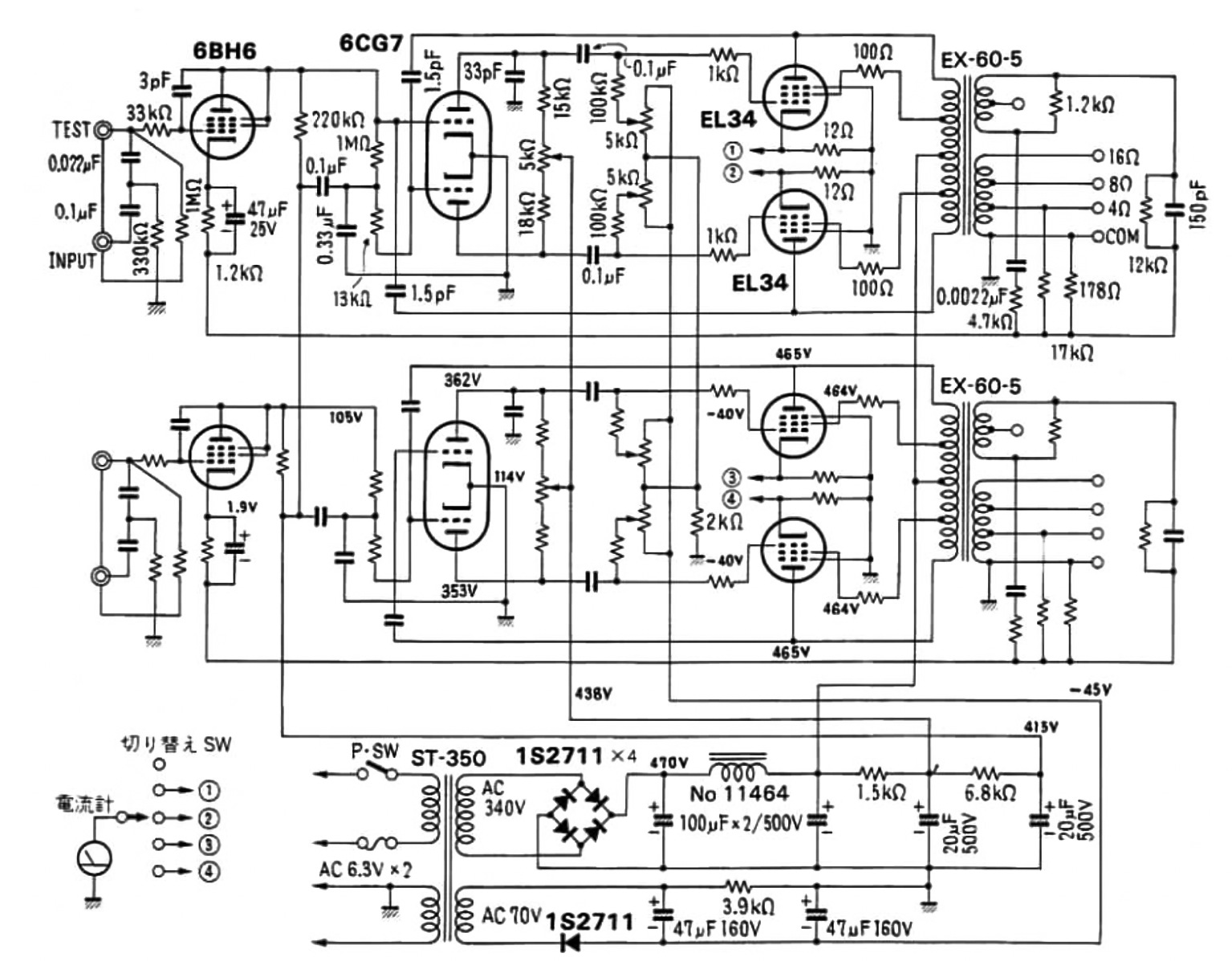

36FBCC30-41A3-419A-9AED-0A65706FF3D8.JPG367 KB · Views: 218
-

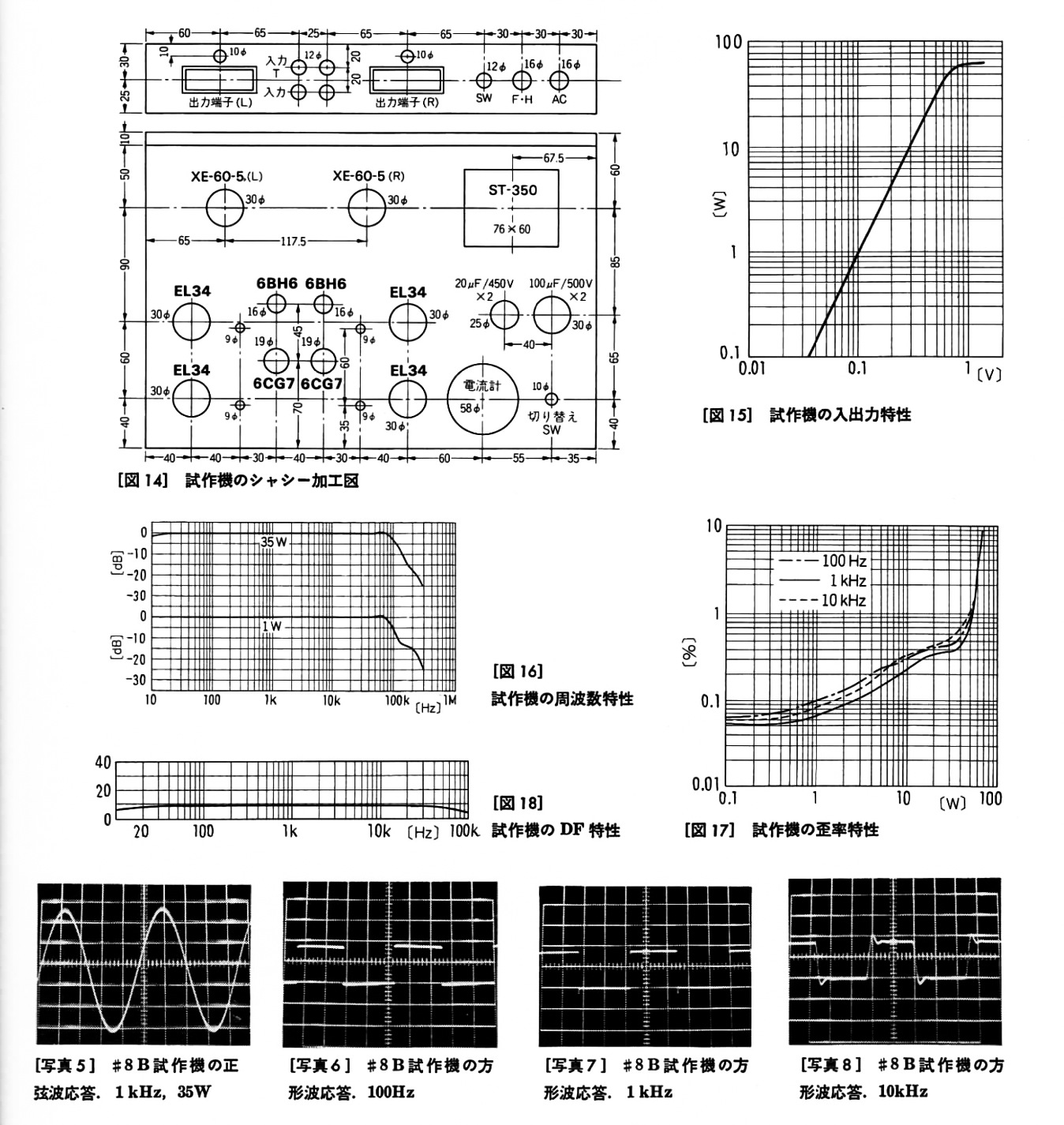

B9DDD5C0-9994-43AC-B7C6-51DE9CAD4BEE.JPG491.2 KB · Views: 213
-

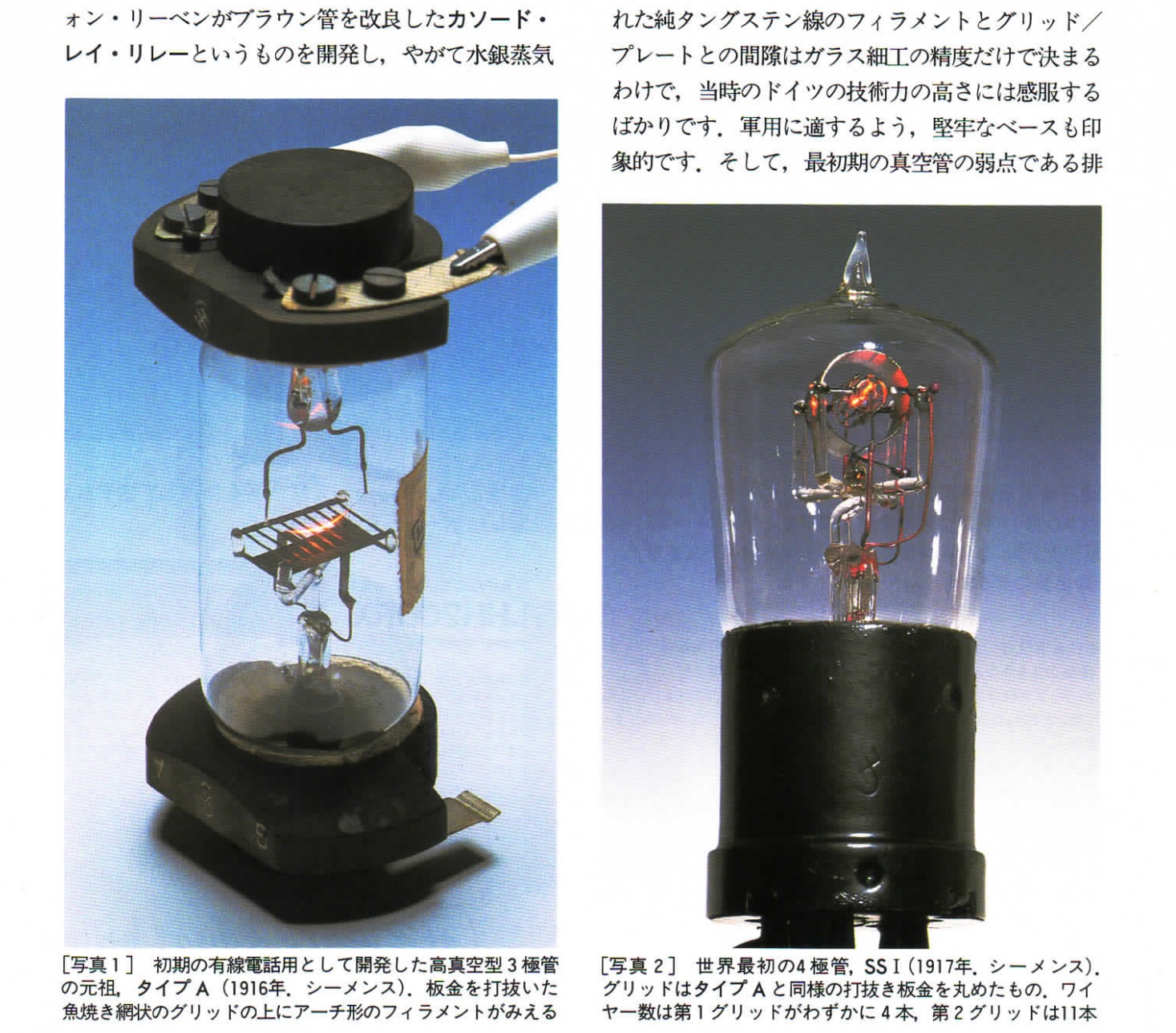

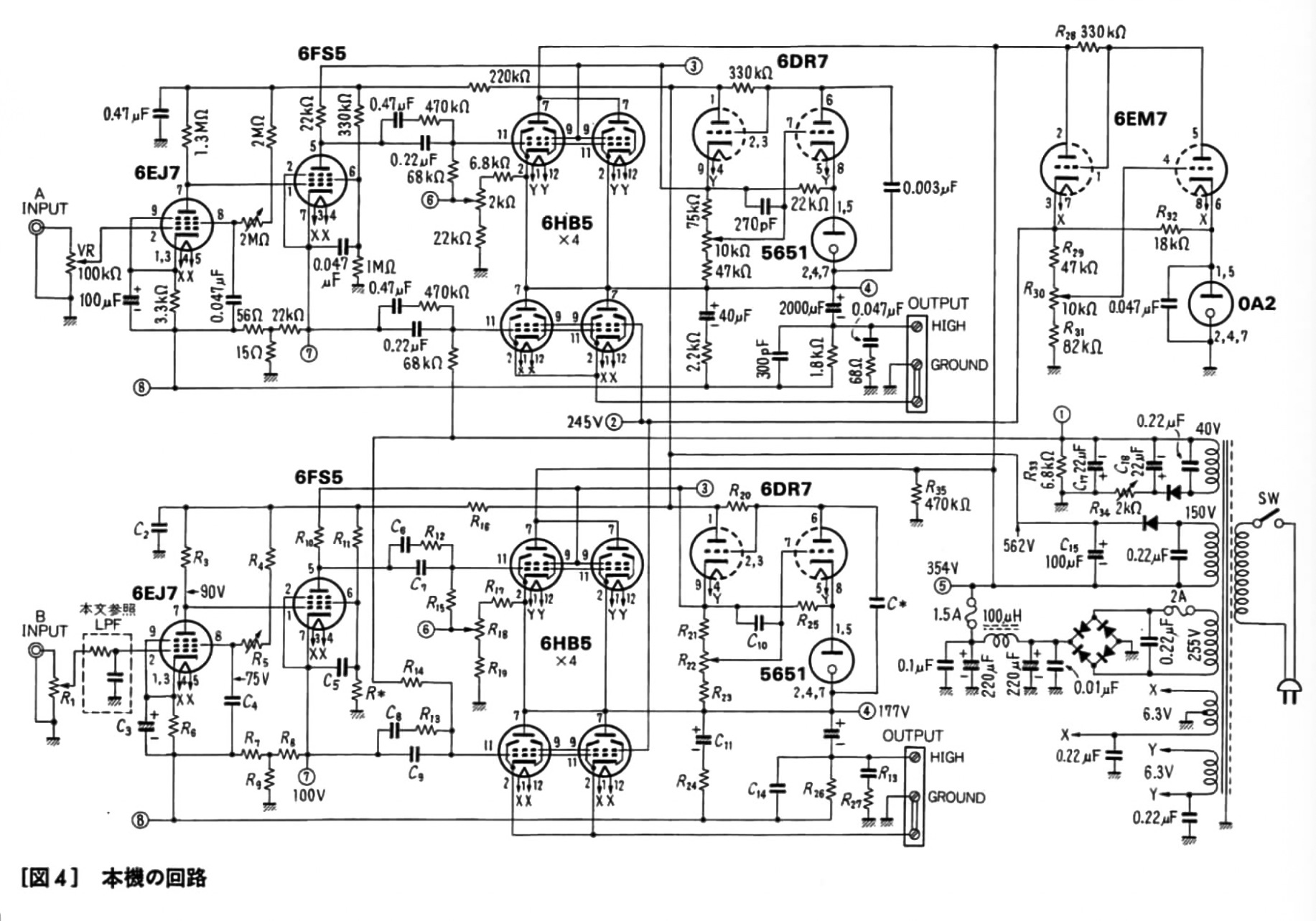

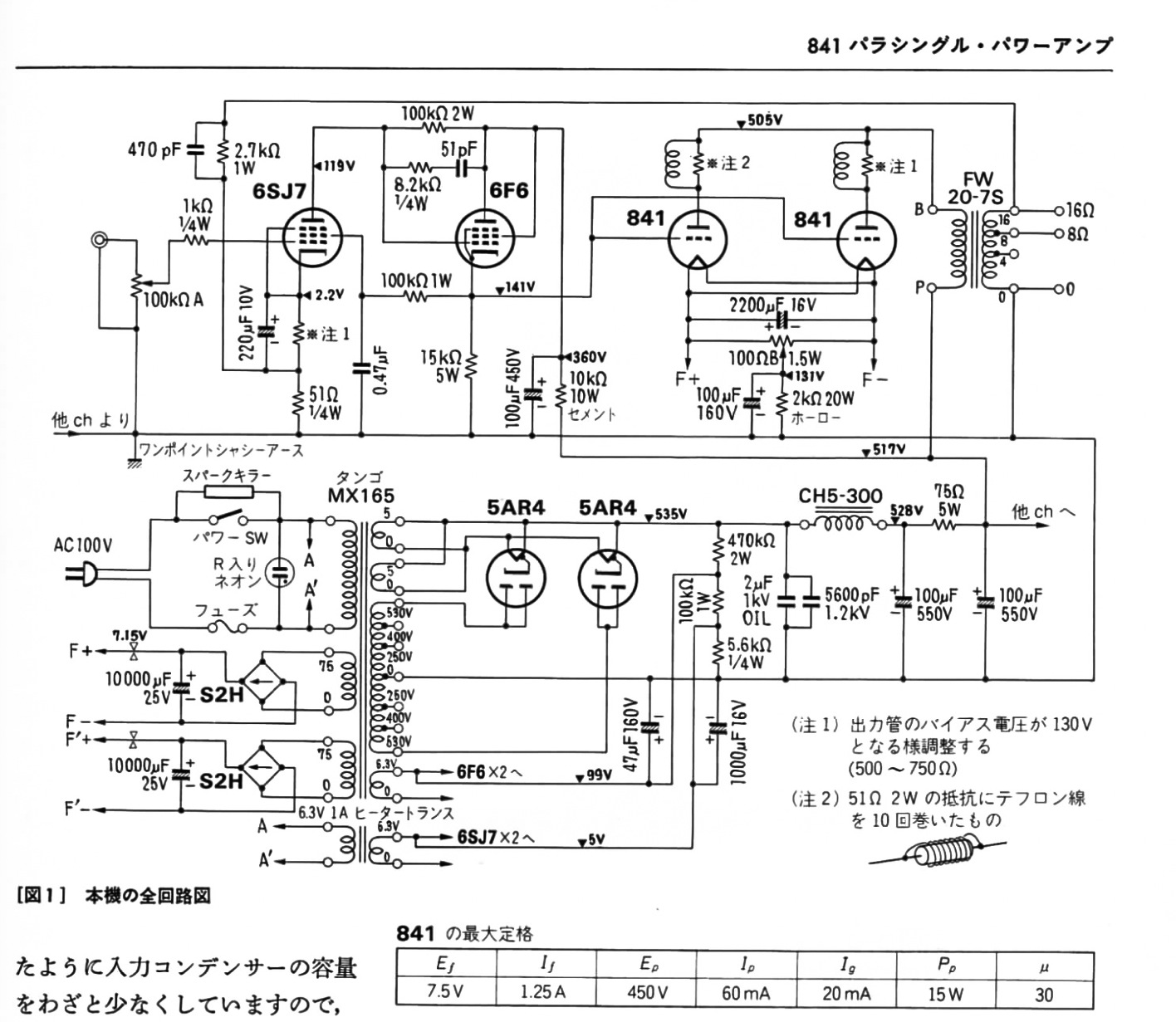

F34E975B-EF75-4AEF-A2CA-502EFF7BD655.JPG448.4 KB · Views: 171
May I ask what the 866A in this schematic does? Rectifying DC?
Best regards!

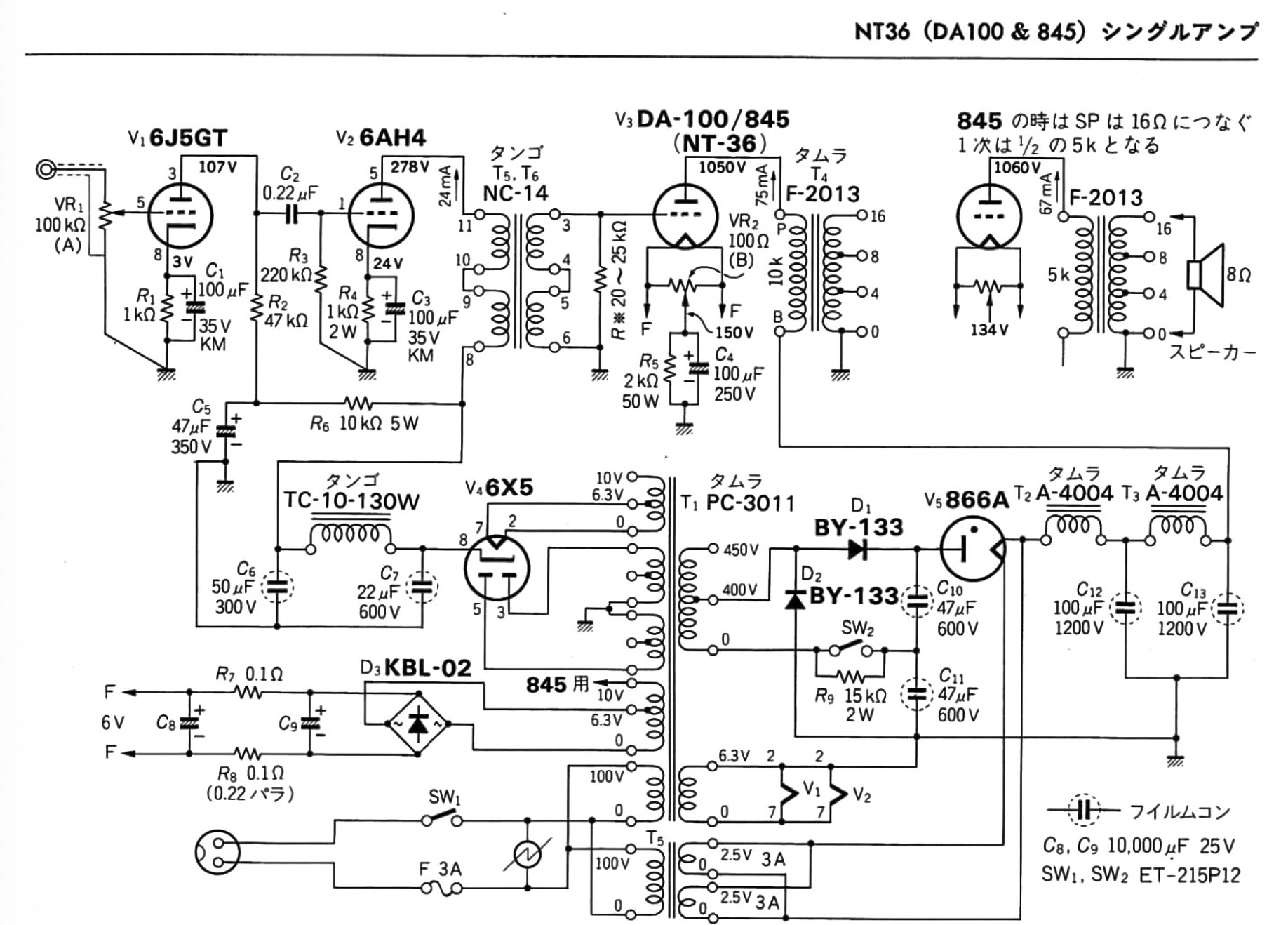

Delay of the B+
The 866 warms up slowly and by the time it starts conducting the other tubes had time to heat up a bit before getting the full B+
