Frex, the December 11, 2015.
Hello,
This is the pre-inscription list for a group buy of the project named EPSUX3V2.
A short video presentation of the PSU at work is available HERE.
The main thread of this project is HERE.
You can post on this thread for any technical question.
For question about the group-buy please use the link of the dedicated thread
of the group-buy HERE.
The group buy is about only these parts :
cellspacing="5"
|-
| class="tcat" | Description || class="tcat" | Price € ||
|-
| EPSUX3REGV1 printed circuit board x3 || 26 € ||
|-
| EPSUX3V3 printed circuit board || 43 € ||
|-
| Lexan front + rear panel || 36 € ||
|-
| LT3081ER linear regulator (for EPSUX3REGV1) x6 . || 25 € ||
|-
| Shipping (worldwide in priority letter) || 6 € ||
|-
| TOTAL COST || 135 € ||
I will only accept Paypal payments. The price include all fees and shipping using a priority letter.
The price list above is only available if the group buy reach 25 orders.
Below this, i reserve the right to cancel the group buy.
You need also to purchase all electronics part and enclosure to fully build the project.
The total cost of other parts is 360€ (from Mouser, price from 11-12-2015).
So, the total project price is about 500 €.
The project include a Altera CPLD (5M1270) with the embedded software
of the PSU. This parts need to be programmed,
and to do that you simply need an USB Blaster from Altera (~15€ on Ebay).
If many DIYers are interested about, i will also offer to provide the main
PSU board with the CPLD soldered and programmed (price has to be defined).
I will complete this wiki soon and add some informations
as projects progress.
You can download at bottom of this page some project files as :
If you are interested to join th group buy list, simply add you name (pseudo),
location and wanted kit quantity in the table below.
cellspacing="5"
|-
| class="tcat" | Name || class="tcat" | PCB Qty || class="tcat" | Location ||
|-
| Turbon || 1 || Sweden ||
|-
| duster1 || 1 || Estonia ||
|-
| nanonymous|| 1 || Germany||
|-
| Fabian85|| 1 || Germany||
|-
| Spirtos|| 1 || Greece||
|-
| Jaac|| 1 || Netherlands||
|-
| jcga|| 1 || France||
|-
| ccliu|| 1 || Taiwan||
|-
| cddumat|| 2 || Germany||
(Note: To modify the table, you must use the "edit" tab of the wiki page on the top.
Frex.
Hello,
This is the pre-inscription list for a group buy of the project named EPSUX3V2.
A short video presentation of the PSU at work is available HERE.
The main thread of this project is HERE.
You can post on this thread for any technical question.
For question about the group-buy please use the link of the dedicated thread
of the group-buy HERE.
The group buy is about only these parts :

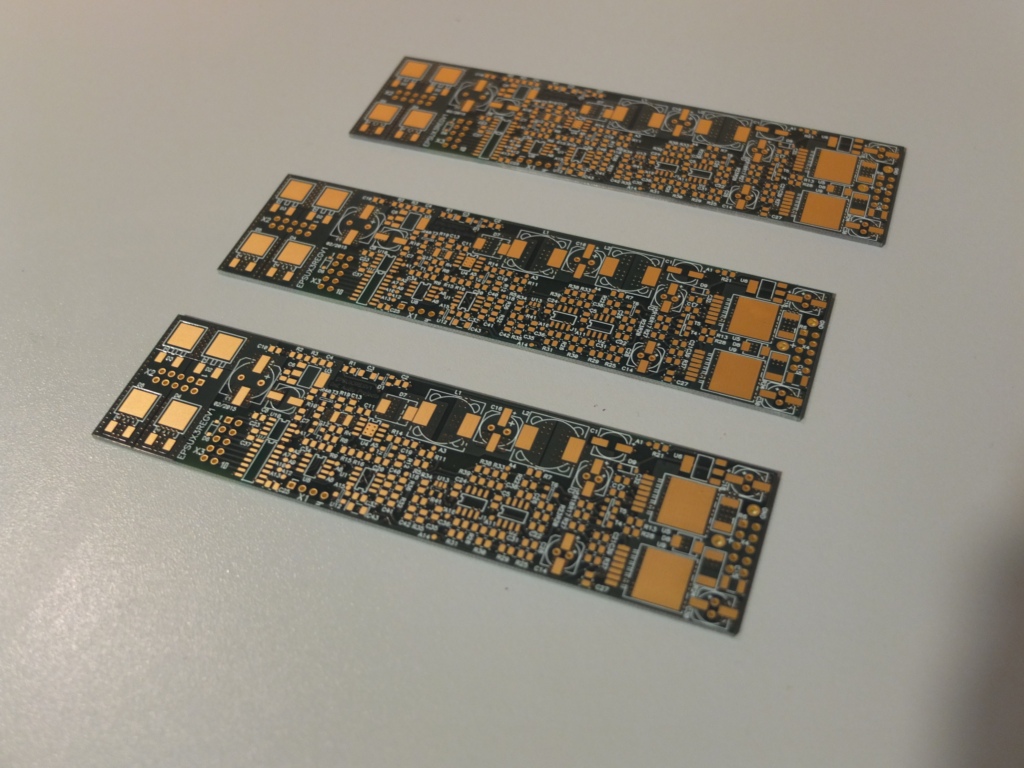

- EPSUX3REGV1 combo regulator 4 layers circuit board (x3)

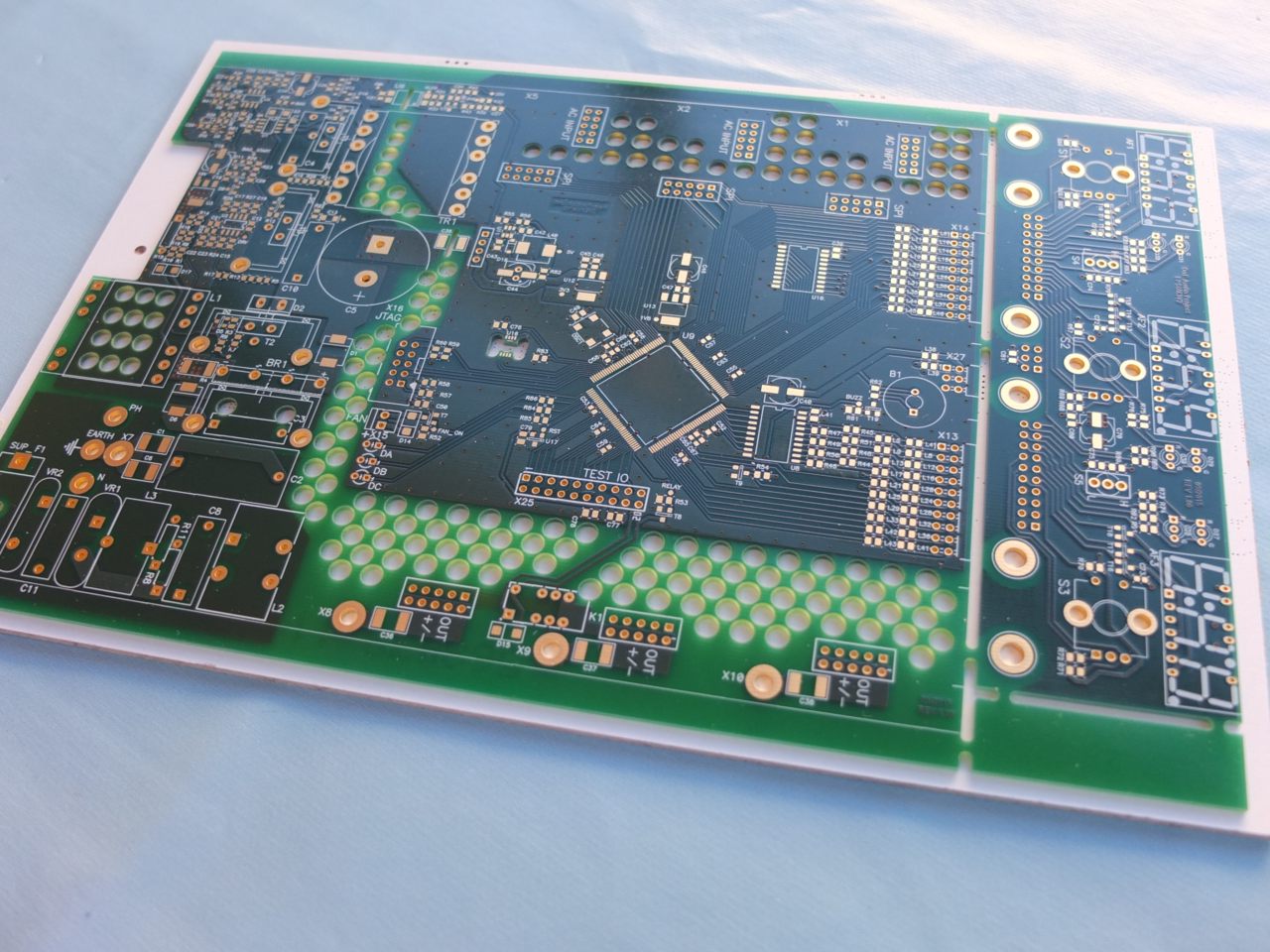

- EPSUX3V3 panel with main board and front board, 4 layers (x1)
