The I2S/DSD switching part has been completed and verified correct. Ordinarily, I would have rolled this into production as a simple adapter module but we have seen the issues with BBB getting damaged by improper shutdown. No just disk corruption, which is common with "soft" systems without any self-healing OS, but also possible hardware failure! The latter is unheard of in typical embedded systems. Not sure if this has been rectified by the manufacturer.
So until then we need to add a smart UPS to manage the shutdown safely. There is a bit of work involved and as soon as this is completed I will advise
Please wait for a while...
The I2S/DSD switching part has been completed and verified correct. Ordinarily, I would have rolled this into production as a simple adapter module but we have seen the issues with BBB getting damaged by improper shutdown. No just disk corruption, which is common with "soft" systems without any self-healing OS, but also possible hardware failure! The latter is unheard of in typical embedded systems. Not sure if this has been rectified by the manufacturer.
So until then we need to add a smart UPS to manage the shutdown safely. There is a bit of work involved and as soon as this is completed I will advise
Not exactly, depends on how you intent use it.
FYI, you will not need any adapter board if you can manage to hook it up as shown : ->here
But then you may need to jump through hoops and loops to pick and wire to the correct header pins on BBB as mapped by the Botic driver. The BBB-UFL adapter removes this guesswork and the U.FL outputs make quick and quality connections to DAC or S03.
All these if using I2S only. If DSD support is needed then rewiring is required to match the Botic interface accordingly. This is what the SuperCape interface will do automatically. Then there is UPS functions as described earlier.
Last edited:
Just to clarify, my BBB-UFL board was with the UFL mounted, seems it got lost in the reposts somewhere.
S03 Bare Boards
In production. ETA stock 21st Nov 2014
CLOSED
Acko X20 (Paid-On Order)
Greg Stewart 2 (Paid-On Order)
Emyeuoi X2 (Paid-On Order)
flowerpot x 4 (Paid-On Order)
JimS x 2 (Paid-On Order)
RollE2k x 1 (Paid-On Order)
carlsor X 2 (Paid-On Order)
tuyen X 1 (Paid-On Order)
lemon X 1 (Paid-On Order)
Stijn001 x1 (Paid-On Order)
Adamantine X 3 (Paid-On Order)
hochopeper x 1 (Paid-On Order)
Supersurfer x1 (Paid-On Order)
dsdjoy x 1 (Paid-On Order)
curryking x 3 (Paid-On Order)
kannan_s x 2 (Paid-On Order)
potstip x 1 (Paid-On Order)
taisho_daniel x 1 (Paid-On Order)
duster1 x 1 (Paid-On Order)
IanS1 X2 (Paid-On Order)
CLOSED
__________________________________________________
BBB-UFL board
In production. ETA stock 21st Nov 2014
CLOSED
Acko x 1
tubesguy x 1 (with UFL)
nautibuoy x 1 (with ufl)
bk856er x 1
emyeuoi x 2
deanoUK X 2
Chanh X1 (with UFL mounted)
Greg Stewart x 2
Stijn001 2x (with UFL mounted)
Palmito x2
Myint67 x2 (with UFL mounted)
potstip x 1 (with UFL mounted)
TheShaman x 1 (with UFL mounted)
taisho_daniel x 1
IanS1 X2 (with UFL mounted)
iancortez x 1 (with UFL mounted)
PET-240 × 2 (with ufl)
CLOSED
Progress:
Manufacture Instruction: Completed 2014-11-10 19:25:14
Board Cutting: Completed 2014-11-10 20:11:12
Drill: Completed 2014-11-11 2:35:29
Plated Through Hole: Completed 2014-11-11 13:01:06
Circuit: Completed 2014-11-12 1:34:32
Etching: Completed 2014-11-12 14:38:48
AOI: Completed 2014-11-12 14:39:02
Solder Mask: Completed 2014-11-12 14:39:18
Silkscreen: Completed 2014-11-12 14:39:34
Surface Treatment: Completed 2014-11-12 18:20:47
Routing: Completed 2014-11-12 19:39:09
Testing: Completed 2014-11-13 4:54:13
Assembly*: In Progress 2014-11-13 6:20:00 -as required
Package: Completed 2014-11-13 7:20:00
Delivery Ready:
In production. ETA stock 21st Nov 2014
CLOSED
Acko X20 (Paid-On Order)
Greg Stewart 2 (Paid-On Order)
Emyeuoi X2 (Paid-On Order)
flowerpot x 4 (Paid-On Order)
JimS x 2 (Paid-On Order)
RollE2k x 1 (Paid-On Order)
carlsor X 2 (Paid-On Order)
tuyen X 1 (Paid-On Order)
lemon X 1 (Paid-On Order)
Stijn001 x1 (Paid-On Order)
Adamantine X 3 (Paid-On Order)
hochopeper x 1 (Paid-On Order)
Supersurfer x1 (Paid-On Order)
dsdjoy x 1 (Paid-On Order)
curryking x 3 (Paid-On Order)
kannan_s x 2 (Paid-On Order)
potstip x 1 (Paid-On Order)
taisho_daniel x 1 (Paid-On Order)
duster1 x 1 (Paid-On Order)
IanS1 X2 (Paid-On Order)
CLOSED
__________________________________________________
BBB-UFL board
In production. ETA stock 21st Nov 2014
CLOSED
Acko x 1
tubesguy x 1 (with UFL)
nautibuoy x 1 (with ufl)
bk856er x 1
emyeuoi x 2
deanoUK X 2
Chanh X1 (with UFL mounted)
Greg Stewart x 2
Stijn001 2x (with UFL mounted)
Palmito x2
Myint67 x2 (with UFL mounted)
potstip x 1 (with UFL mounted)
TheShaman x 1 (with UFL mounted)
taisho_daniel x 1
IanS1 X2 (with UFL mounted)
iancortez x 1 (with UFL mounted)
PET-240 × 2 (with ufl)
CLOSED
Progress:
Manufacture Instruction: Completed 2014-11-10 19:25:14
Board Cutting: Completed 2014-11-10 20:11:12
Drill: Completed 2014-11-11 2:35:29
Plated Through Hole: Completed 2014-11-11 13:01:06
Circuit: Completed 2014-11-12 1:34:32
Etching: Completed 2014-11-12 14:38:48
AOI: Completed 2014-11-12 14:39:02
Solder Mask: Completed 2014-11-12 14:39:18
Silkscreen: Completed 2014-11-12 14:39:34
Surface Treatment: Completed 2014-11-12 18:20:47
Routing: Completed 2014-11-12 19:39:09
Testing: Completed 2014-11-13 4:54:13
Assembly*: In Progress 2014-11-13 6:20:00 -as required
Package: Completed 2014-11-13 7:20:00
Delivery Ready:
Yes, this can be replicated for full 8 channels in the final version.
Thinking of separating the UPS function to allow this signal board to get ahead into production. UPS still needs more development and will be offered as separate add-on board (cape)
EDEL Network Renderer
New version will have up to 384KHz Fs, DSD64 and DSD128 capability.
Also a 2s FIFO buffer.
New version will have up to 384KHz Fs, DSD64 and DSD128 capability.
Also a 2s FIFO buffer.

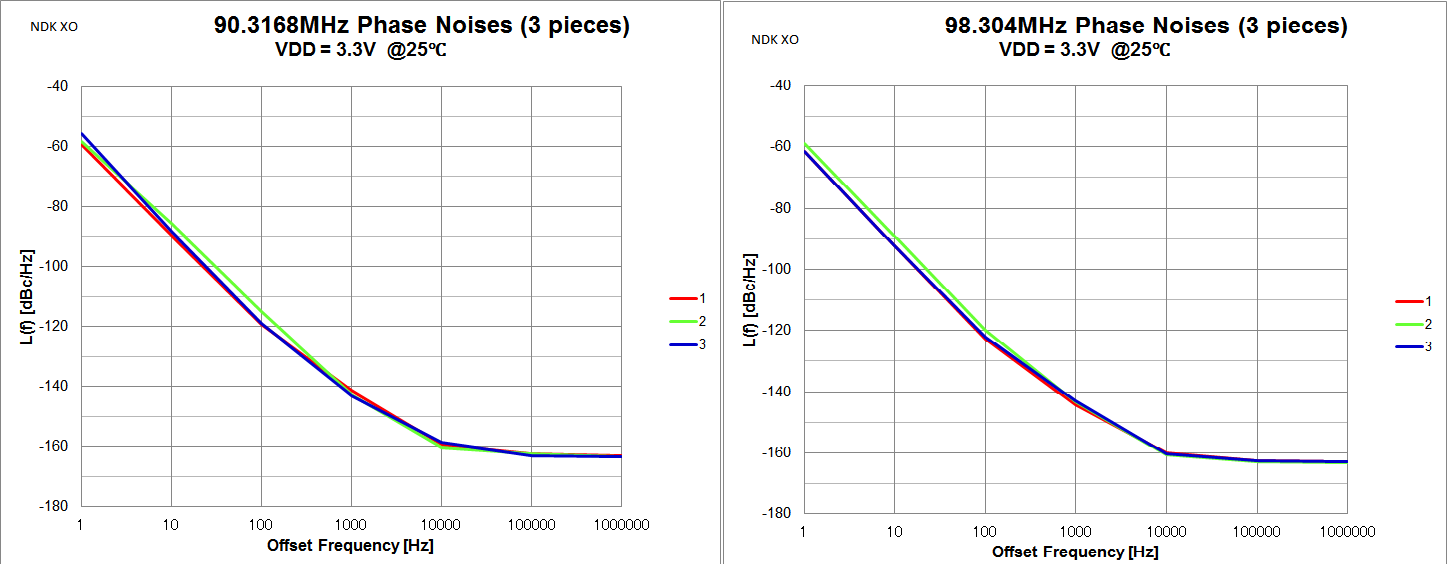

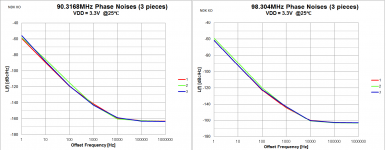

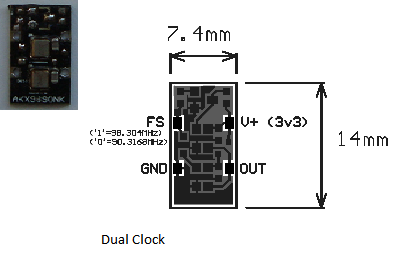

AKX9890 - NDK 98.304MHz/90.3168MHz
New batch looks good. Stable and healthy outputs on all the samples tested.
Single and dual clock options. size of CCHD950 package. Available now, limited stock. Factory Lead time 6-8wks
New batch looks good. Stable and healthy outputs on all the samples tested.
Single and dual clock options. size of CCHD950 package. Available now, limited stock. Factory Lead time 6-8wks
Attachments
Last edited:
New S03 board

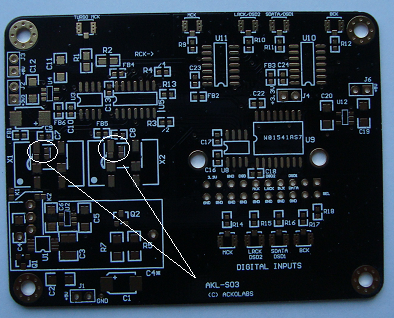

The new S03 board (black) has the land pattern to mount NDK NZ2520 series directly as shown. No separate daughter boards required
The new S03 board (black) has the land pattern to mount NDK NZ2520 series directly as shown. No separate daughter boards required
Attachments
Last edited:
Hey Acko,
Did send you a mail asking if the clocks were included in the S03 price as I was confused, how much extra are these instead of the normal clock pair and do they sound better?
Given the other BBB cape option is taking some time looking to go with the S03, would like the ups cape to fit when it becomes available too. Any idea on del time for an S03 from order to del in Brissie please?
Also, with the NDK dual clock, what is the settling time when it changes frequencies?
Thanks,
Drew.
Did send you a mail asking if the clocks were included in the S03 price as I was confused, how much extra are these instead of the normal clock pair and do they sound better?
Given the other BBB cape option is taking some time looking to go with the S03, would like the ups cape to fit when it becomes available too. Any idea on del time for an S03 from order to del in Brissie please?
Also, with the NDK dual clock, what is the settling time when it changes frequencies?
Thanks,
Drew.
Last edited:
Sorry, been busy elsewhere
Clocks are included in the fully assembled modules and you can have the options for 45.1584/49.576MHz or 90.3168/98.304MHz types.
Please see my post here to help with the choices:98/90.xx vs 49/45.xxMHz
New S03 board has also the land pattern for NDK NZ2520 XOs. These have slightly better jitter performance than Crystek's 957 series in the audio band but still too early to say how the overall sound quality improvement will be like. I am using NDKs for the factory build unless you have other preferences
Settling time is <1s
Parts for S03 build are in stock. If you order now you can get this before Xmas
Will email shortlyThere are a few spare boards available from this batch.
S03 Bare board
Unit Price is USD 25.
Please be aware this involves sourcing and then assembling small/delicate surface mounted components. If you are confident of doing that then please PM me for ordering information. Otherwise please get the fully assembled unit
For those who have bought the new S03 'Black' you may get NDK ones from DIYINHK - super cheap @$8 but claims not fake!
The ones coming through my doors direct from NDK costs $30 for 45.xx/49.xxMHz and $40 for 90.xx/98.xxMHz - sample quantities.
Not sure why the huge price difference, possibly bulk discounts or regional pricing?
Heya Acko,
Thanks for that, how dare you be busy elsewhere! Are you expecting to have a life!
Shall be whacking an order through, just curious your thoughts on whether it is worth getting the single clocks or run with getting both the separate NDK and the dual clock NDK sample and figure a way to get them both to be swappable. There's some good English for you.
Thanks,
Drew.
Thanks for that, how dare you be busy elsewhere! Are you expecting to have a life!
Shall be whacking an order through, just curious your thoughts on whether it is worth getting the single clocks or run with getting both the separate NDK and the dual clock NDK sample and figure a way to get them both to be swappable. There's some good English for you.
Thanks,
Drew.
If your music or equipment is up to 192k I2S only, then consider 22.5792/24.576MHz crystals. These have even better noise specs
