Hello to all DIY Audio Hobbyist

I' m Spiri from AKOUO Audio Solutions and want to introduce our new company for DIY audio modules here.

We produce small audio modules at reasonable prices, to enable any DIY Audio Hobbiest the use some digitally controlled chips.
That is why we are here in the forum .
This forum has many bright minds, discussions on high technical level and the handling is very polite.

And of course we want to sell our modules.

Most of our products need a micro controller and we constantly expand our software.
This is also why we offered a programmer.

Our first 20 boards with the volume control Muses 72320 and the associated controller are done.

Visit us at Willkommen bei AKOUO

and please share your opinion about our products.

Have Fun and DIY

Last edited:
spiri

spiri

Member
Joined 2006
akouo.at
The final software for the AKOUO Volume and select board is now available.

Whats new:

Integrated IR receiver with learning capability - compatible to nearly all common remote controls
Mute" relais operation and control pin for external mute relais with configureable warmup time and IR remote mute
Standby" operation mode and control pin for external power relais controlled by the IR remote
Pass through option with fixed attenuation that can be configured for use with AV control amplifier

spiri

spiri

Member
Joined 2006
akouo.at

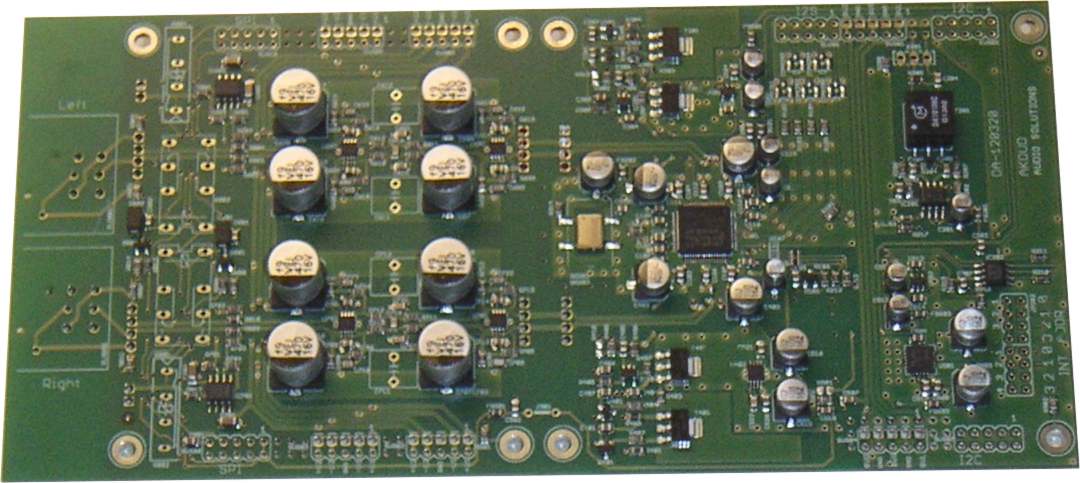

ES9018-Stereo DAC . Fresh from the oven

The first Stereo DAC Boards are ready.
Features:
ES9018 DAC in stereo configuration
4 Low Noise Voltage Regulator for all digital section
2 Shunts for AVCC
1 AES-EBU Input with Transformer
OPA1632 I/V-Converter and Line Stage, Muterelais, XLR,
Controlled with AKOUO Controller Board
Power supply with 4 Low Noise Voltage Regulator available.
Digital I/O-Board with AES-EBU, Spdif, I2S, USB-Adapter/Isolator coming soon.


Attachments

  • dac1.jpg
    78.5 KB · Views: 2,233
spiri

spiri

Member
Joined 2006
akouo.at
New Sabre ES9018 Controller Board

Hi Felipe, Hi Pinnocchio,

The software for the new Sabre ES9018 - Controller is now available.
You can find the detailed description in the data sheet on our website : Willkommen bei AKOUO
Features:

LCD Display to show input source, volume and sampling frequency
2 rotary encoders for volume, menue and input selection
All ESS8018 registers are freely configurable via RS232 operator interface
Up to 8 individual configurations selectable
Each configuration may be assigned to individual ES9018 register settings, output levels and configuration names
Muterelais control
Warmup time configuration
Standby function
IR - Receiver with learning capability

The Development of our new AKOUO Reference Stereo DAC is also finished. Because of the upcoming Christmas season, we can not start the series production before January.
For more information please visit our website.

spiri

spiri

Member
Joined 2006
akouo.at
Muses Mini Boards

AKOUO Modular Volume

The Akouo Modular Volume is a digital stereo potentiometer, based on the high-end volume control MUSES 72320 JRC.
Any number of modules can be plugged in after the other and controlled by a single controller. The small Module with a dimensions of only 30x40mm is easy to integrate into existing systems and replaces a simple potentiometer.

Details:
Dimension: 30x 40mm
Pluggable one above the other for multi-channel application
4-pin connector for MUSES control lines (SPI Bus)
Dual supply voltage + / - 10V* to + / -18 volts max.
Free mounting location to assemble additional voltage regulator 7815/7915
No amplifier and additional components in the signal chain
Internal 5V Bias for the Muses on board.
All SMD components assembled and tested for function.
LOW ESR electrolytic capacitors, MKP capacitor and headers included.

Price for DIY Audio GB: € 57 incl. 20% VAT. (Normal price € 68)
€ 47.5 without VAT outside the EU (about 65USD)
including PayPal fees.


AKOUO Controller MINI
AKOUO Controller Mini is a small CPU board to control the Muses Volume Modular board.
The controller can be plugged directly on the Muses board.

Details:
*
Dimensions 30x 40mm
Pluggable on Akouo Modular Volume board or connecting with 4 wires
Supply voltage 4 to 5V
Regulator LM7805 can be optionally soldered*
All SMD components assembled and tested for function
Additional Header to Control a 2x16 LCD
Free control lines for input selector and mute.
Two rotary encoders possible
I2C bus for port expansion and Sabre ADC-DAC control
IR remote control can be learned . Volume up/down* without serial* operator interface.
Programming connector for software change
Configurable via additional RS232 adapter (accessory)
All connections in 2.54 pitch for DIY applications (eg, prototype boards)
Software for Modular Akouo volume loaded.
Leaded components and headers included.

Price for DIY Audio GB: € 38 incl. 20% VAT. (Normal price € 48)
€ 31,67 without VAT outside the EU (about 43,5 USD)
including PayPal fees.



AKOUO Rotary Encoder

Extension Board for AKOUO controller Mini with a rotary encoder for flexible mounting on the front panel.

Details:
Dimensions 30x 40mm
Pluggable on AKOUO Controller Mini or connection with wires.
Alternative component placement for IR learning mode
Leaded components and headers included.

Price for DIY Audio GB: € 12 incl. 20% VAT. (Normal price € 14)
€ 10 without VAT outside the EU (about 13,7 USD)
including PayPal fees.


Attachments

  • Muses-CPU-Decoder.pdf
    73.2 KB · Views: 415
ghiglie

ghiglie

Member
Joined 2013
Hello spiri,
I came here while I was looking for a passive control volume... so this GB is really interesting!
I'm quite a "noob" in DIY, so I hope Im not confusing.
So, for 4 inputs, I'd need:

1 Controller MINI
1 Modular Volume
1 Rotary Encoder (volume and selection)

Am I right? I saw this pics on your site:

An externally hosted image should be here but it was not working when we last tested it.


But I thought you were using 2 controllers for 2 balaced in ( I wan to go for a single ended).

Thanks in advance!

EDIT: I'm sorry... as usual, I've asked before searching on documentation. :( Page 8 here: http://www.akouo.at/akouo/downloads/volume-select-datasheet-en.pdf :

• 1 x AKOUO Select & Volume
• 1 x AKOUO Controller Board with Software
• 1 x AKOUO Power M1 Supply
• 3 x Flat cable set
• 1 x Transformer 2x18V
• 1 x Transformer 1x6V
Click to expand...
So the encoder is in the Controller board, right?

spiri, when will this GB end? ;) I have to decide if I'll use a Hot Rodded DCB1...

Last edited:
spiri

spiri

Member
Joined 2006
akouo.at
You are right. Picture shows the volume and select.
If you build a preamp, this is the right solution.

If you only need a pot, the mini version the best solution.

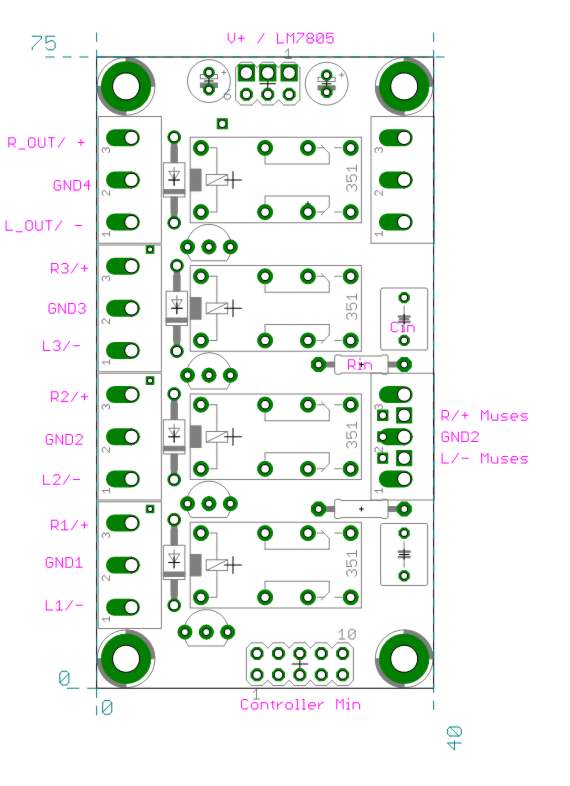

We will also prepare the software to switch input relays with additional pins on the mini controller.

I have to get the MINI Boards in the Shop and then the GB runs about 2 weeks.
Stay tuned!

The B1 with dual supply or a Joachim Gerhard filter buffer without the filter, as it is offered by EUVL in a GB, fits perfectly.
I think of something like that as pluggable add on board for the MINI Series.

ghiglie

ghiglie

Member
Joined 2013
spiri said:
You are right. Picture shows the volume and select.
If you build a preamp, this is the right solution.

If you only need a pot, the mini version the best solution.
We will also prepare the software to switch input relays with additional pins on the mini controller.

I have to get the MINI Boards in the Shop and then the GB runs about 2 weeks.
Stay tuned!

The B1 with dual supply or a Joachim Gerhard filter buffer without the filter, as it is offered by EUVL in a GB, fits perfectly.
I think of something like that as pluggable add on board for the MINI Series.
Click to expand...
Yes, my goal is to build a nice preamp, not aiming to highend since I'm very noob. Unfortunately I'll have to fit all in a GX283 box (23x21cm).
I admit that 4 inputs are quite too much for me, but as my grandmother used to say "to have it enough, you sometimes need to have some more to spare.
I'm building the Salas HotRodded DBC1, I think I can share the same dual toroid (but I didn't check it still).
As soon I get more info about the buffer, I'll PM you. ;)

NicMac

NicMac

Member
Joined 2009
Paid Member
spiri said:
If you only need a pot, the mini version the best solution.
We will also prepare the software to switch input relays with additional pins on the mini controller.
Click to expand...

If the mini version will also control input relays (through push function on the digital encoder pot - I assume) I will sign up for 2 balanced stereo sets (4 mini muses boards and 2 controller boards).
