900W H-class PA Amp with Limiter

[Parag99]

power transistor cofusion

TTC5200
2SC5200
KSC5200
which will be original they all are toshiba
my H900 not working even not starts calmly
my psu is 56-28-0-28-56 AC

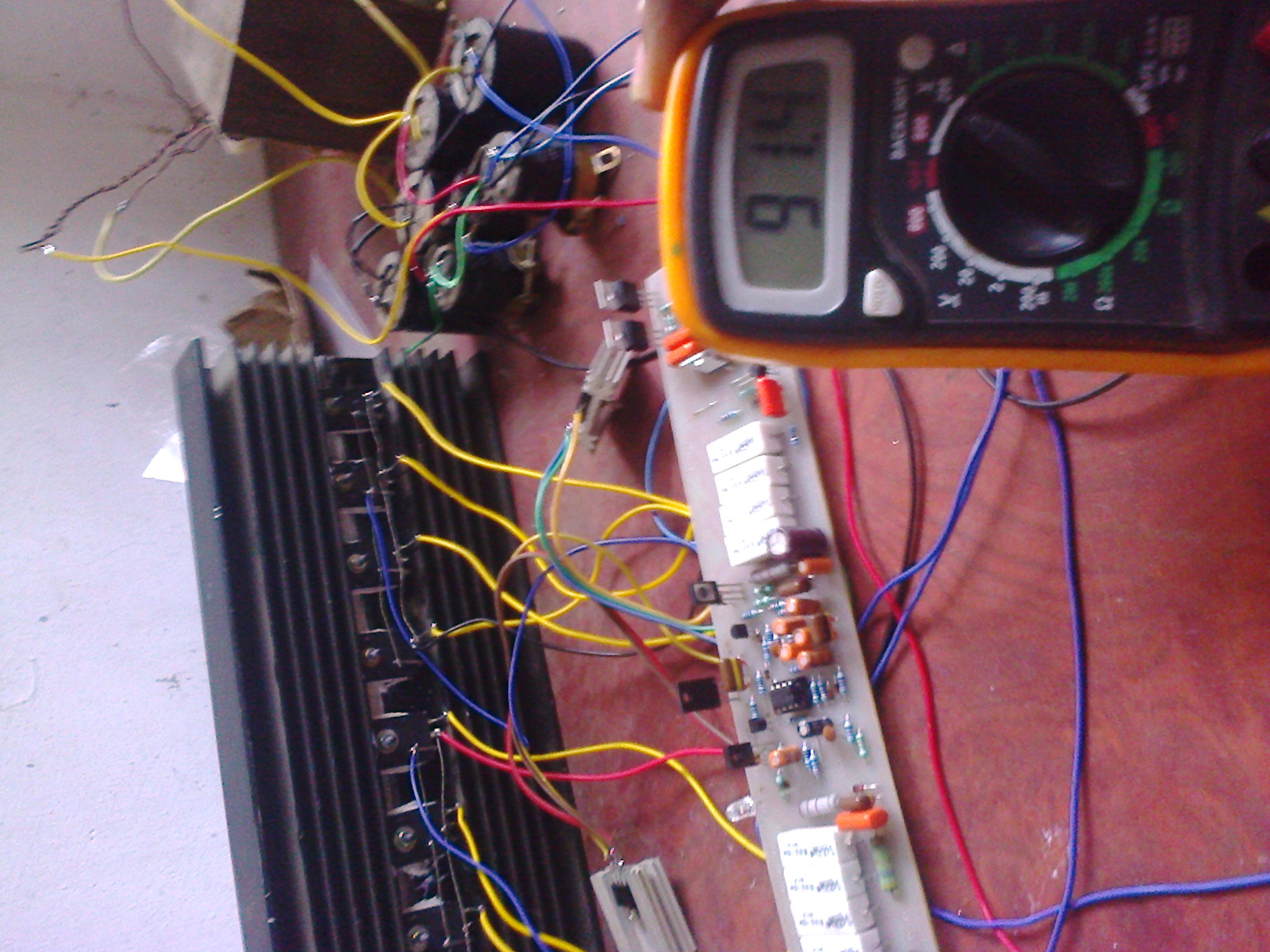

I will post some pics of them
pls help me I am..........



[DC sound]

hi Apex,
is it ok? to add more 2 pair of output transistor on H900? I would like to add more for sub application? Is there any changes in in step-driver? or please advise what modification to be made to achieve higher power rating? except for bridge mode
thanks...



[mihailo]

2SC5200 is original Toshiba.
Don't use KSC, already tried them FAKE.



[mihailo]

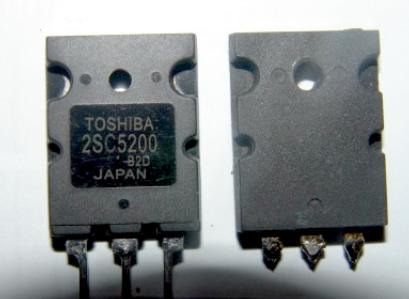

Look at picture, those are also fake.
And some that look like first transistor on picture, but have large letter f .



[apexaudio]

hi Apex,
is it ok? to add more 2 pair of output transistor on H900? I would like to add more for sub application? Is there any changes in in step-driver? or please advise what modification to be made to achieve higher power rating? except for bridge mode
thanks...

Use MJW21195/MJW21196 and no need to add 2 more pair.



[DC sound]

Use MJW21195/MJW21196 and no need to add 2 more pair.

noted.. & thank..



[sale030]

Can somebody share h900 TEF schematic?
Thanks a lot.



[sale030]

Is it possible to run H900 at 2 ohms using 4 pair of MJW21195/MJW21196?
What power expect?



[Parag99]

my H900
I/p 1.4 v 50Hz
o/p 91.5 v unloaded
psu (112.5-56-0-56-112.5)



[CIPRIANDRAGOS]

my H900
I/p 1.4 v 50Hz
o/p 91.5 v unloaded
psu (112.5-56-0-56-112.5)

how look the signal on output measured with oscilloscope because my H900 at 39.9Vrms have spikes (see post #2925 at page 293)



[Parag99]

I don't have oscilo.



[Parag99]

H900 3-tier

this question2 amp masters

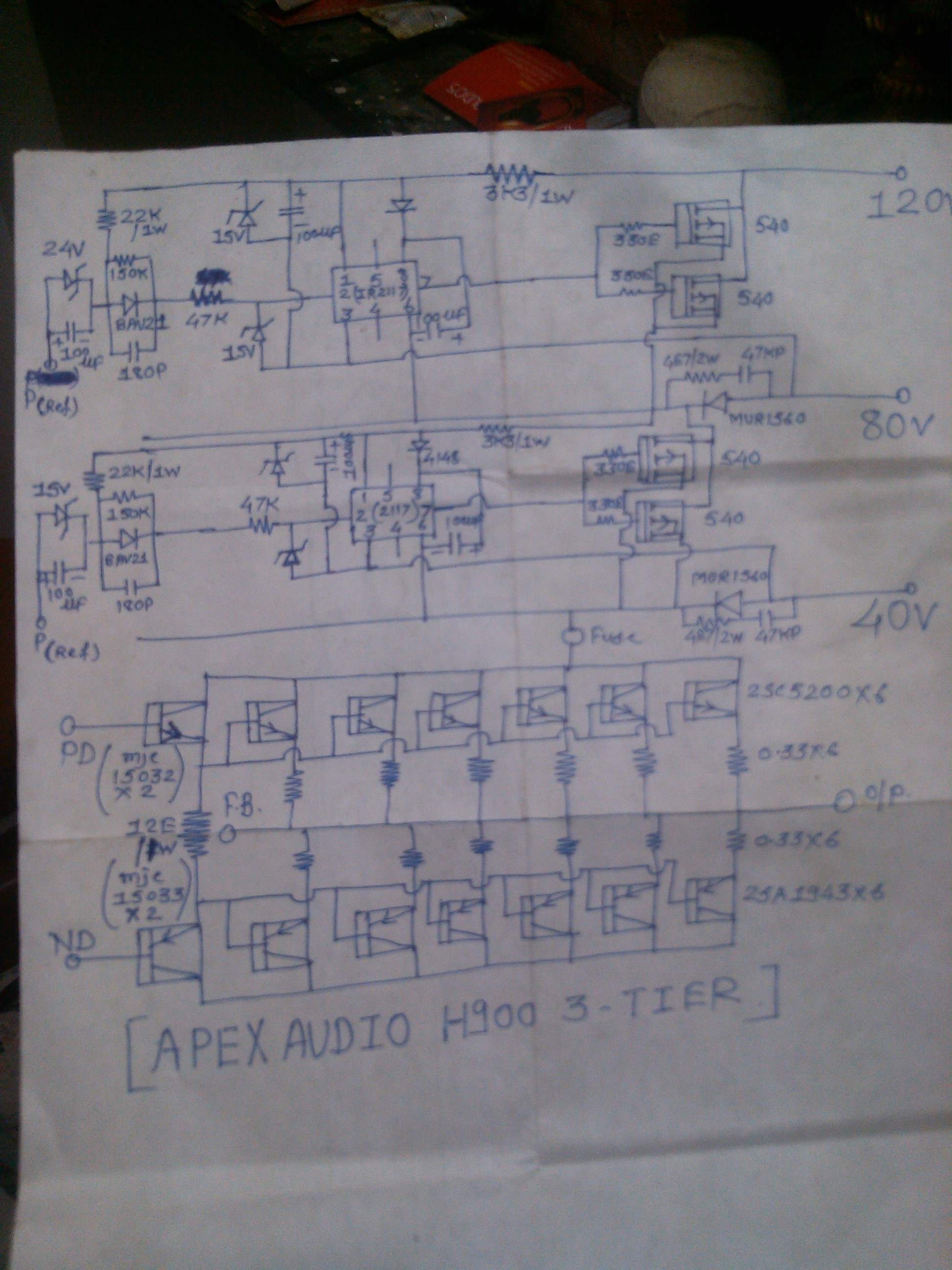

I made H900 3-tier
IS IT RIGHT?



[AndrewT]

my H900
.....o/p 91.5 v unloaded
..............

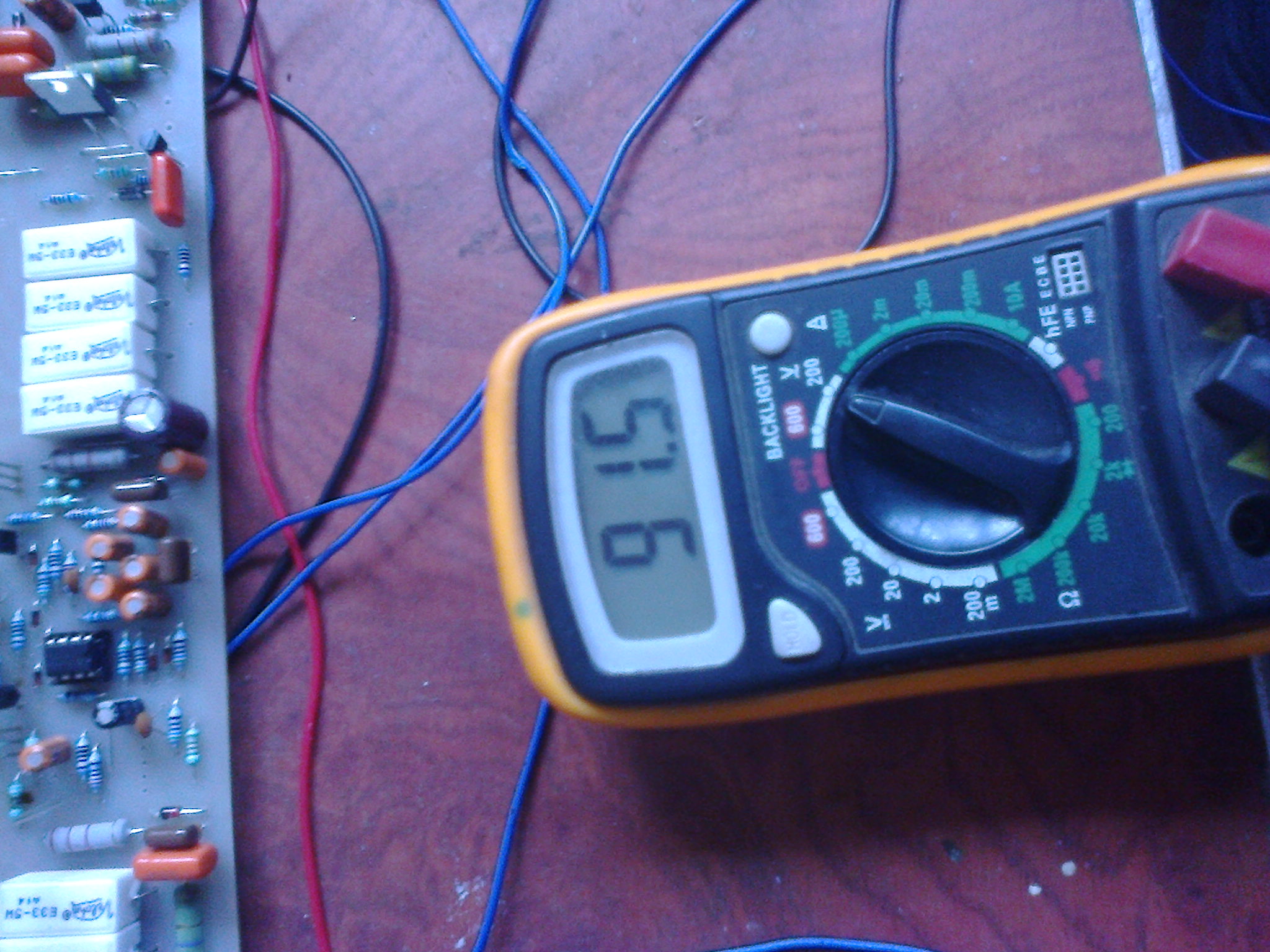

is this 91.5Vdc on the output? The DMM is set to DCV.



[Parag99]

we never will get 91.5 vdc unless output shorted
this is 91.5vac on out put
H900 will give 60vac on output with 0.5vac input signal(50Hz)
with 0.05% THD PSU IS112-56-0-56-112 vdc



[AndrewT]

If the supply rails are +-112Vdc, you can't get 91.5Vac from the output.
91.5Vac sinewave is equivalent to ~129Vpk !

o/p 91.5 v unloaded

What does your statement mean?



[Parag99]

unloaded means non inductive nor resistive load connected



[Parag99]

mile sir stated that if we r not using nsl32 and with LED we will get clip on 95vac out
means psu v must be 134.335vpp
but H900's peak psu is120 v then......



[AndrewT]

What you claim to have measured cannot be done.
You can't get 91.5Vac (=129Vpk) from a 112Vdc supply rail.



[apexaudio]

https://www.youtube.com/watch?v=FOHeBBpU-7A



[Parag99]

mile sir
pls pls pls check the post 2952
and tell me wrong or correct
