6.3VAC to 6.3VDC LDO supplies MIC5156 based tube amp upgrade.

[Bas Horneman]

Is there please a trimpot to finely adjust the output, please ?

Yes.

I have a 7 VAC/2A torroid output and need a lowdrop reg for a 6.3 VDC filament tube. Has my torroid traffo output voltage enough to use your reg?

Yes.



[diyiggy]

@v4lve lover ,

Thanks to Bas's answer, I will be glad to have one (France) assembled please.



[Bas Horneman]

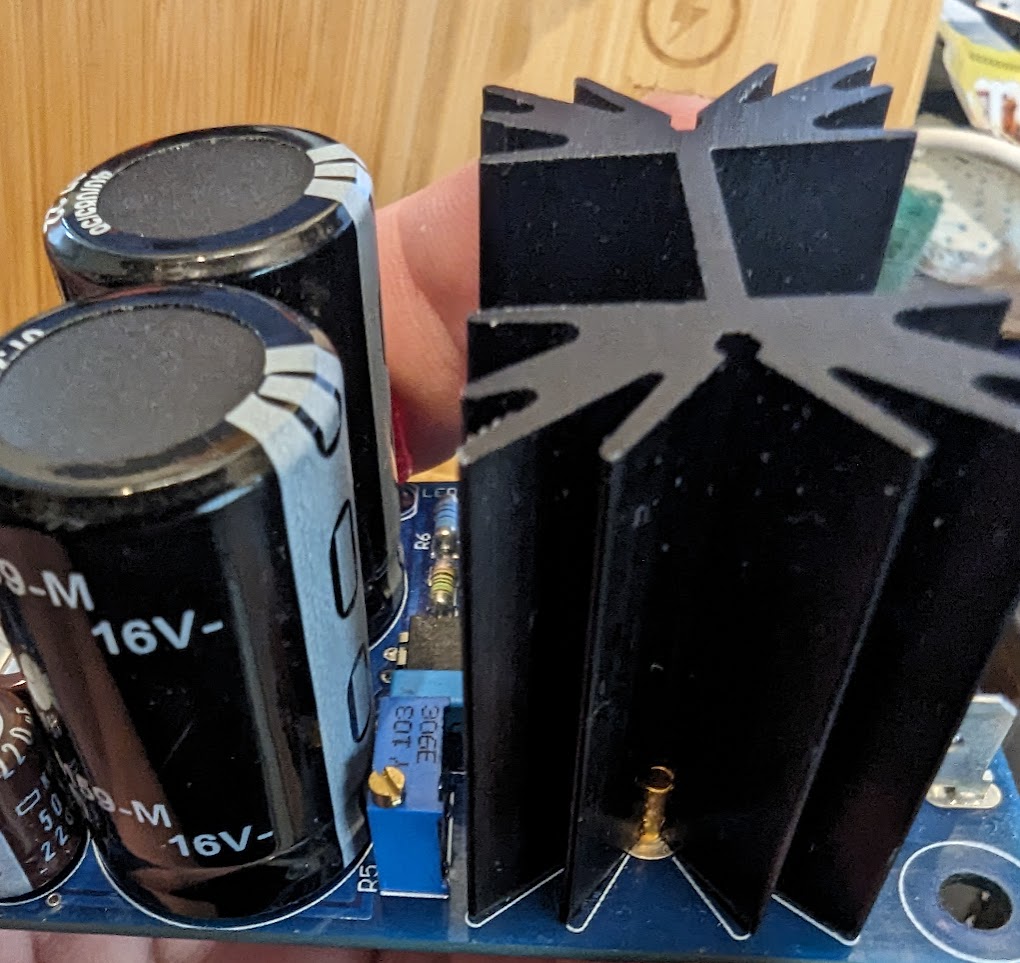

The trimpot



[platon.rado]

I use LM338 for 2 pcs ECC99/800mA And for cooling I need 8x8cm with a thickness of 1cm.How can a 4cm cooler cool 2.5A???

Thanks



[v4lve lover]

because dissipation is only 3W at that current.

With 6.3VAC input, you are looking at 7V rectified, and the module works with very low input-output voltage.



[platon.rado]

So at 9V AC the module is unusable ??



[v4lve lover]

No, but the maximum current is lower than 2.5A, more like 1A at 9VAC in, and the cooler will get very hot.



[platon.rado]

Thanks



[soulmerchant]

Hey. I just want to advise that I bought 4 of these and they are stellar. THANKS.



[v4lve lover]

Thank you!

I will be building five more the coming weeks!

Cheers,
V4LVE



[v4lve lover]

3 sold, and the sale of the last two is pending.

cheers,
V4lve



[v4lve lover]

All sold, next batch will be when MIC5156YN is back in stock.

Cheers,
V4LVE.



[platon.rado]

Why do you have marked D3,4,5,6 as zener???



[v4lve lover]

Those are skottkey diodes from eagle standard library



[platon.rado]

ok



[platon.rado]

Value R1 ???

Thanks



[v4lve lover]

10-100R



[platon.rado]

Thanks



[snapper]

Value D3-D6, D2, C7 ???

Thanks



[platon.rado]

C7 100n
D3-D6 skottkey diodes 1N5407
D2-1N4007
