100W Ultimate Fidelity Amplifier

[chermann]

...
nobody?
....

....?



[chermann]

sorry....i am interested in FX4 gerber



[mira1]

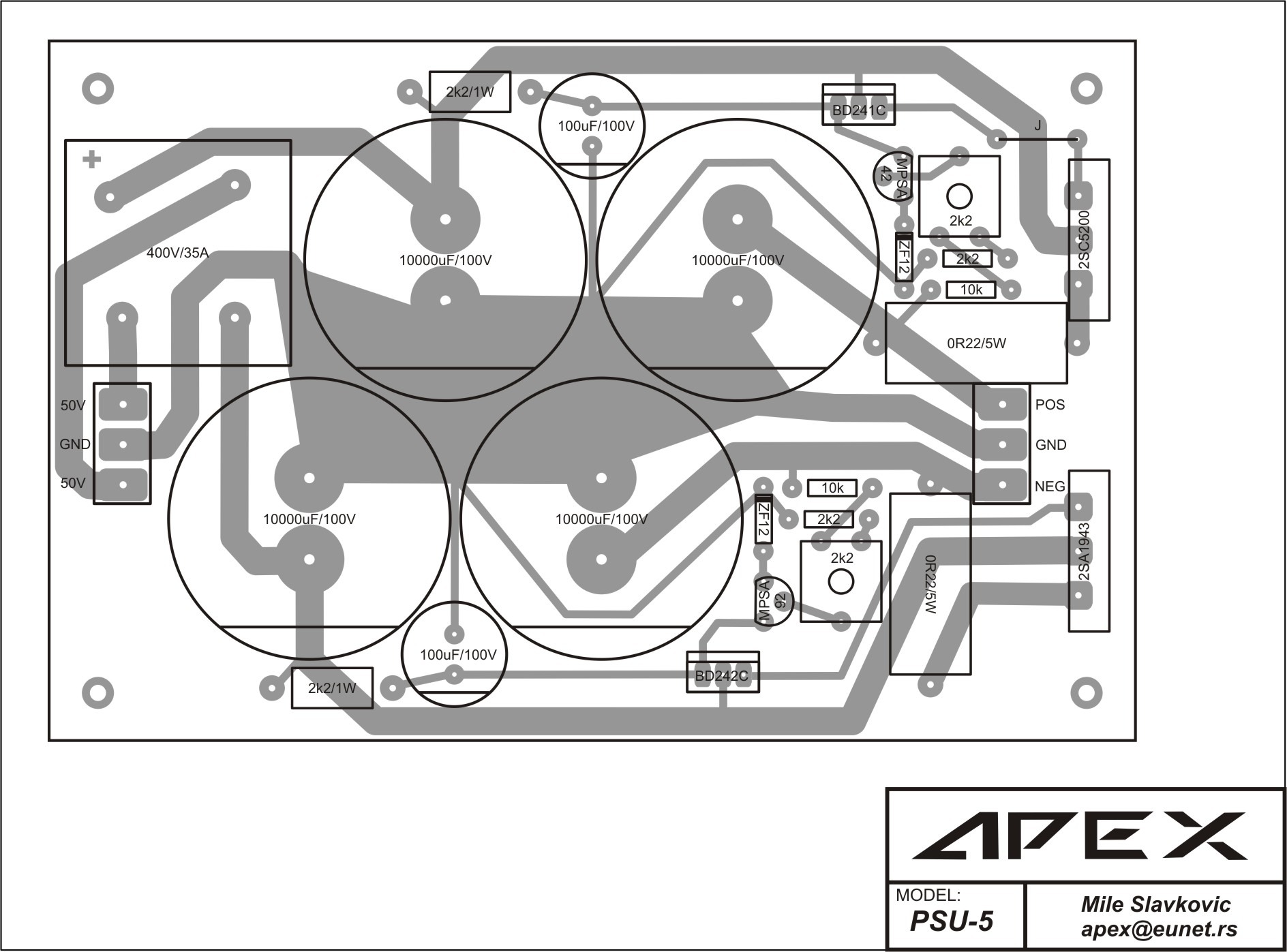

Hallo, please I need help with PSU 5, dont work regulator. Im using 35 VDC and I change zener diode an 6V2, but dont function. Must I change next component? Thank you.



[bullittstang]

Can you post schematic if PSU for clarity?



[mira1]

Hallo, thank you your answer. I used layout page 134, #2,677. I am sorry for me English.



[mira1]



[mira1]

I have the answer, I have to use even smaller zener. I found the answer on the page 502, where Mrs. Mile points out this problem. I'll try and let you know.



[44250]

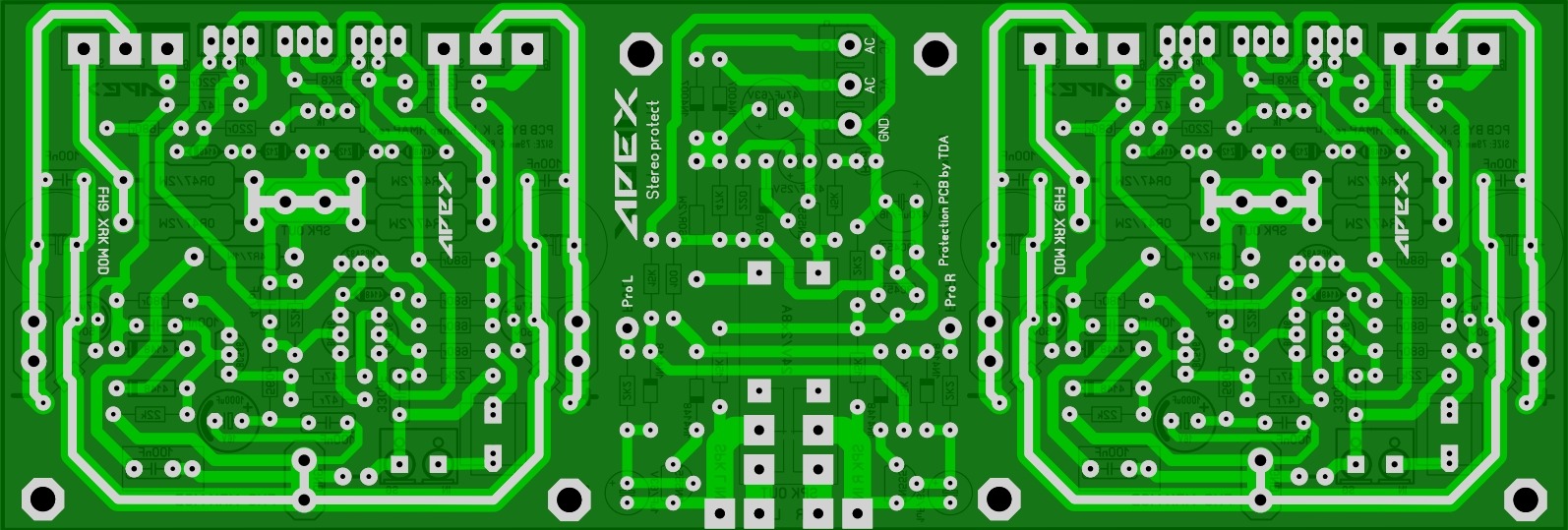

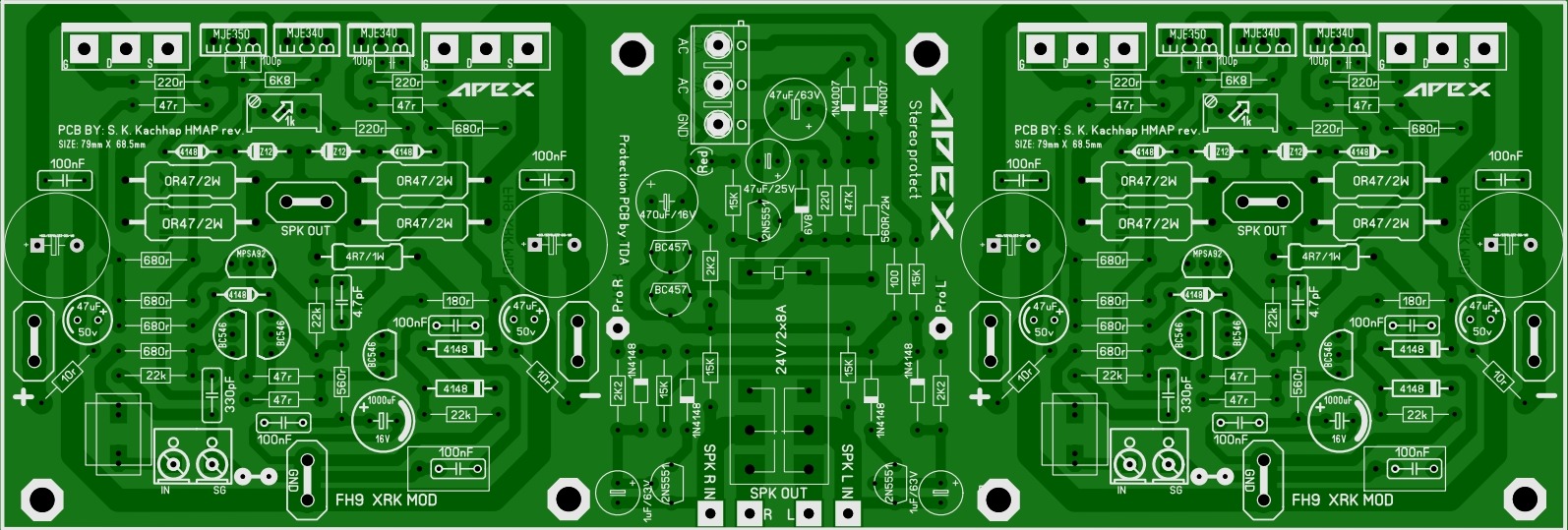

FH9 "Chopper" PCB - made from pcb*s of other members



[hassan4119]

APEX TB3 incrase gain!!!!!
Hi mr mile
I made apex tb3....bass mid and trble very nice and deep.
But i want incrase outpot voltage...almost 3 volt....how can i do it in tb3?
Tb3 is beetwine usb player and power amplifier.



[mihailo]

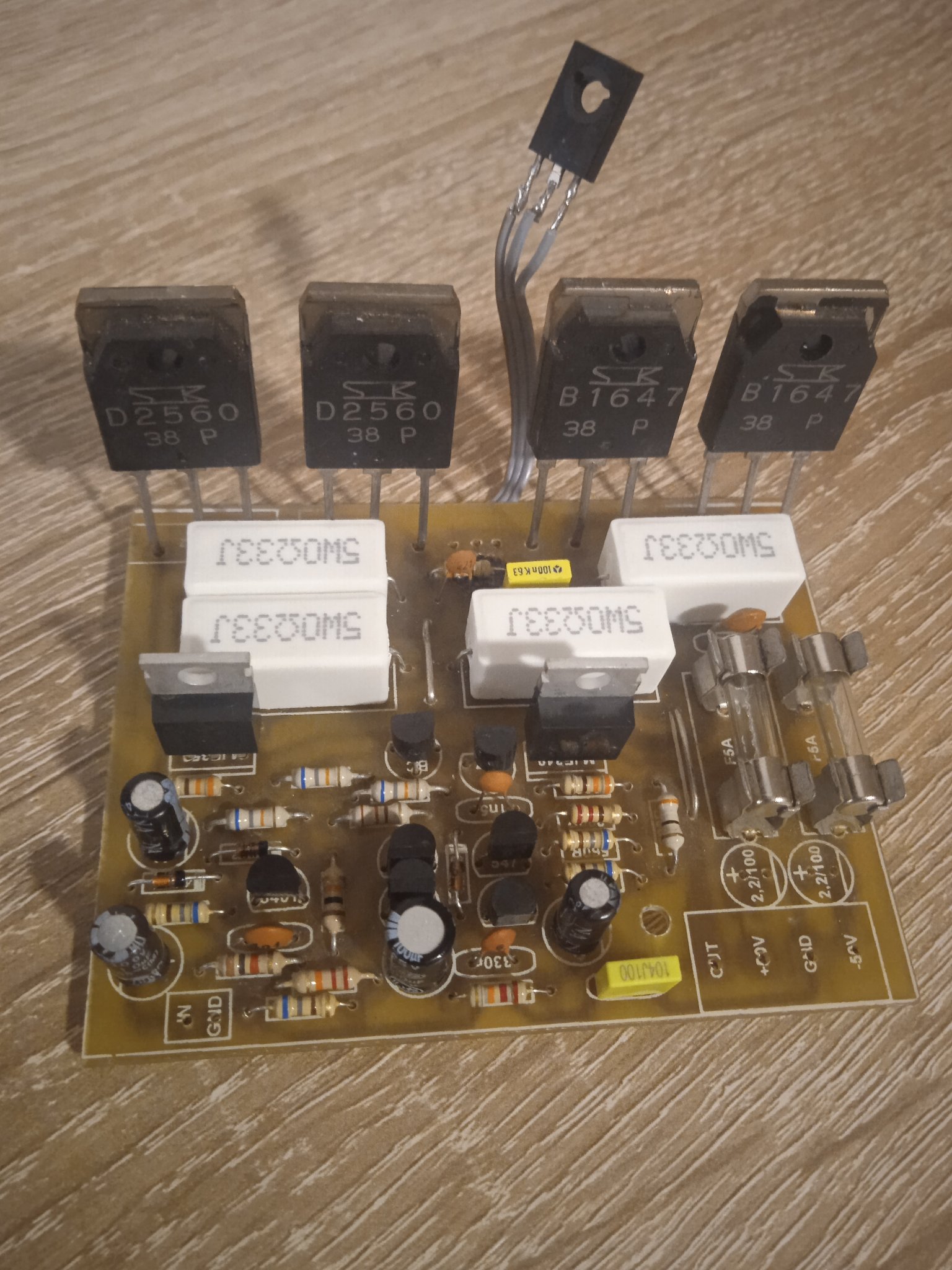

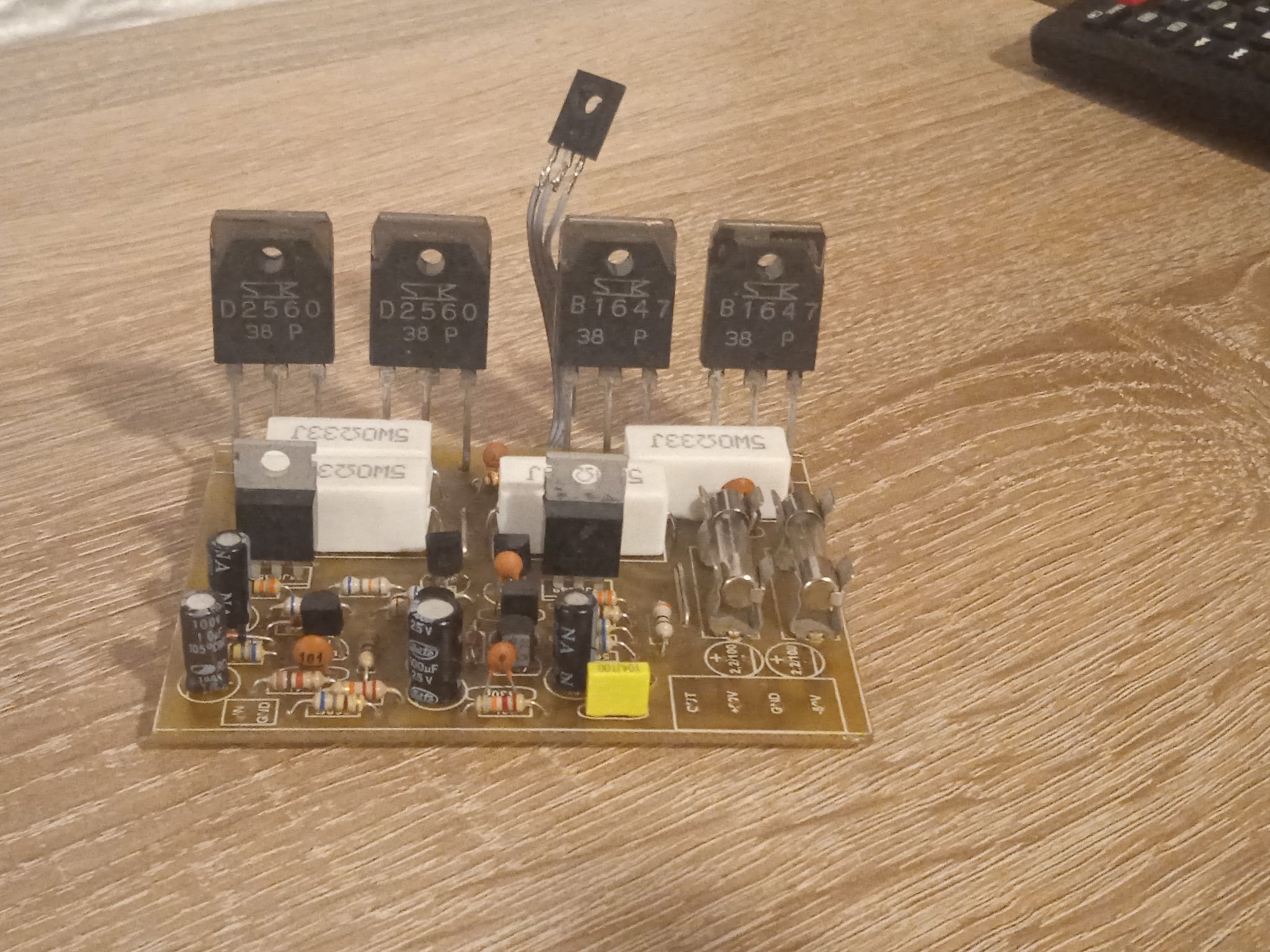

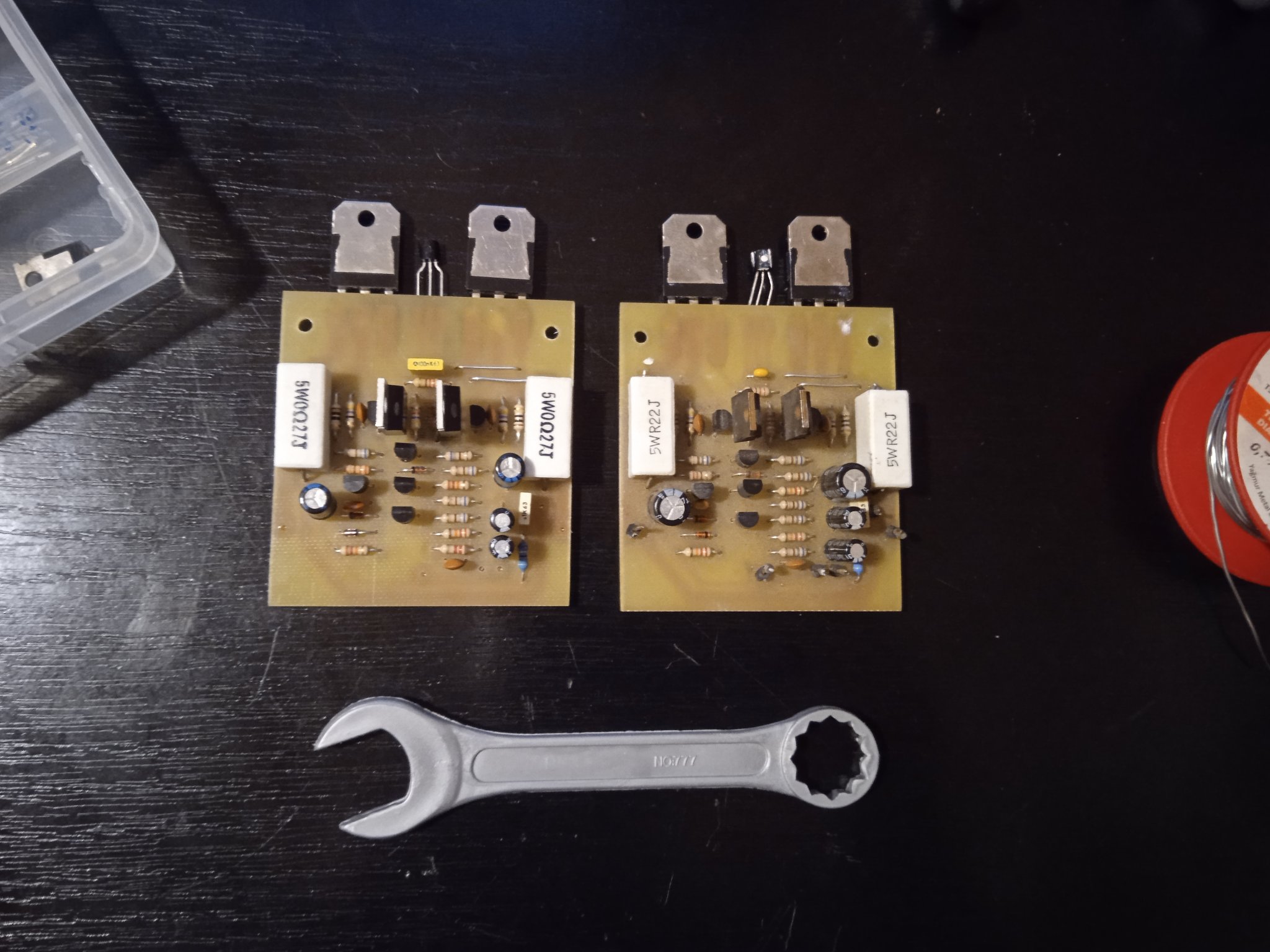

My D14, with 2SD2560/2SB1647 great sound



[mihailo]

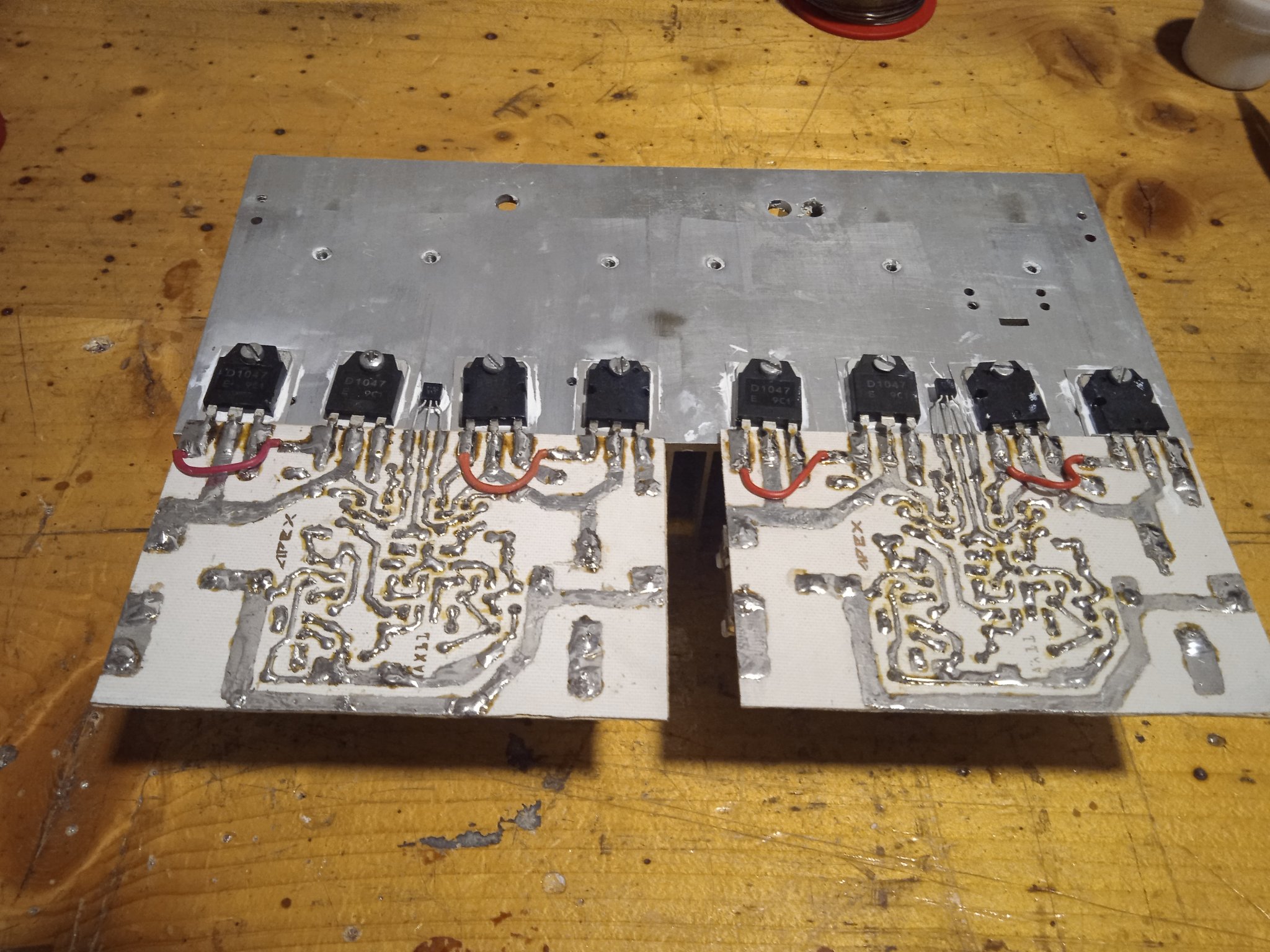

AX-11, two pairs 2SD1047/2SB817
AX11, one pair BD249C/BD250C



[sagnikoni]

Hi. Is their any pcb layout for Tip142 and Tip147 Darlington pairs?
i have tried a circuit from internet but its output DC.



[alain98]

Hi mihailo, nice work!
What about the compared musicality of these three amplifiers?
And also what PBS did you used?



[mihailo]

In my opinion D14 is the best choice.
I added another pair of output transistors to the AX-11, and a couple more volts, but no difference.



[mihailo]

Hi. Is their any pcb layout for Tip142 and Tip147 Darlington pairs?
i have tried a circuit from internet but its output DC.

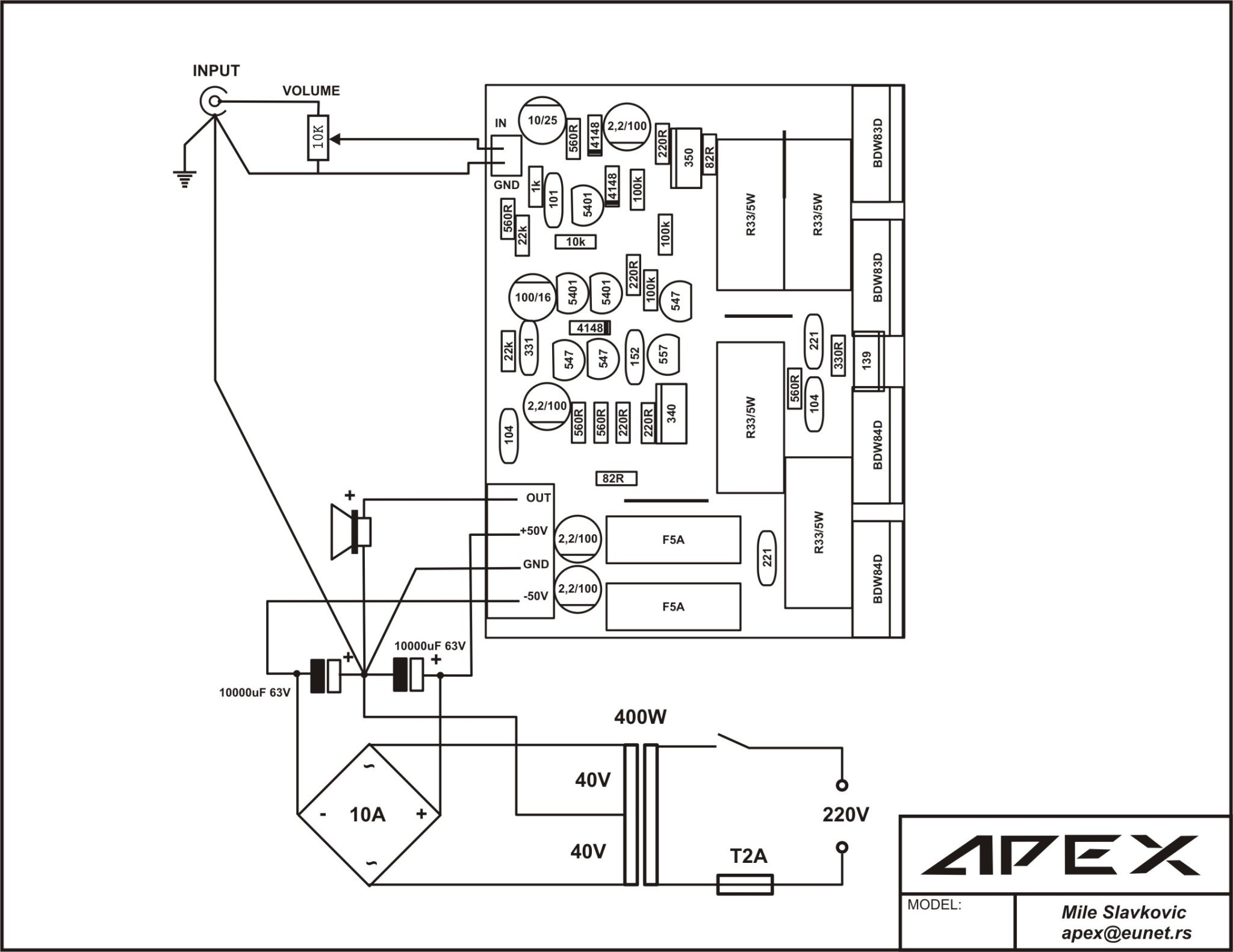

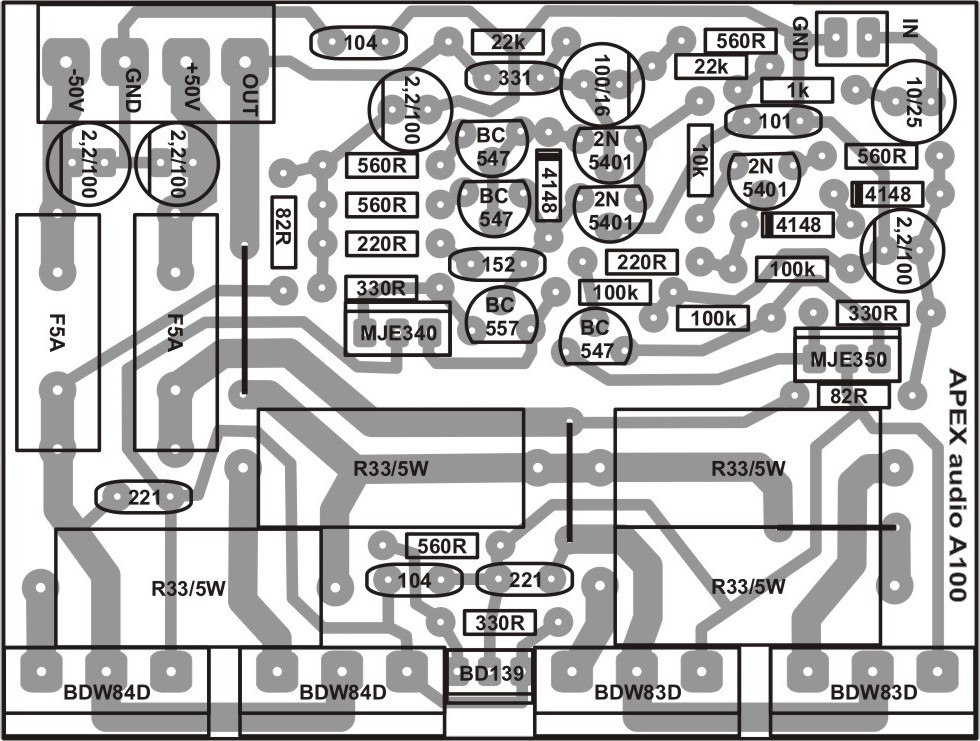

Connect like this. This is a 100% correct circuit, made over 10 pieces



[alain98]

I made a mistake in my post. I wanted to ask: what pcbs did you used?
I am sorry mihailo!



[sagnikoni]

Connect like this. This is a 100% correct circuit, made over 10 pieces

Thanks for your response .
I need a circuit for 1Pair (100W).



[sagnikoni]

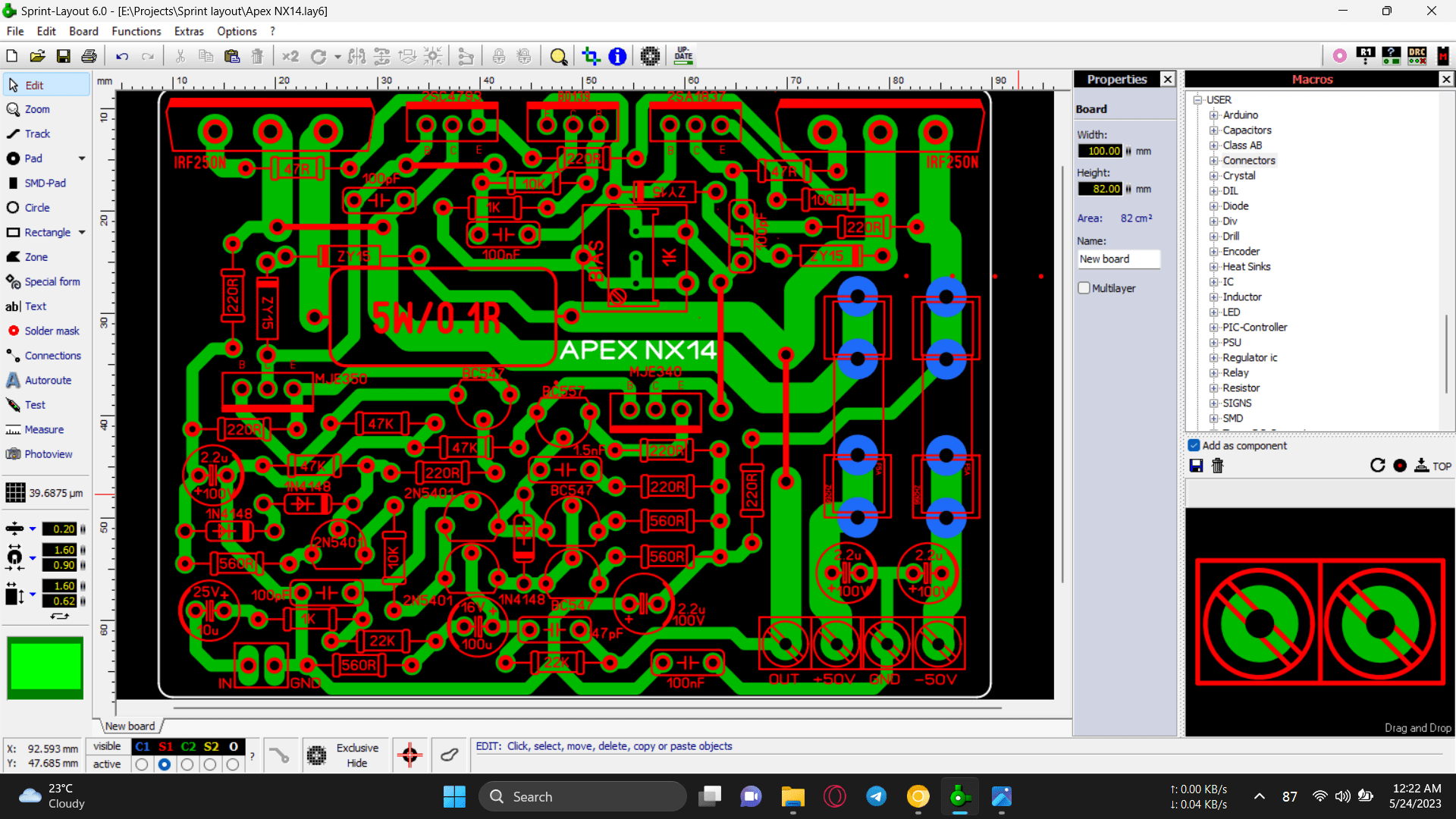

Can someone who build NX14 can verify this circuit?

TIA



[ilorev]

Hi

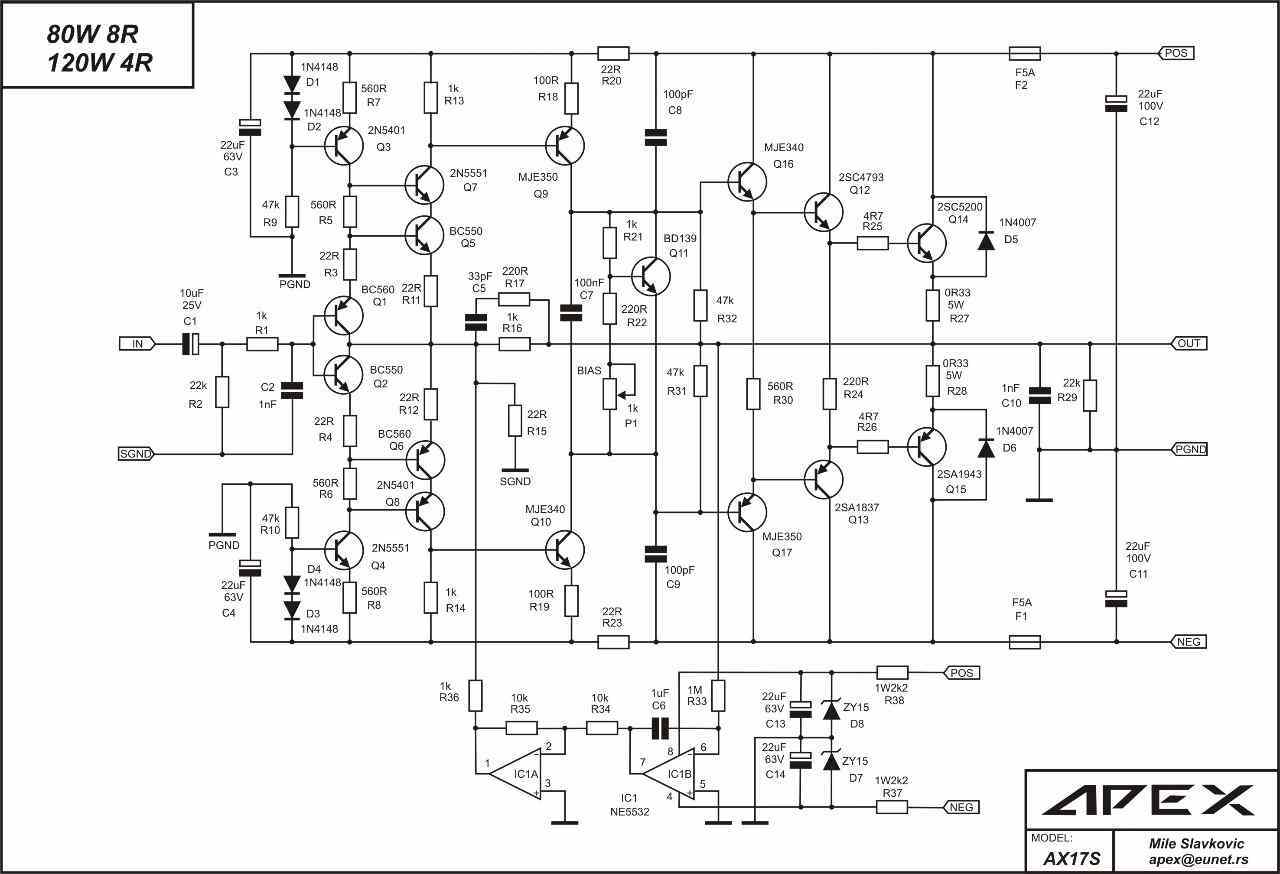

Where do I find AX17S schematic and pcb
thanks



[alex mm]

Hi, ilorev, have only , schematic for AX17S .
