1000W Simple PA Amplifier

[Driex]

i can't post with high quality. limited size picture. maybe this picture can help you. regards


1. relay 12VDC, rating ampere lupa bos.
2. u can use anything small transistor for Q1,but remember of NPN. for Q2=tip32 / anything PNP.
3. sensor fan, no use. automaticaly detect from out amp.
4. NTC 10K to heatsink, heat protect. but this protect work fine without it.
schematic of sensor fan attached.
thx. regards

Thanks you sir...



[DC sound]

Hi Mr Apex,

I would like to ask if I can use two 45v-0v-45v AC for my BA1200? what is the maximum rail for BA1200?



[apexaudio]

Hi Mr Apex,

I would like to ask if I can use two 45v-0v-45v AC for my BA1200? what is the maximum rail for BA1200?

+/-110V DC



[Vostro]

Hi DC are you using 8R or 4R load.
What output transistors are you using,
Maybe you can get away with using less outputs on this voltage



[rohin]

hi, where is pcb file of this ba 1200 amplifier.i want to make this.



[khalsa]

rohin pls read all thread



[apexaudio]

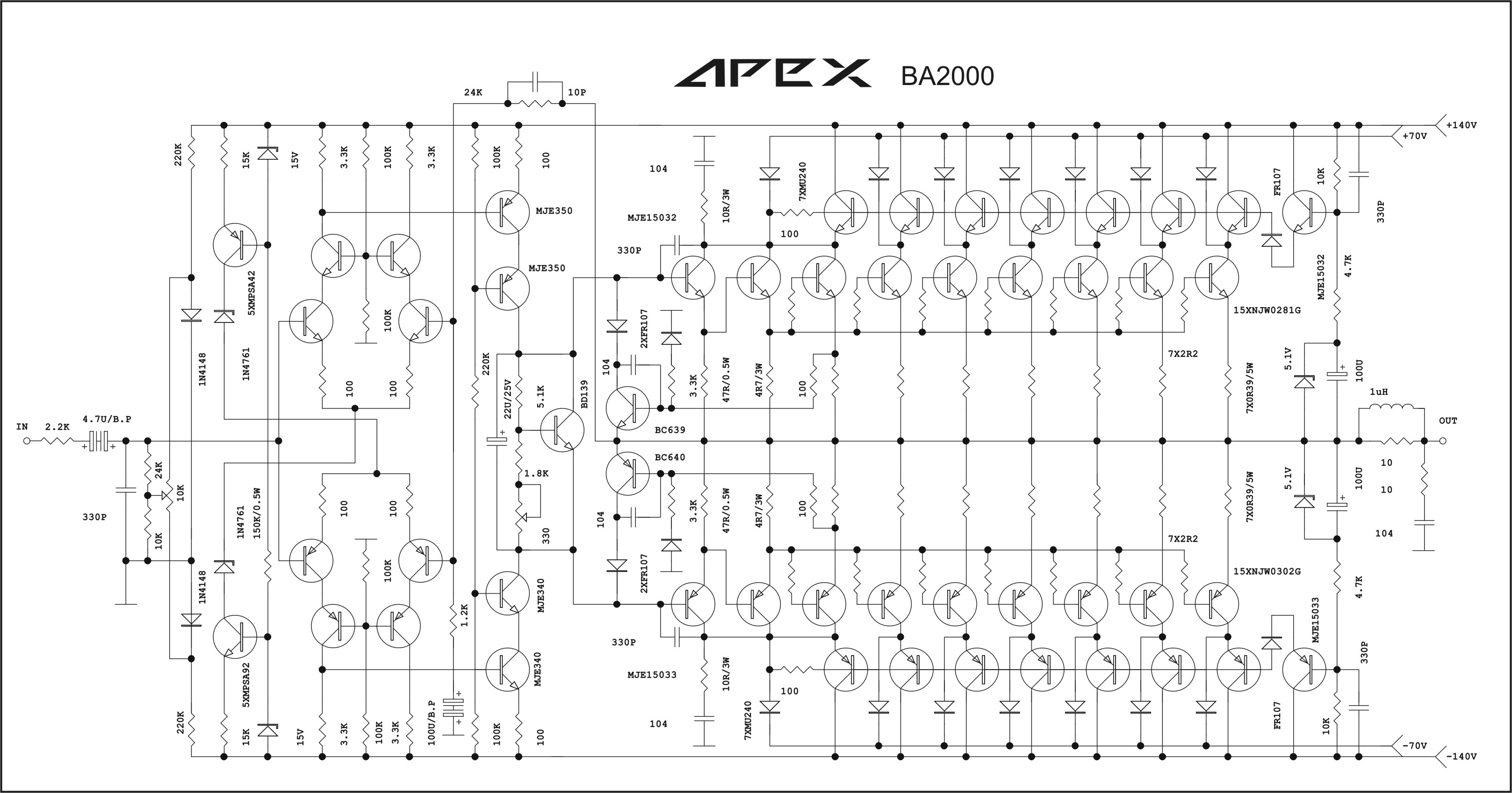

BA2000



[apexaudio]

BA2000



[dovizci]

pcb please pcb please pcb please....



[wiljj78]

BA2000

Awww... Kinda monster class T amp.?



[dovizci]

Can we use different parts like 15023 at output. 0281-0302 are hard to find Sir.



[apexaudio]

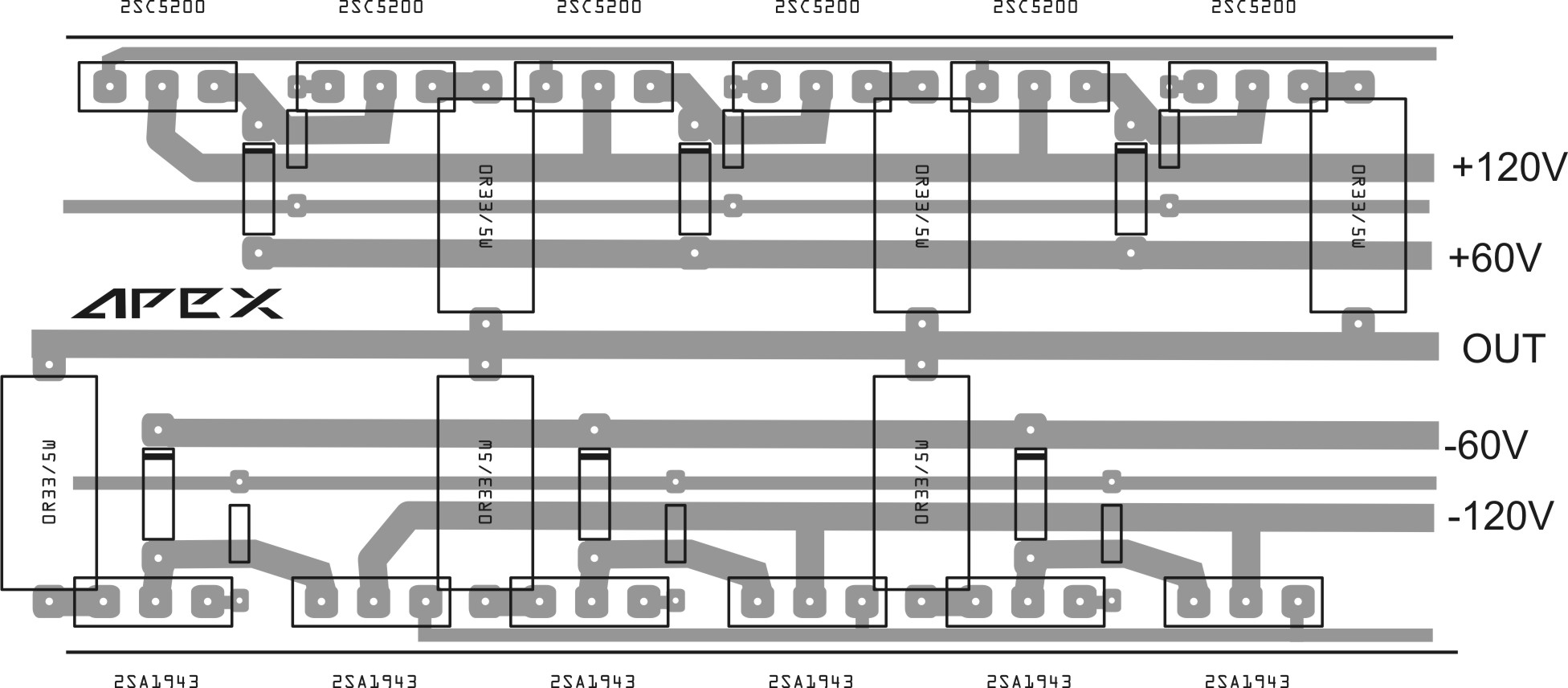

BA2000 pcb idea...



[nugroho]

Very good mr MILE



[vedmitraa]

BA2000 , when it is being launched Mr. Mile.



[sajti]

BA2000

Looks nice, but it can be improve with some small changes, like Crest.

Sajti



[apexaudio]

Pcb size 390x75mm...



[DC sound]

BA2000

waiting for PCB, hope sir willy will make one.



[rohin]

hi apex audio i want soft start circuit pcb layout file which i didn't find. you are doing a great job.love you.



[Ricdelros]

BA2000....Looks like Proline T-Amp.



[sajti]

BA2000....Looks like Proline T-Amp.

Yes, but Stage Accompany did some amplifiers, with same configuration too.

Sajti
