ACP+ Preamp/HPA for Yarra Preamp

Founder of XSA-Labs
Joined 2012
Paid Member

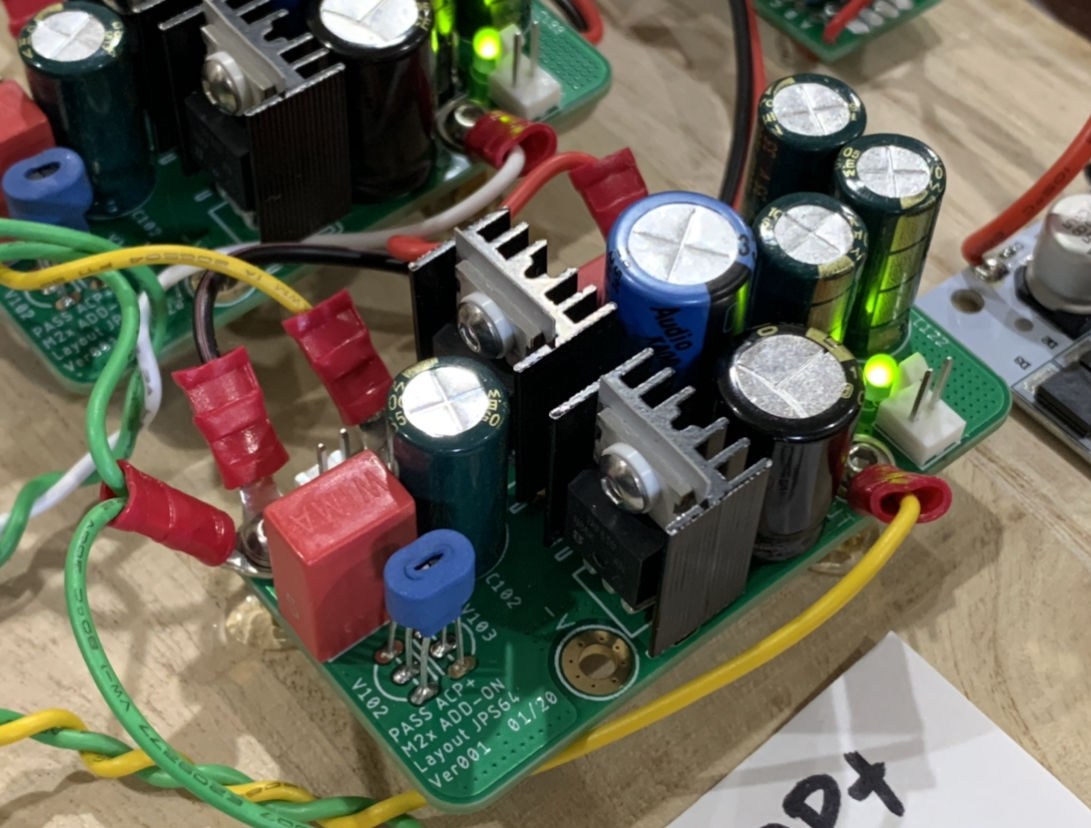

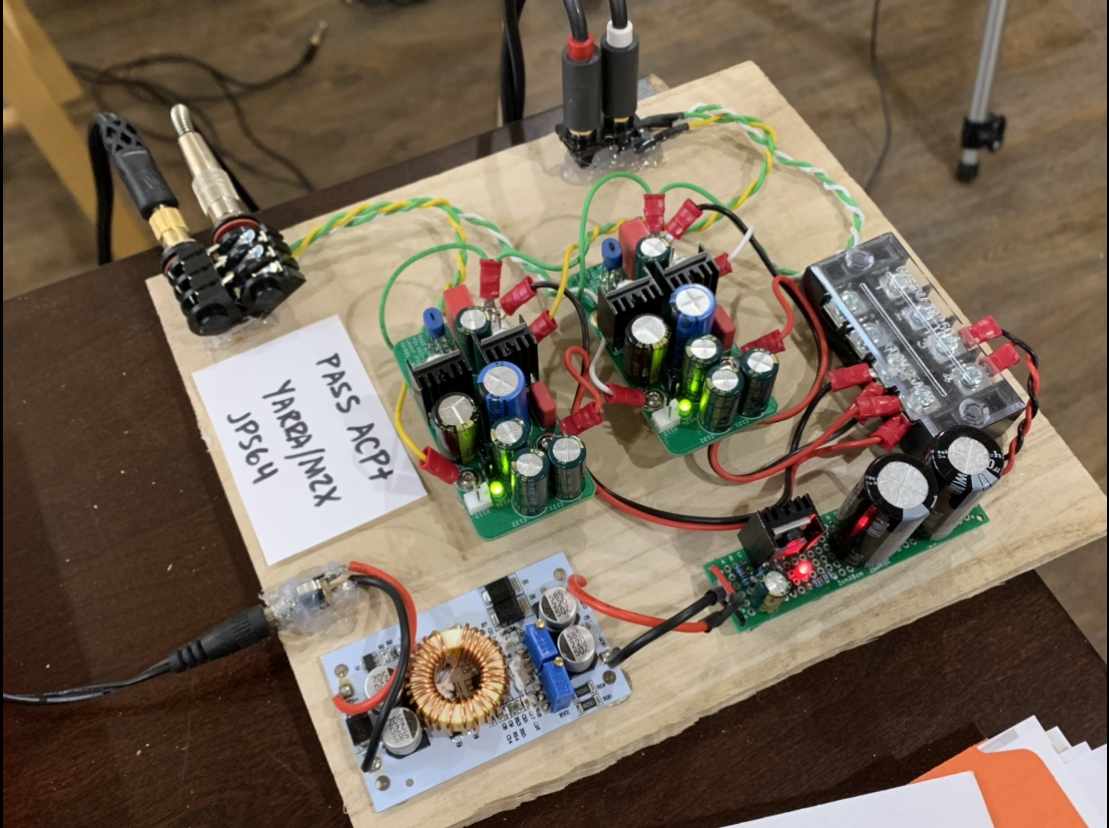

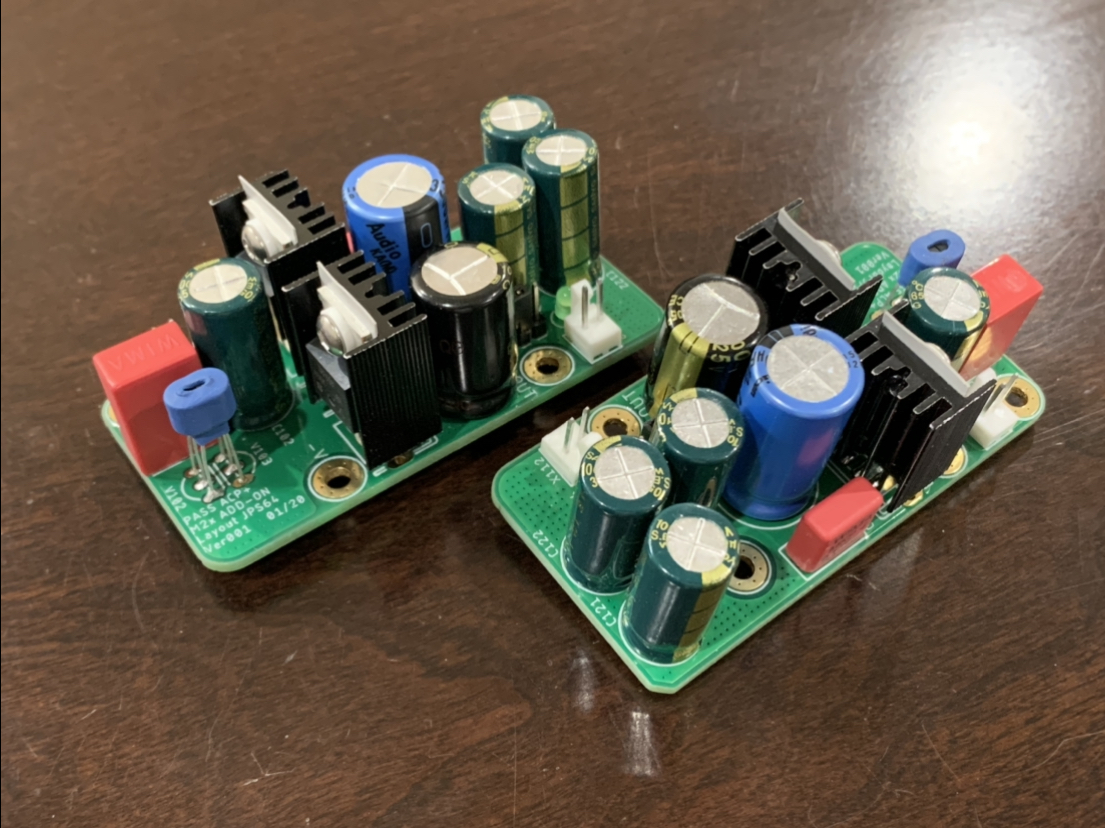

Vunce and I have both built the verification boards for the Pass ACP+ preamp / headphone amplifier in Yarra daughterboard format. This format also is compatible with the M2X amplifier front end bolt holes. Requires +24v supply and can be used as a standalone preamp/HPA.

850196d1591382163-acp-preamp-hpa-yarra-preamp-39b72e46-5acd-4973-891f-74e592e7a373-jpeg

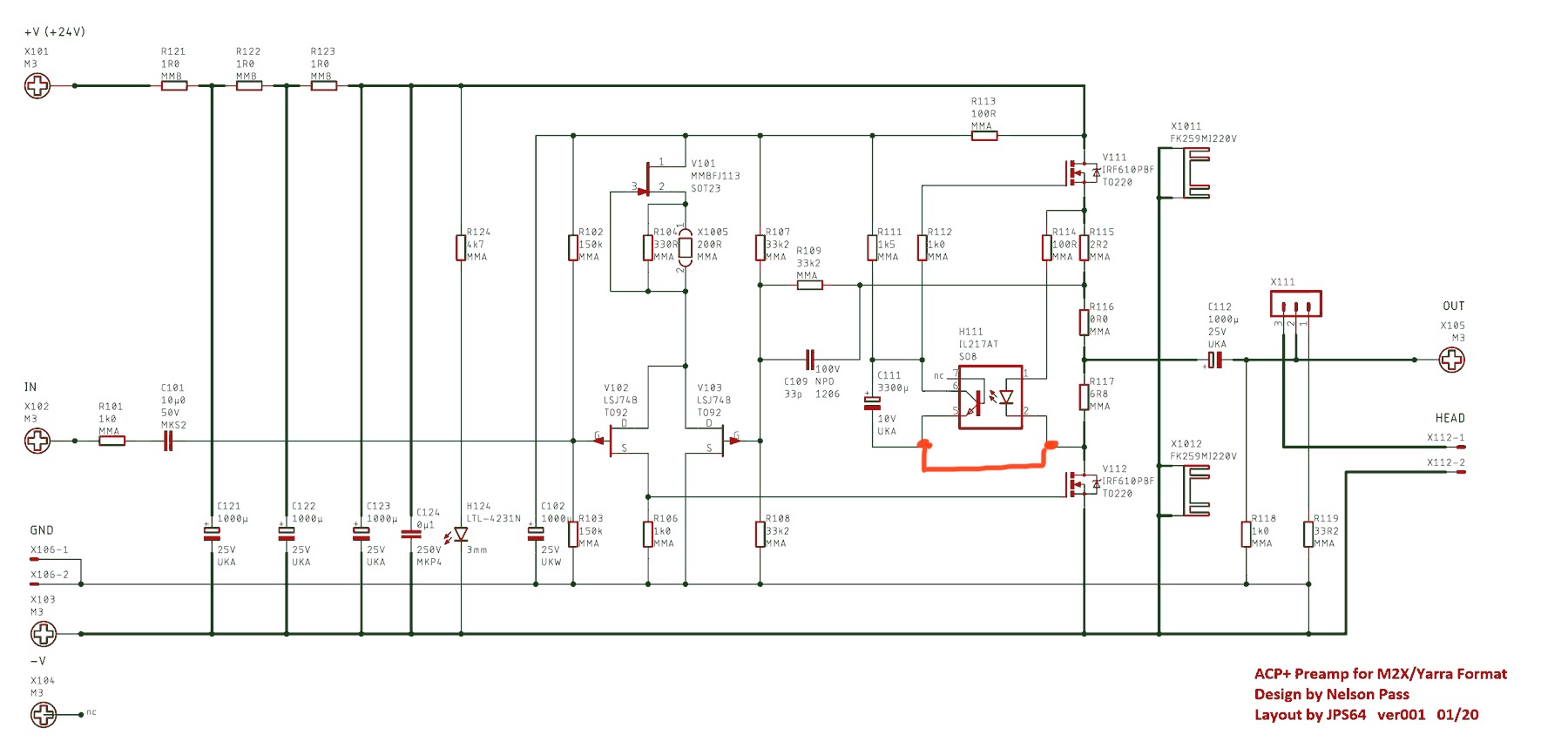

The design is basically a miniature Aleph based output stage with a Aleph J or J2 front end (?). It sounds super and is very powerful with deep bass authority. A very nice sounding preamp that has tons of headroom. You will enjoy the sound immensely.

It is a mostly SMT layout in order to make it small enough to fit in the Yarra/M2X board format. However, the small tight layout contributes to an exceptionally low noise and great sounding design.

Thanks to Mr Pass for giving us the go-ahead to make this design for the Yarra/M2X. Thank you to JPS64 for another superb layout.

850191d1591381643-acp-preamp-hpa-yarra-preamp-a8615980-036f-4f9d-a6dc-e61b464e7678-jpeg


850192d1591381642-acp-preamp-hpa-yarra-preamp-5d51f614-0d4a-4d5d-891f-693e6136ca2e-jpeg


850193d1591381643-acp-preamp-hpa-yarra-preamp-4b5bb8a8-f385-4509-b706-233e3020cfd2-jpeg


850194d1591381643-acp-preamp-hpa-yarra-preamp-b7be5c1c-71ec-47f3-bc67-36247cc41fd4-jpeg


850195d1591381643-acp-preamp-hpa-yarra-preamp-9e98928d-b6a6-4d8d-ae46-b2ea5b252af9-jpeg

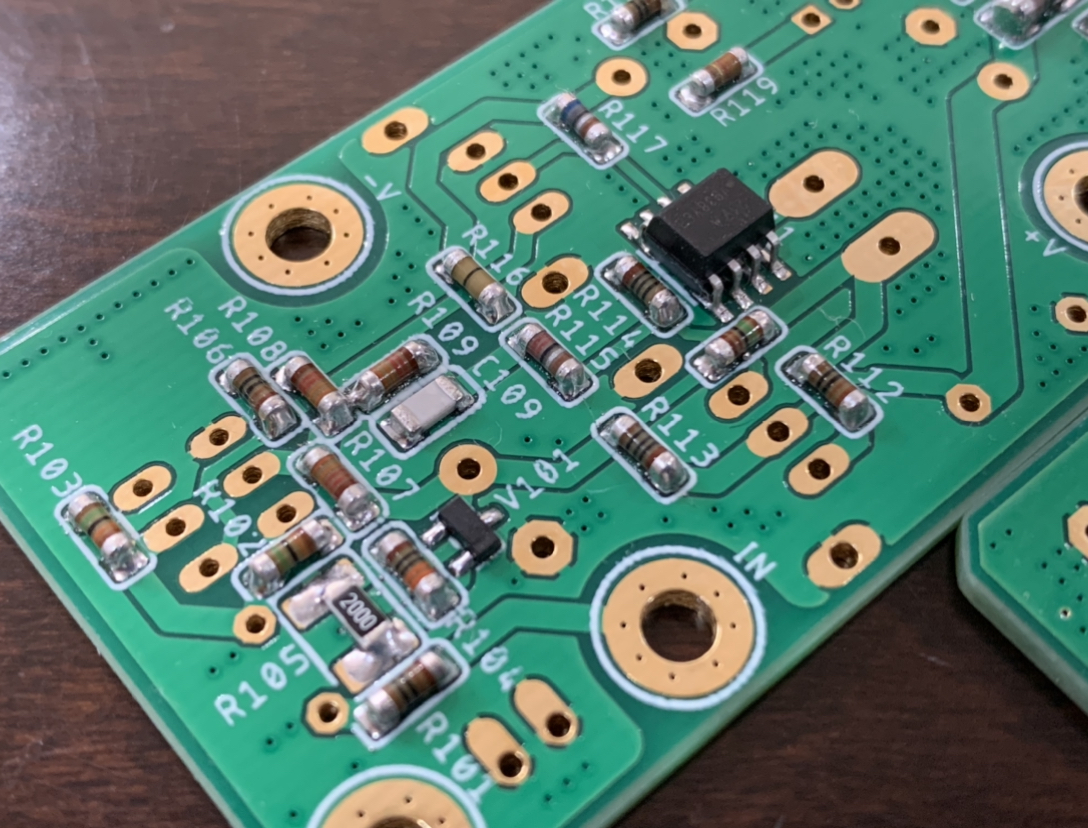

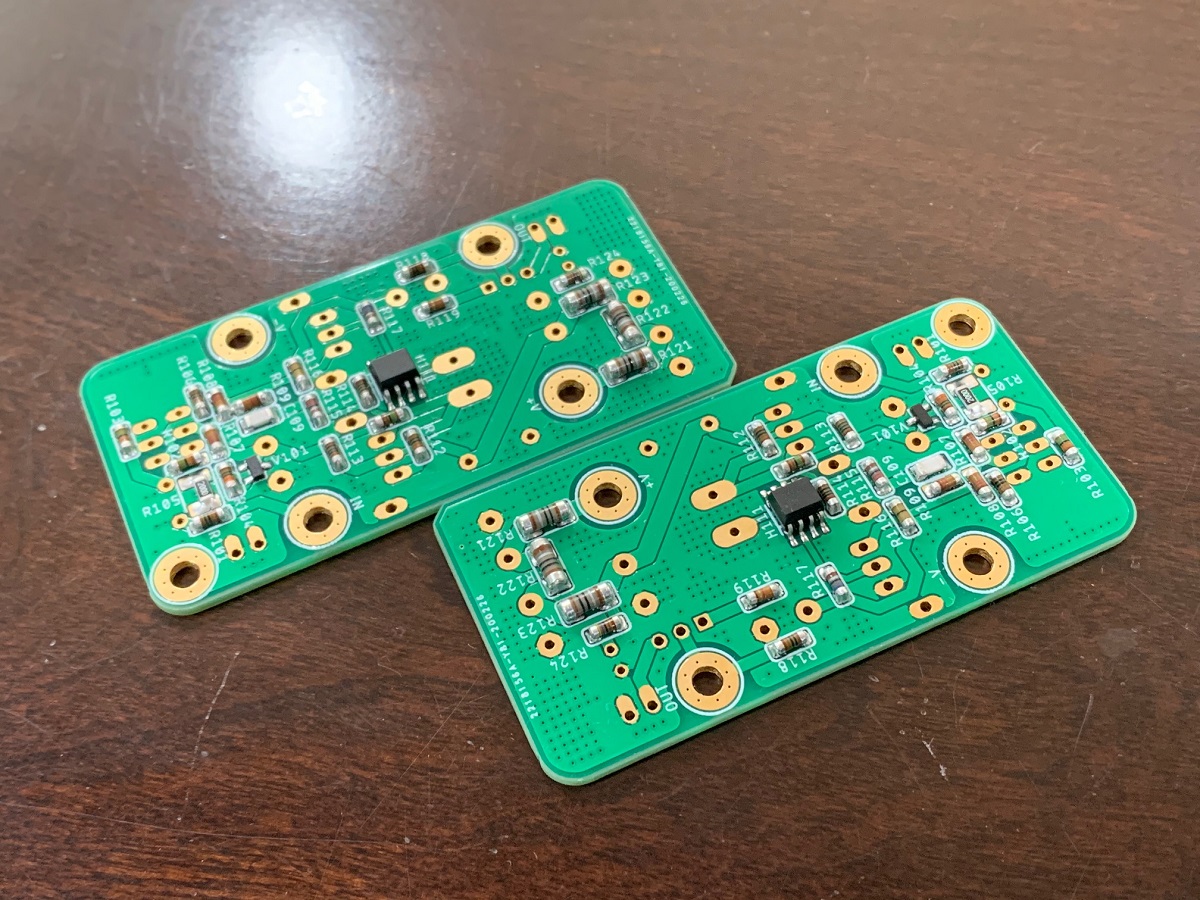

Please add your name, number of boards, and country to the interest list below if you would like to see a GB for this happen. Boards will be the usual price of $12 each and 1.6mm thick 1oz copper, ENIG finish. Green solder mask.

GB Interest List:
For example...
JohnDoe / 2 boards / USA

Edit Dec 24, 2020: BOM is here https://www.diyaudio.com/forums/attachment.php?attachmentid=904464&d=1608844039
