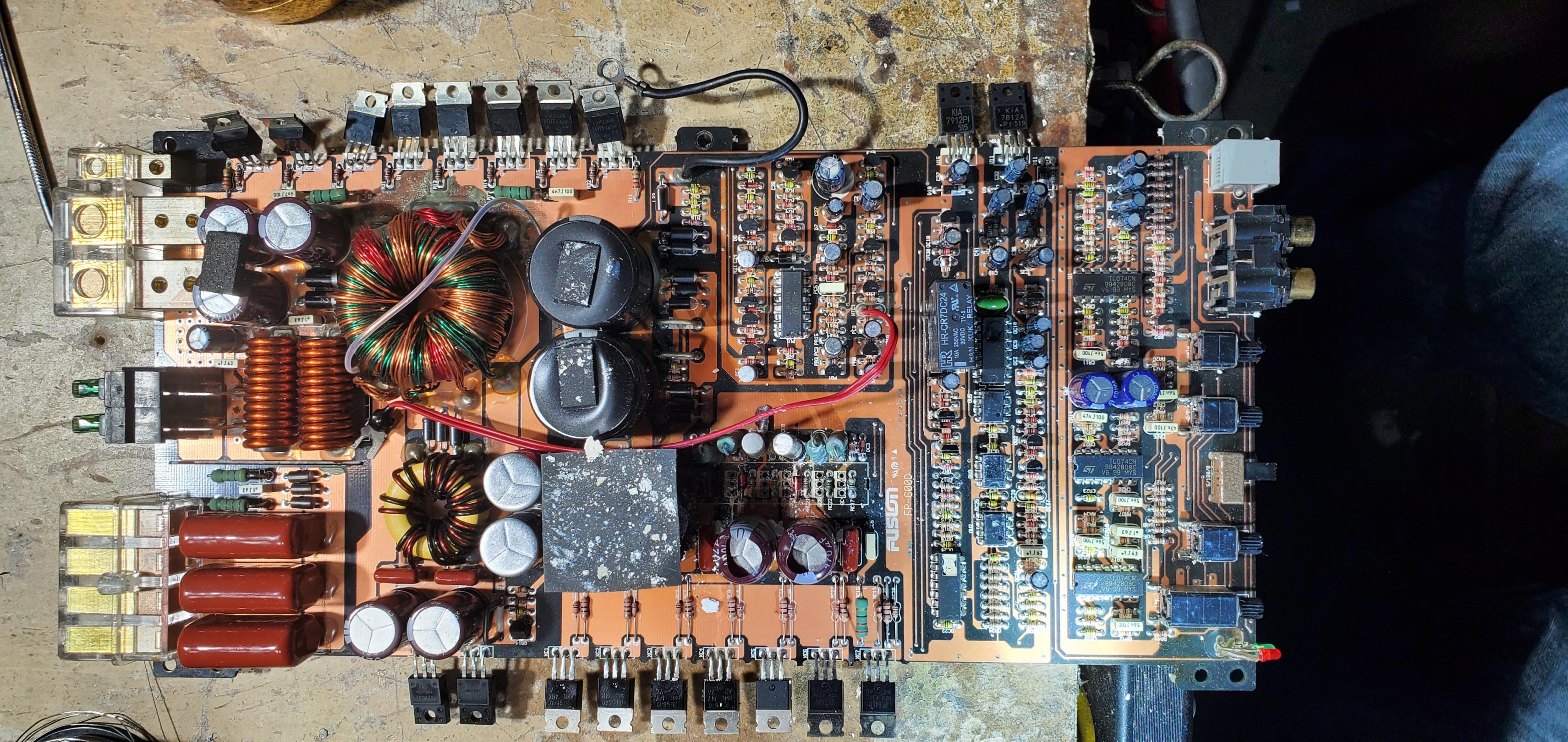

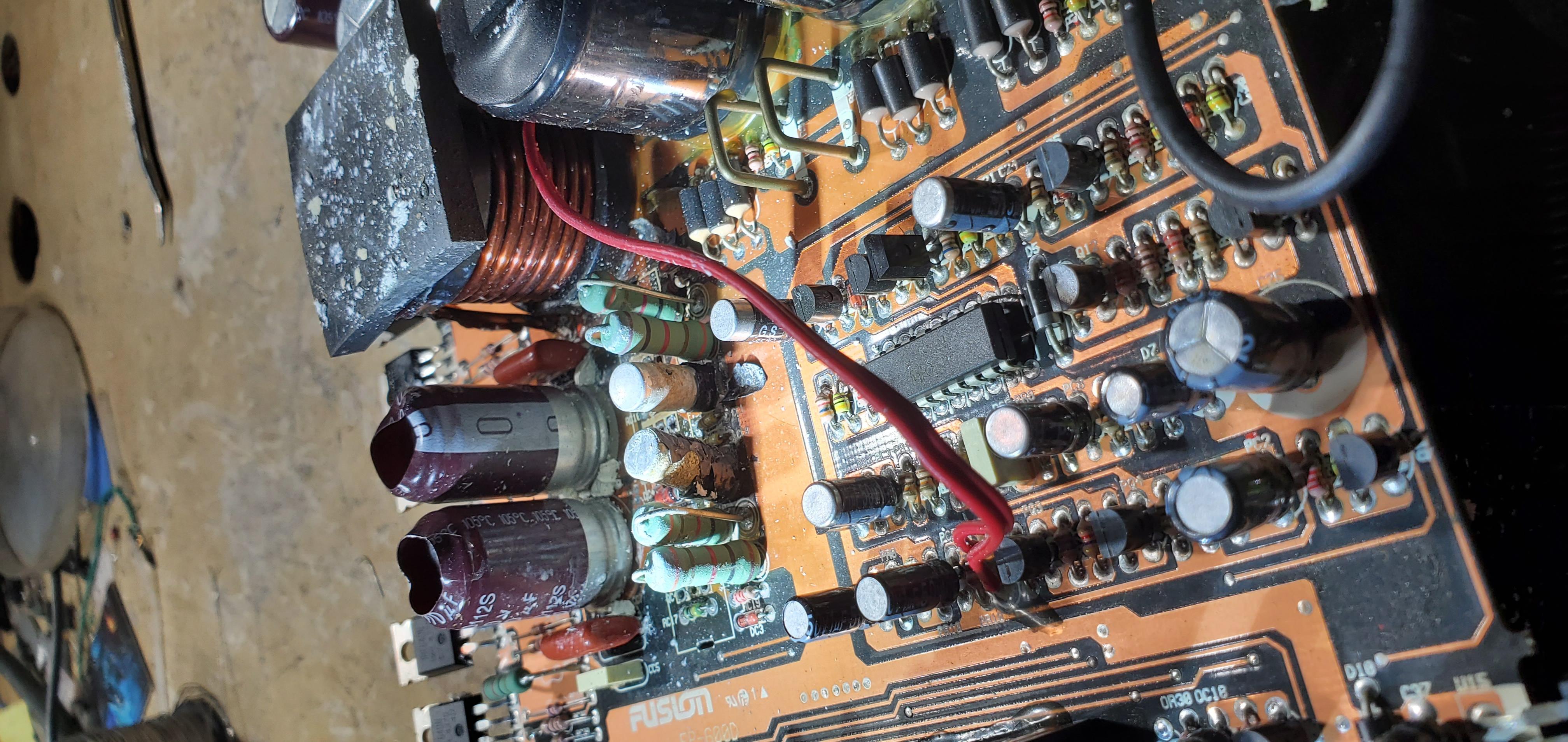

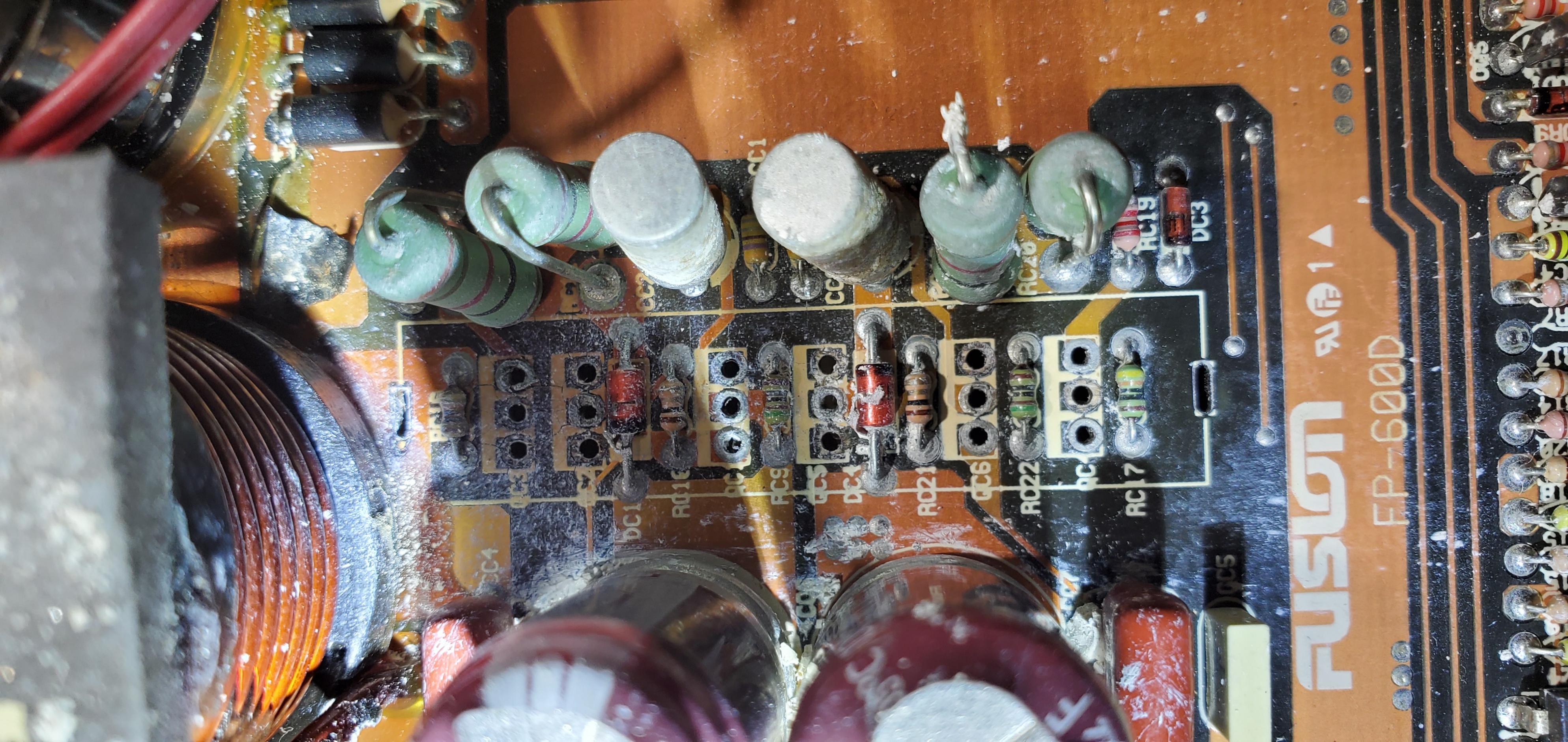

Does anyone have the cap values in the attached photo? I need the 2 in between the green 5 watt resistors.

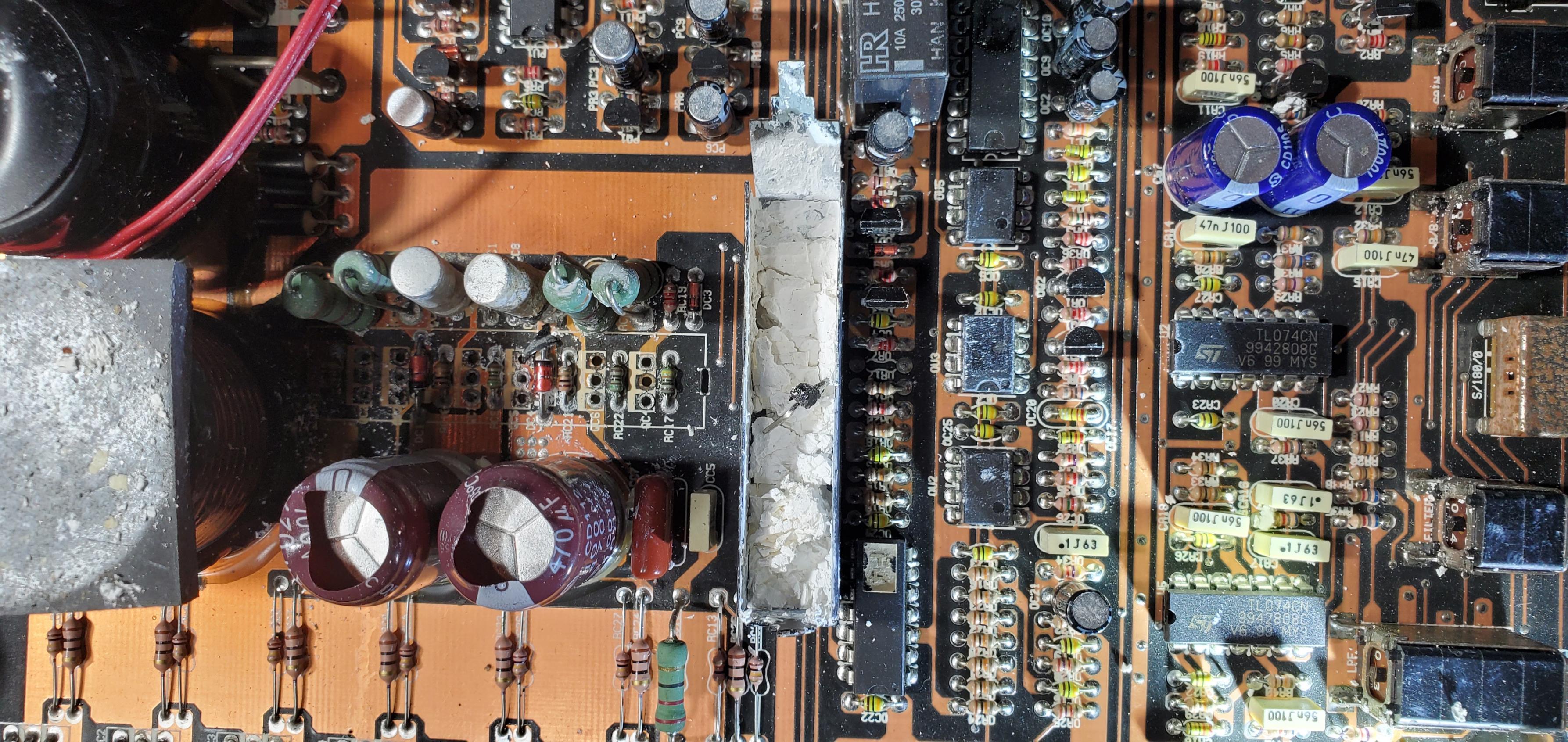

I would guess this section behind is the drive section for the audio fets? The transistors were all caked in a mini heatsink with thermal compound. They burned out the vias.

I was hoping to use ksc2690/ksa1220 in place of the ktc2803/kta1704 pair.
Is this feasible?

Notes for section behind capacitor.

Qc1 ktc2803
Qc2: kta1704
Qc3: ktc3503

Qc4: ksa1381
Qc5:ktc2803
Qc6:Kta1704
