Is this supposed to work?

1 Attachment(s)
Hi friends

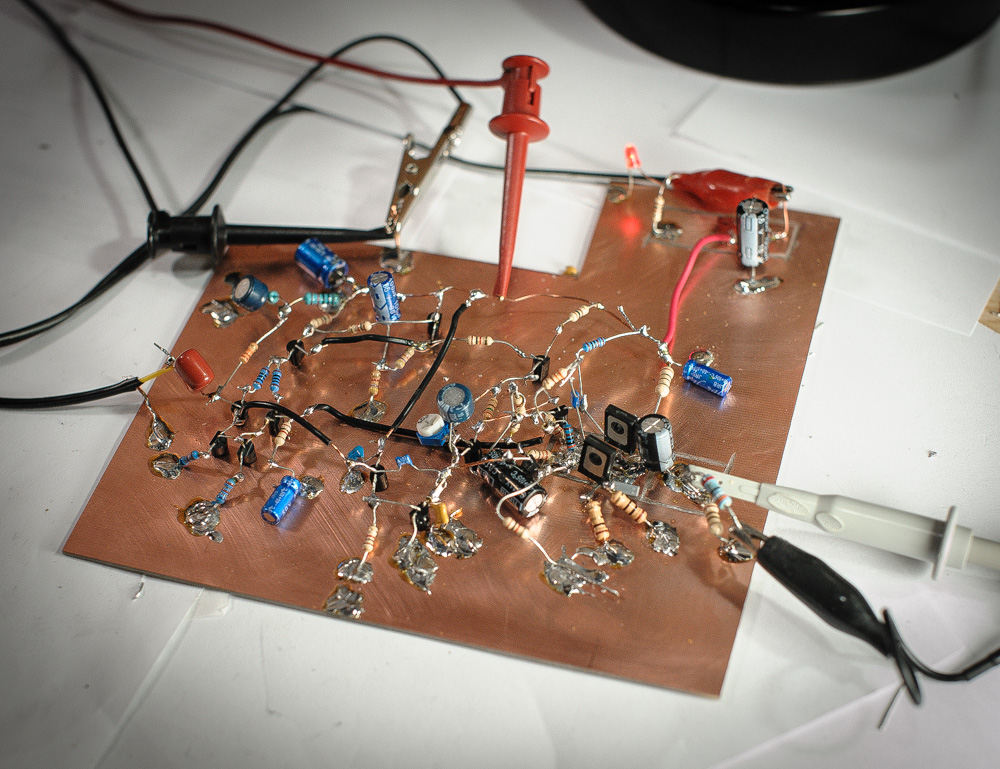

I just stumbled upon a website, qrp-popcorn.blogspot.com, where this image is published. This looks so weird I'm asking myself if this is actually supposed to work? how?

(is this really just a free-floating PTP construction, and all grounding is soldered onto the copperplate while the parts are connected in the air? Is this grounding working?)

#steeplearningcurve

all the best
david

Vovk Z 1st December 2019 03:41 PM

Why not? If it isn't high frequency staff than everything will work ok.

JonSnell Electronic 1st December 2019 03:45 PM

This technology was used in RF techniques especially RF pre amplifiers as they mount in a screened box as a ground plane, to prevent stray capacitance and interference problems.
Looks like it will work but very Heath Robinson!

Enzo 1st December 2019 06:08 PM

Or very Bob Pease.

myleftear 1st December 2019 06:17 PM

I think its looking very (VERY) cool.
I am really fond of (lacking a better expression) this ways of bringing love to stuff.

Galu 1st December 2019 06:25 PM

Or, perhaps the constructor had simply run out of etching fluid?

PRR 1st December 2019 11:29 PM

> this is actually supposed to work? how?

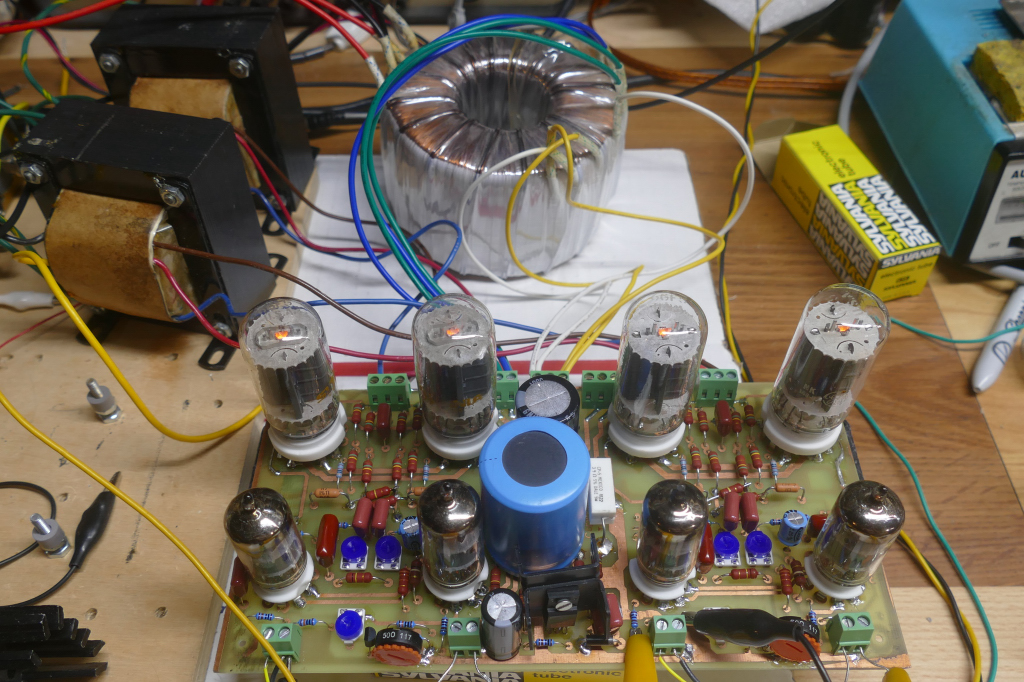

The ideal circuit board has "NO" effect on the circuit operation. So why have it?

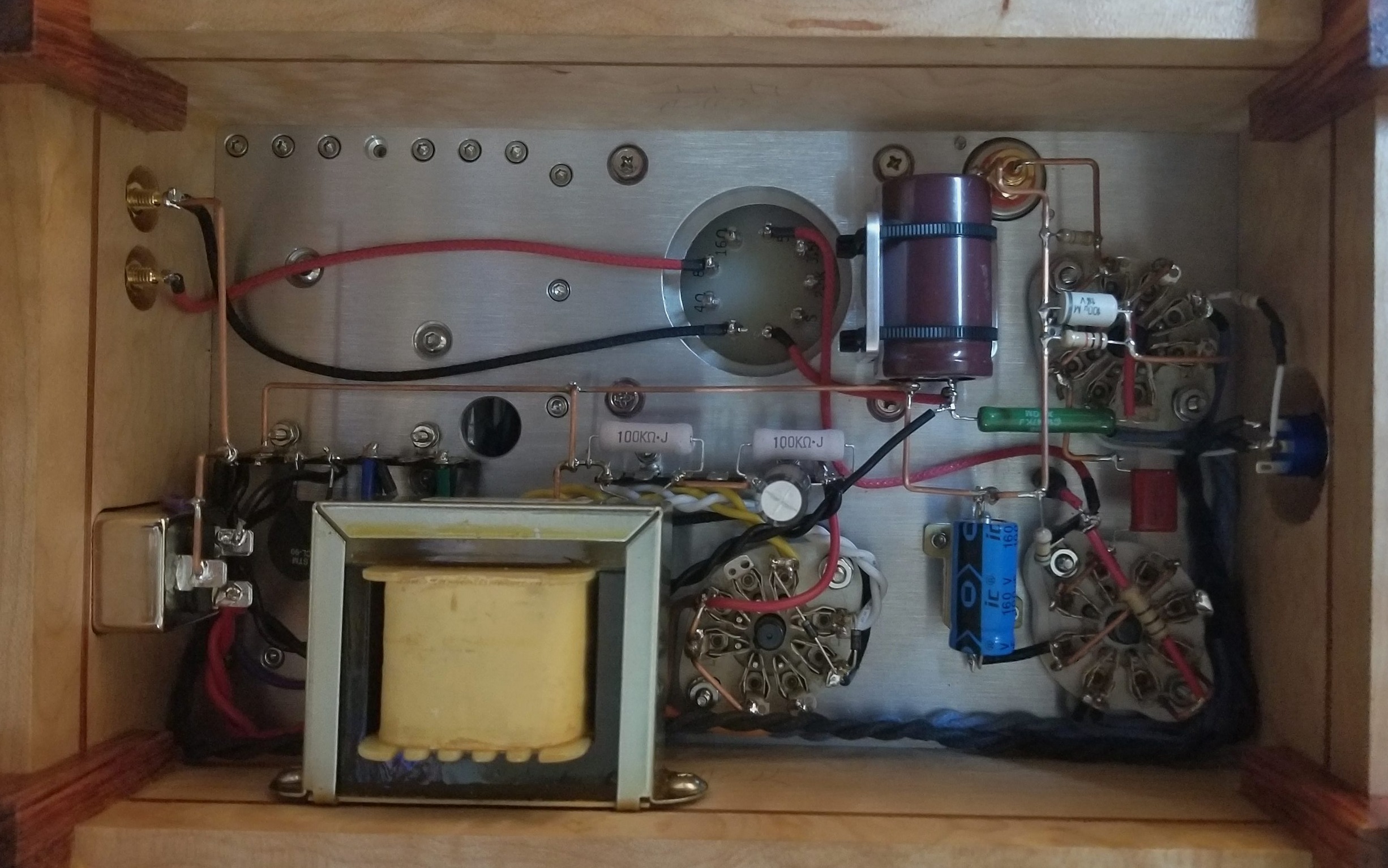

The primary problem here is that if the Rolling Stones take it on World Tour, or even if you ship it UPS/FedEx/USPS, parts will break off. The conventional tag-strips and boards give more support. And also don't need so much thinking to assemble (thinking is done in board design).

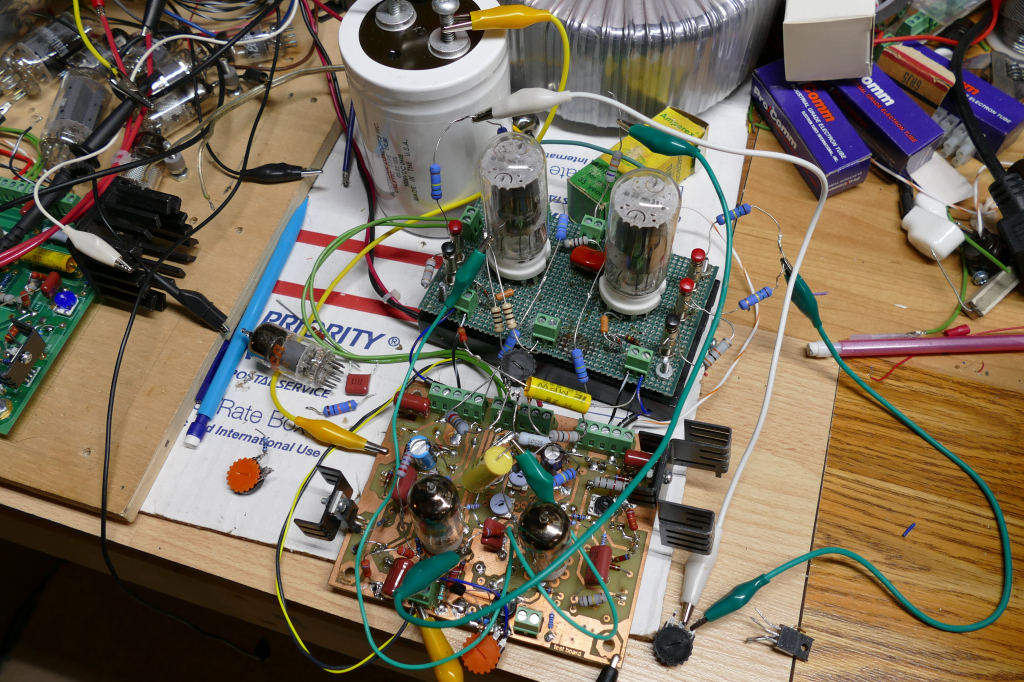

It excels for radio prototypes because a clever skilled builder can make critical connections very-very short, butt-to-butt if needed. I have done it for audio because I done so much 'clever' soldering it just comes natural. But not even for local road-trips, this build may be fragile. (It is possible to make it really robust but that needs skill and luck.)

Lingwendil 2nd December 2019 07:24 PM

ah yes, the "dead bug stuck to a glue trap" style :)

myleftear 2nd December 2019 08:33 PM

Is this supposed to work?

Rad, isnt it?
Im tempted to try it myself on a ACA (with paper-surrogates to begin with :) )

wiseoldtech 2nd December 2019 08:46 PM

Quote:

Originally Posted by myleftear (https://www.diyaudio.com/forums/construction-tips/346035-supposed-post5993578.html#post5993578)
Hi friends

I just stumbled upon a website, qrp-popcorn.blogspot.com, where this image is published. This looks so weird I'm asking myself if this is actually supposed to work? how?

(is this really just a free-floating PTP construction, and all grounding is soldered onto the copperplate while the parts are connected in the air? Is this grounding working?)

#steeplearningcurve

all the best
david


That thing's nothing more than some slop mess.
And anyone constructing such crap shouldn't have access to a soldering iron.
